Basic Specifications
Model NO.:YN-612
Color:Clear Transparent
Shape:Cylindrical, Rectangular, Round, Square, Half
Temperature:1000-1200℃
Use:Optical Fiber, Semiconductor, Industrial, Lamp
Feature:High Temp & Pressure Resistant
Package:Plywood Case
HS Code:8547100000
Product Overview
Quartz glass is a single-component glass of silicon dioxide, categorized into transparent quartz glass and opaque quartz glass (fused silica). Transparent quartz glass offers high optical uniformity and transparency with a SIO2 content above 99.95%, reaching up to 99.999% for high-purity grades. Opaque quartz glass, made from vein quartz or quartz sand, contains over 99.5% SIO2.
Key Characteristics
High Temp Resistance
Softening point of 1730°C. Sustainable use at 1100°C, with short-term peaks up to 1450°C.
Corrosion Resistance
Exceptional chemical stability; 30x better than ceramics and 150x better than stainless steel against acids (except hydrofluoric).
Thermal Stability
Extremely low expansion coefficient. Can withstand rapid cooling from 1100°C to room temperature water without bursting.
Optical Performance
Over 93% visible light transmittance and excellent performance from ultraviolet to infrared spectrums.
Technical Parameters
| Item | Value |
| Density | 2.2 g/cm3 |
| Compressive strength | 1100 mpa |
| Flexural strength | 67 mpa |
| Tensile strength | 48 mpa |
| Poisson's ratio | 0.14-0.17 |
| Young's modulus | 72000 mpa |
| Moh's hardness | 5.5-6.5 |
| Thermal conductivity (20C) | 1.4W/m.C |
| Refractive index | 1.4585 |
| Dielectric constant | 3.7-3.9 |
Product Range

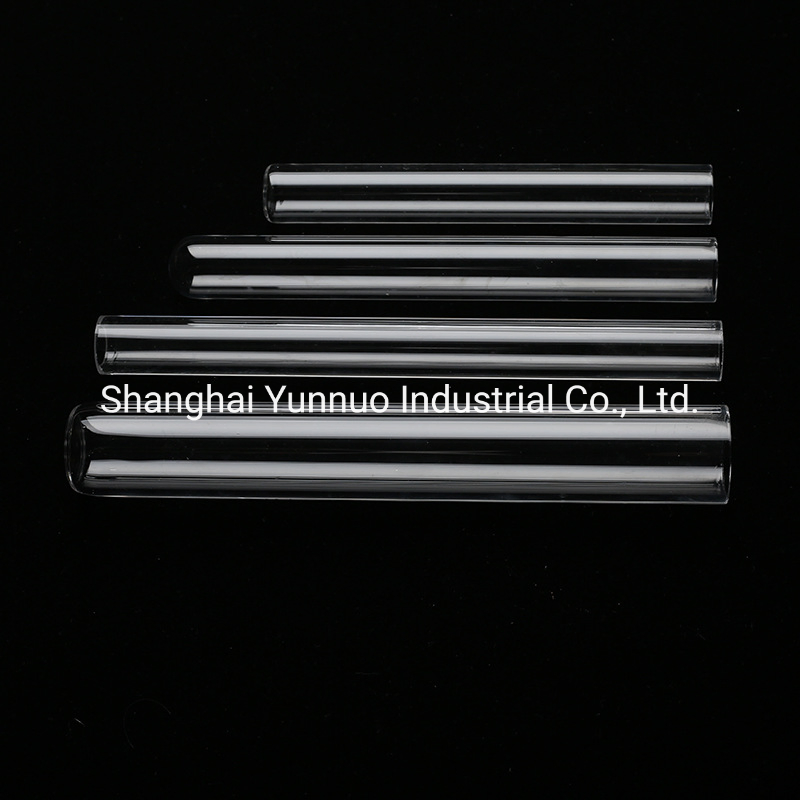

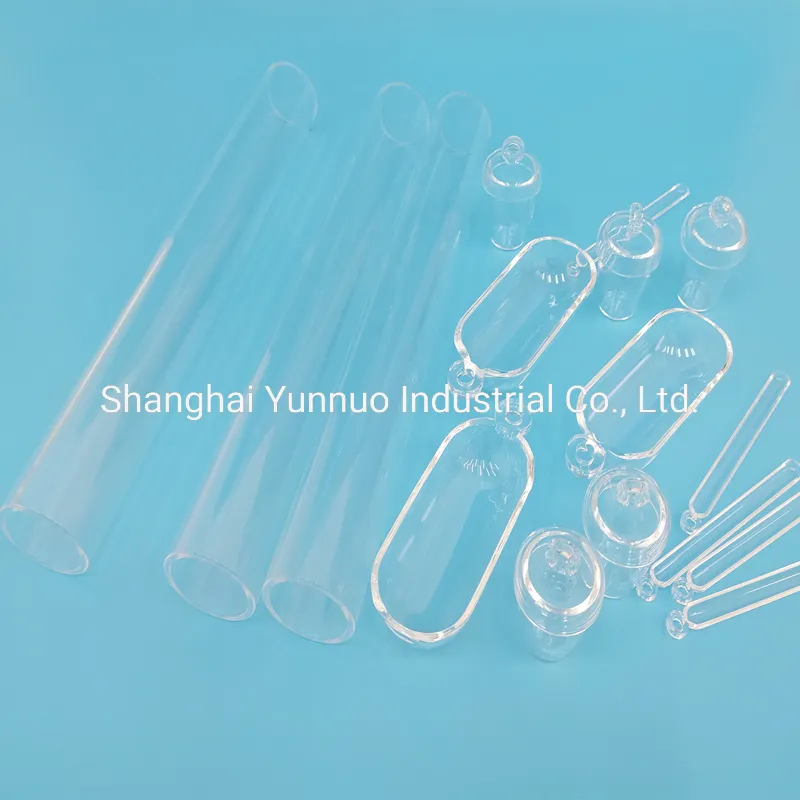

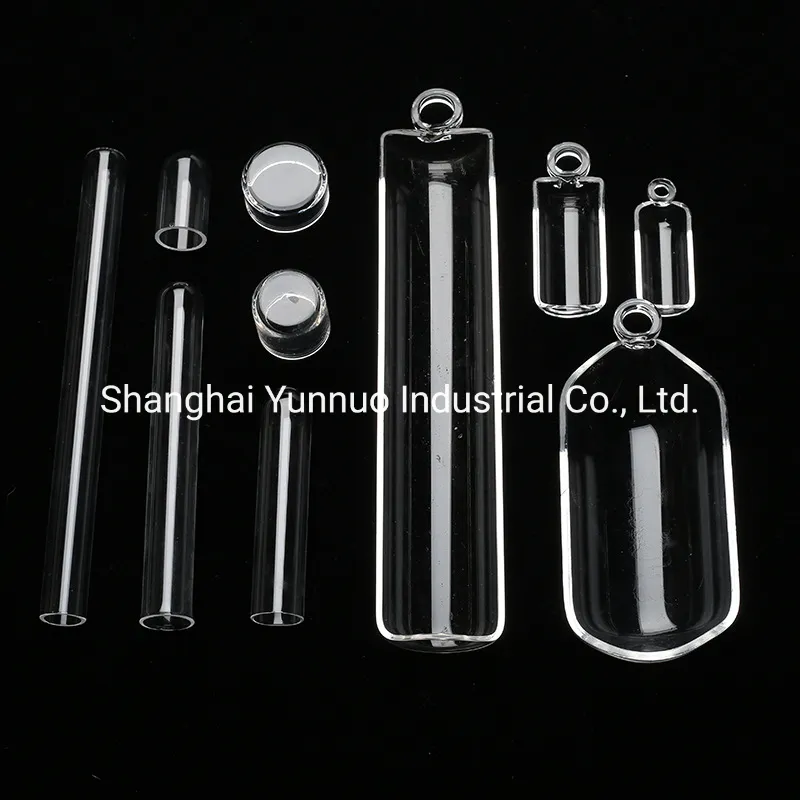

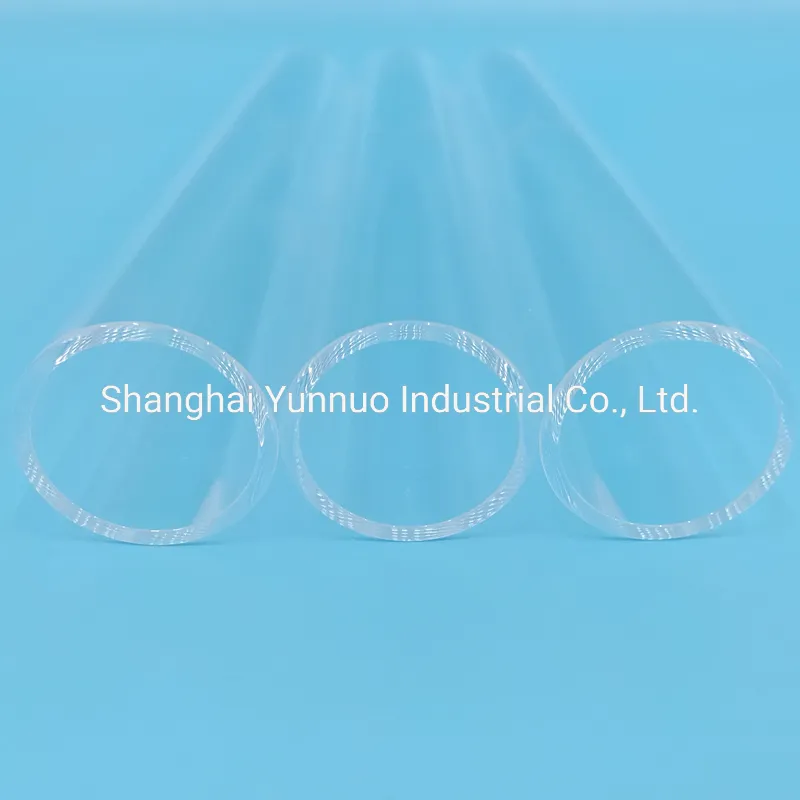

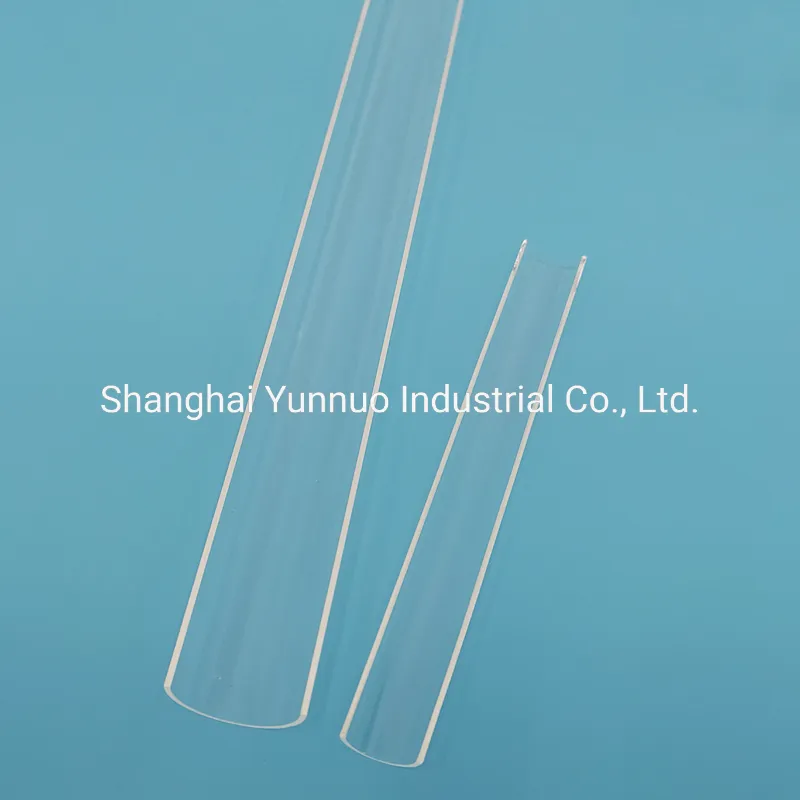

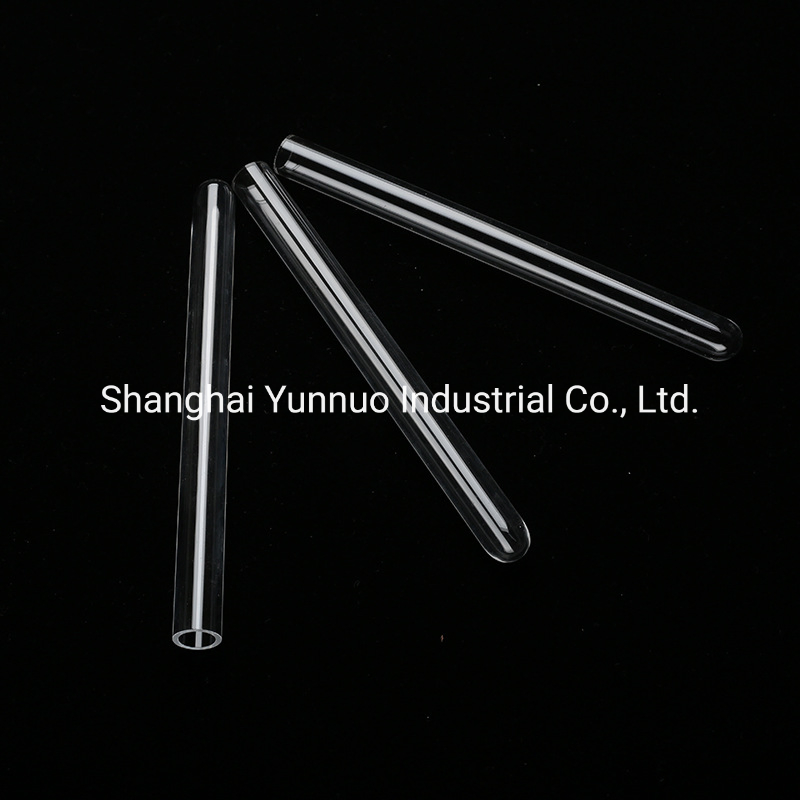

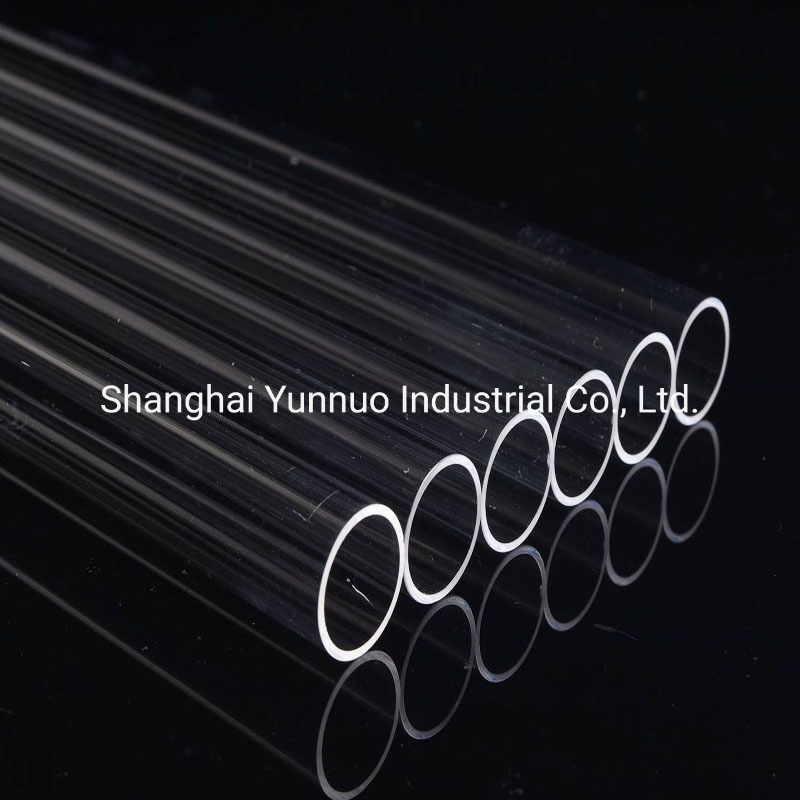

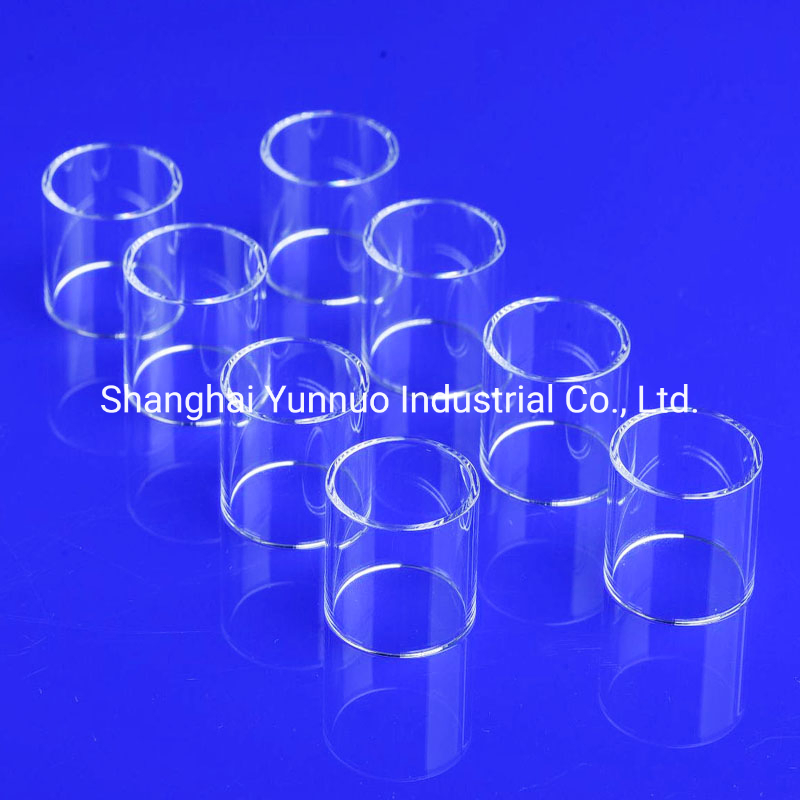

- Quartz Glass Tube (OD 1-450MM, wall thickness 0.5-20mm)
- Quartz Glass Rod (OD 1.5-80MM)

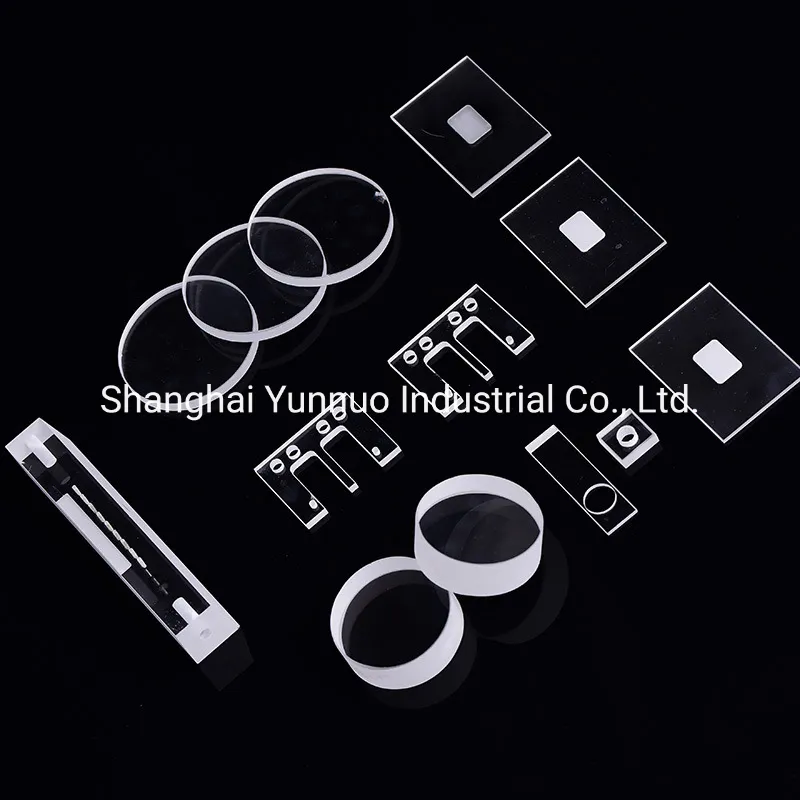

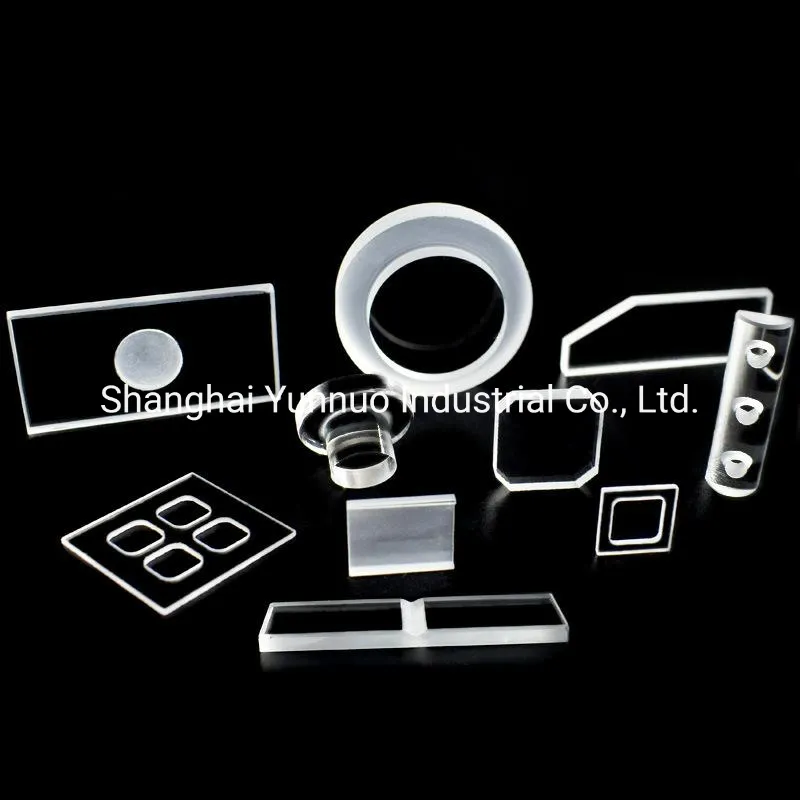

- Quartz Glass Plate (Various shapes: transparent, frosted, punching)

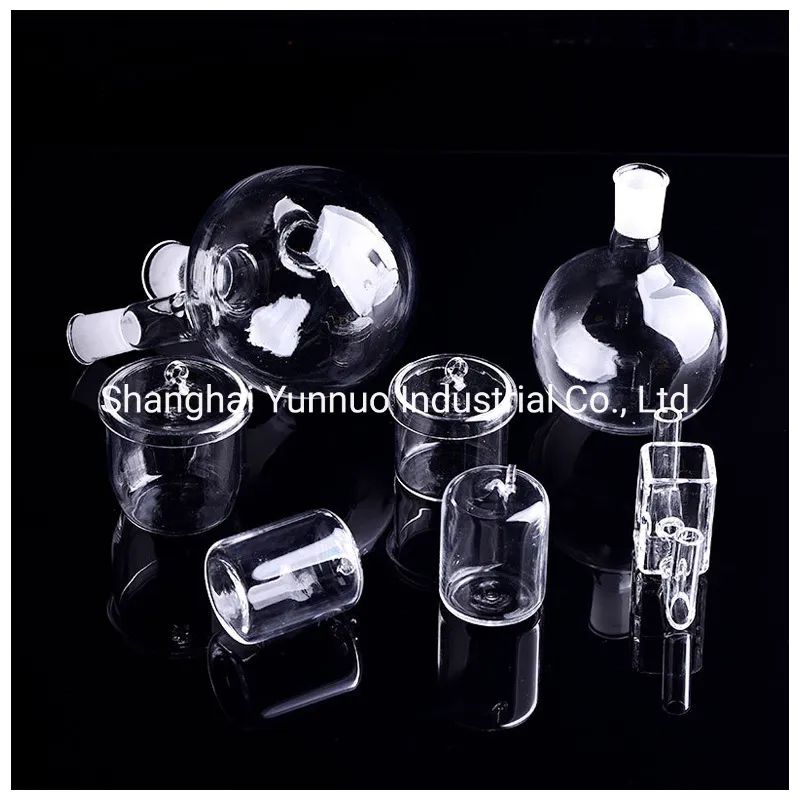

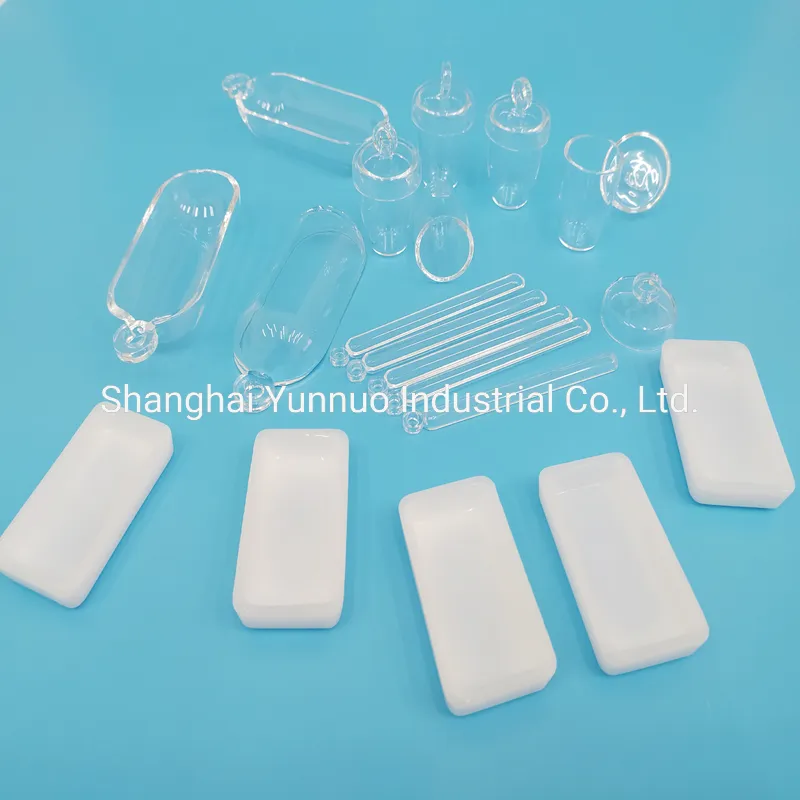

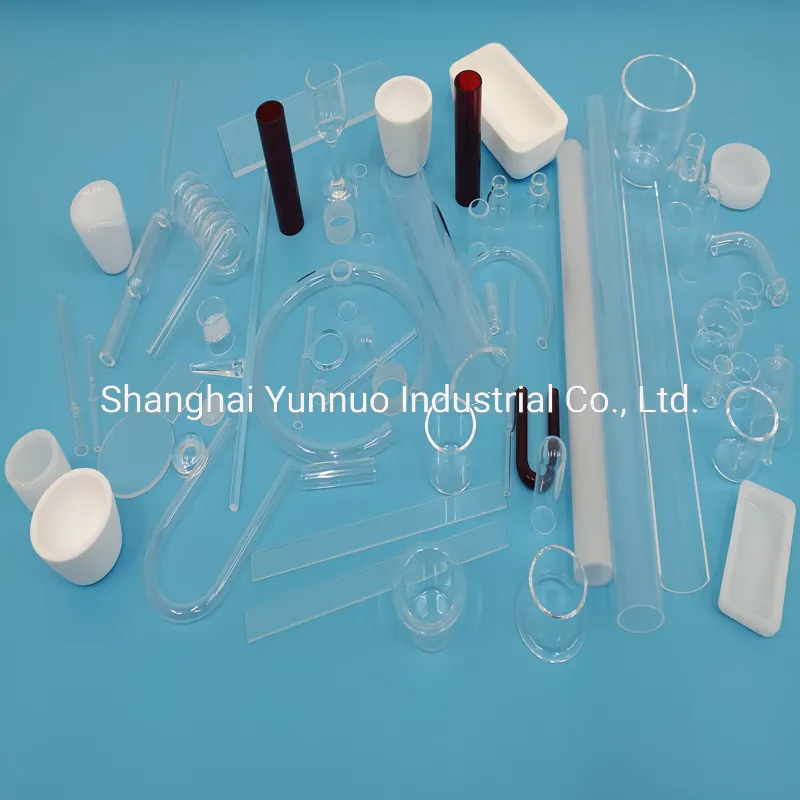

- Laboratory Quartz Wares & Instruments
Product Gallery
Frequently Asked Questions
What is the maximum working temperature for this quartz glass?
The quartz glass can be used continuously at 1100°C, and can withstand short-term exposure up to 1450°C due to its high softening point of 1730°C.
Is the quartz glass resistant to chemical corrosion?
Yes, it has excellent acid resistance (except for hydrofluoric acid), performing 30 times better than ceramics and 150 times better than stainless steel.
What are the primary applications for Model YN-612?
It is widely used in semiconductors, optical communications, electric light sources, laboratory instruments, and various high-temperature industrial environments.
Can quartz glass withstand sudden temperature changes?
Absolutely. It has a very low thermal expansion coefficient and can be moved from 1100°C heat directly into room temperature water without cracking.
What is the transparency level of the clear quartz glass?
Transparent quartz glass offers a visible light transmittance of above 93%, with exceptional performance in the ultraviolet spectrum (over 80%).
Do you offer customized sizes and shapes?
Yes, we provide customization for various shapes including cylindrical, rectangular, round, and square, as well as specific dimensions for tubes, rods, and plates.
