FibroCeram Materials
FibroCeram Materials
Ceramic Fiber Braided Square and Round Rope, Twist Rope, Lagging Rope, and Sleeving.
Ceramic fiber stands out among various organic and inorganic fibers as an ideal replacement for asbestos. These packings are manufactured from high-quality ceramic fiber, offering excellent high-strength capabilities and superior high-temperature resistance.
🔹 Ceramic Fiber Square and Round Rope
Braided by ceramic fiber yarns, these are used as heat insulation materials and serve as an excellent substitute for asbestos rope. Typically applied in stoves, burners, heat exchangers, and chimney door sealing.
Ceramic Fiber Square Rope:
Size: 6mm x 6mm to 50mm x 50mm
Working Temperature: 800ºC ~ 1400ºC

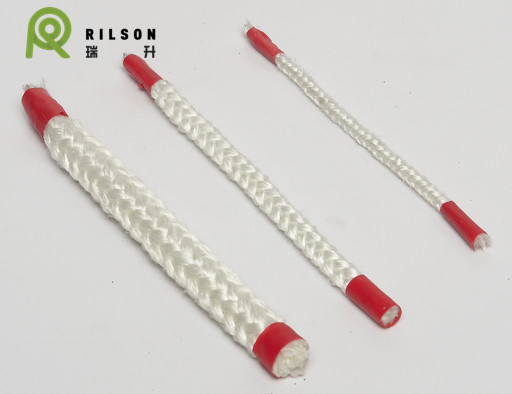

Ceramic Fiber Round Rope:
Size: 6mm to 50mm
Working Temperature: 800ºC ~ 1400ºC
| Code | Name | Application | Reinforcement Style | Temp ºC |
|---|---|---|---|---|
| RSIP-3-1 | Ceramic fiber square rope | Stoves, burners, heat exchangers, kiln cars, chimney sealing | Fiberglass or Wire reinforcement | 650 ~ 1260 |
| RSIP-3-2 | Twisted Ceramic fiber rope | Expansion joints, seals for stoves and ovens, tadpole tapes | Fiberglass or Wire reinforcement | 650 ~ 1260 |
| RSIP-3-3 | Ceramic fiber round rope | High temp electrical cables, wire covering, pipe wrapping | Fiberglass or Wire reinforcement | 650 ~ 1260 |
| RSIP-3-4 | Ceramic fiber lagging rope | Substitute for asbestos tape, kiln car sealing, heat exchangers | Open or close (outside mesh) | 650 ~ 1260 |
| RSIP-3-5 | Ceramic fiber sleeving | High temperature pipe wrapping and electrical cable protection | Fiberglass or Wire reinforcement | 650 ~ 1260 |
