FibroCeram Materials
FibroCeram Materials

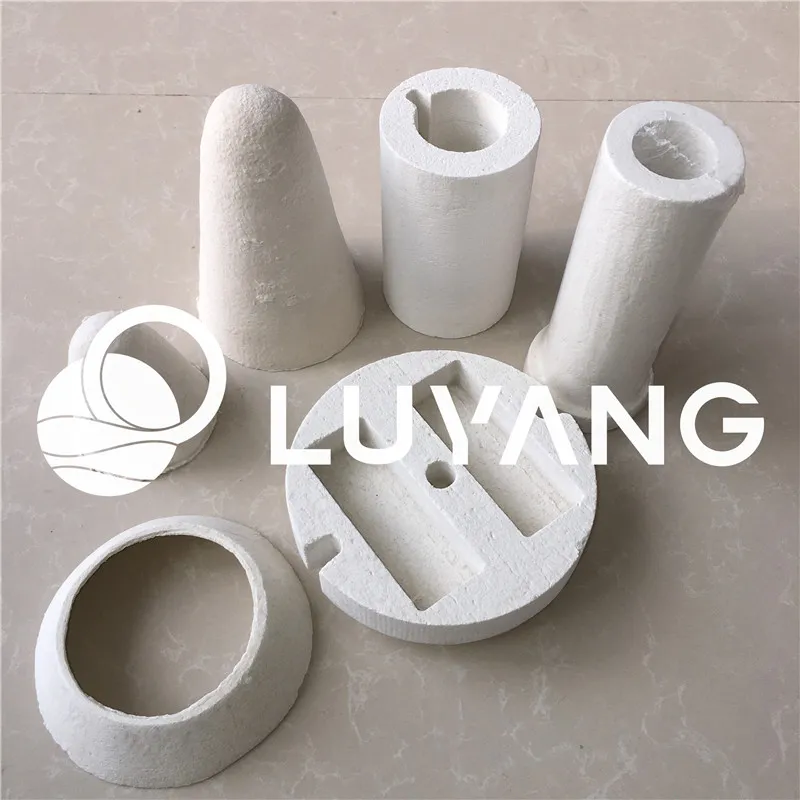

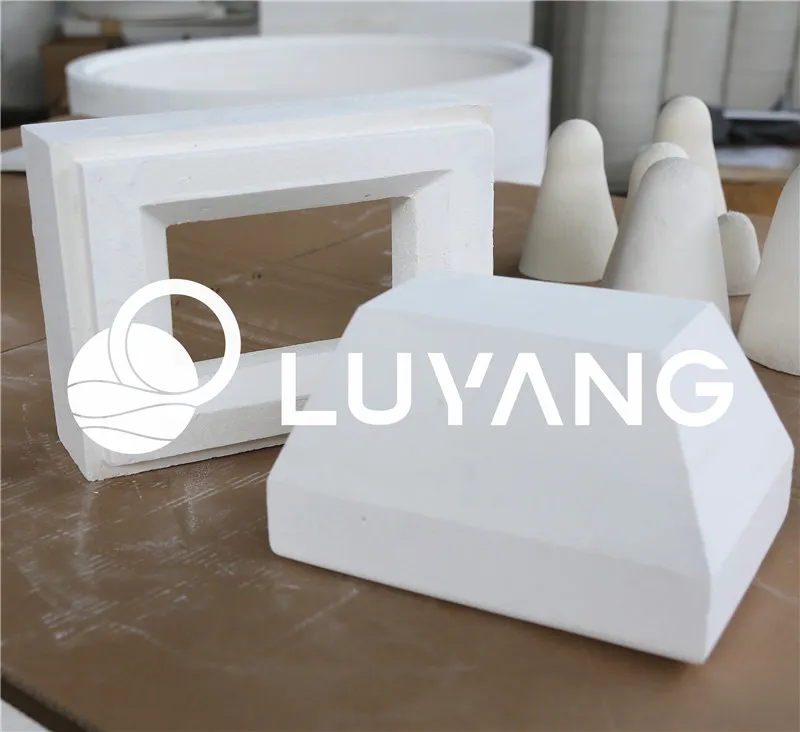

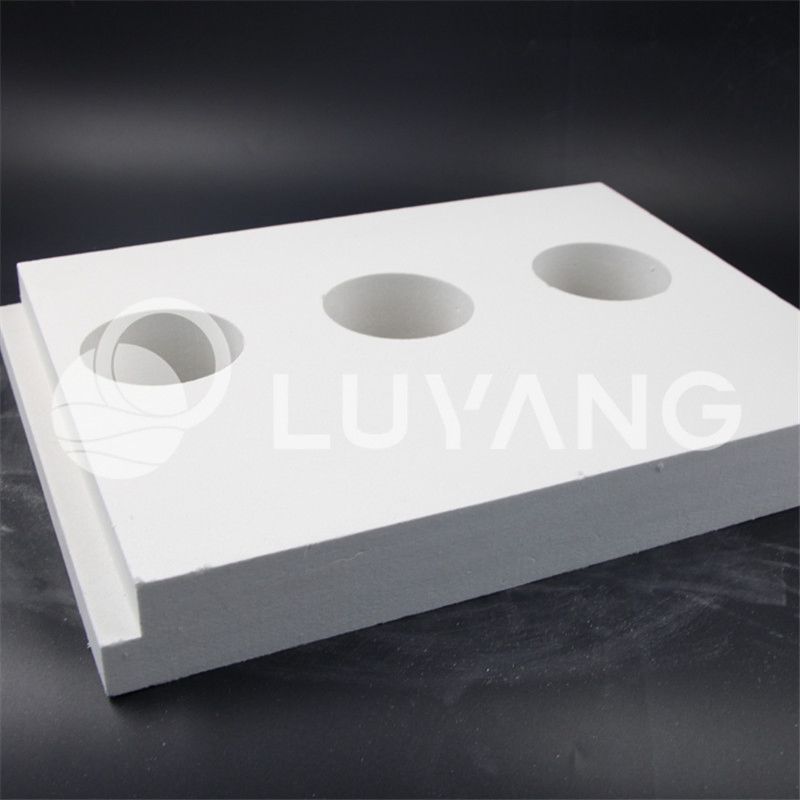

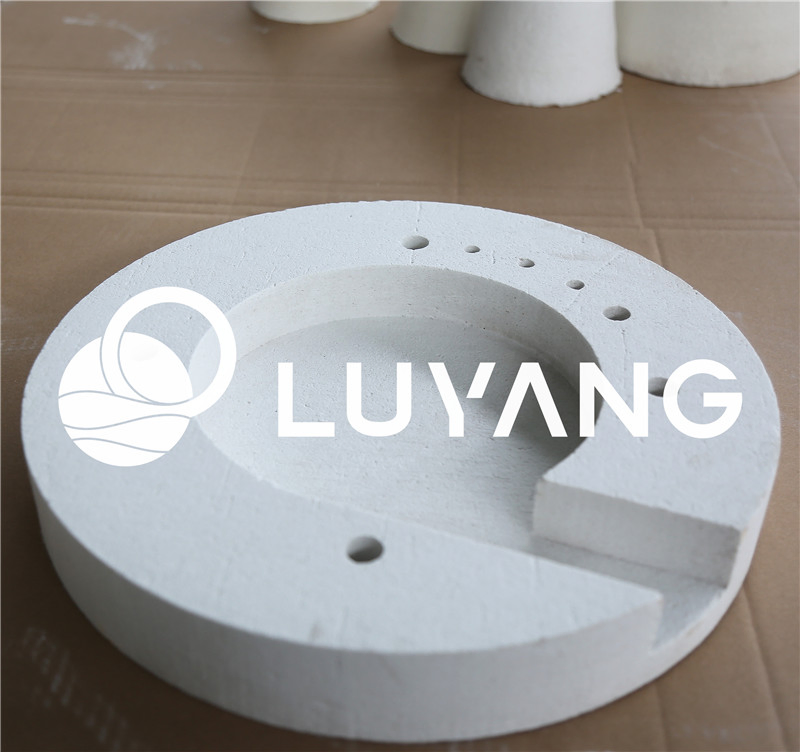

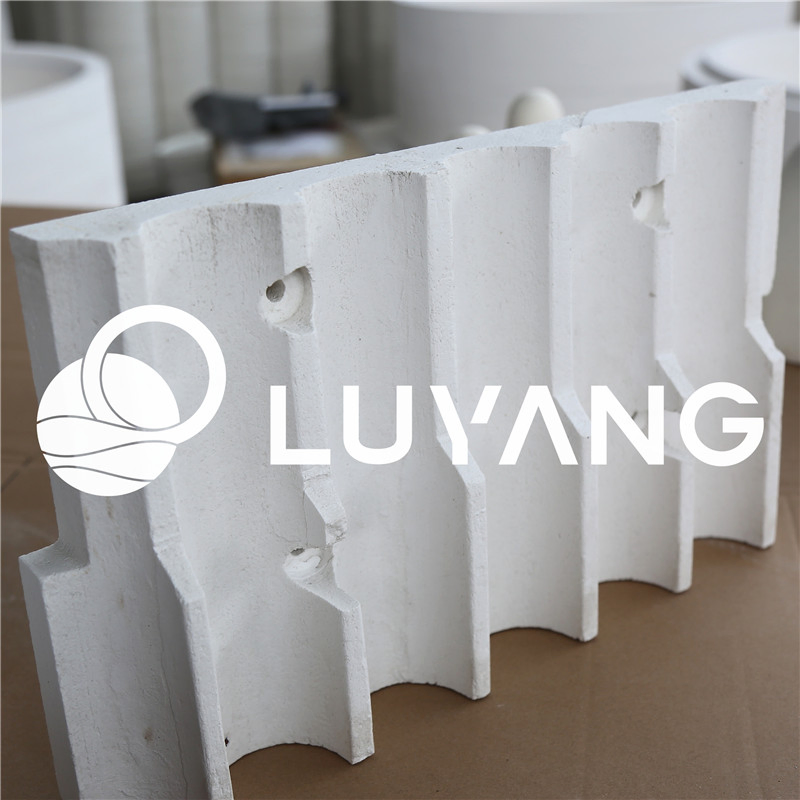

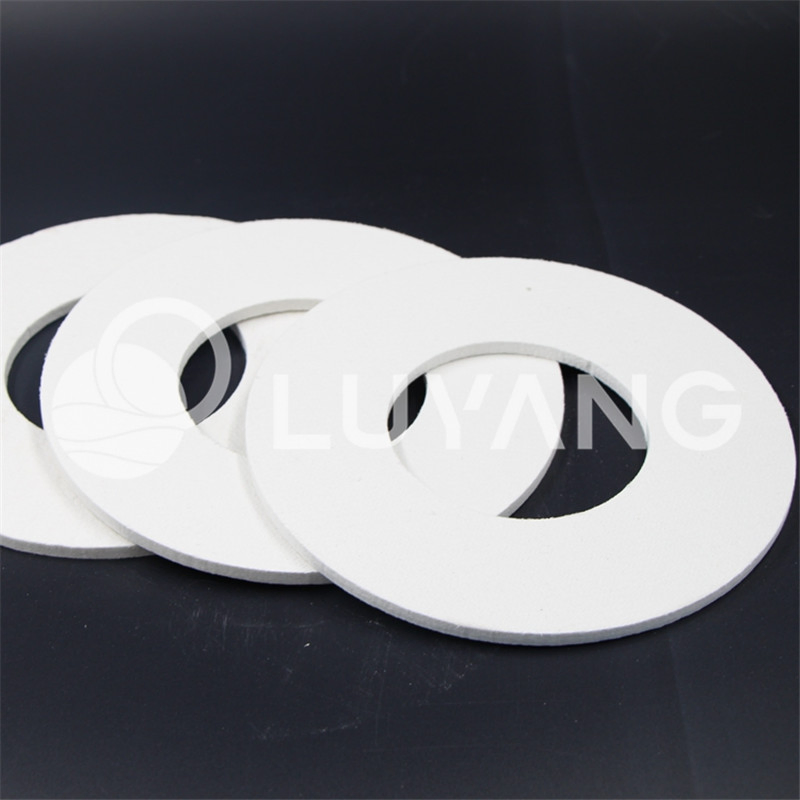

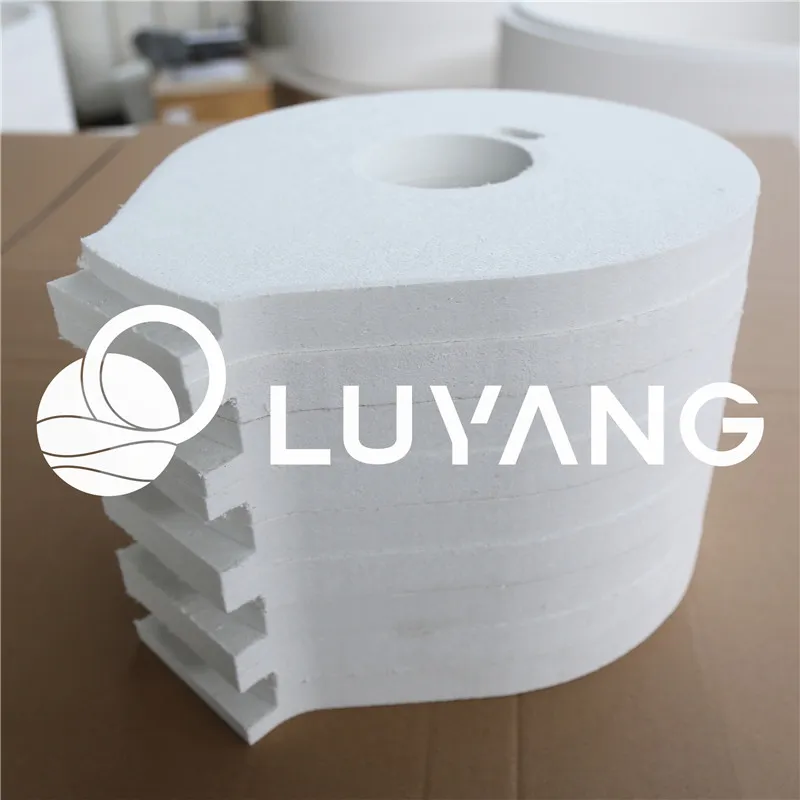

Ceramic fiber shapes are produced from corresponding level refractory fibre mixture through vacuum forming. These shapes are ideal energy-efficient insulation materials for furnaces, piping, and other equipment.
Support surface hardening or completely hardening to every level shapes according to demand.
| Fireproof Chimney Pipe Insulation | 1260STD | 1260HP | 1350HA | 1430Zr | |
| Density (KG/m3) | 280-400 | 280-400 | 280-400 | 280-400 | |
| Linear Shrinkage Rate (%) (24h) | ≤1.5 (1000) | ≤1.5 (1000) | ≤1.5 (1100) | ≤1.5 (1200) | |
| Flexural Strength (mpa) | >=0.6 | >=0.6 | >=0.6 | >=0.6 | |
| Thermal Conductivity (W/m.k) | 400ºC | 0.08 | 0.08 | - | - |
| 600ºC | 0.15 | 0.15 | 0.14 | 0.12 | |
| 800ºC | 0.20 | 0.19 | 0.18 | 0.16 | |
| 1000ºC | - | - | 0.21 | 0.19 | |
| Chemical Composition (%) | Al2O3 | 44-46 | 47-49 | 52-55 | 38-43 |
| Al2O3 + SiO2 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | |
| ZrO3 | - | - | - | 15-17 | |
| Other | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
