Product Description

📊 Basic Information

Model NO.
KT-1430
Chemical Composition
SiO2, Al2O3.SiO2, Al2O3
Shape
Ceramic Fiber Plate
Manufacturing Technique
Jilt Silk Rug
Kind
Ordinary Ceramic Fiber
Color
White
Density
200±10
Organic Content%
6-8
Permanent Linear Shrinkage
≤3.5(1200℃×24h)
Specification
1-6mm

🛠️ Product Description

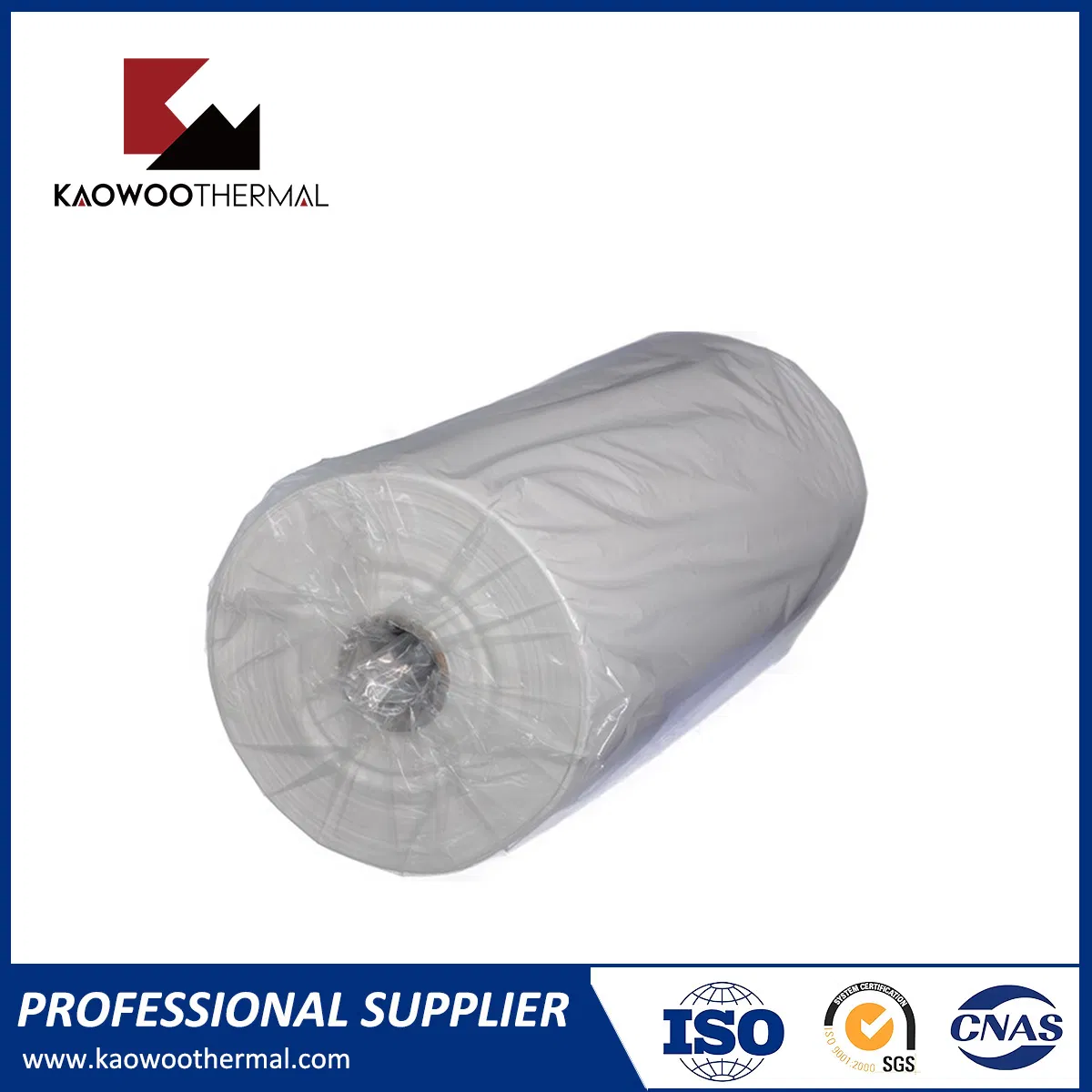

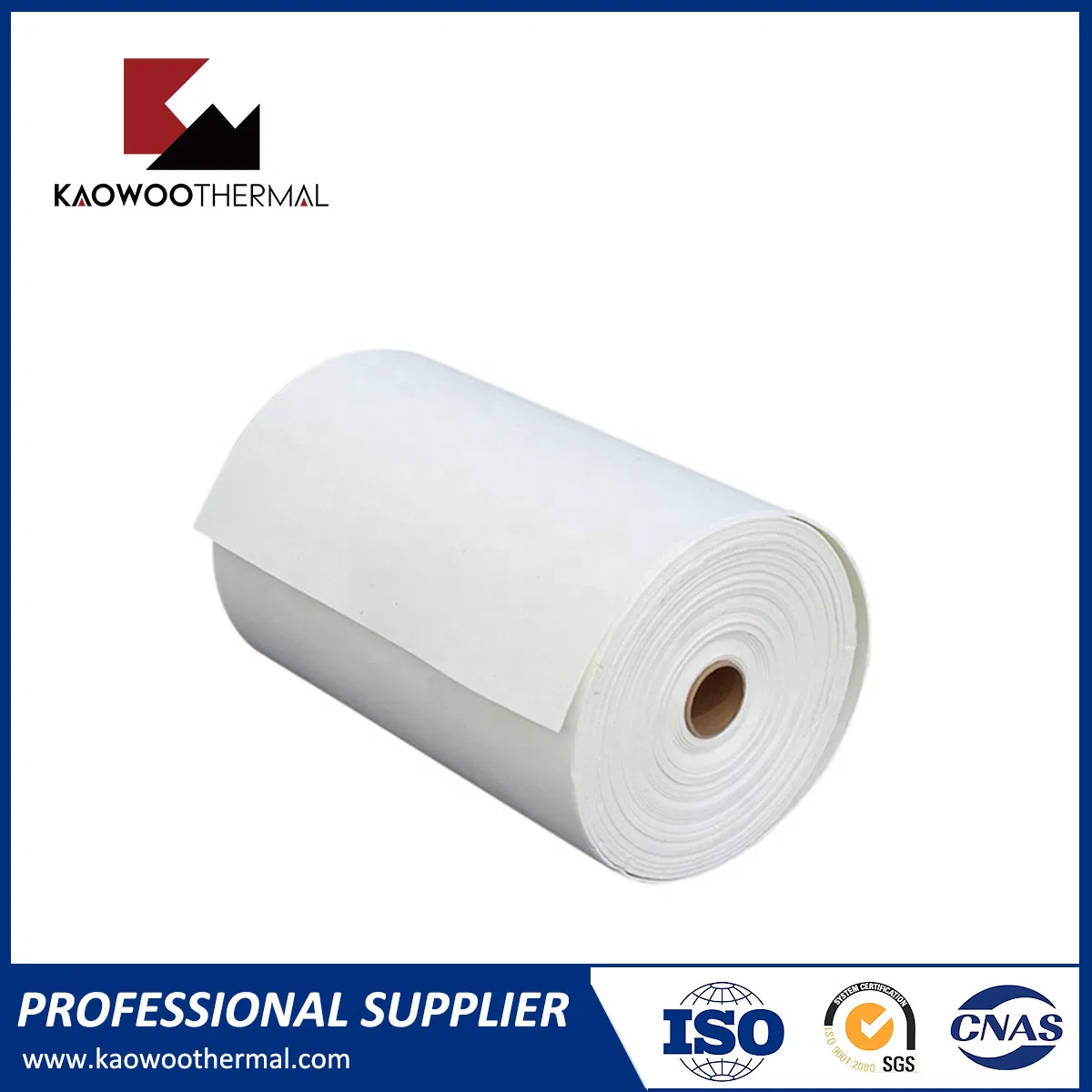

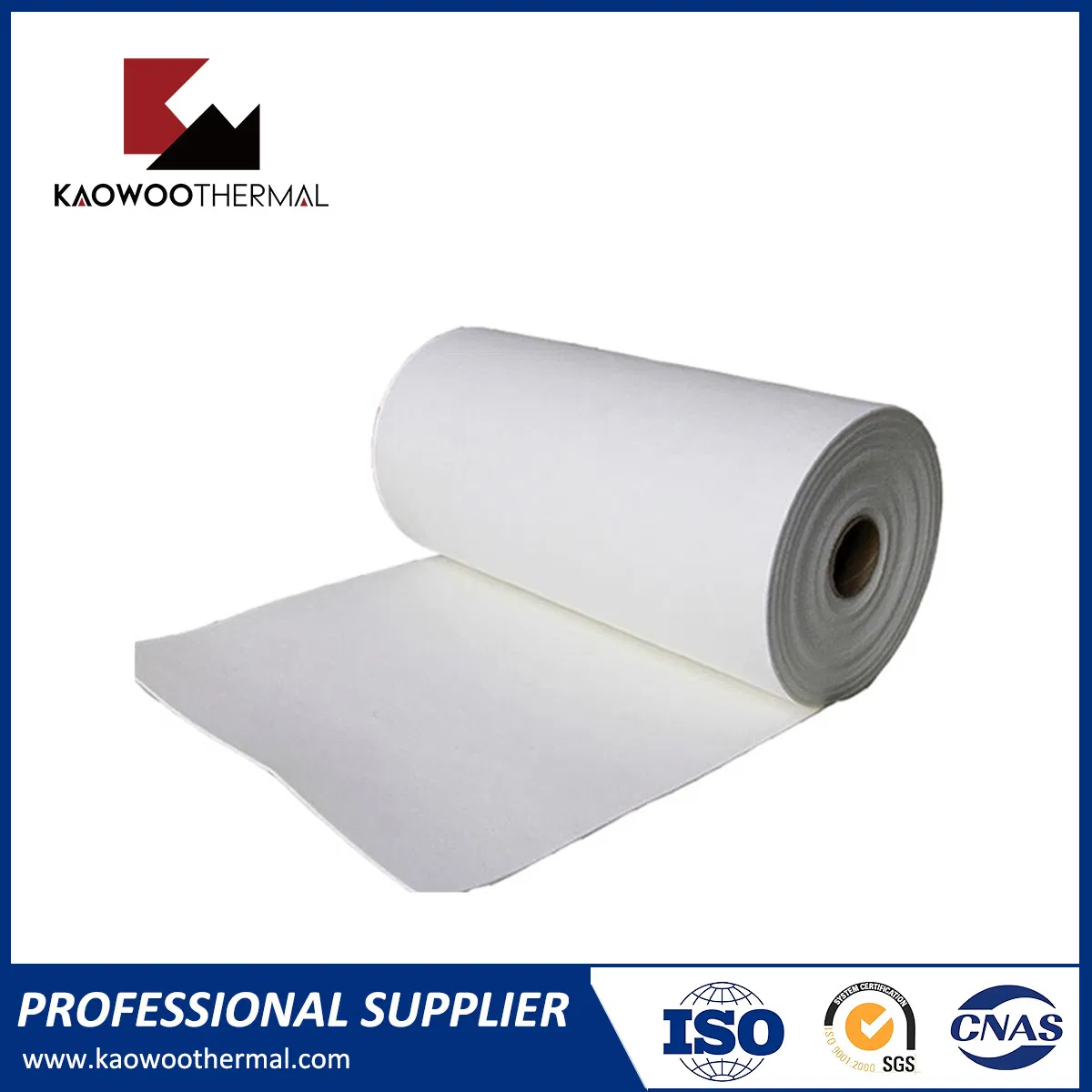

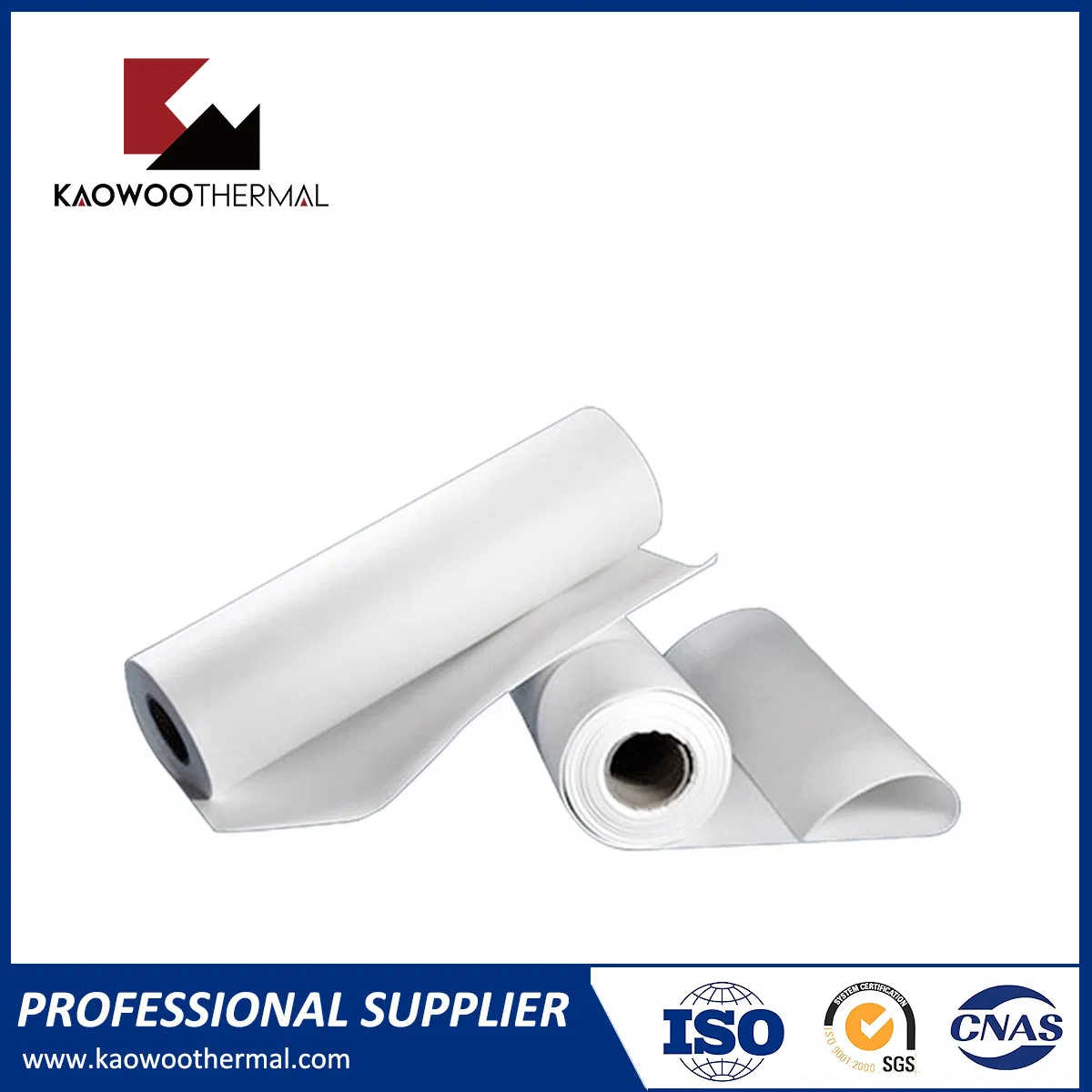

Refractory Fireproofing Fire Paper Ceramic Wool Ceramic Fiber Paper

Ceramic fibre paper is manufactured from high purity ceramic fibre, adopting the wet inorganic ceramic fiber mechanization to implement a continuous production. Advanced production techniques ensure uniform fibre distribution and close control of thickness and density. Ceramic fibre paper adds minimum addition of carefully selected bonds, which burn out cleanly in service.

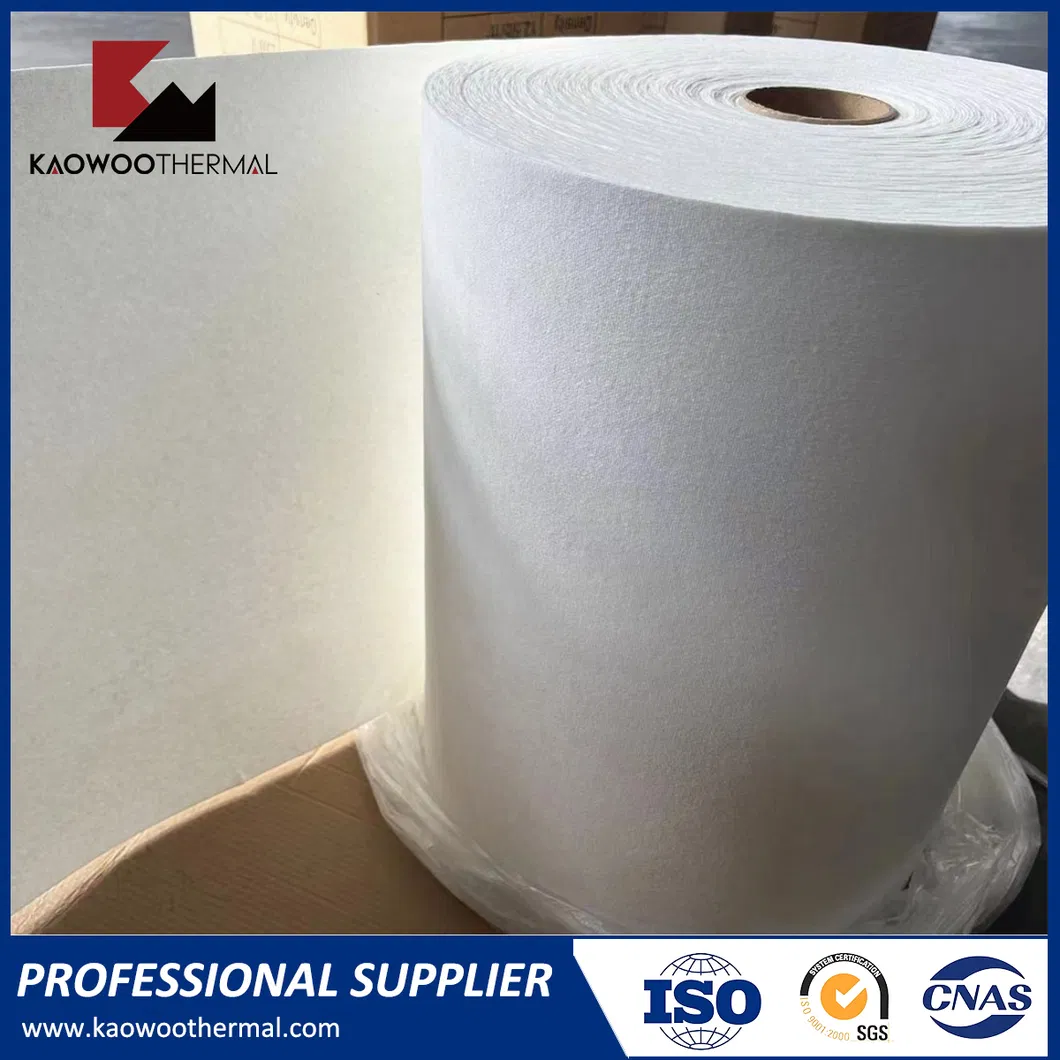

Ceramic Fiber Paper
Refractory Fire Paper

🌟 Key Features

  • Low thermal conductivity, low thermal capacity
  • Low shot content
  • Good resistance to tearing, high flexibility
  • Asbestos-free, corrosion resistant, non-reactive to liquid aluminum
  • Excellent electrical and sound insulation performance
  • Superior mechanical performance

🚀 Typical Application

  • Industrial insulation, seal, and protective materials
  • Electric heat device and heat insulation materials
  • Molten metal gaskets
  • Instrument equipment and electric heating element insulation for liquid aluminum
  • Fire protection systems
  • Thermal barriers for vehicles and spaceflight
  • Fillers of expansion joints
Application display

📐 Product Parameters

Classification temperature(ºC) 1260 1430
Density(kg/m³) 200±15 200±15
Organic content(%) 6-8 -
Tensile strength(kpa) 1mm≥300; 2mm-6mm≥400 -
Permanent linear shrinkage (%) ≤3.5(1000ºC×24h) ≤3.5(1200ºC×24h)
Thermal conductivity 400ºC 0.115-0.121
Thermal conductivity 600ºC 0.165-0.175

🏢 Company Overview

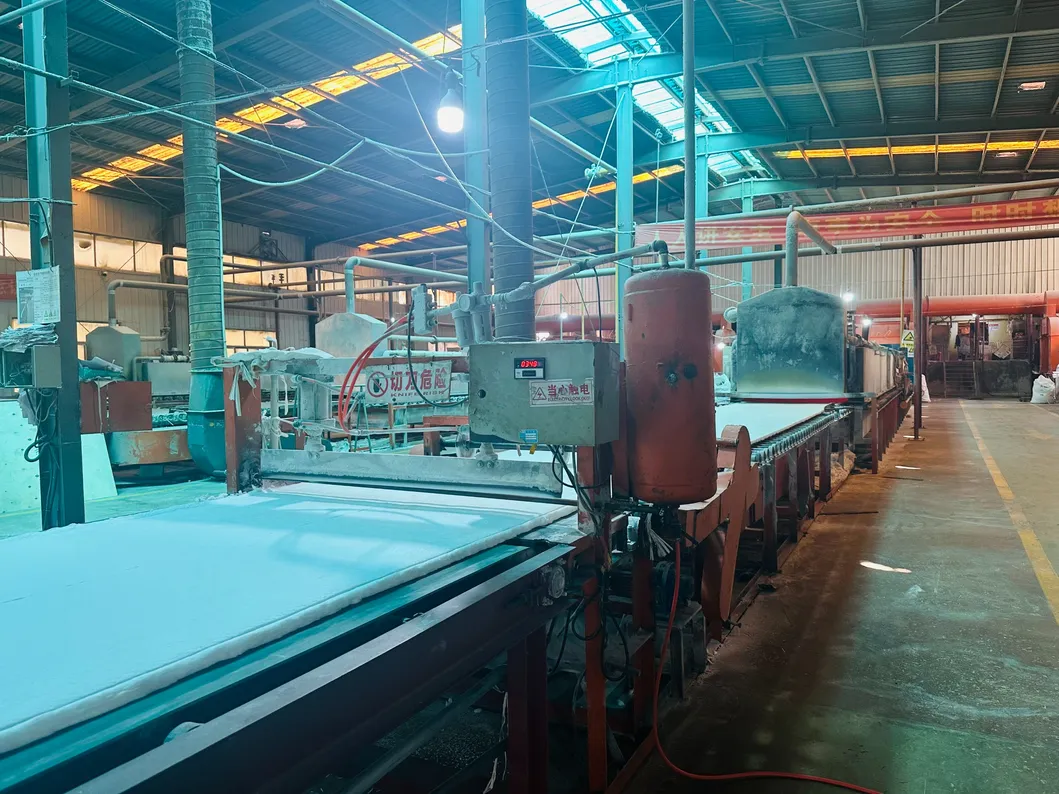

The company is a high-temperature insulation products manufacturing and thermal engineering services company, committed to energy saving and services in the field of high temperature. Main business includes the production and supply of various types of refractory materials, customized professional lining design, and engineering supervision.

Products are widely used in metallurgy, petrochemical, machinery, ceramics, glass, and electronics for heating equipment and fire protection projects, saving up to 15%-25% of energy consumption. Our products are exported to South Korea, Japan, Vietnam, India, the Middle East, Europe, and the United States.

🔥 Hot Sales Products

📦 Packaging & Shipping

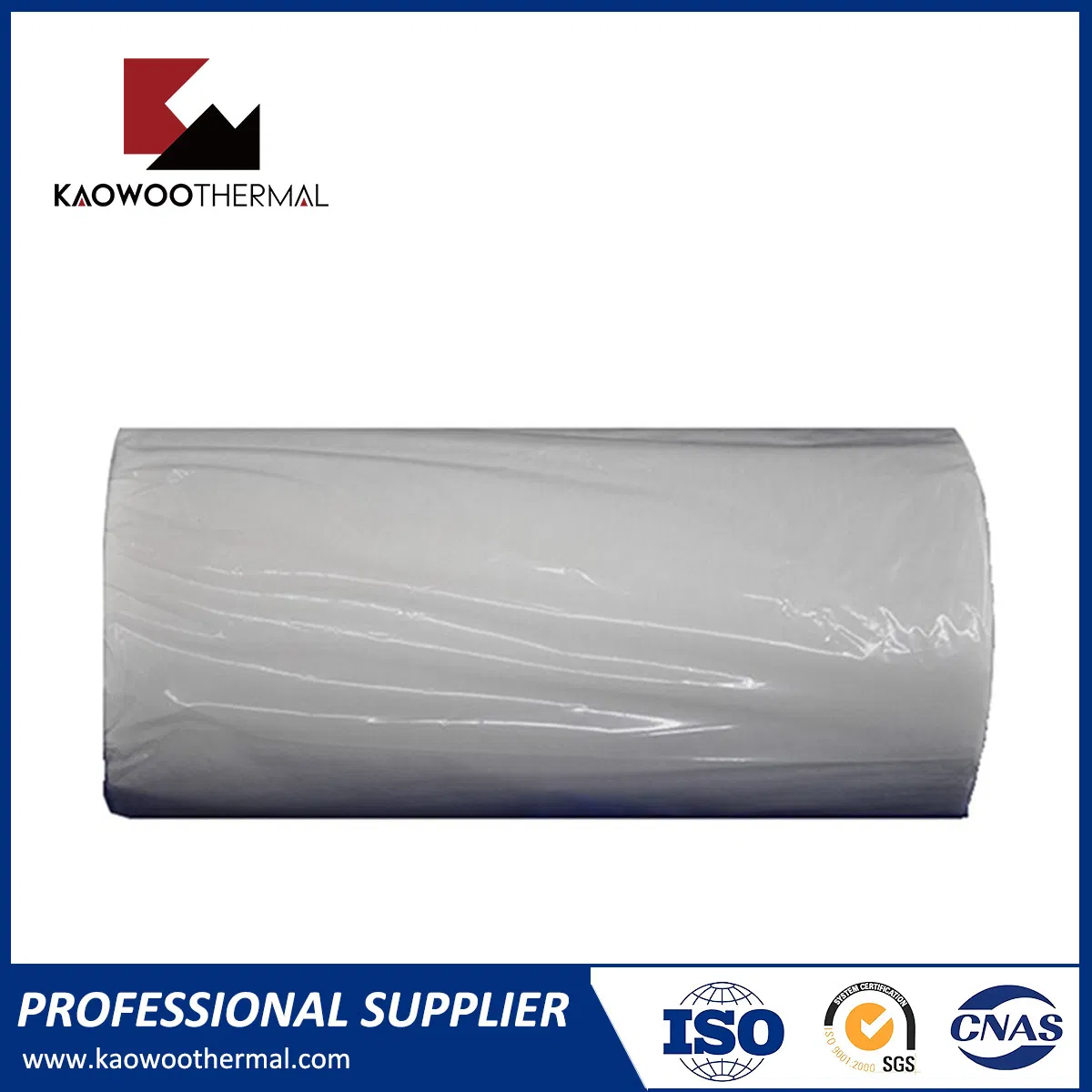

Packaging details

❓ Frequently Asked Questions

Q1: What kind of products can you offer? A1: We offer industrial refractory insulation materials including Ceramic Fiber Products, Soluble Fiber Products, Fiberglass Products, Calcium Silicate Products, Mineral Wool, Rock Wool, and Insulating Firebricks.
Q2: Do you provide free samples? A2: Yes, free samples are available for quality testing and evaluation.
Q3: What is your typical lead time? A3: It usually takes about 15-20 days after receiving the formal Purchase Order.
Q4: Why should we choose your insulation products? A4: Our products are engineered for high efficiency, potentially saving 15%-25% of energy consumption across various industrial applications like metallurgy and petrochemicals.
Q5: Are these products environmentally friendly? A5: Yes, our ceramic fiber papers are asbestos-free and we focus on unremitting technical innovation to support green environmental protection.
Q6: Can these materials be used in aerospace applications? A6: Absolutely, they serve as excellent thermal barriers for both vehicles and spaceflight equipment due to their low thermal conductivity.
