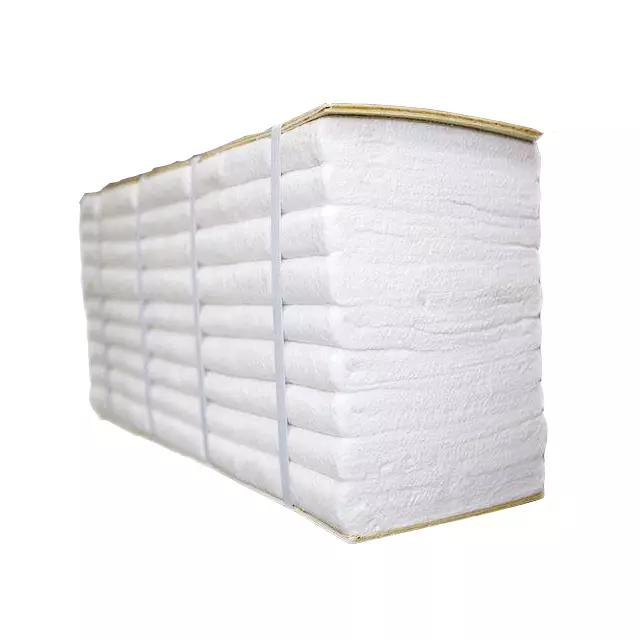

1000c 1100c 1200c 1300c Refractory Heat Proof Fibre Wool Cotton Blocks Thermal Insulation Ceramic Fiber Module

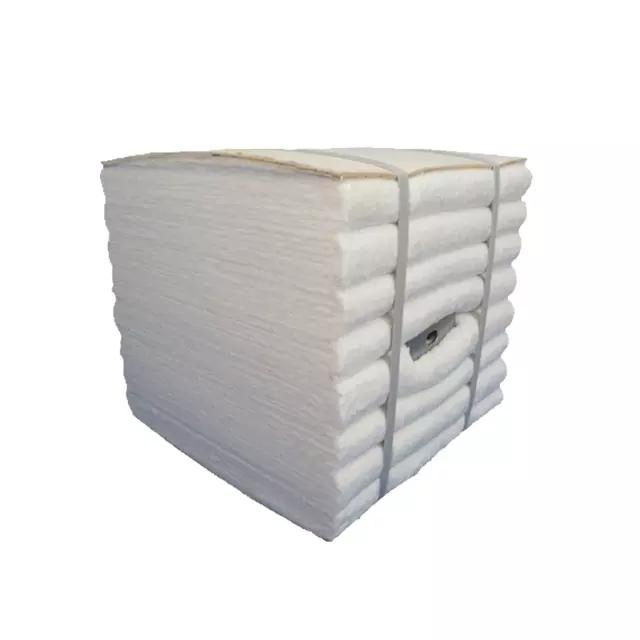

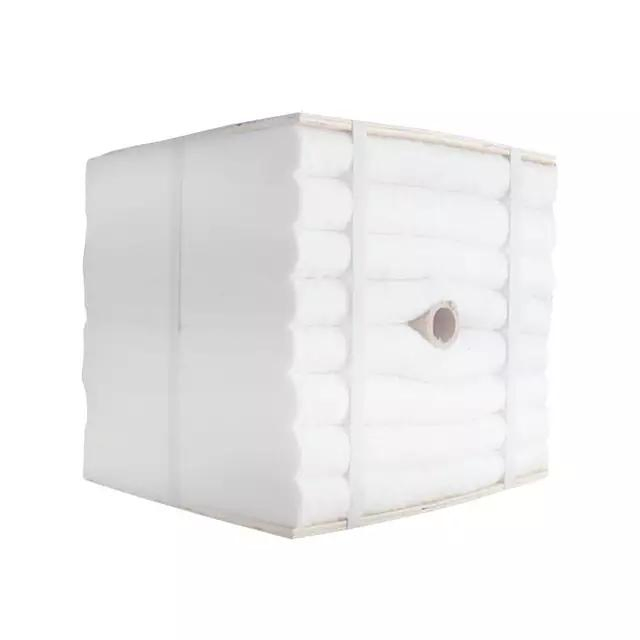

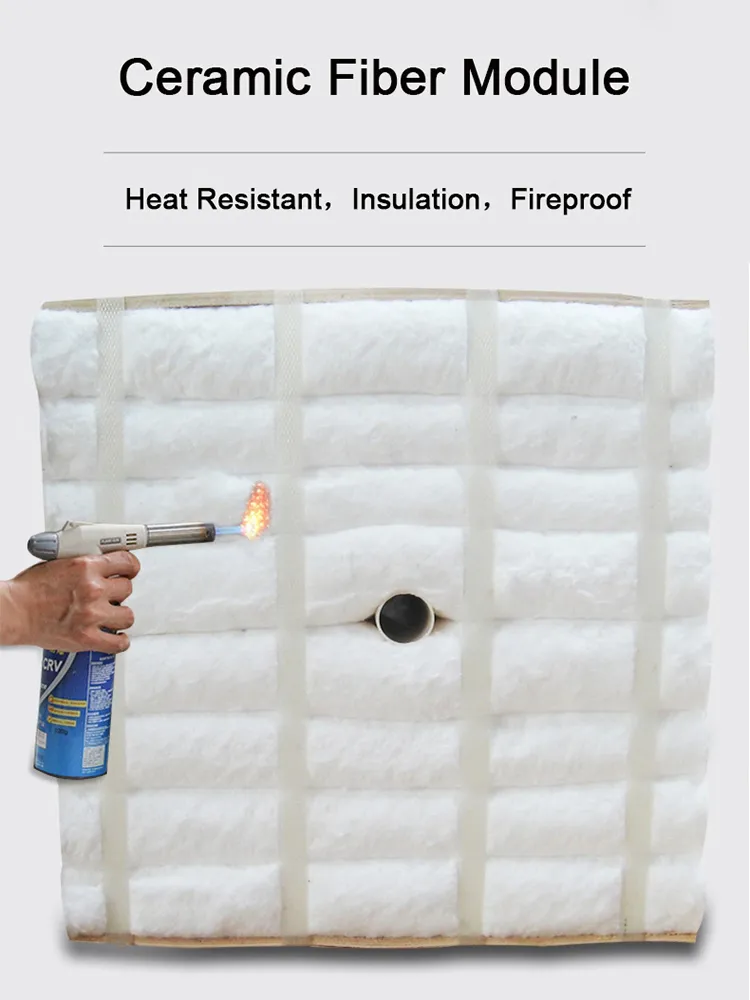

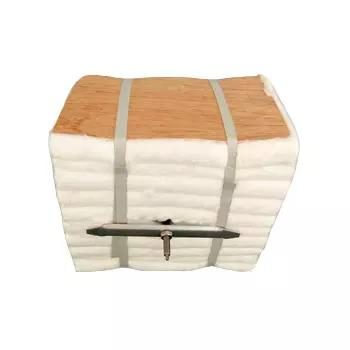

Ceramic fiber module is made of ceramic fiber blanket which is folded or cut by experienced professional technicians. We use special equipment for producing module to confirm the precise dimensions and keep smooth surface of module, and then be applied to the lining of various thermal equipment. The products have characteristics such as reliable quality, quick installation, and superior insulation properties.
Characteristics:
| Ceramic Fiber Module | RS1050 | RS1260ST | RS1260HP | RS1350 HA | RS1430 Zr | RS1600 PMF | |
|---|---|---|---|---|---|---|---|
| Classification Temp | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | |
| Density (KG/M³) | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 | 172-240 | |
| Composition | Al2O3 | 42-44 | 45-46 | 47-49 | 52-55 | 34-36 | 72-75 |
| Al2O3+SiO2 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | |
Ceramic Industry: Tunnel kiln, shuttle kiln, roller kiln.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace.
Iron and Steel Industry: Ladle cover, annealing furnace, rotary furnace.
Green Energy: Waste incinerators, RTO exhaust treatment furnace.
Dimensions: (300-600)*300*(150-300)mm (Customizable specifications).
Density Options: 172KG/M³, 192KG/M³, 220KG/M³, 240KG/M³.

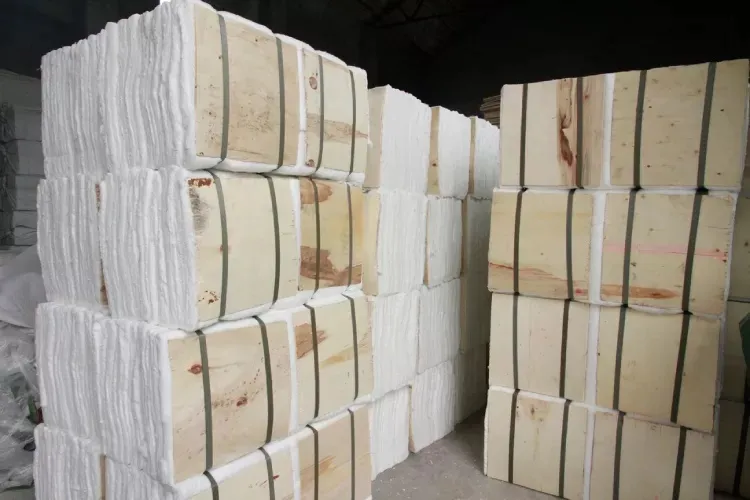

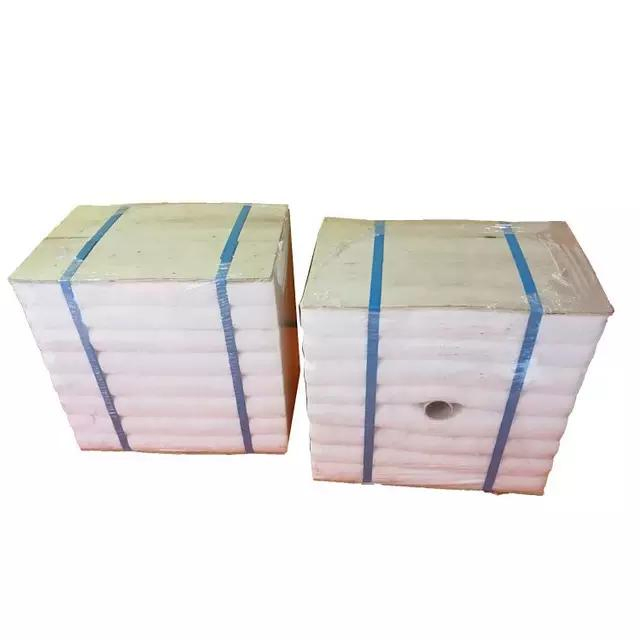

Package: Carton + Pallet.
