FibroCeram Materials
FibroCeram Materials

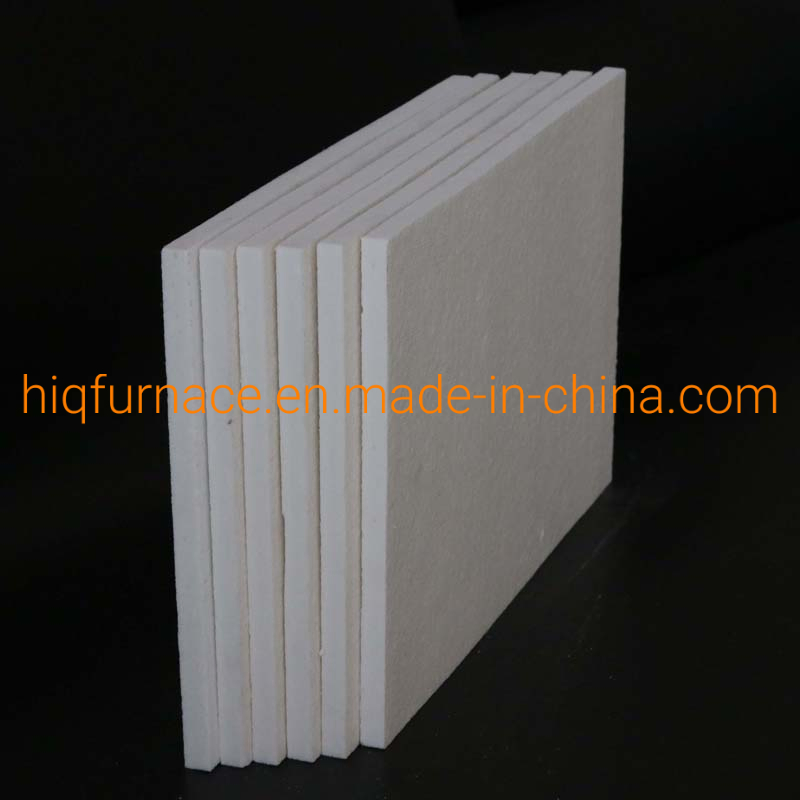

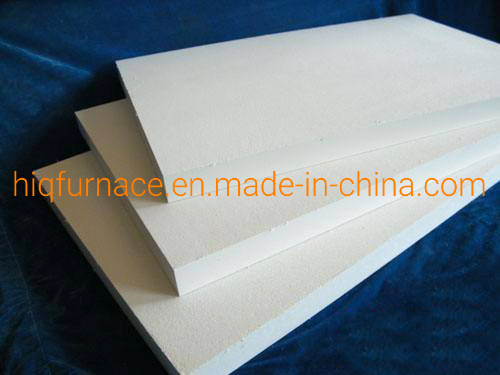

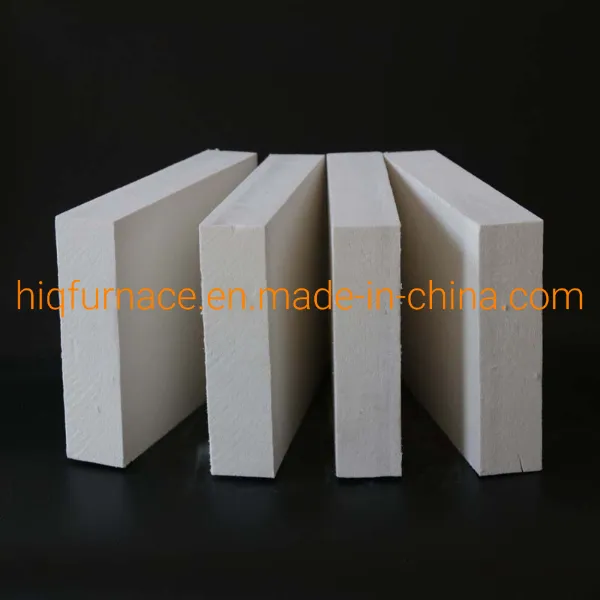

Low thermal conductivity ceramic fiber board fireproof aluminium silicate ceramic fiber board, 1800C ceramic fiber board

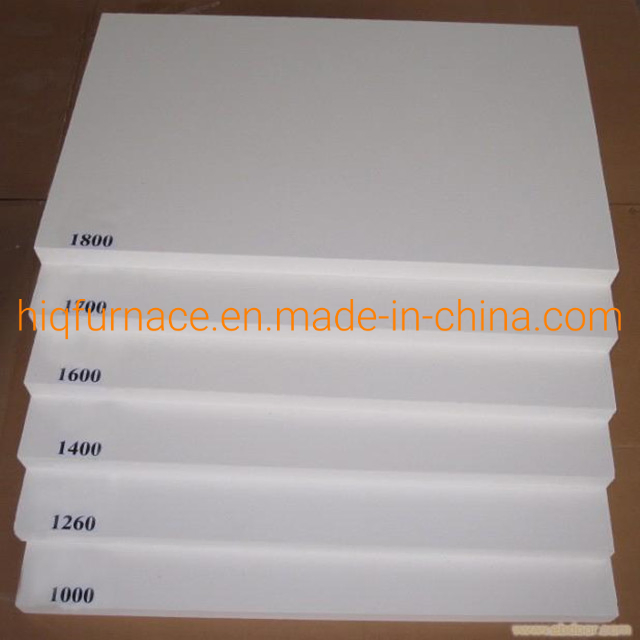

High temperature Ceramic Fiber Boards produced through wet forming process of ceramic fiber and binders. Ceramic Fiber Boards are classified as below: 1000ºC, 1260ºC, 1400ºC, 1500ºC, 1600ºC, 1700ºC, 1800ºC.

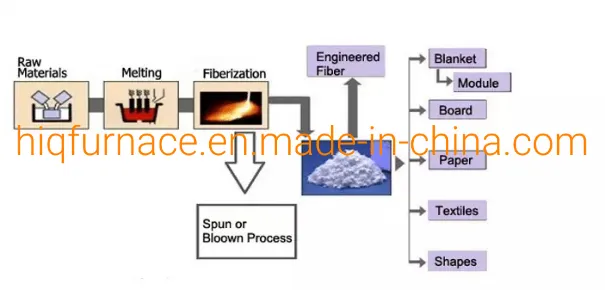

Aluminum silicate ceramic fiber board is manufactured from aluminum silicate fiber bulk spinning from kaolinite, alumina silicon dioxide and zircon sand. The ceramic fiber board with the advantage of uniform quality, smoothly surface, pure white color, completely inorganic, good tensile strength, toughness and fiber structure.
| Board Type | ST Board | HP Board | HA Board | HZ Board |
| Classification Temp(ºC) | 1100 | 1260 | 1260 | 1430 |
| Working Temp(ºC) | 1000 | 1050 | 1100 | 1350 |
| Color | White | Pure White | Pure White | Pure White |
| Density(kg/m3) | 260-320 | 280-600 | 280-600 | 280-600 |
| Ultimate Strength (MPa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 |

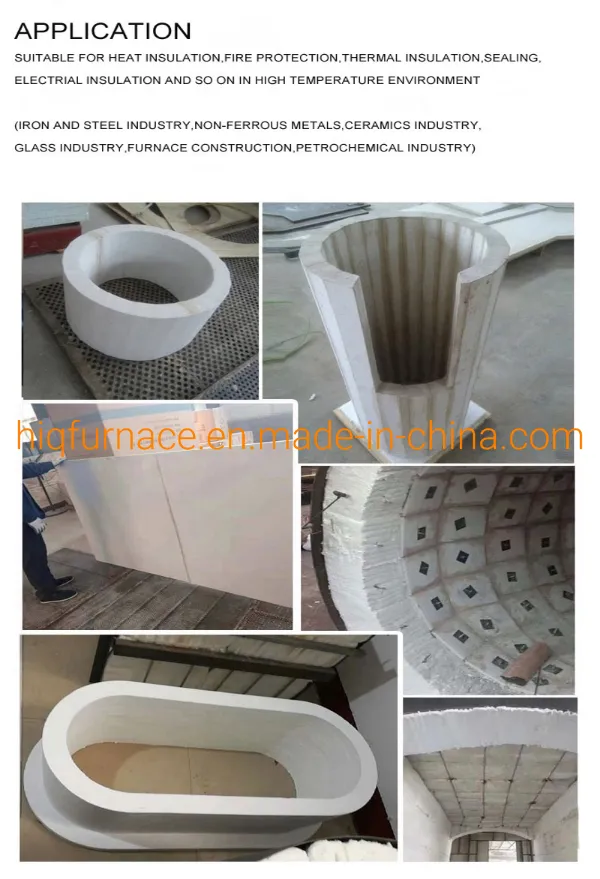

♦ Wall liner and back lining materials of industrial furnaces and reheating equipment.
♦ Insulating and fireproof plate for furnace doors, roofs, or fireplaces.
♦ Fireproof insulation for chimney cake ovens and pizza ovens.
♦ Boilers and heater combustion chambers.
