Product Description

Basic Info
Model NO.
F-03
Chemical Composition
Al2O3.SiO2
Shape
Ceramic Fiber Plate
Manufacturing
Wet Forming Process
Kind
High Purity Ceramic Fiber
Temperature
1050-1600 ℃
Density
280-450 Kg/M3
Al203+Sio2
97-99 %
Thickness
6mm-50mm
Melting Point
1760 ℃
Product Description

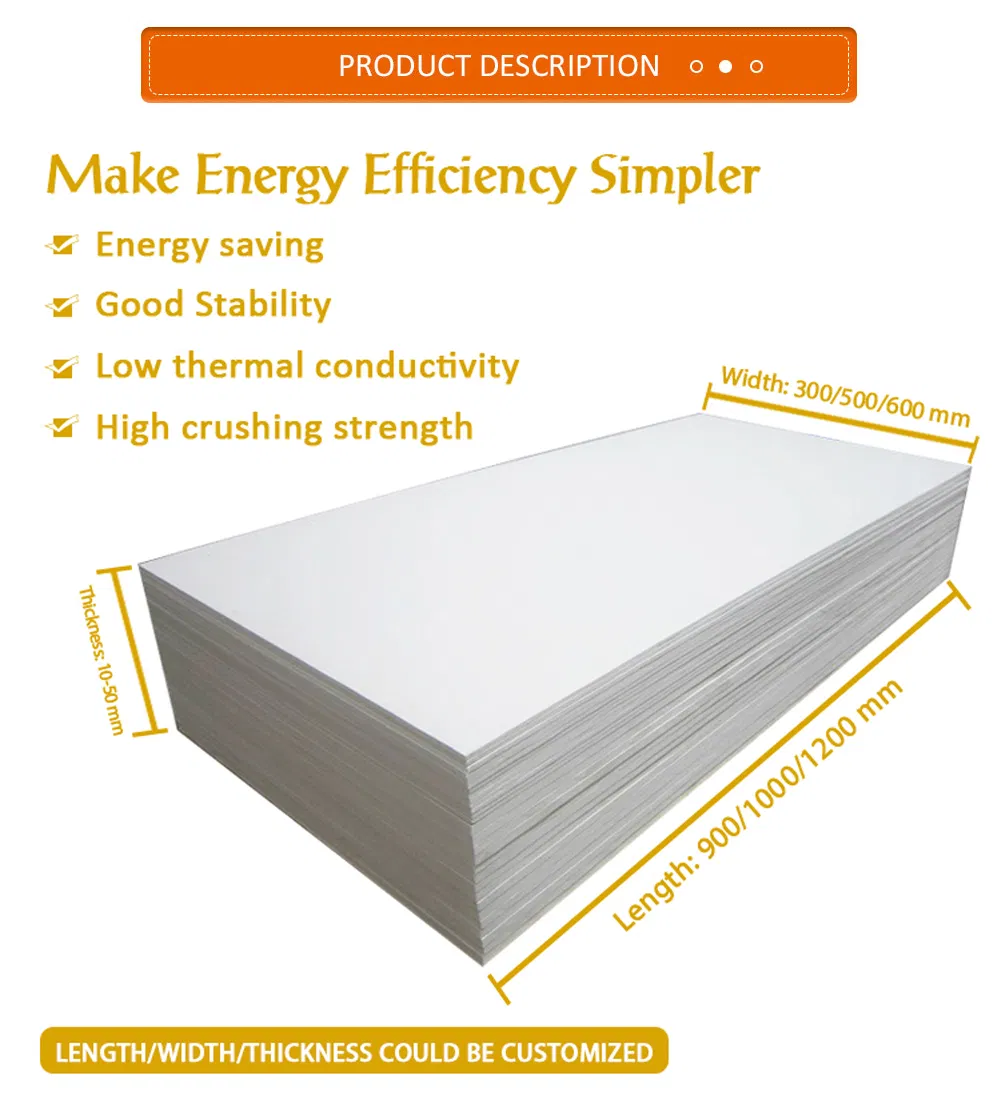

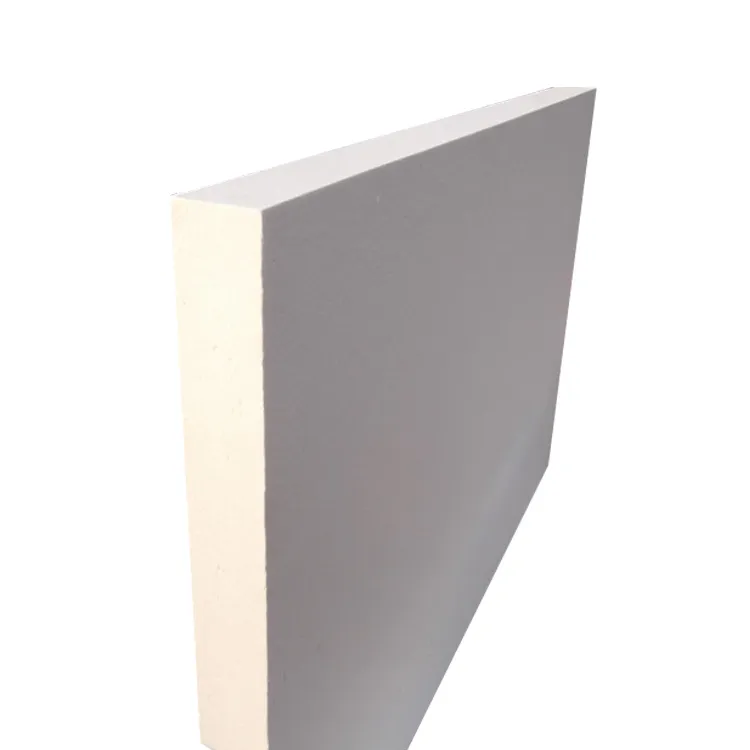

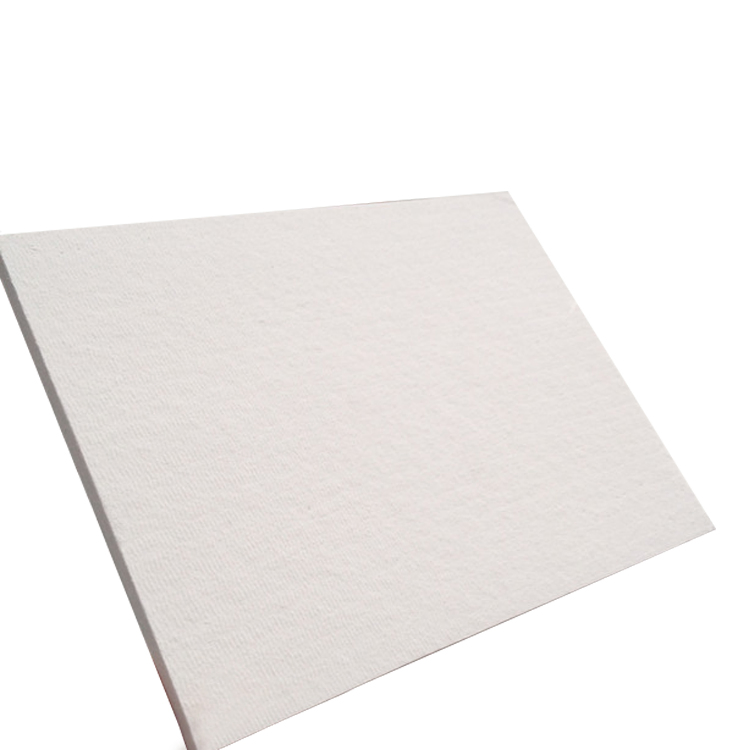

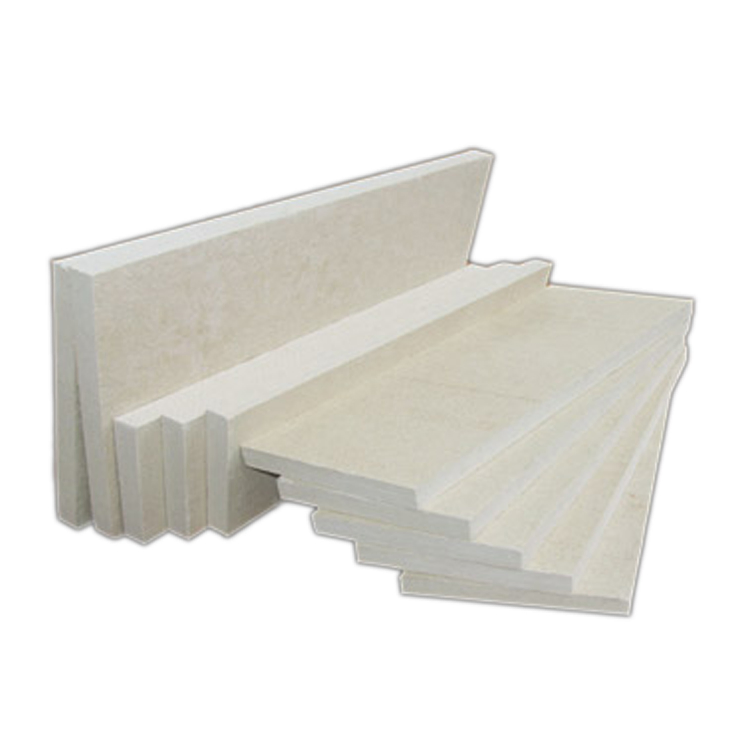

Ceramic Fiber Board

Ceramic fiber board is a lightweight refractory material manufactured by a wet forming process, providing a good solution for high-temperature insulation. It is available in different dimensions and temperature ratings.

It has the advantages of low thermal conductivity, high-temperature stability, uniform density, and excellent resistance to thermal shock and chemical attack, making it an effective insulation material for high-temperature furnaces, boilers, and kilns.

  • Density: 280-450 kg/m³
  • Thickness: 6-50 mm
  • Excellent Insulation: Low Thermal Conductivity
  • Resistance: Excellent Thermal Shock Resistance
  • Function: Refractory & Insulation & Fireproof

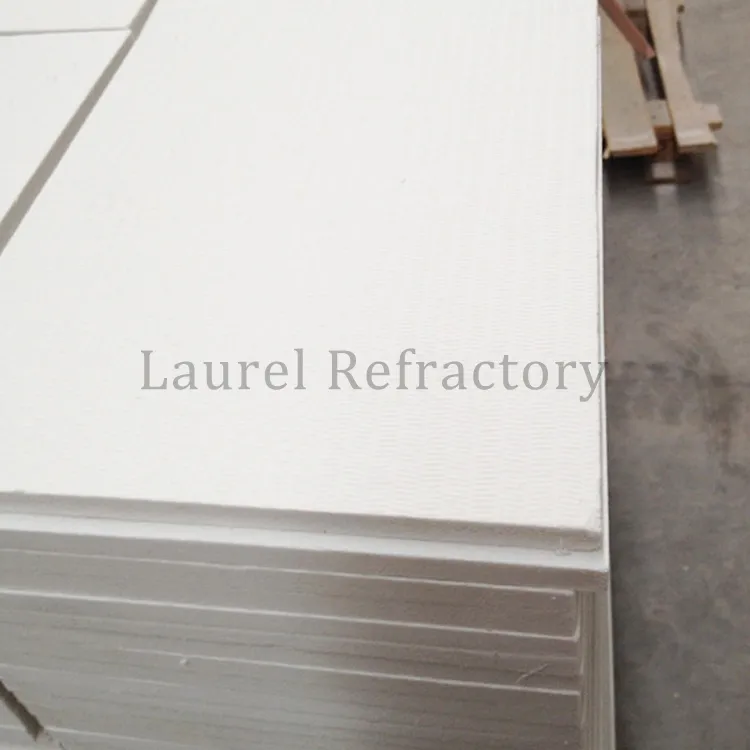

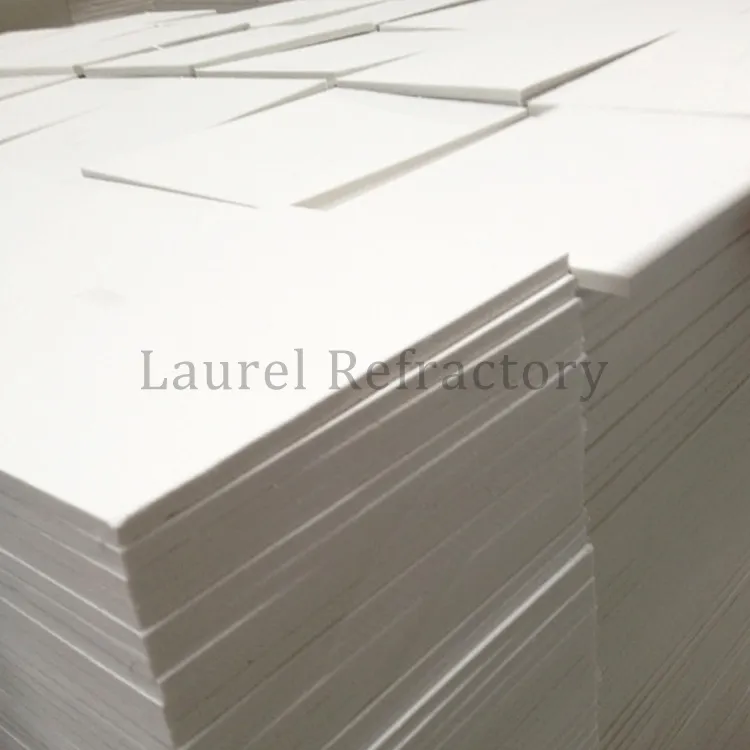

Product Parameters
Features
Item STD BOARD HP BOARD HA BOARD HZ BOARD
Classification Temp (ºC) 1260 1260 1350 1430
Loss of Ignition(%) ≤6 ≤6 ≤6 ≤6
Density (kg/m3) 250-350 250-350 250-350 250-350
Thermal Conductivity (800 ºC) 0.15 0.14 0.13 0.13
Application

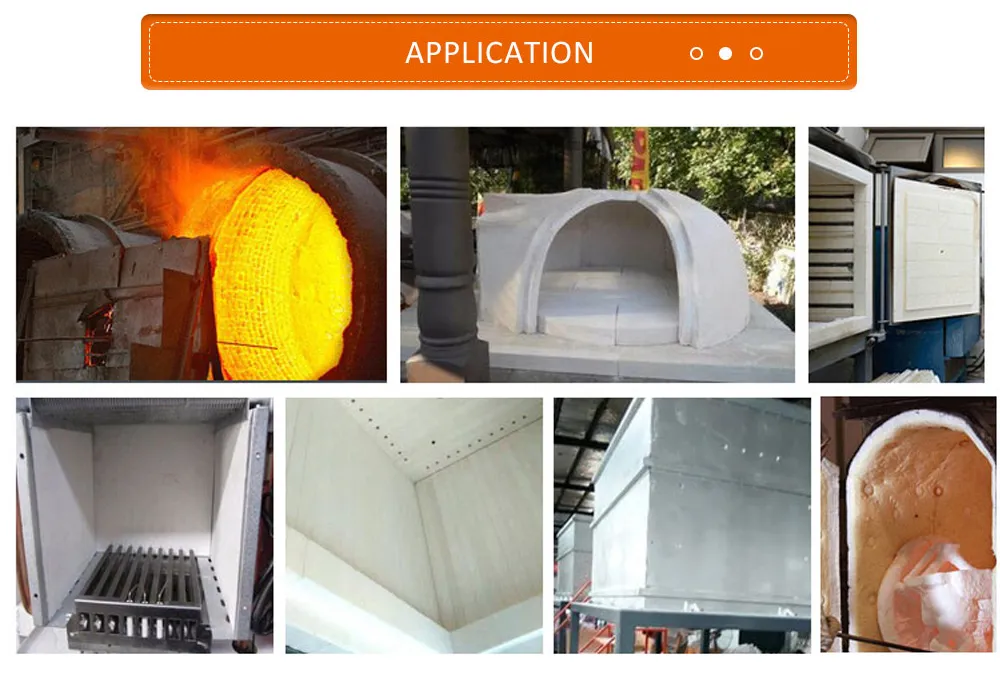

Applications
  • Refractory lining for industrial furnaces (walls, roofs, doors, etc.)
  • Furnace hot face lining
  • Back-up insulation to brick and castable
  • Oven, stove, boiler insulation lining
  • High temperature electrical equipment thermal insulation
  • Expansion joint
Application Case
Technical Capabilities

Our group was established in 2003, and with over 20 years of production and trading experience, we are professionally engaged in the research, development, and sales of all types of refractory and insulation materials.

Refractory materials include alumina series bricks, magnesia series bricks, corundum series bricks, mullite bricks, and alusite bricks. Insulation materials include ceramic fiber products, calcium silicate products, insulating brick, and rock wool insulation.

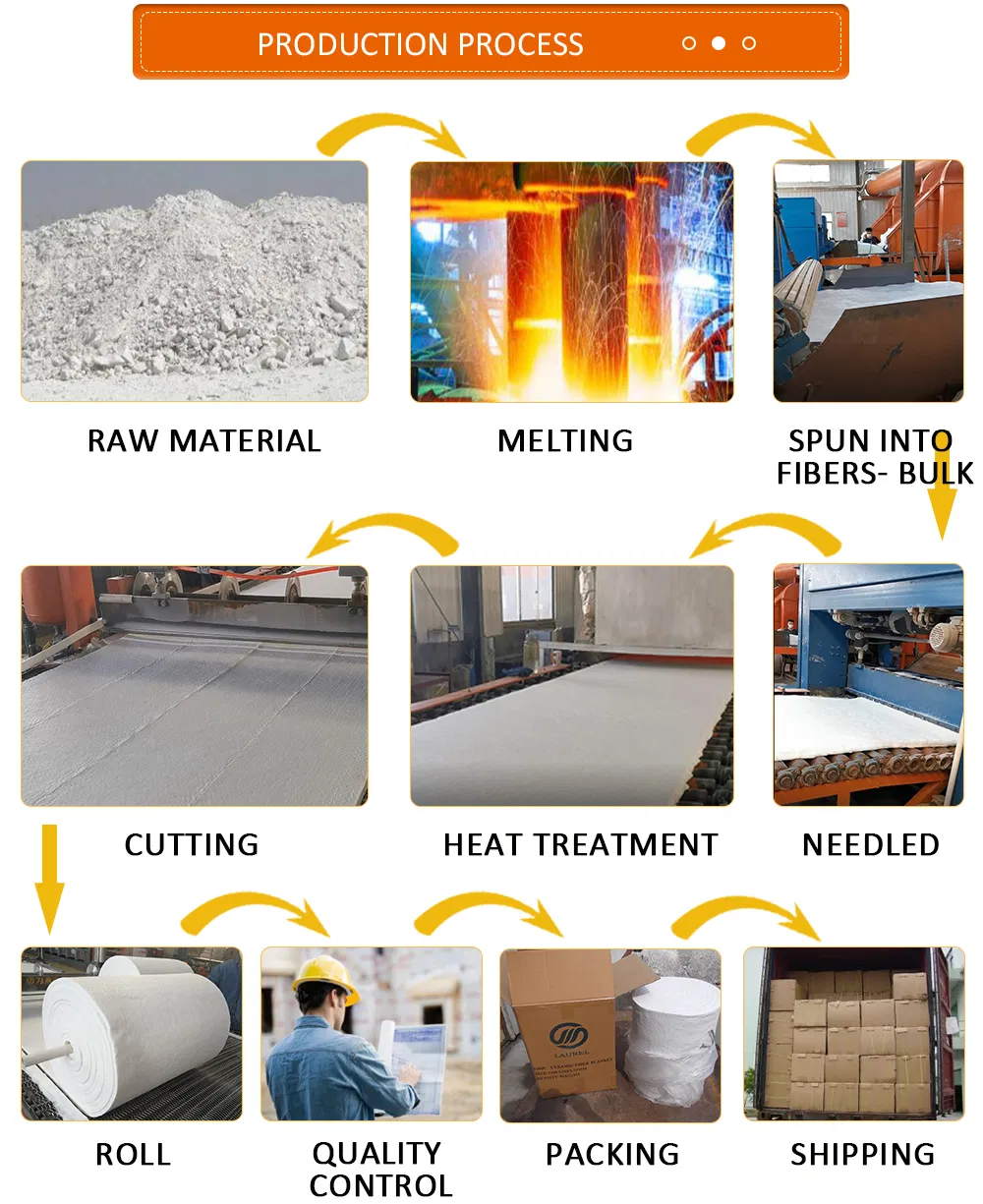

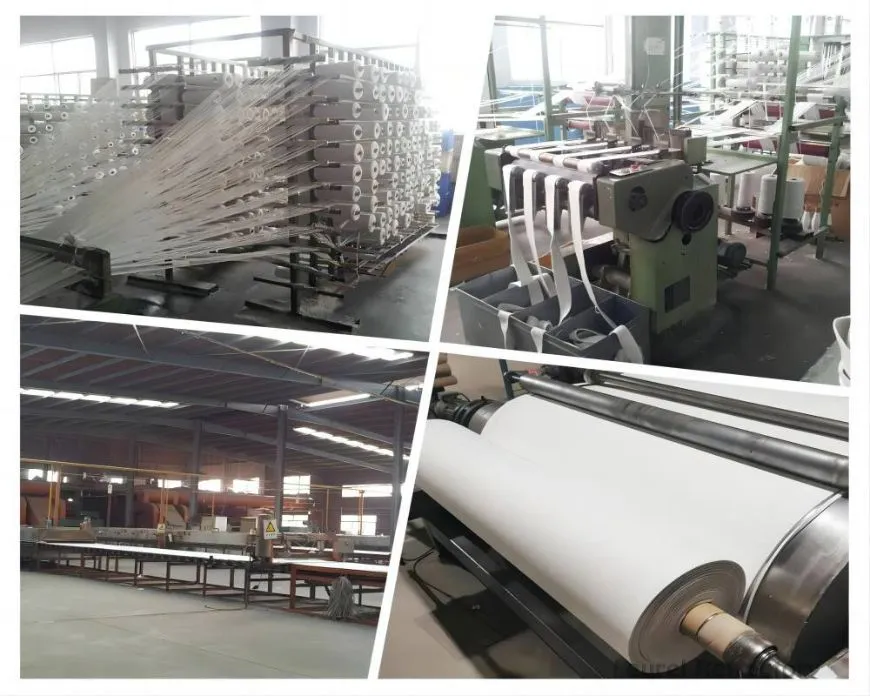

Facility
FAQ
Are you a Manufacturer?
Yes, our factory is located in the industrial zone. We also maintain strong cooperating relationships with other manufacturers for related products.
Can you accept OEM or ODM?
Yes, customization is welcome to meet your specific industrial requirements.
What's the MOQ of the trial order?
There is no strict limit. We offer the best suggestions and solutions to meet your needs.
How long is the delivery time?
Normally, it takes around 10-20 days, depending on the order size and specifications.
How do you control product quality?
For each production process, we have a complete QC system to ensure high standards throughout manufacturing.
Do you provide free samples?
Yes, free samples are available for quality evaluation and testing.
