FibroCeram Materials
FibroCeram Materials

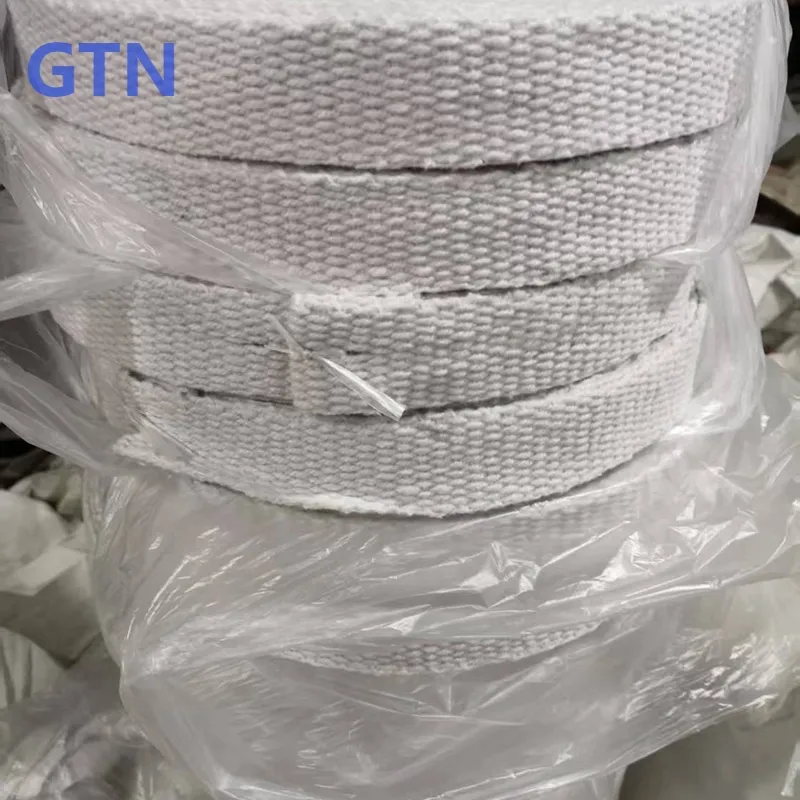

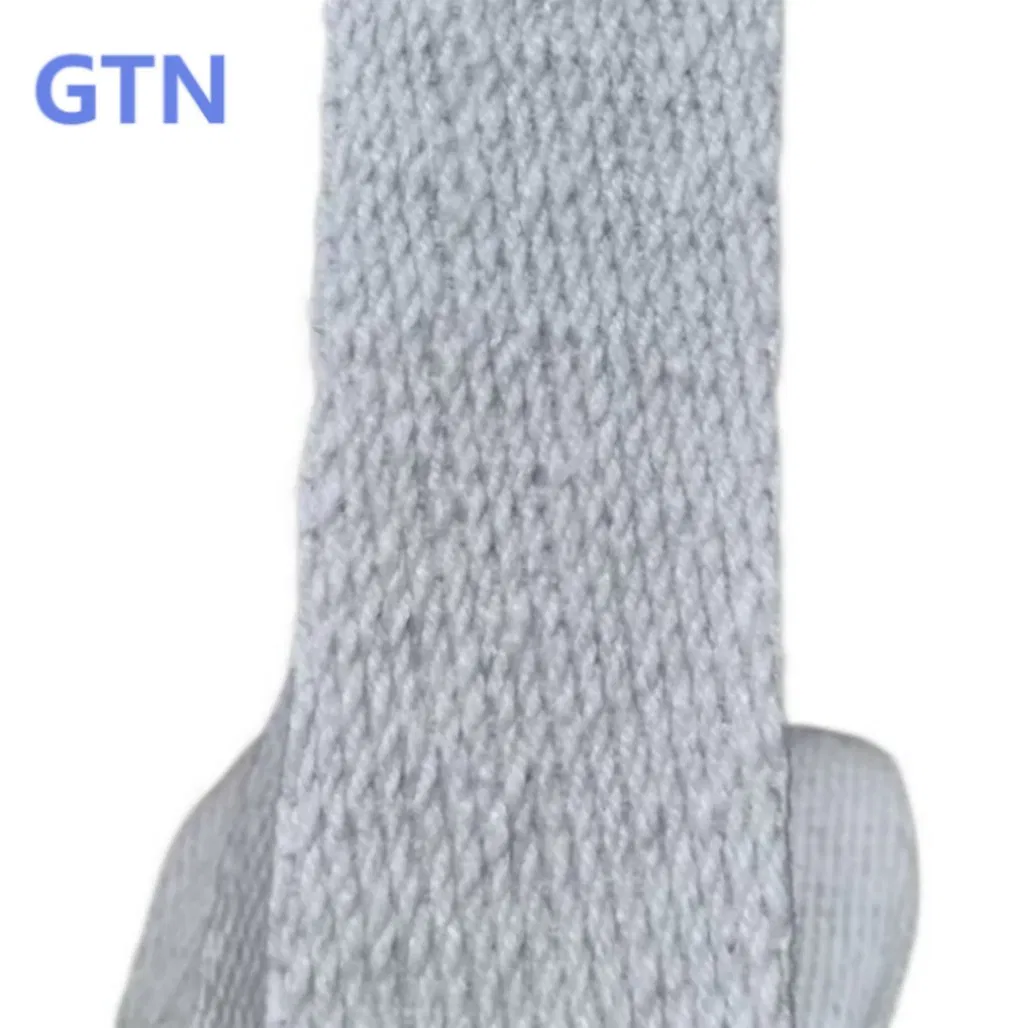

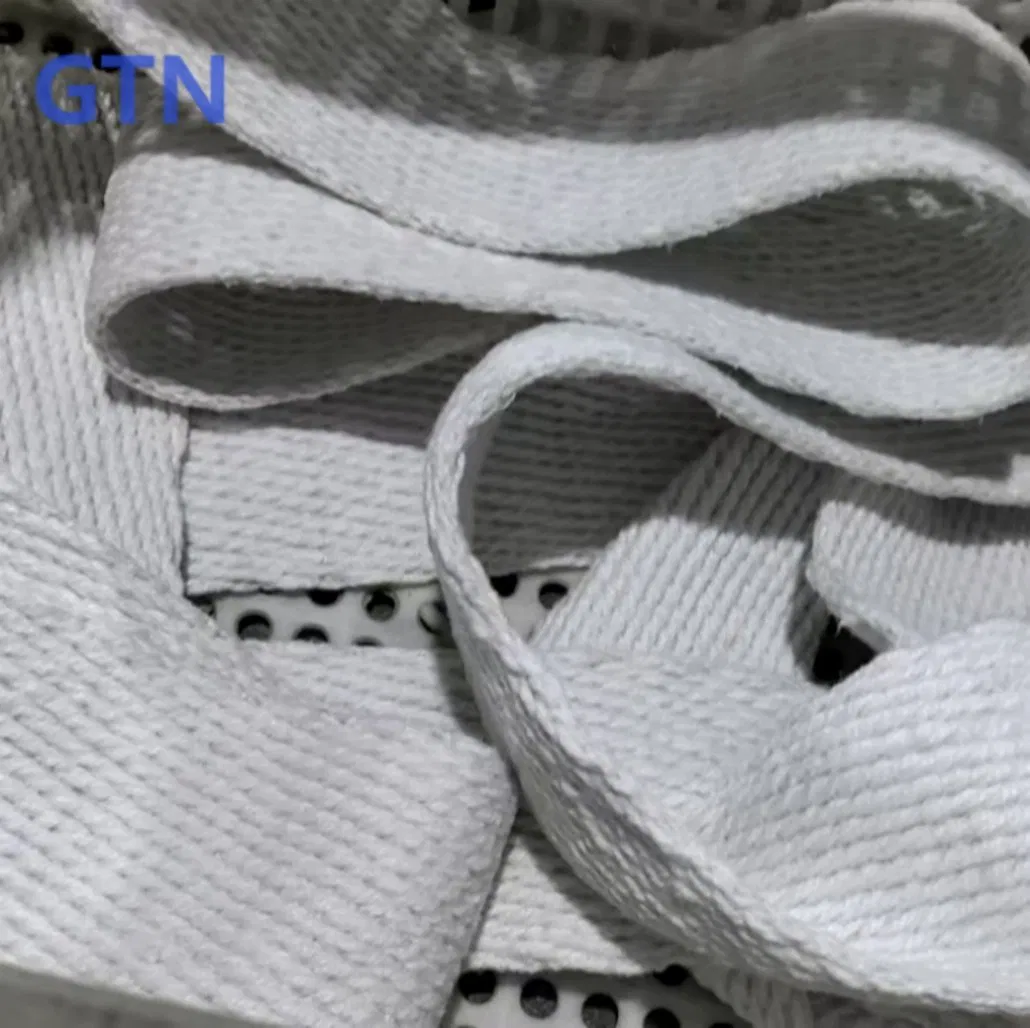

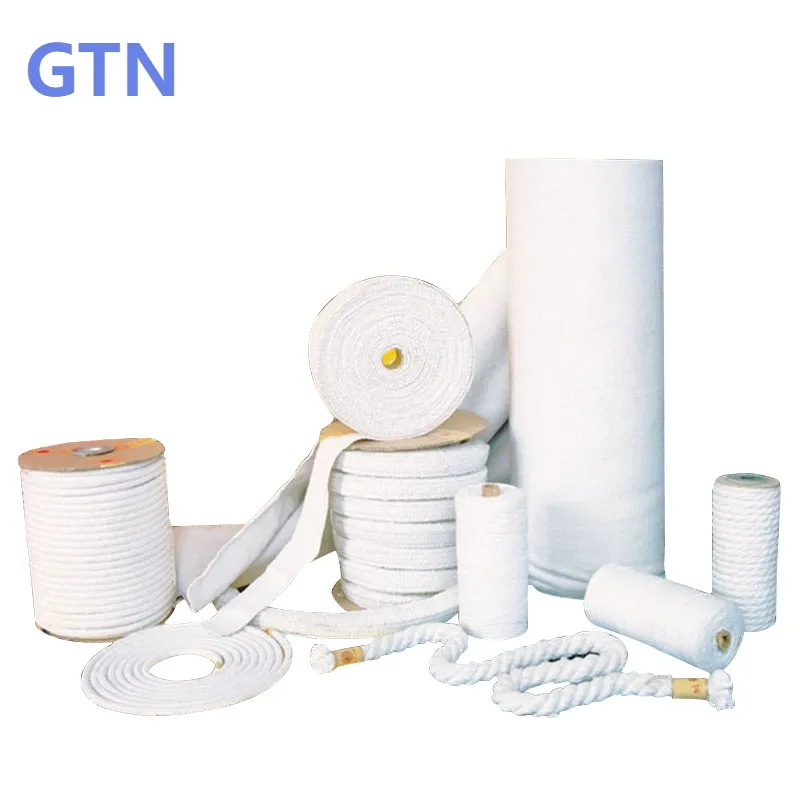

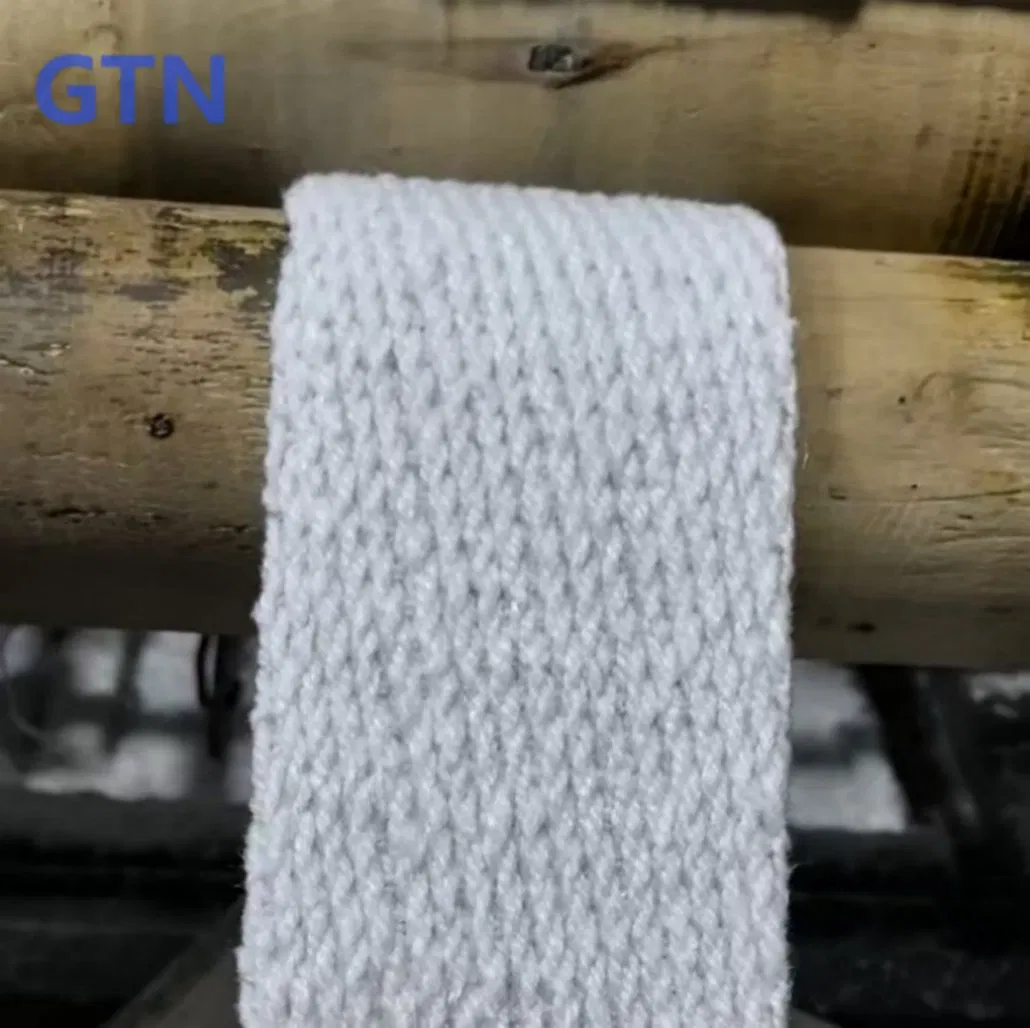

Ceramic fiber & Bio-Soluble fiber textiles contain the rope, tape, yarn and cloth. These textiles are woven or braided from yarn consisting of fiber with approximately 20% organic fiber. Inserted materials are reinforced into yarn and rope to increase the tensile strength of fiber. Stainless steel inserts are available for obtaining maximum strength at high temperature, while glass filament inserts are used in applications where electrical resistance is required. Fiber textiles have been a workable insulation materials for thermal gaskets and wrapping.
| Properties | Bio-Soluble Fiber rope/cloth/tape/yarn | Ceramic fiber rope/cloth/tape/yarn | |||
|---|---|---|---|---|---|
| Reinforcement Type | GF-Type | SS-Type | GF-Type | SS-Type | |
| Classification Temp. (ºC) | 1260 | ||||
| Working Temp. (ºC) | 500-600 | 1100 | 500-600 | 1100 | |
| Bulk Density (kg/m³) | 500 | ||||
| Organic matter (%) | 15 | ||||
| Chemical Composition (%) | SiO2 | 55-65 | 51 | ||
| CaO / MgO | 23-35 / 5-10 | -- | |||
| Al2O3 | -- | 45 | |||
| Fe2O3 | -- | 0.8 | |||

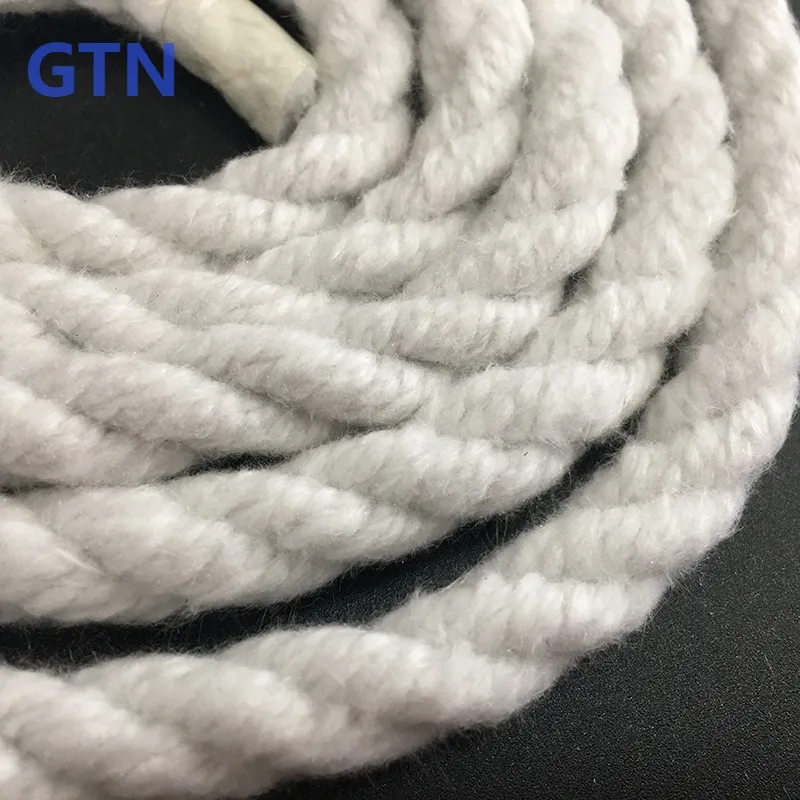

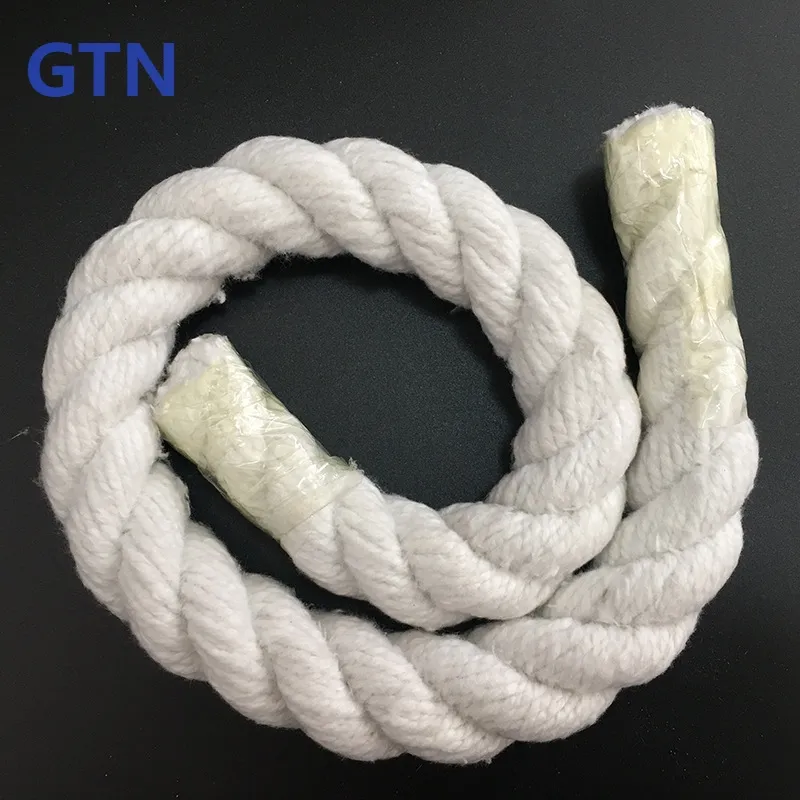

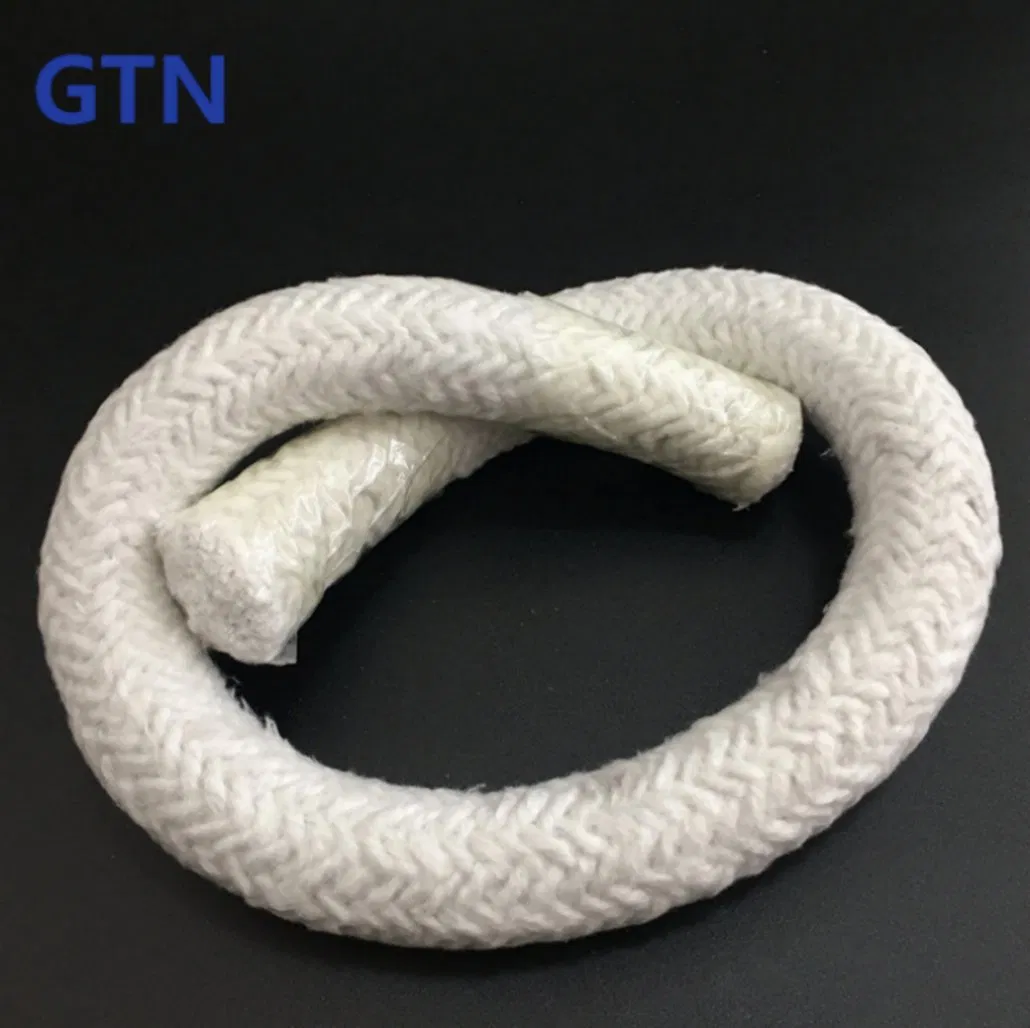

Note: Rope Dia size (mm): 6/10/12/20/25/32/38/50. Shapes: Round Braided, Twisted, Square Braided.
