Basic Information
Chemical Composition:
Al2O3.SiO2
Shape:
Ceramic Fiber Textile
Manufacturing Technique:
Woven
Kind:
High Purity Ceramic Fiber
Reinforced Material:
Glass Fiber or Steel Wire
Package Size:
45.00cm * 45.00cm * 62.00cm
Package Gross Weight:
20.000kg
Product Description

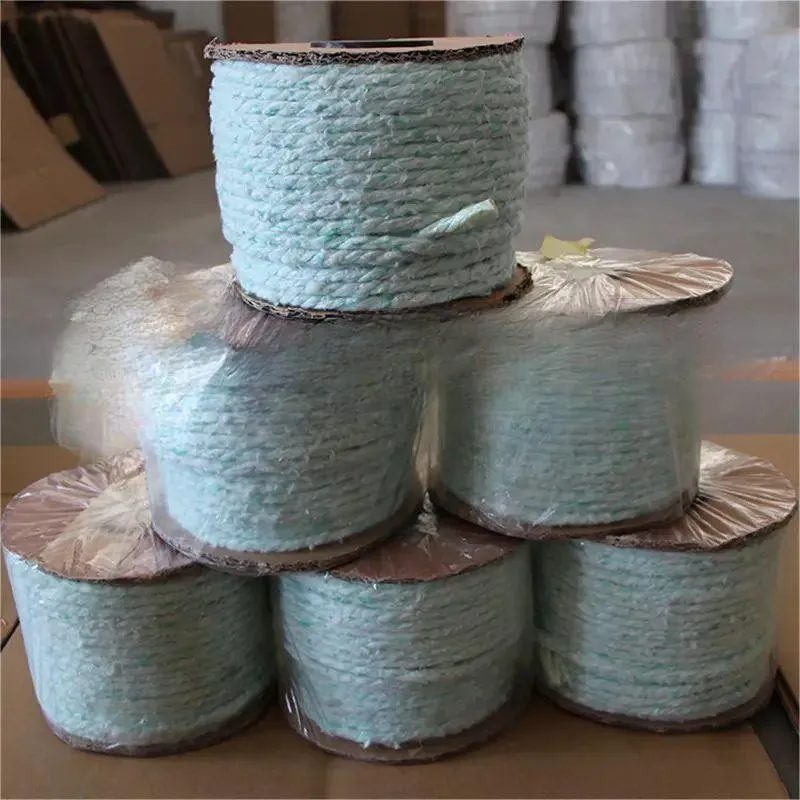

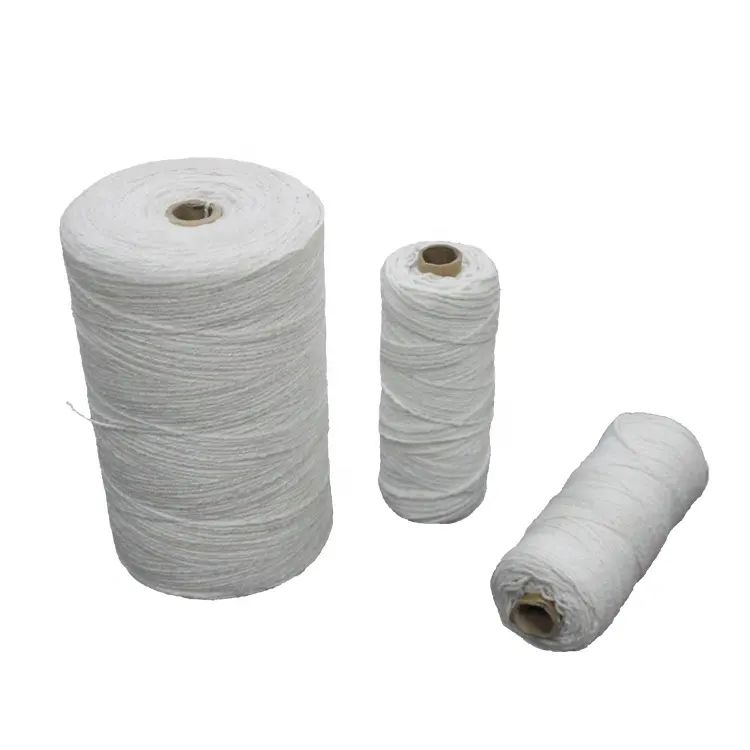

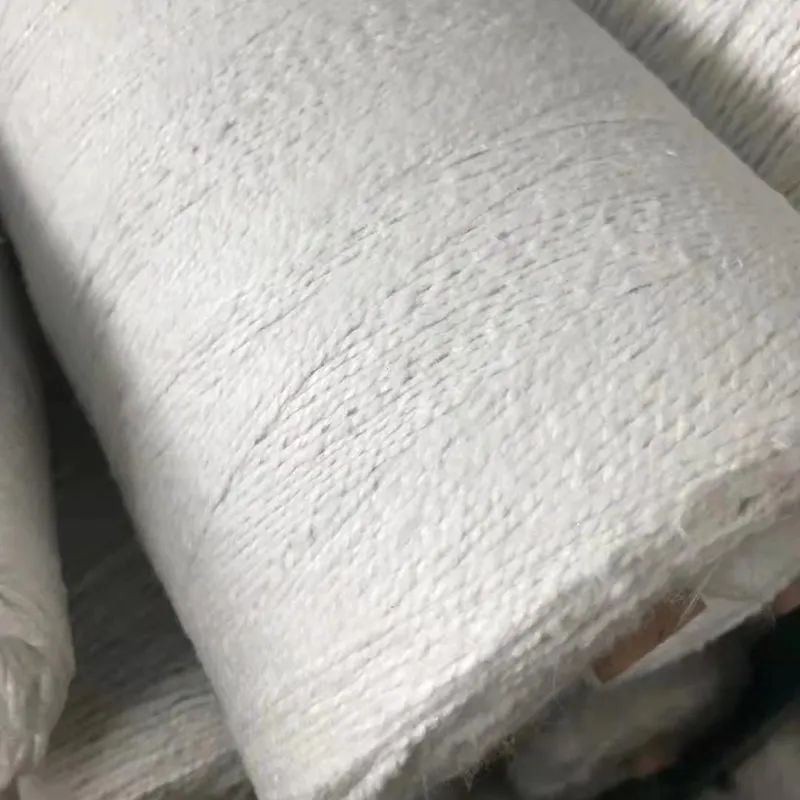

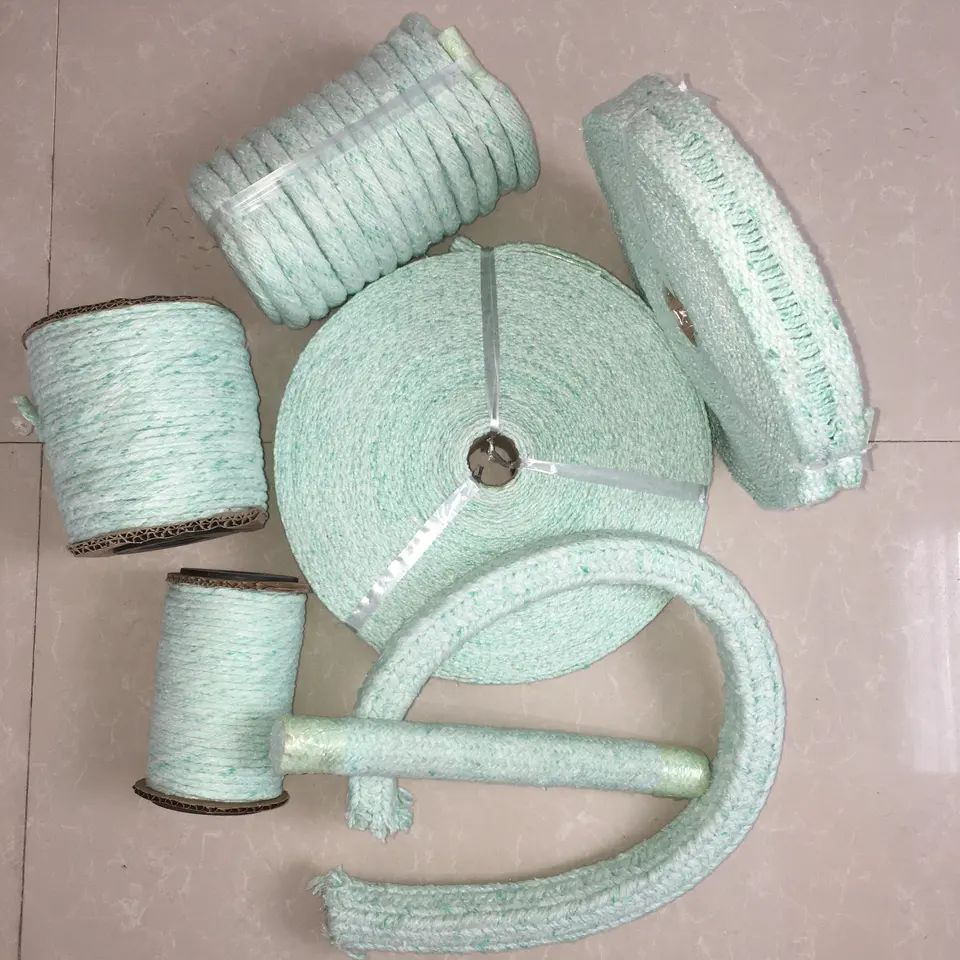

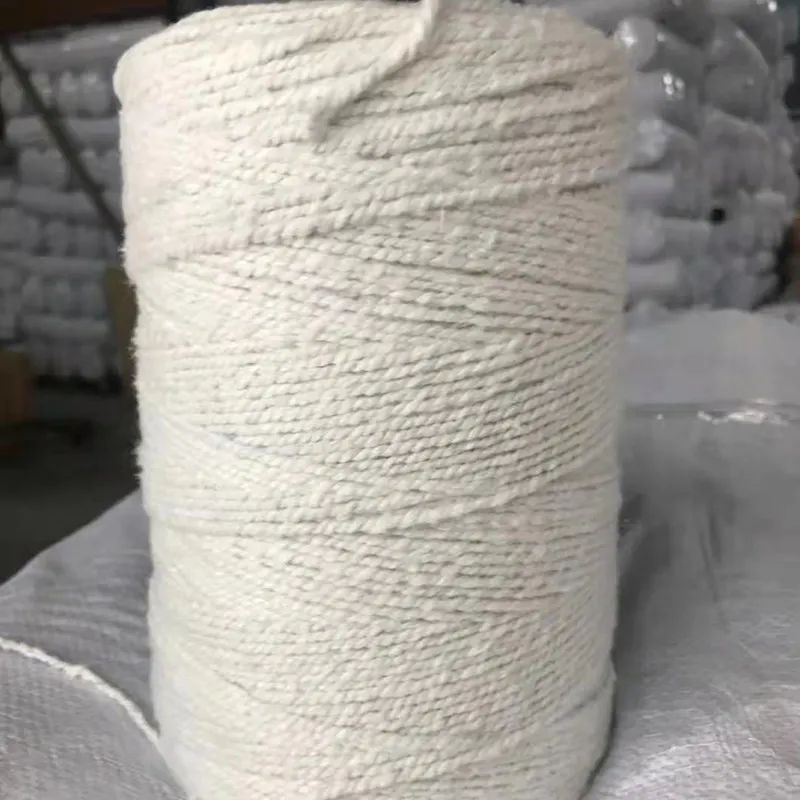

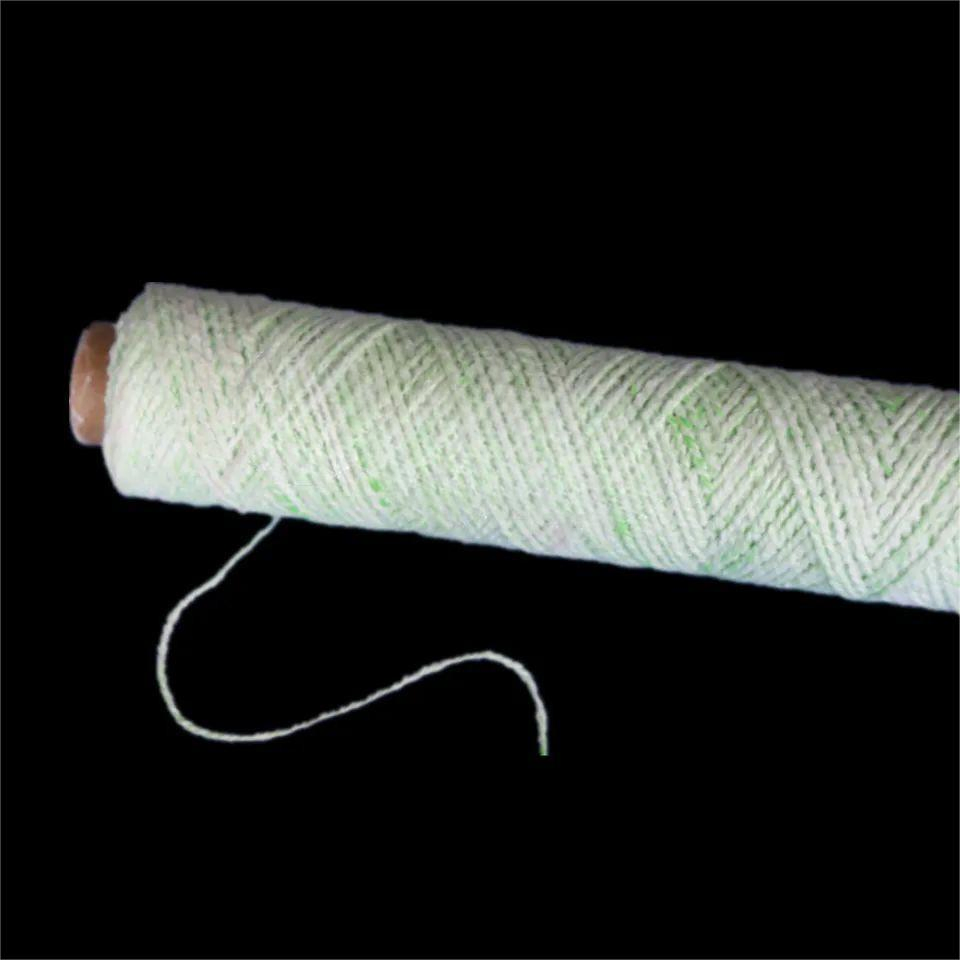

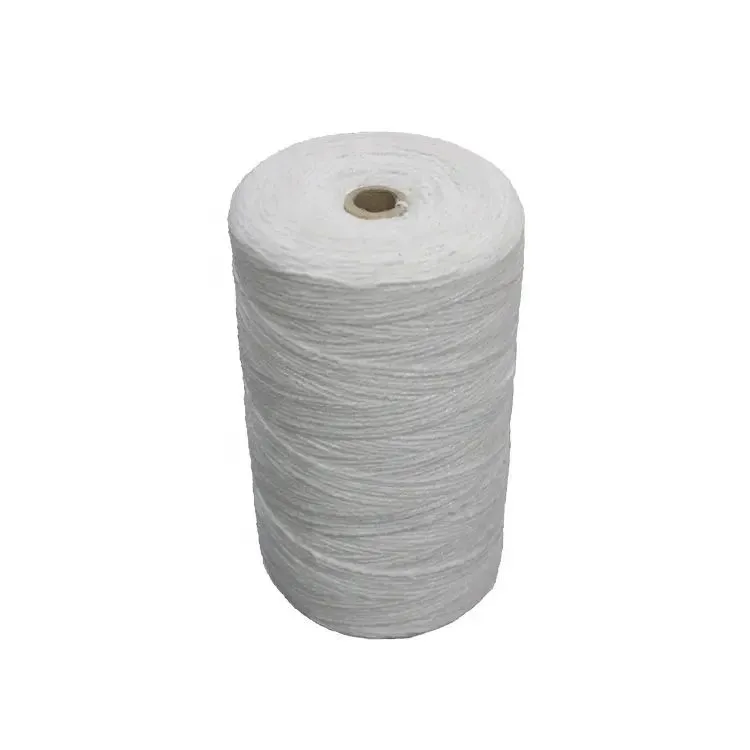

Ceramic fiber yarn is made from alumina silica ceramic fiber, free of asbestos, can be used in different industrial applications under temperatures up to 2300 °F (1260 C) and has excellent chemical stability and strong resistance to thermal shock and corrosion attack. Exceptions are hydrofluoric and phosphoric acids and concentrated alkalis. It also resists oxidation and reduction, If wet by water or steam, thermal properties are completely restored upon drying. No water of hydration is present. It contains 15% organic carriers, which helps to establish physical formation of Products. The carriers burn out at about 750 °F (400 °C).
Feature & Typical Application
- Excellent high-temperature strength
- Excellent electric insulation capability
- Excellent corrosion resistance to acid, oil and steam
- Low thermal conductivity
- Excellent thermal insulation capability
Typical Applications
- High temperature static seal e.g. door joint or gaskets for flanges
- Fire protection e.g. fires proof curtain against welding spark
- For manufacturing of safety product e.g. safety gloves or apron
- Expansion joint
- Pipe or round duct insulation lagging
- Asbestos substitute
Data Sheet
| Property |
Specification |
| Colour | White |
| Al203+SIO2% | >=97 |
| Al203% | >=48 |
| Fe203% | <=1.1 |
| Fiber diameter(um) | 2.4 |
| Fiber length(mm) | 100-200 |
| Bulk density(Kg/m3) | 300-700 |
| Moisture % | <=1.0 |
| Thermal Conductivity (300°C) | 0.12~0.13 w/m.k |
| Thermal Conductivity (600°C) | 0.13~0.16 w/m.k |
| Thermal Conductivity (1000°C) | 0.17~0.20 w/m.k |
| Heating liner shrinkage | <=3.5(1000°C*3h) |

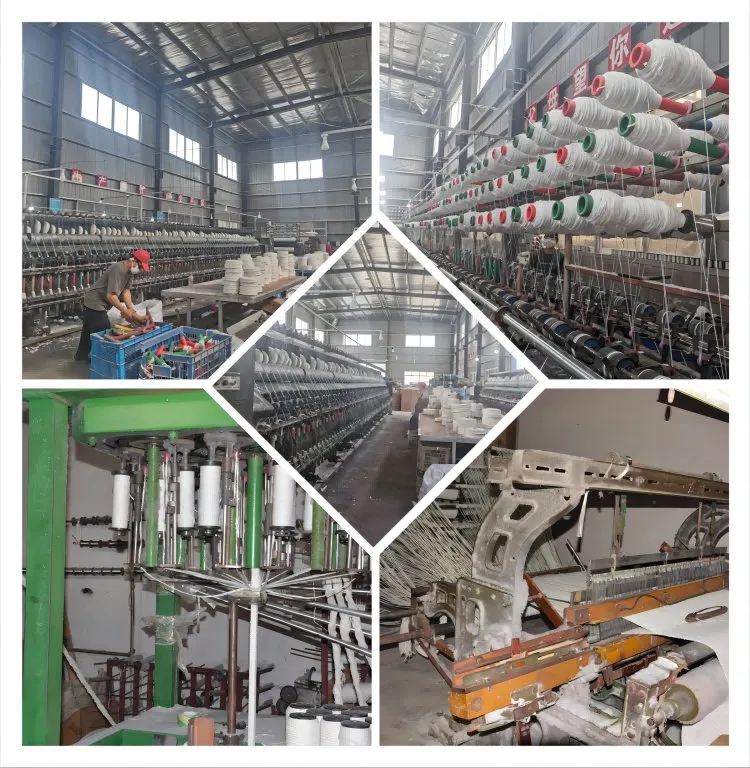

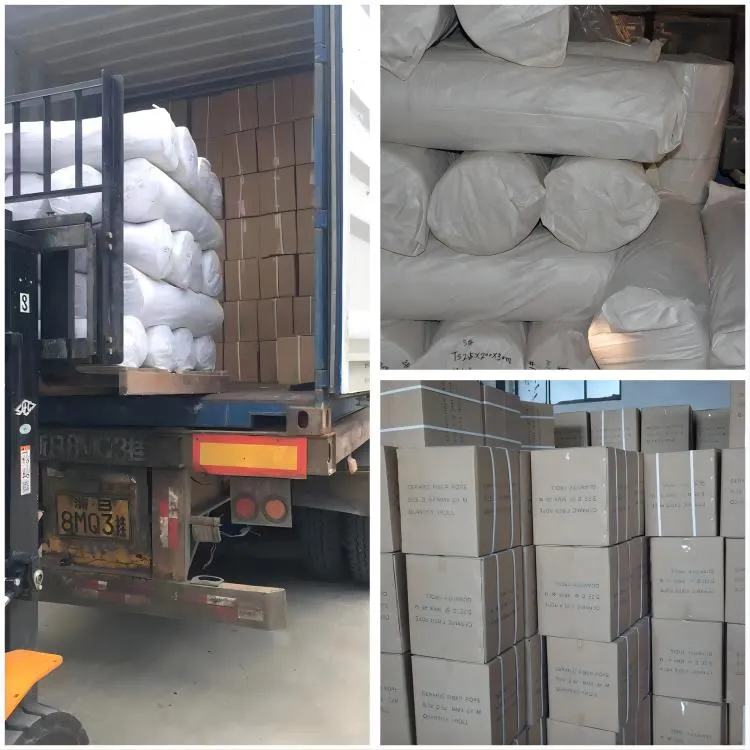

Packaging & Workshop
Certifications
We maintain professional and strict quality control for all products. Our products have passed CE certification, MSDS, ISO9001 quality management system certification, and REACH.
Frequently Asked Questions
What are your payment terms?
30% T/T in advance, 70% balance against the BL copy or by LC, or other negotiable terms.
What is the standard lead time?
It usually requires approximately 10-20 days after receiving your deposit.
How do you ensure product quality?
We utilize a complete QC system for chemical composition and physical properties throughout each production stage. All goods are tested post-production.
Do you provide free samples?
Yes, free samples are available for quality evaluation.
Are your products asbestos-free?
Yes, our ceramic fiber products are 100% free of asbestos and safe for industrial high-temperature applications.
Can the material withstand chemical corrosion?
It has excellent chemical stability and strong resistance to most corrosive agents, except for hydrofluoric/phosphoric acids and concentrated alkalis.
