Basic Specifications
Chemical Composition:
Al2O3.SiO2, Al2O3
Shape:
Ceramic Fiber Paper
Kind:
Ordinary Ceramic Fiber
Refractoriness (C):
1050 < Refractoriness < 1600
Specification:
610/1220 Width, 0.5-10mm Thickness
Production Capacity:
20,000 rolls/Year
📄
Product Description

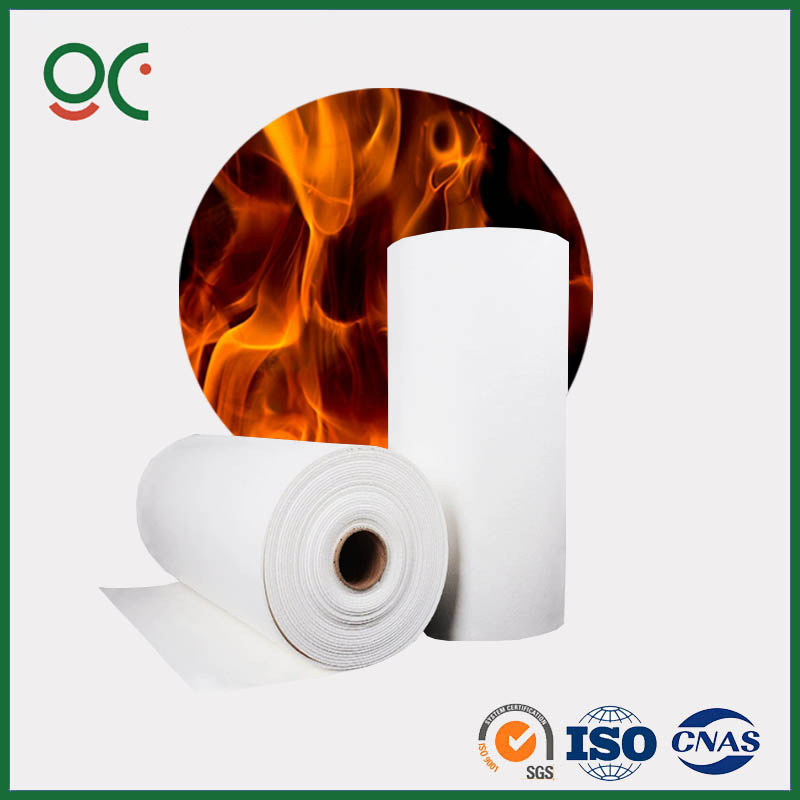

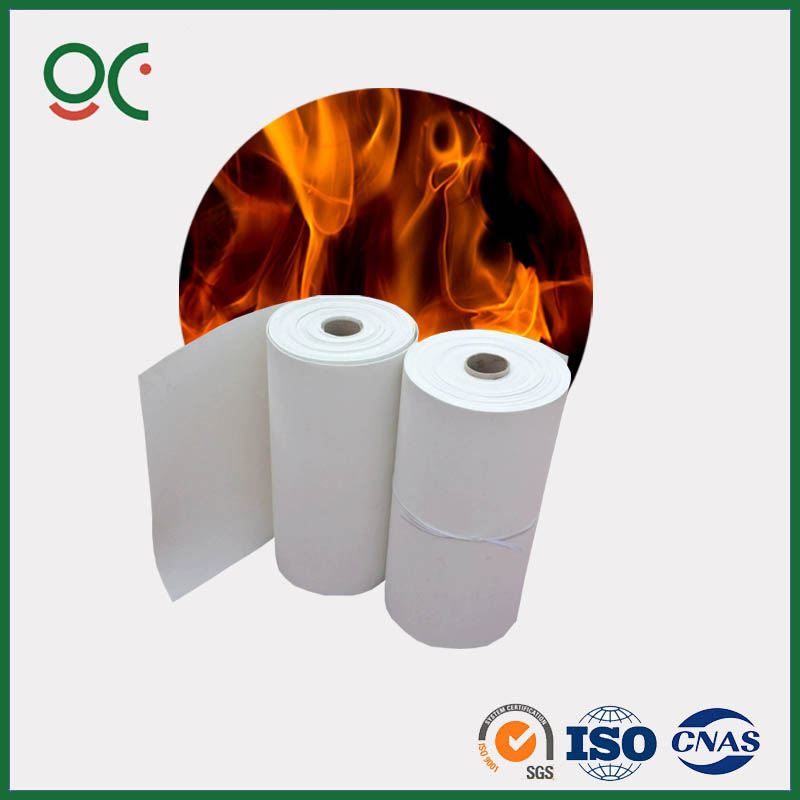

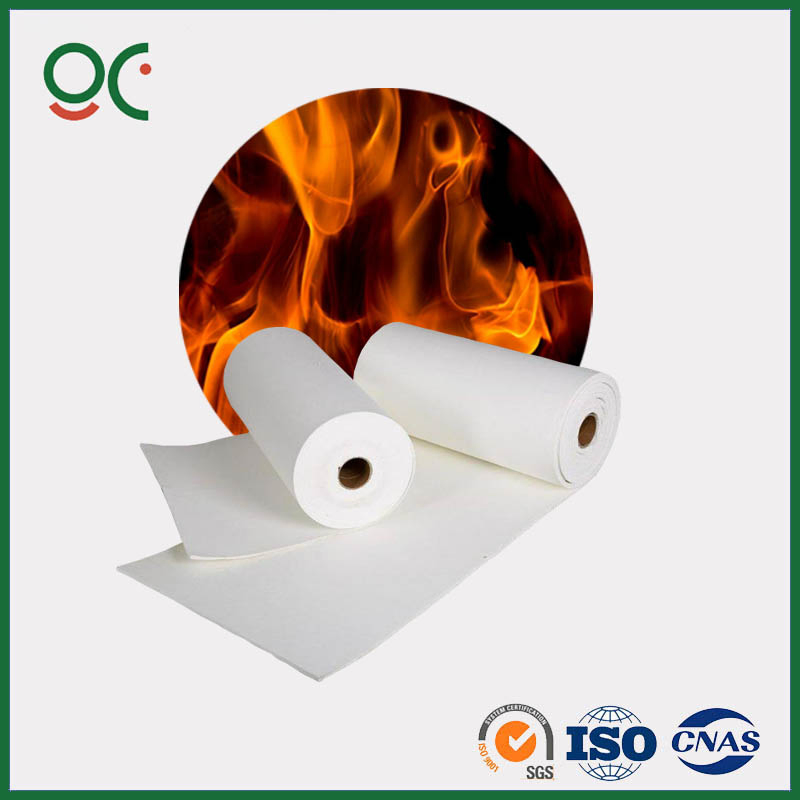

Ceramic Fiber Paper is manufactured from high-grade ceramic fiber formed into flexible sheets. It offers high temperature resistance, very low thermal conductivity, chemical corrosion resistance, and thermal shock stability. It is widely used in applications where purity, cracking resistance, and heat resistance are highly required, providing excellent insulation in limited spaces.

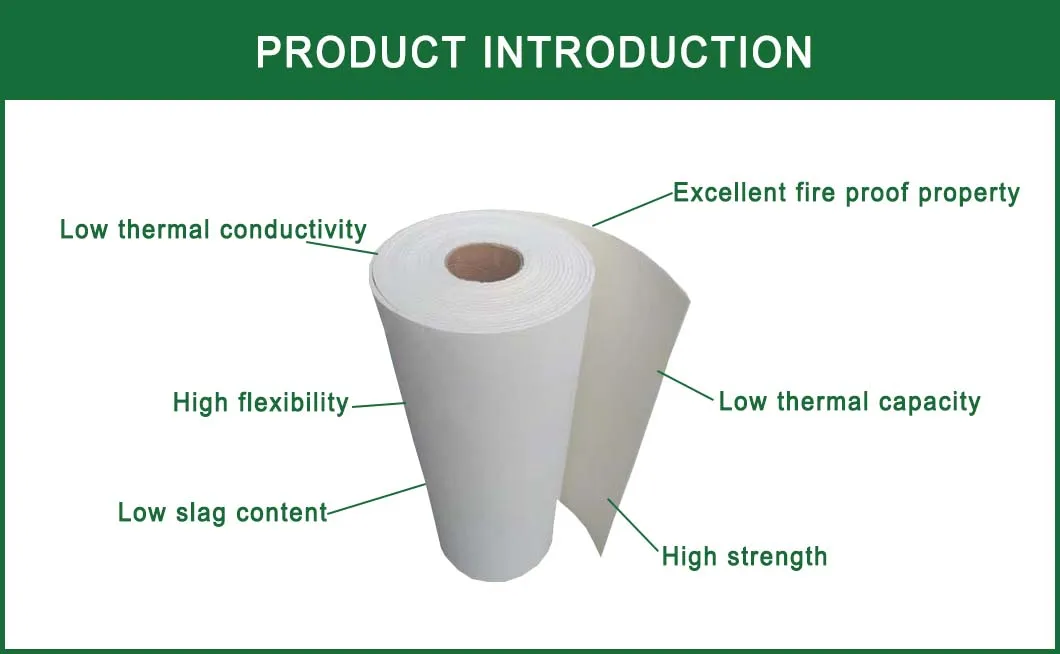

⭐ Key Features
• Low heat storage
• Easy to cut, drill or saw
• Low thermal conductivity
• High temperature stability
• Close tolerance with excellent surface finish

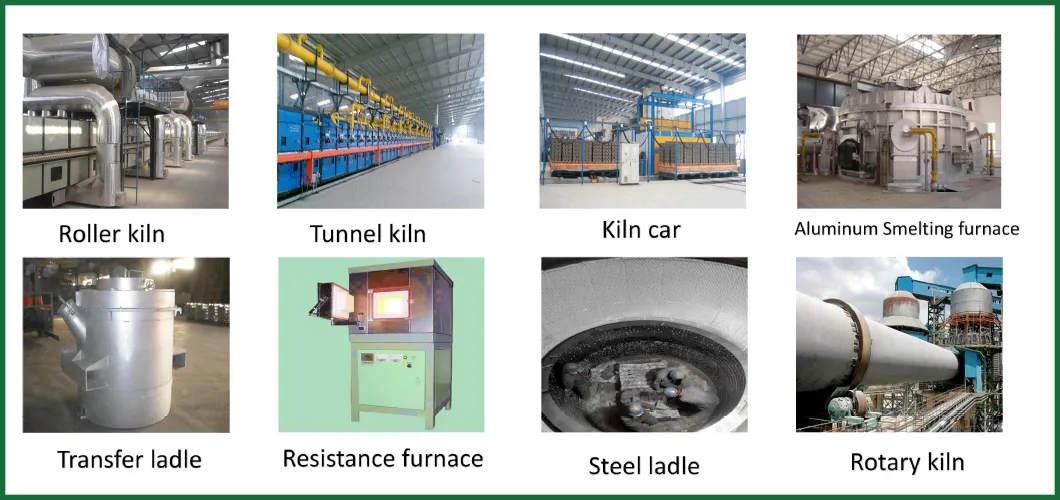

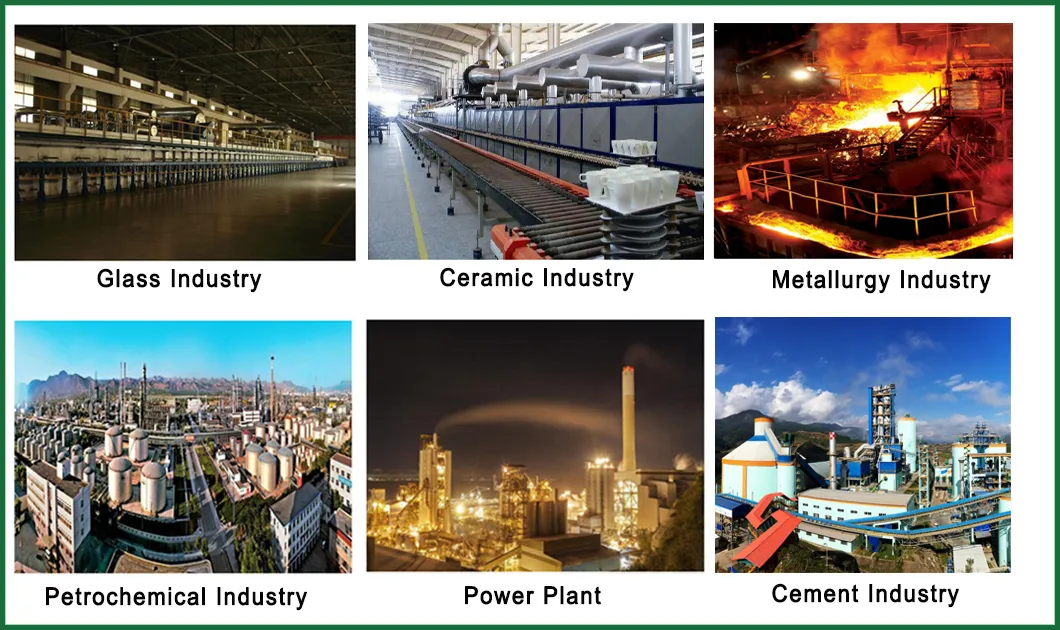

🚀 Applications
• Hot top lining & Ingot mould liner
• High temperature gaskets
• Refractory back up insulation
• Heat shield and silencer insulation
• Molten metal splash and spark protection
📋
Technical Data Sheet
| Description |
STD Paper |
HA Paper |
HZ Paper |
| Al2O3 (%) | 47 | ≥52 | ≥34 |
| SiO2 (%) | ≥52 | ≥47 | ≥50 |
| ZrO2 (%) | - | - | ≥15 |
| Fe2O3 (%) | 5 | ≤0.5 | ≤0.5 |
| Tensile Strength (MPa) | ≥0.3 | ≥0.3 | ≥0.3 |
| Density (Kg/m3) | 190 ~ 250 |
| Thickness (mm) | 0.5 ~ 10mm |
📸

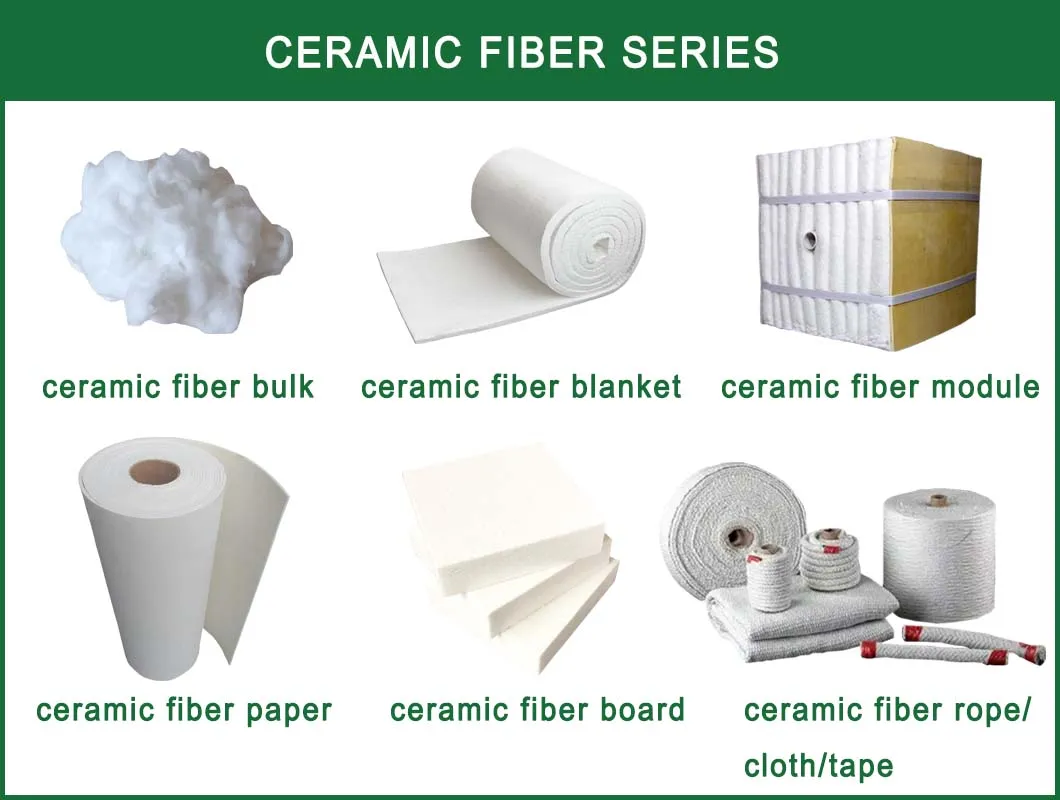

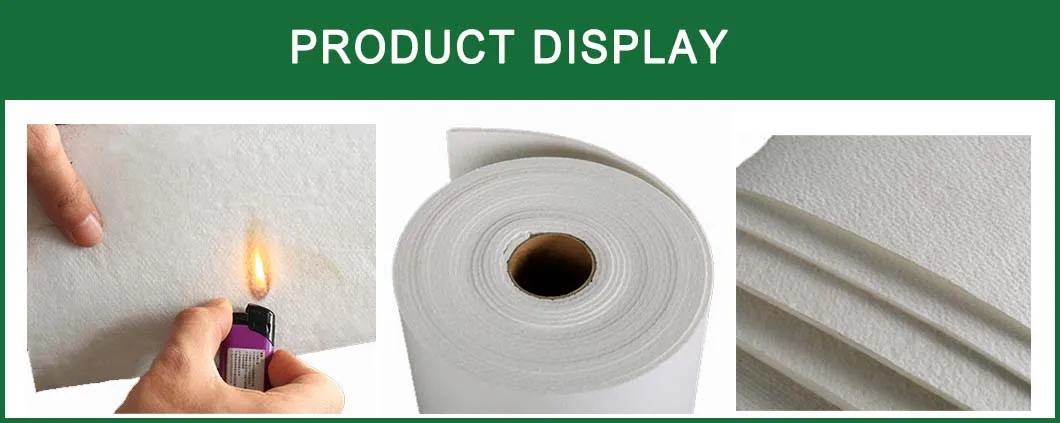

Product Gallery
📦
Packaging & Delivery
Package Size:
32.00cm * 32.00cm * 62.00cm

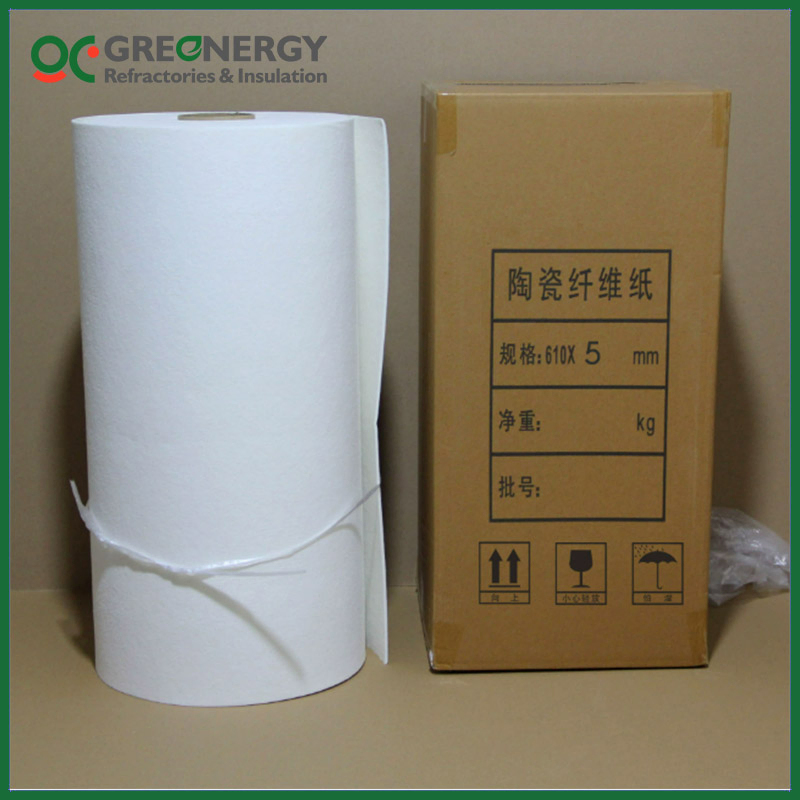

Transport Package:
Sea-Worthy Wooden Carton / Plastic bag inside
❓
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer providing high-quality products and services at reasonable prices.
Can we visit your production facility?
Sure, you are welcome to visit at any time. We believe that seeing the production process firsthand builds confidence.
Do you accept OEM orders?
Yes, we have the capability to provide OEM services according to your specific requirements.
What is the Minimum Order Quantity (MOQ) for trial orders?
There is no strict limit. We can offer the best suggestions and solutions based on your specific conditions and needs.
Do you provide samples?
Yes, samples are available for quality verification and testing purposes.
What certifications does your company hold?
We hold ISO9001 certifications and provide detailed test reports. We can also apply for other necessary certifications as required.
