FibroCeram Materials
FibroCeram Materials

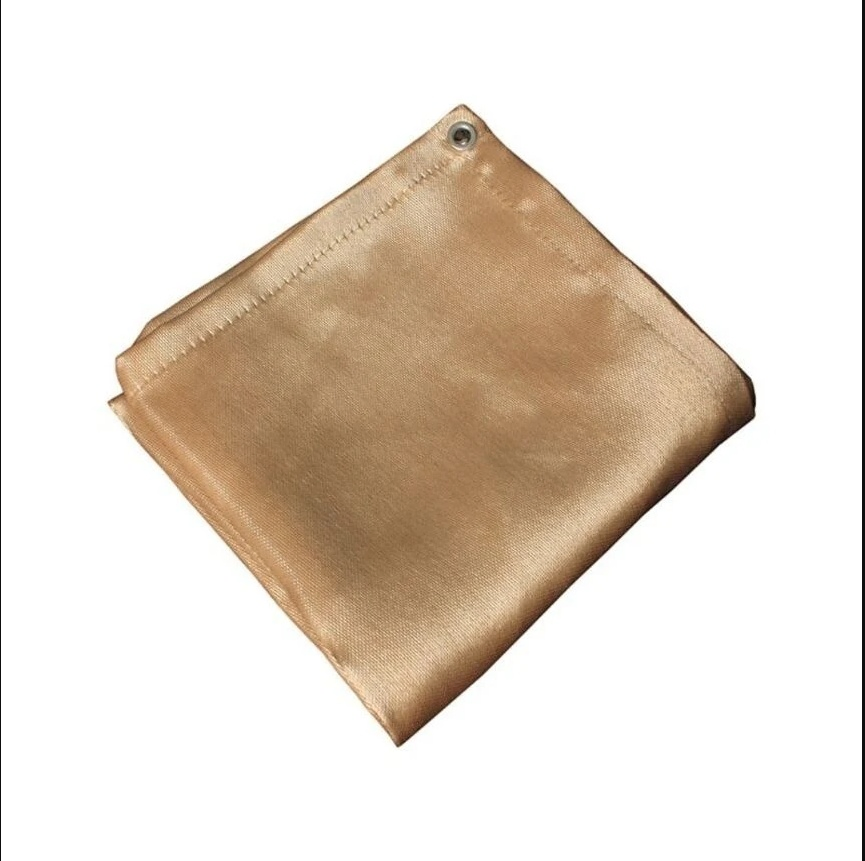

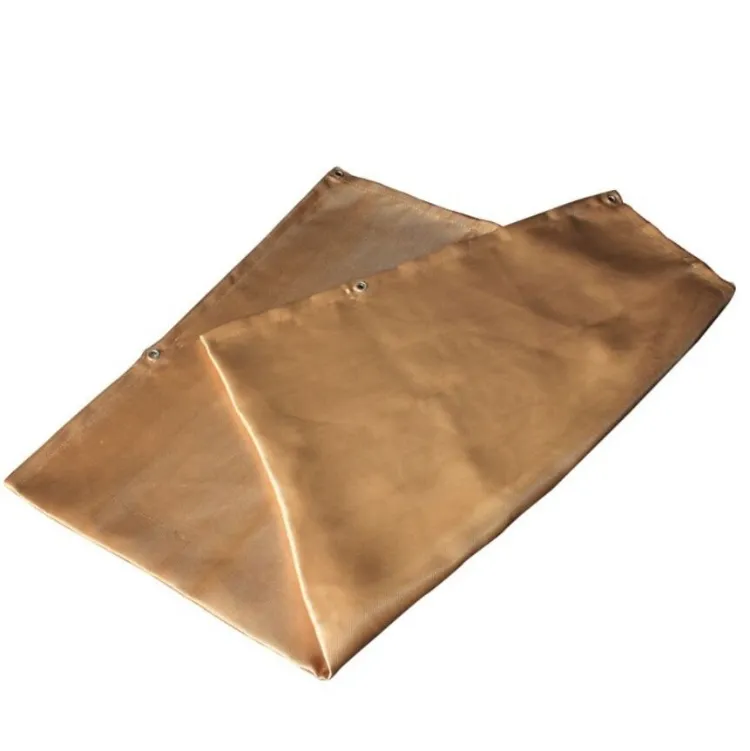

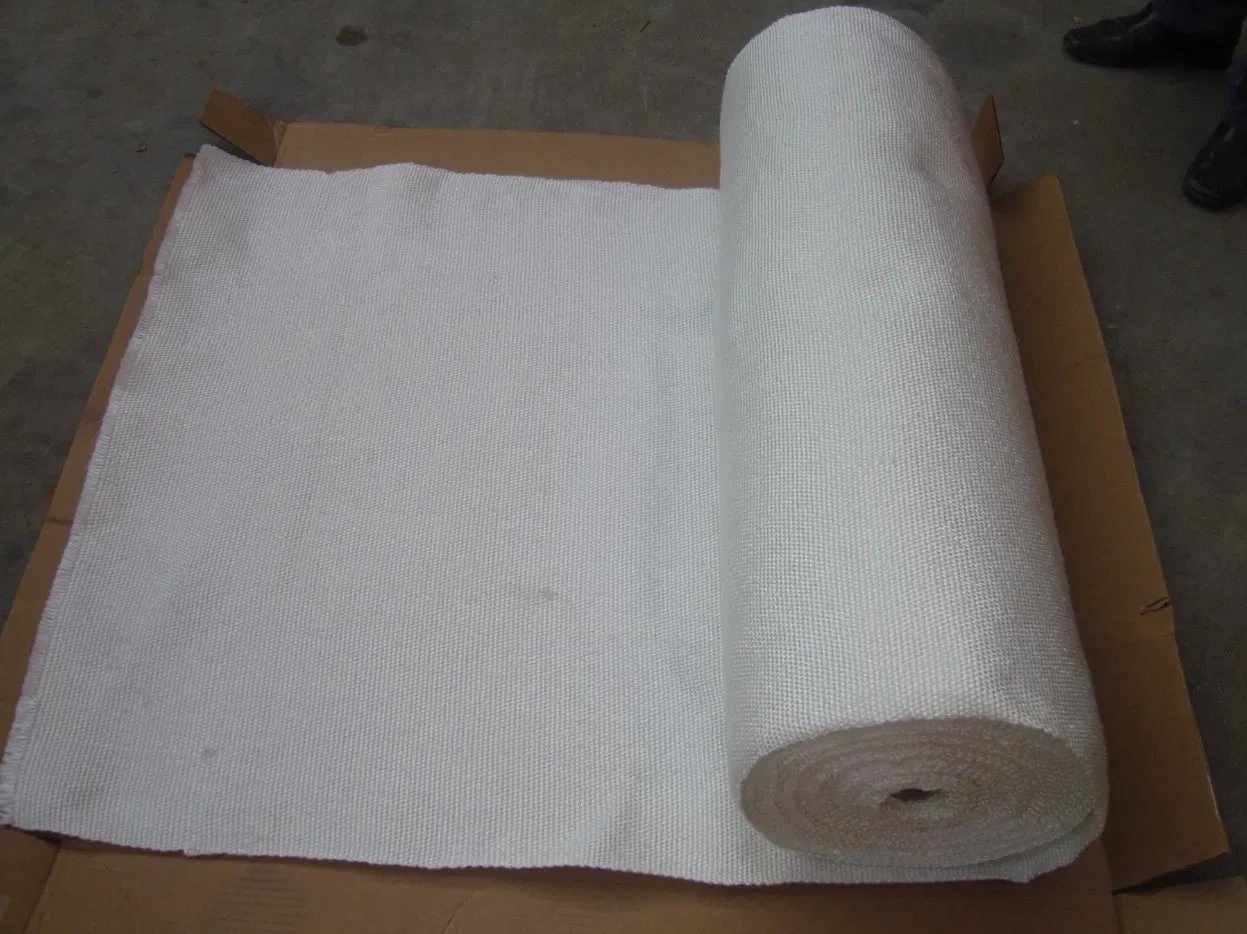

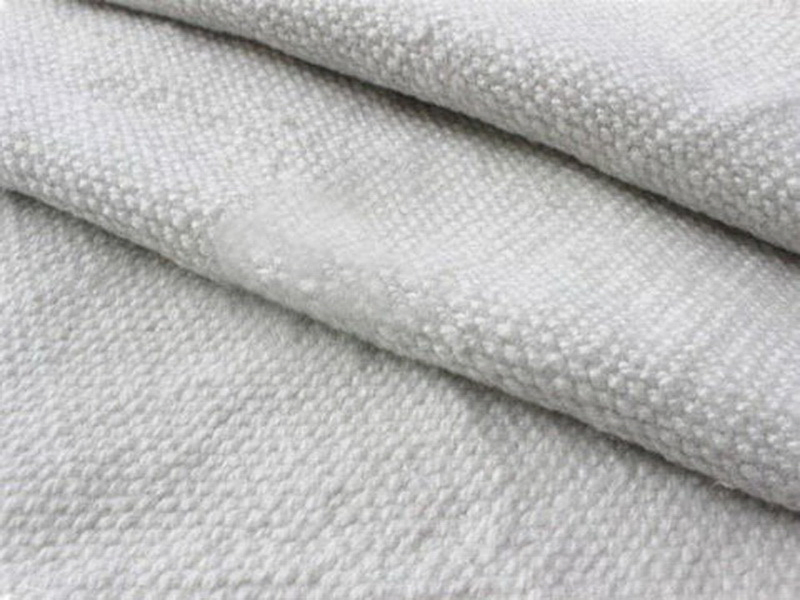

Glass Fiber Cloth is mainly used in the production of various electrical insulating laminates, printed circuit boards, various vehicle bodies, storage tanks, boats, molds, etc. It has the functions of heat insulation, fire prevention and flame retardant. It absorbs a lot of heat when it is burned by the flame and can prevent the flame from passing through and isolate the air.
| Item | Standard Specification |
|---|---|
| Product Code | CW1500 |
| Width (cm) | 100.00 |
| Weave Style | Plain |
| Weft Counts (ends/cm) | 3.2±0.5 |
| Warp Counts (ends/cm) | 5.6±1 |
| Breaking Strength (N/50*200) | 1870*1700 |
| Weight (g/m²) | 1000±100 |
| Thickness (mm) | 1.5±0.15 |
| Working Temperature | 550 ºC |
