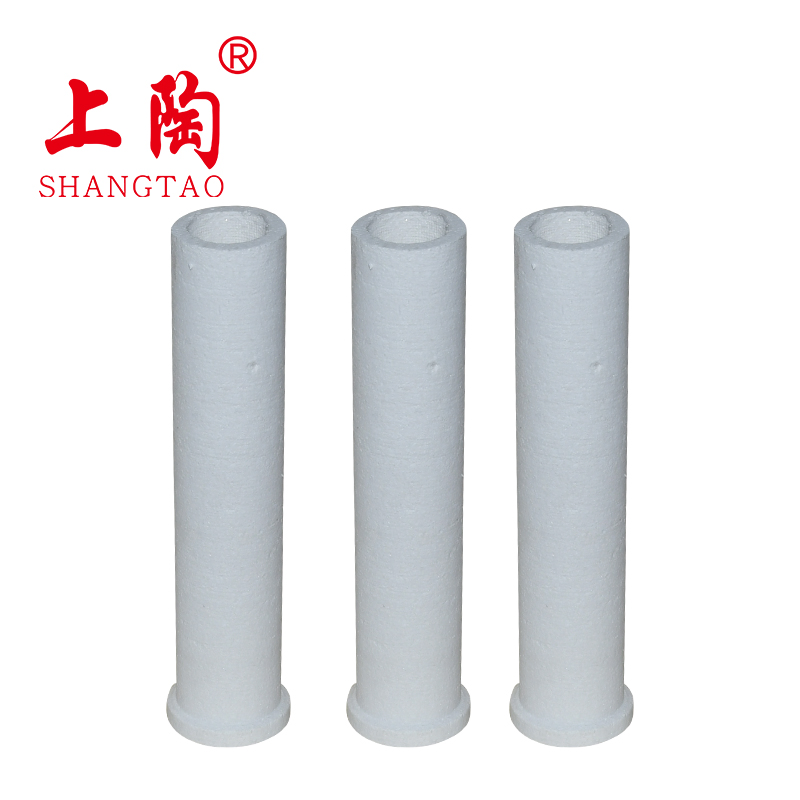

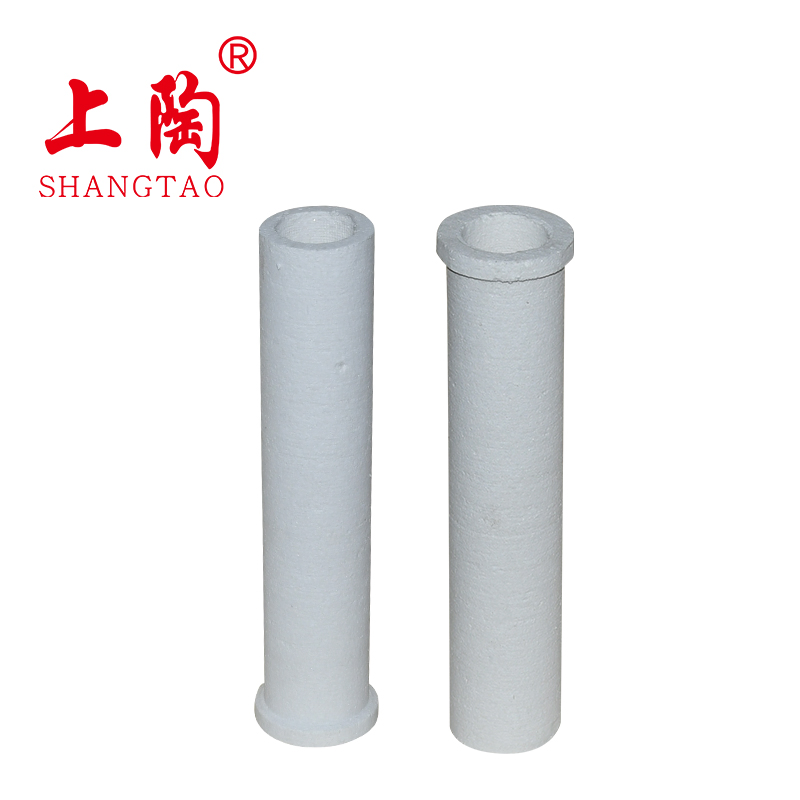

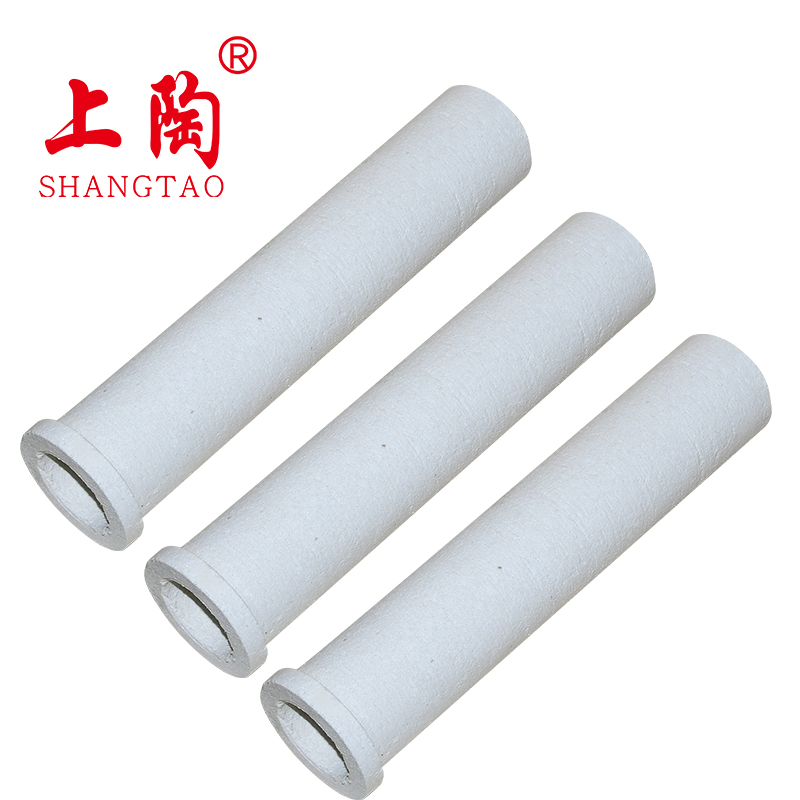

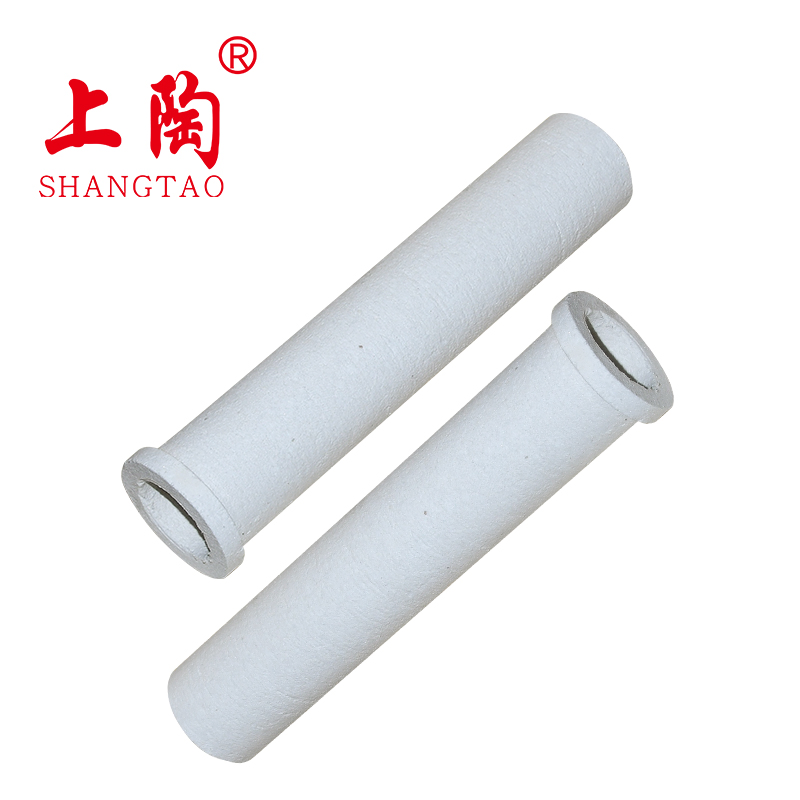

High Quality Refractory Ceramic Fiber Aluminium Silicate Pipe Tube

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GTG001

Chemical Composition

Al2O3.SiO2

Shape

Tube

Manufacturing Technique

Spray Silk Rug

Kind

High Purity Ceramic Fiber

Transport Package

Wooden Box

Specification

Ceramic Fiber

Origin

China

Product Description

Ceramic Fiber Aluminium Silicate Pipe Tube

Ceramic Fiber Tube Physicochemical Table
Flexural Strength	kn/mm2	≥100
Compressive Strength	MPa(N/mm2)	8MPa
Elongation at Break	%	0.226
Thermal Conductivity	W/(m·K)	≤ 0.07
Tensile Strength	kpa	≤ 0.07
Volumetric Shrinkage	%	≤ 0.07

Key Features & Benefits

High temperature dust removal, ultra-low emission

High application temperature and wide temperature range
Low dust emission and ultra-low emission standards of the filter tube itself

Double action, high denitrification efficiency

Implanted with a denitrification catalyst for integrated dust removal and denitrification
Optimal working temperature: 250~400ºC (ammonium sulfate ≥280ºC)
High efficiency with one-time ultra-low emission results
Surface filtration reduces risk of alkali metal poisoning for longer service life

Auxiliary (secondary) desulfurization

Functional dust layer formation on the surface of the filter tube
Effective management of smoke, sulfide, and desulfurization powder
Surface of the filter tube enables secondary desulfurization performance

Frequently Asked Questions

What is the maximum working temperature for these ceramic fiber tubes?

The denitrification working temperature ranges between 250~400ºC, specifically designed for high-temperature industrial environments.

Does the tube support both dust removal and denitrification?

Yes, the filter tube is implanted with a denitrification catalyst, providing an integrated dual-function solution for gas cleaning.

What are the mechanical strength properties of the GTG001 model?

It features a flexural strength of ≥100 kn/mm2 and a compressive strength of 8MPa, ensuring structural integrity during operation.

How does the secondary desulfurization work?

A dust layer containing smoke and sulfide forms on the surface of the filter tube, which then reacts with desulfurization powder for secondary treatment.

What packaging is used for transportation?

All ceramic fiber tubes are securely packed in wooden boxes to ensure safe delivery and prevent damage during transit.

Why is surface filtration beneficial for service life?

Surface filtration significantly reduces the risk of alkali metal poisoning to the catalyst, thereby extending the overall functional lifespan of the tube.
