Product Description

📋 Basic Information

Model NO.

Ceramic Fiber Paper

Chemical Composition

SiO2, Al2O3

Shape

Ceramic Fiber Paper

Kind

Ordinary Ceramic Fiber

Raw Material

Aluminum Silicate Fiber

Product

Aluminum Silicate Paper

Specification

1~10mm

HS Code

68061010

Production Capacity

500,000 Tons

Transport Package

Carton/Bag/Pallet

🔍 Product Description

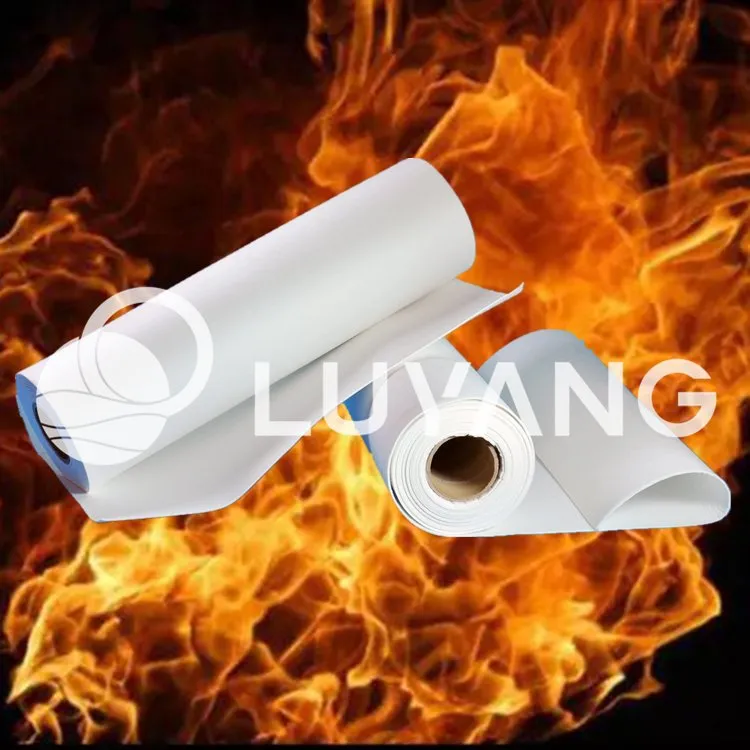

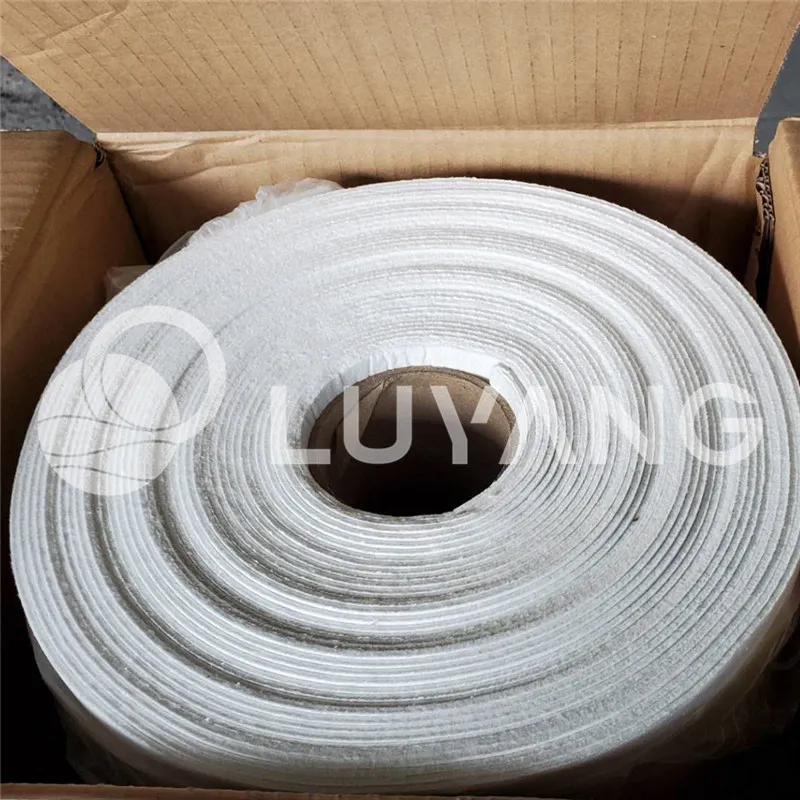

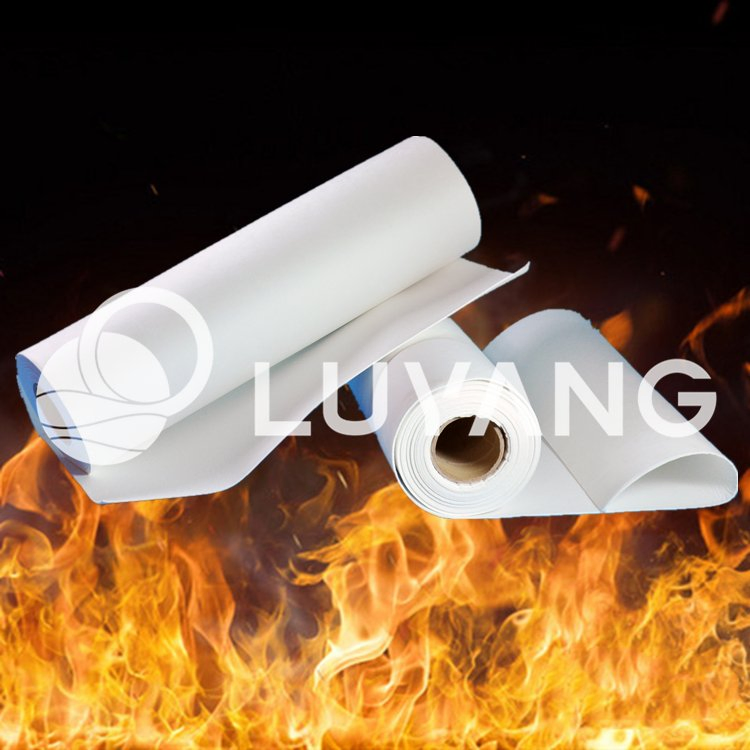

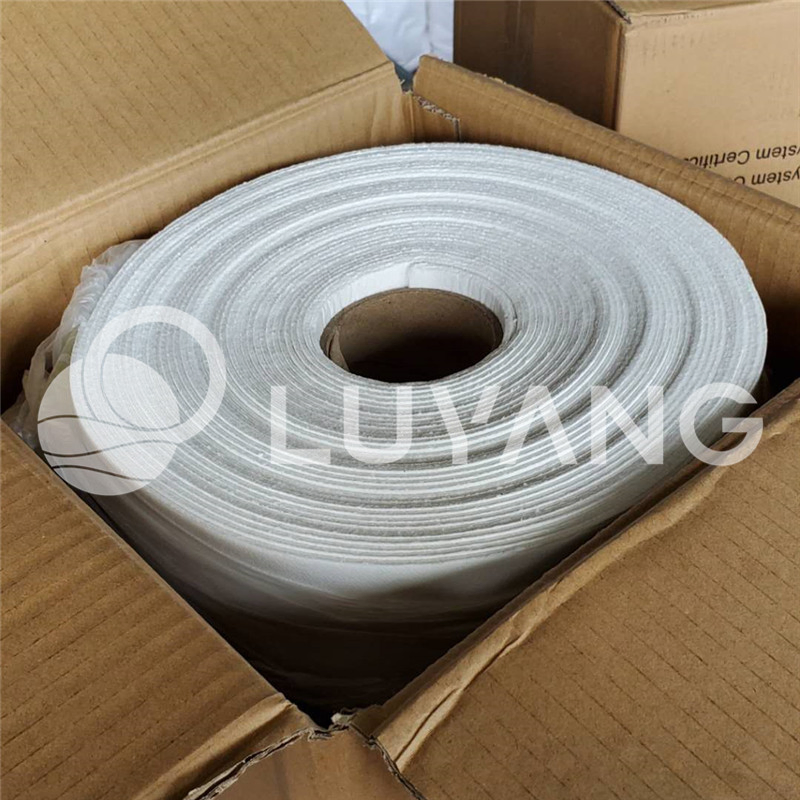

Ceramic Fiber Paper / RCF Paper

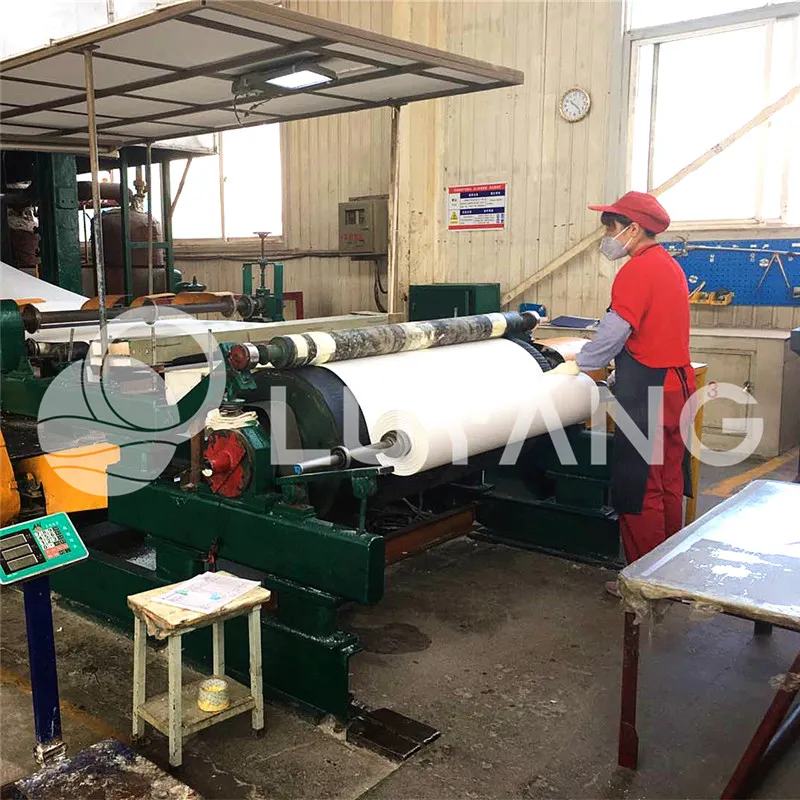

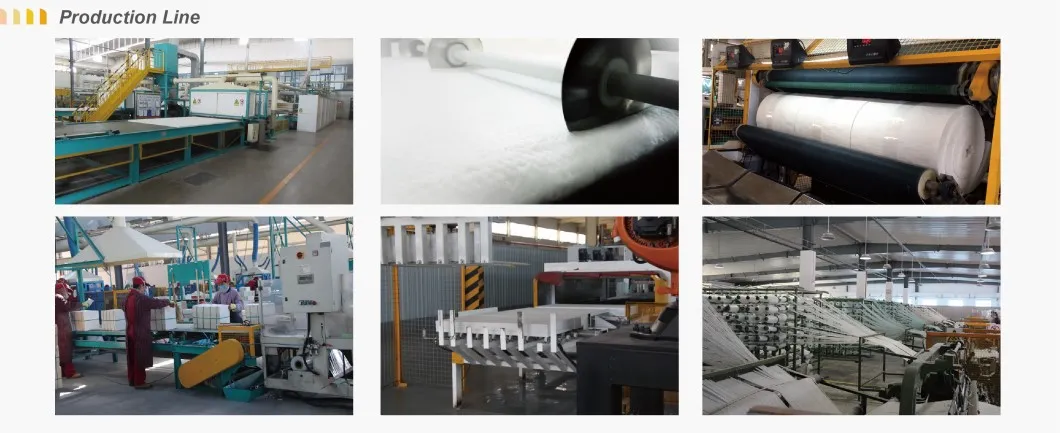

Ceramic fiber paper is manufactured by blending high-quality ceramic fiber bulk, binders, and additives. The specialized paper-making process is used to form uniform and flexible paper. It is easy to handle and cut, making it ideal for a wide range of thermal insulation applications. It is especially suited for use in gaskets and as a parting medium.

✨ Key Features

🛡️ Excellent thermal shock resistance

✂️ Can be machined, cut and shaped easily

➰ High flexibility

🌡️ Low thermal conductivity

⚡ Good dielectric strength

🏭 Typical Applications

⭕ Gaskets for high temperature applications

🏠 Gaskets for domestic appliances

🏗️ Back-up lining for metal troughs

🚗 Thermal barriers for vehicles

🔗 Expansion joints

📊 Typical Parameters

Description	STD PAPER	HD PAPER
Classification Temperature (ºC)	1260	1350
Chemical Composition (%)
Al2O3	42-47	44-50
SiO2	52-57	49-55
Color	White	White
Density (kg/m³)	200	240
Tensile Strength (MPa)	0.4	0.7
Loss of Ignition (%)	≤10	≤6
Thermal Conductivity (W/m·K)
200ºC	0.06	0.06
400ºC	0.09	0.08
600ºC	0.13	0.13
800ºC	0.20	0.19
1000ºC	-	0.29
1200ºC	-	0.43

❓ Frequently Asked Questions

1. What is the maximum temperature ceramic fiber paper can withstand?

The classification temperature ranges from 1260ºC for standard paper to 1350ºC for high-density (HD) paper.

2. Is this material flexible enough for complex shapes?

Yes, one of its primary features is high flexibility. It can be easily machined, cut, and wrapped around various shapes.

3. What is the typical density of this ceramic fiber paper?

The density typically ranges between 200 kg/m³ and 240 kg/m³ depending on the product grade.

4. What are the main chemical components of the paper?

The paper is primarily composed of Alumina (Al2O3, 42-50%) and Silica (SiO2, 49-57%).

5. Can it be used for electrical insulation?

Yes, it possesses good dielectric strength, making it suitable for certain high-temperature electrical barrier applications.

6. What common industries use this product?

It is widely used in domestic appliance manufacturing, automotive thermal protection, and industrial furnace gaskets.
