High Quality Ceramic Fiber Board

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

GT-CF-B

Transport Package

Cartons and Pallets

Specification

Customized

Trademark

Origin

China

Capacity

150t/Month

🔍

Product Description

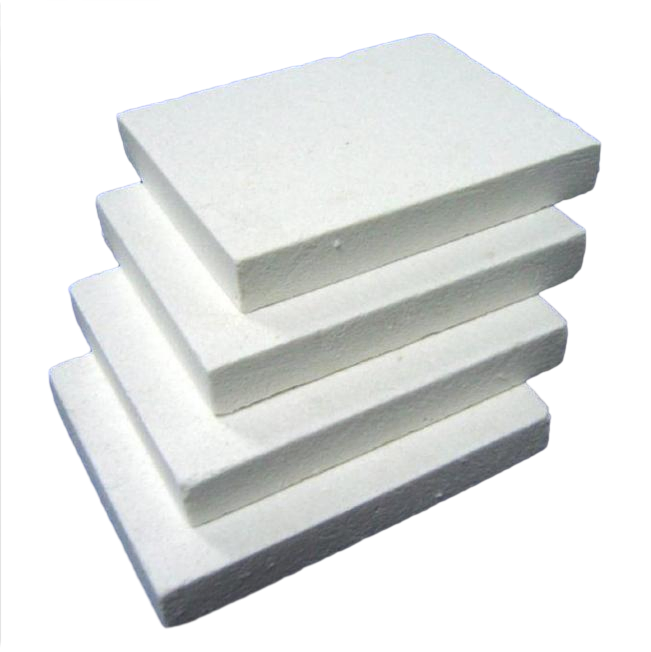

High Quality Ceramic Fiber Board

Ceramic fiber boards are made from different types of ceramic fiber, attending inorganic and suitable organic binders. The mixture is vacuum processed into boards or formed shapes that keep good mechanical strength after heating. Physical stability up to 1800ºC.

💡 Note: In some devices, it is normal to produce smoking when a small amount of organic binder is burnt, but it will disappear quickly.

Inorganic board: All made of inorganic binder according to request, no organic volatile in use.
Hardening board: Surface hardening or completely hardened for better strength.
Hydrophobic board: Surface waterproof treatment with a hydrophobic rate of more than 98%.

Working Temperature (ºC)		1260			1400
Code		ZYGX-164	ZYGX-264	ZYGX-364	ZYGX-464	ZYGX-564
Shrinkage On Heat (%)		1000ºC*24h≤-3.5	1000ºC*24h≤-3	1150ºC*24h≤-3	1260ºC*24h≤-3	1350ºC*24h≤-3
Thermal Conductivity (W/m.k)	(average 200ºC)	0.06-0.085			0.103
	(average 400ºC)	0.092-0.112			0.125
	(average 600ºC)	0.112-0.126			0.151
Moisture Content (%)		≤1
Density (kg/m³)		200-400			240-400
Standard Size (mm)		90060010-100mm or Customized

❓

Frequently Asked Questions

What is the maximum working temperature of this board?

The ceramic fiber board offers excellent physical stability up to 1800ºC, depending on the specific grade and classification selected.

Why does the board produce smoke during the first heating?

It is normal for a small amount of organic binder to burn off and produce temporary smoke. This will disappear quickly and does not affect the board's performance.

Do you offer waterproof versions of the ceramic fiber board?

Yes, we provide Hydrophobic boards with a surface waterproof treatment achieving a hydrophobic rate of more than 98% for special applications.

Can the boards be customized to specific sizes?

Absolutely. While our standard size is 900*600mm with thicknesses ranging from 10-100mm, we can provide customized specifications based on your requirements.

What is the difference between Inorganic and Hardening boards?

Inorganic boards contain no organic volatiles for clean-use environments, while Hardening boards undergo a surface or complete hardening process to provide superior mechanical strength.
