FibroCeram Materials
FibroCeram Materials

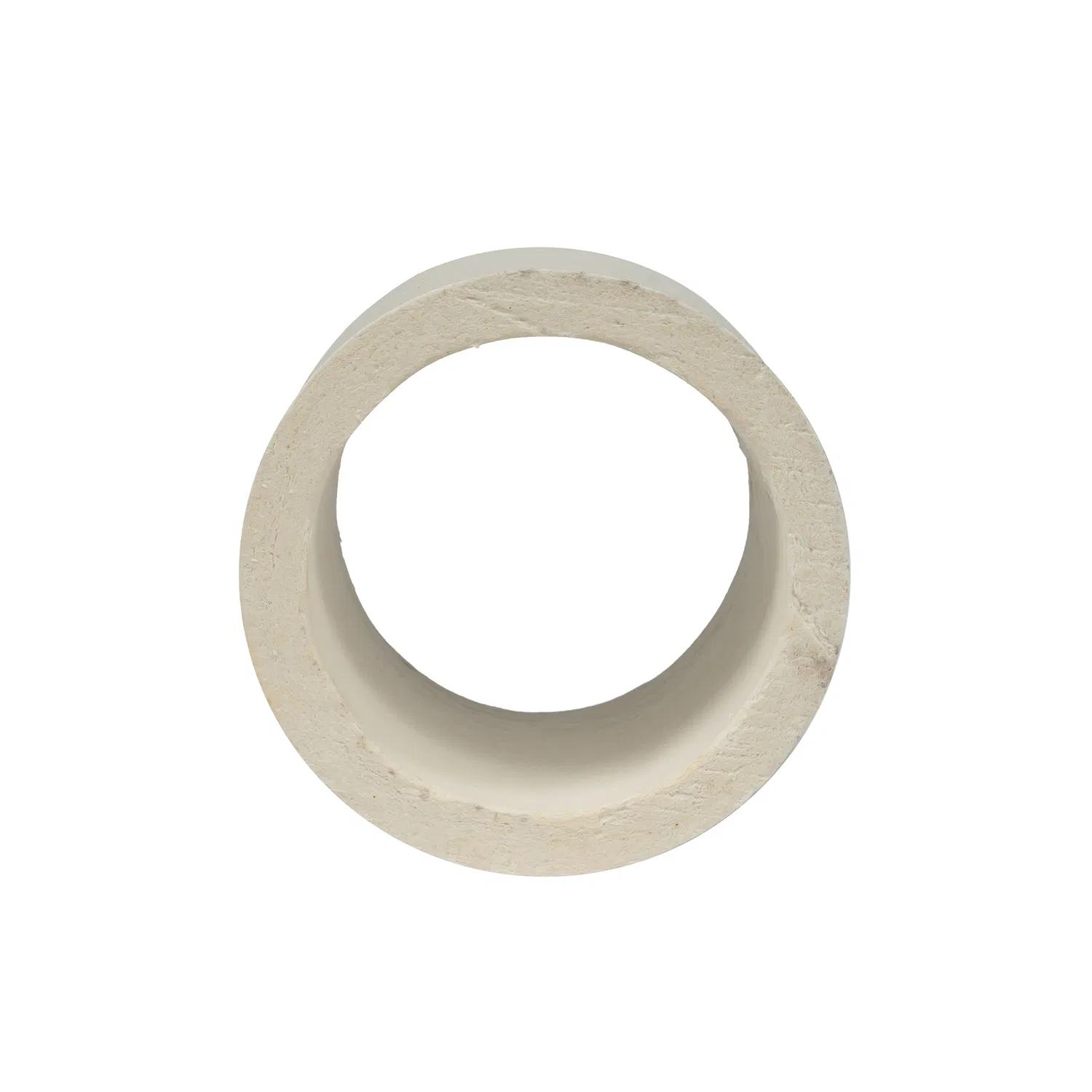

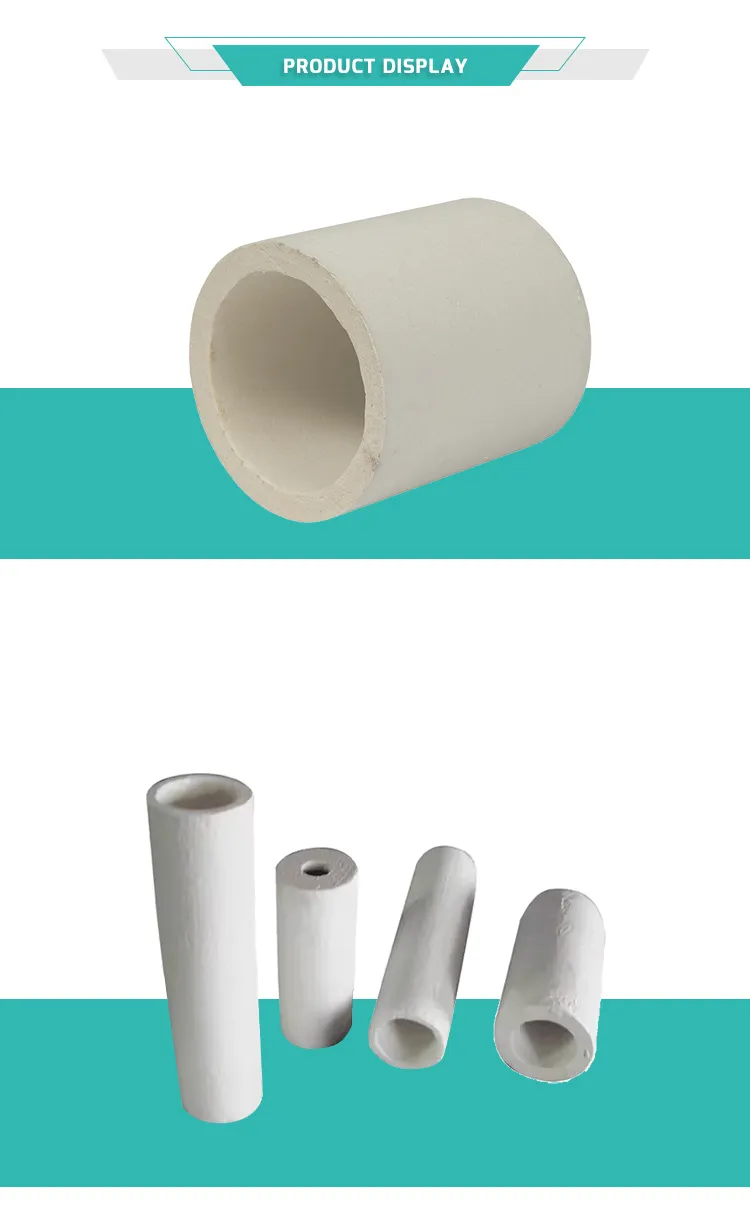

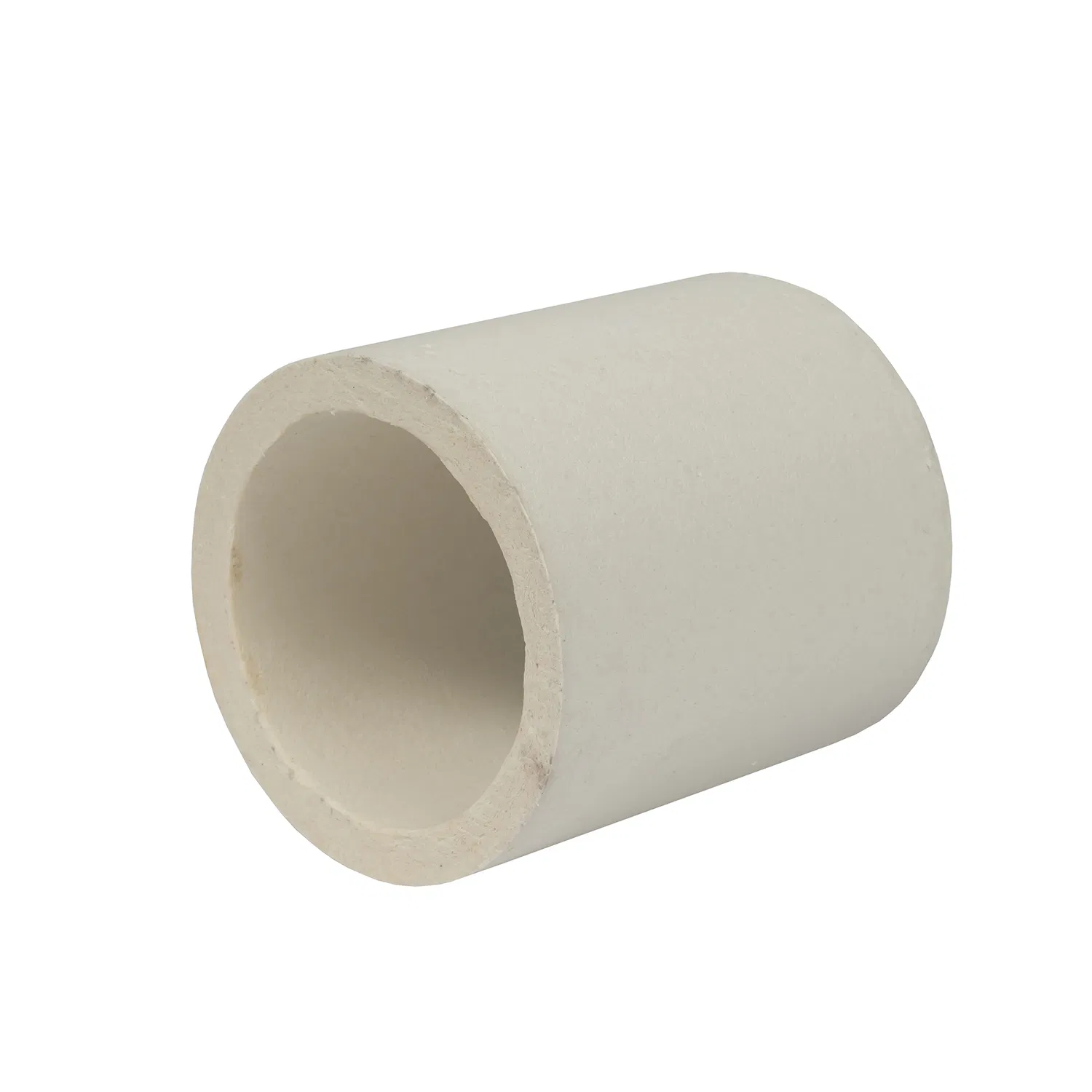

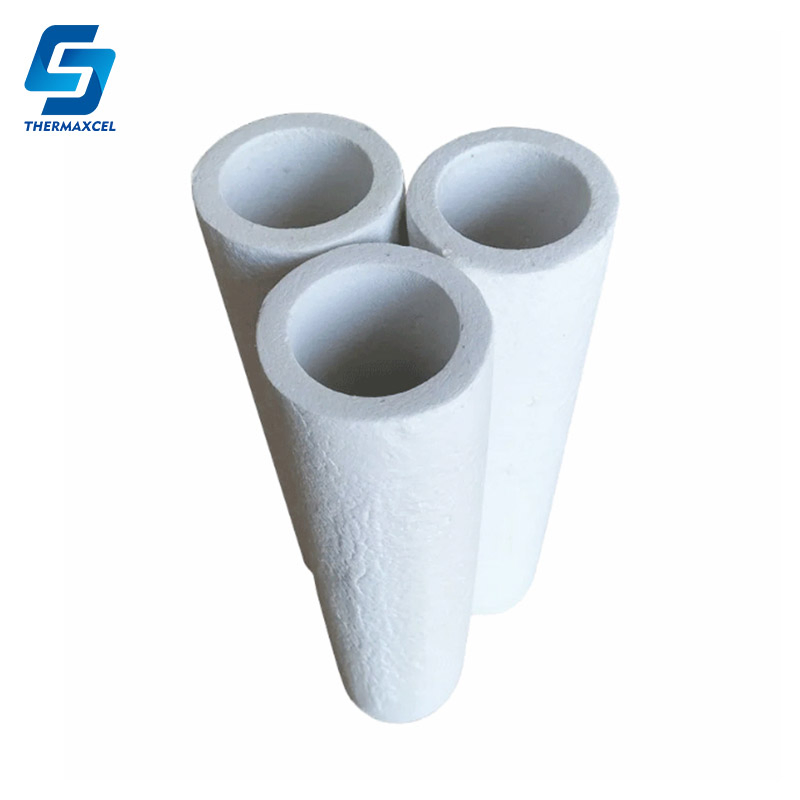

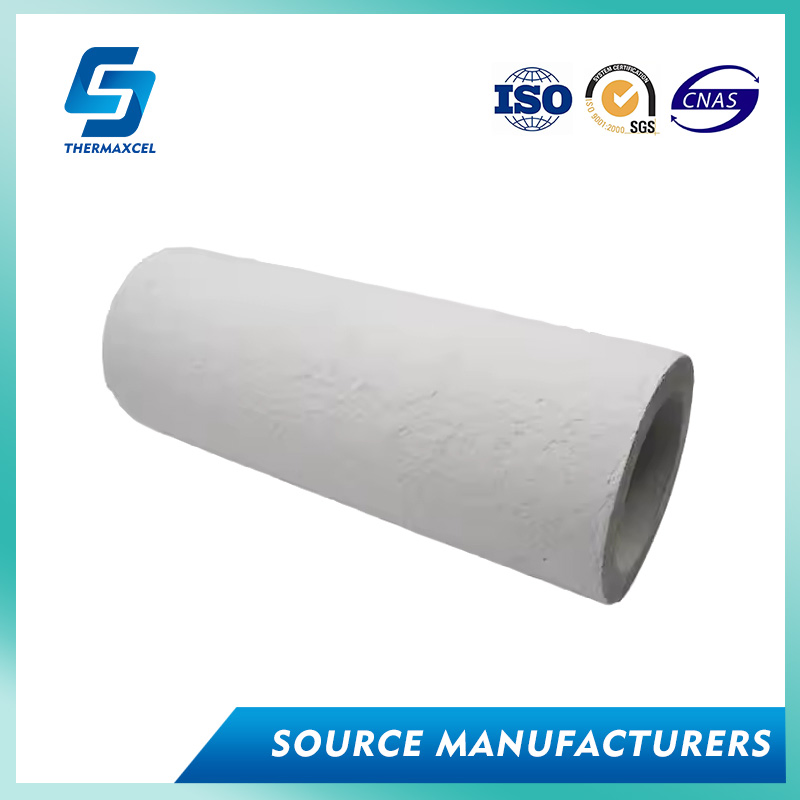

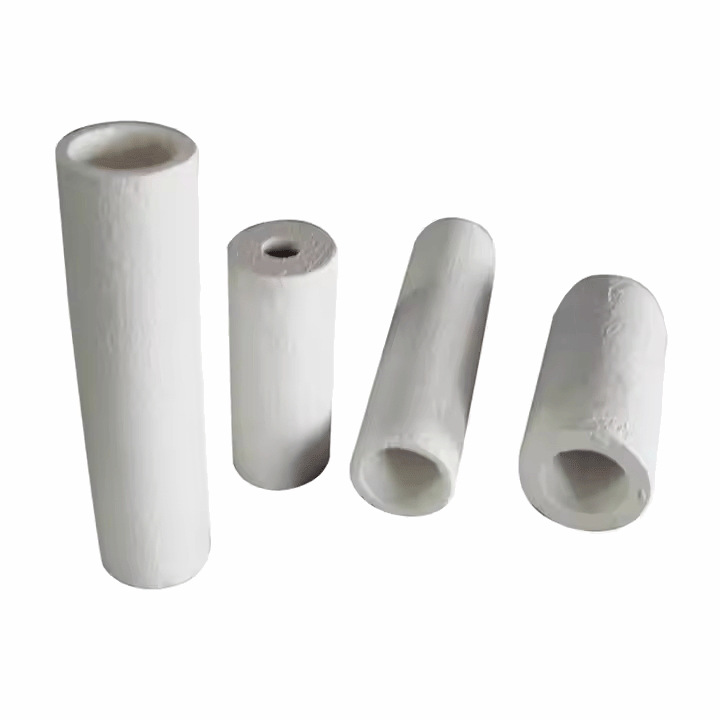

Ceramic fiber tubes are engineered from a blend of refractory fibers (primarily aluminum silicate rubber cotton felt) combined with inorganic binders and trace organic additives. Through advanced processes including high-temperature melting, fiber formation, mold processing, and curing, these tubes achieve exceptional thermal stability with service temperatures ranging from 1000°C to 1800°C.
| Material | 85 Al2O3 | 90 Al2O3 | 95 Al2O3 | 99.7 Al2O3 |
|---|---|---|---|---|
| Al2O3 | 85% | 90% | 93% | 99.30% |
| Fe2O3 | ≤1.0 | ≤0.5 | ≤0.5 | ≤0.3 |
| Density (g/cm³) | 3.4 | 3.5 | 3.6 | 3.85 |
| Vickers Hardness | ≥8.6 | ≥8.8 | 9 | 9 |
| Water Absorption | ≤0.2% | ≤0.1% | ≤0.085% | ≤0.01% |
| Refractoriness | 1580ºC | 1600ºC | 1650ºC | 1800ºC |
| Flexural Strength | 180 Mpa | 200 Mpa | 240 Mpa | 280 Mpa |
| Wear Rate | ≤3% | ≤2.5% | ≤1% | ≤0.5% |
