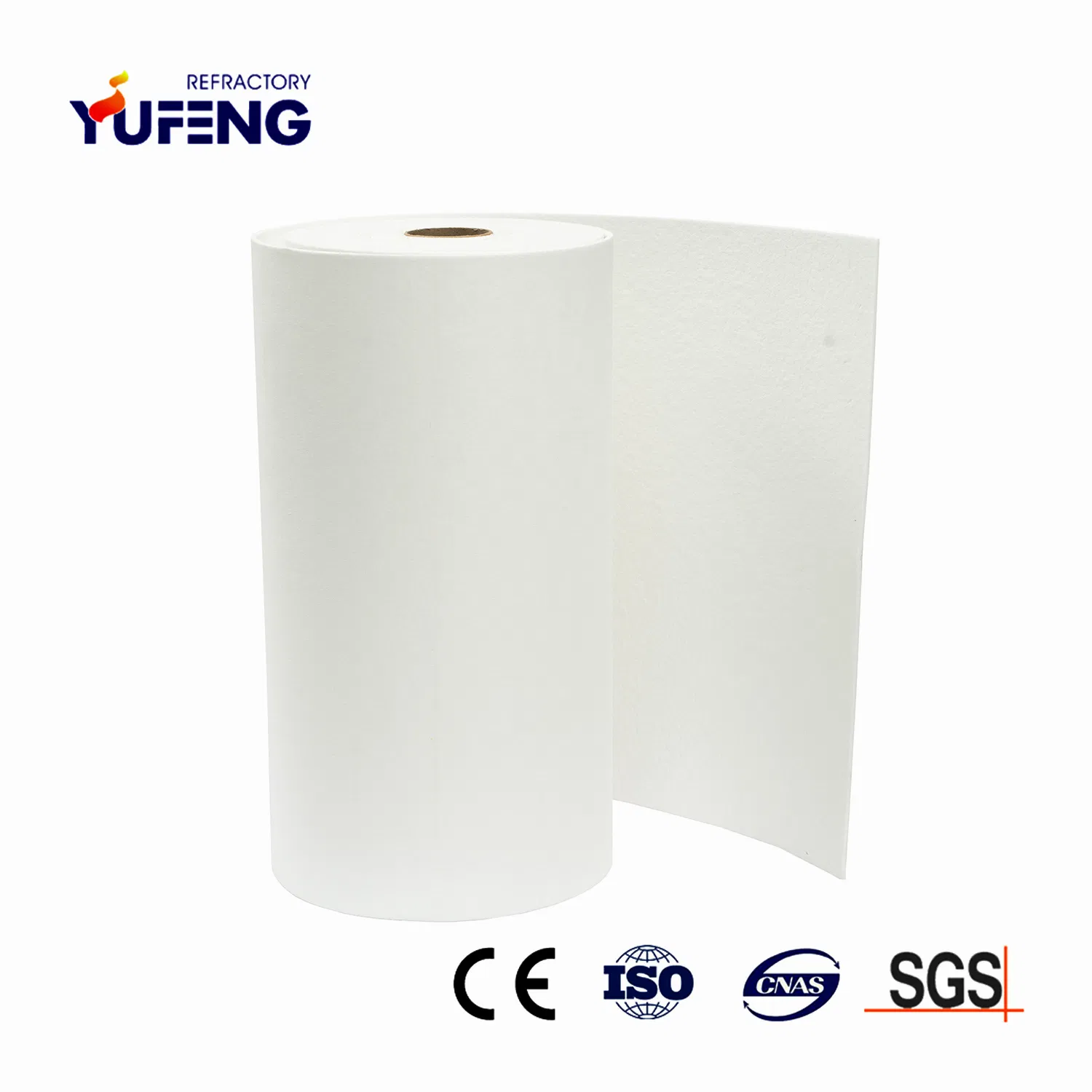

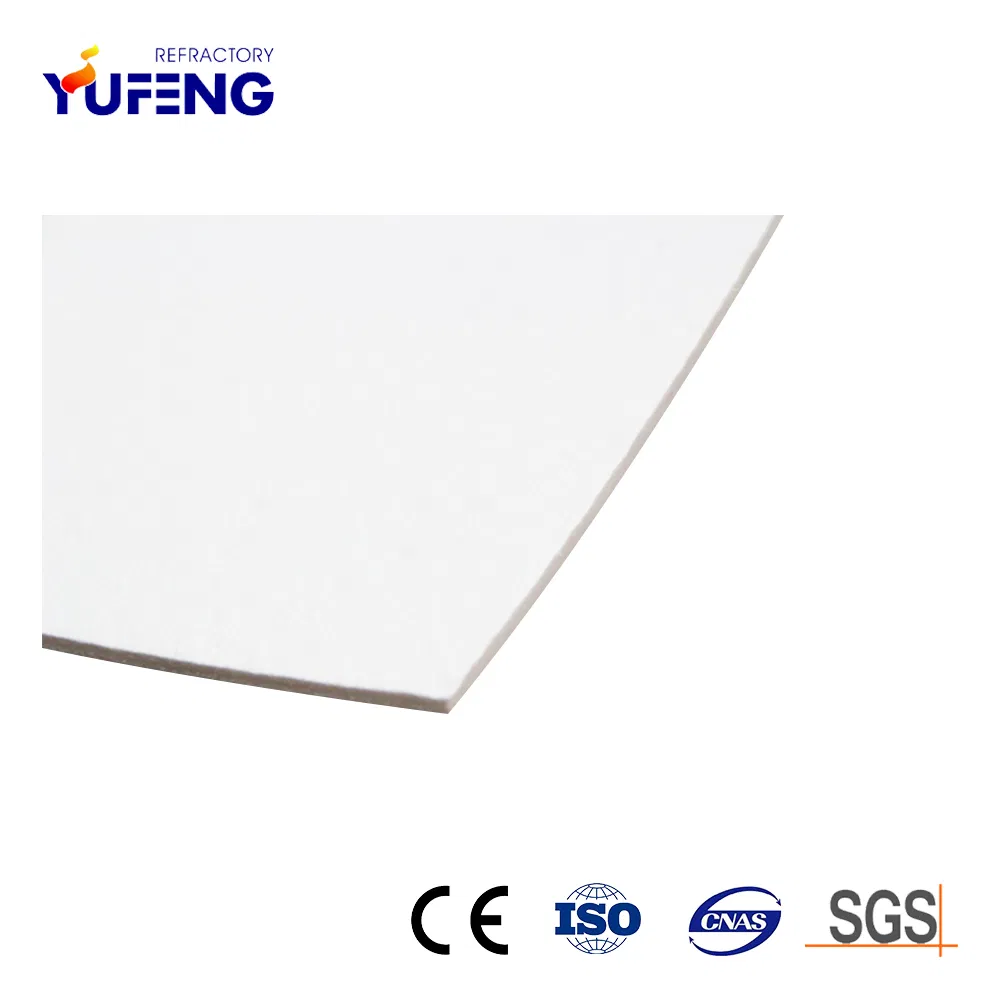

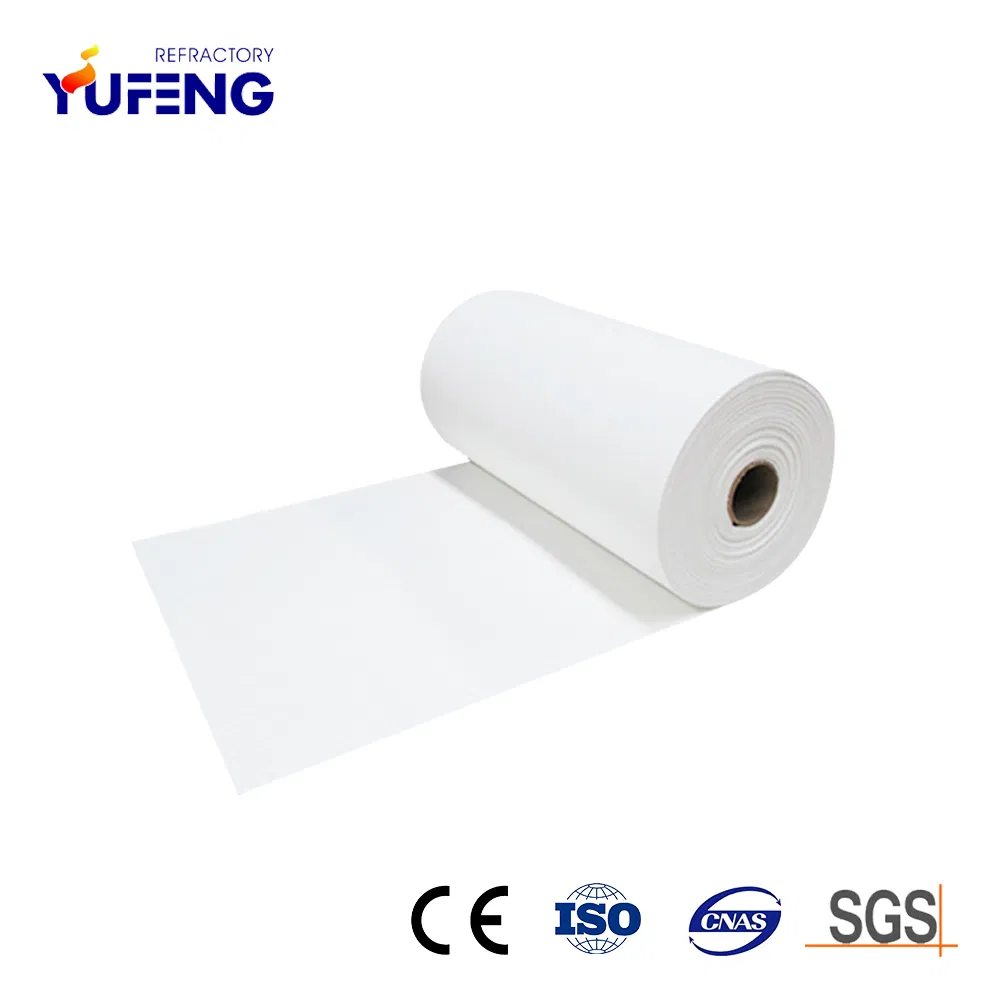

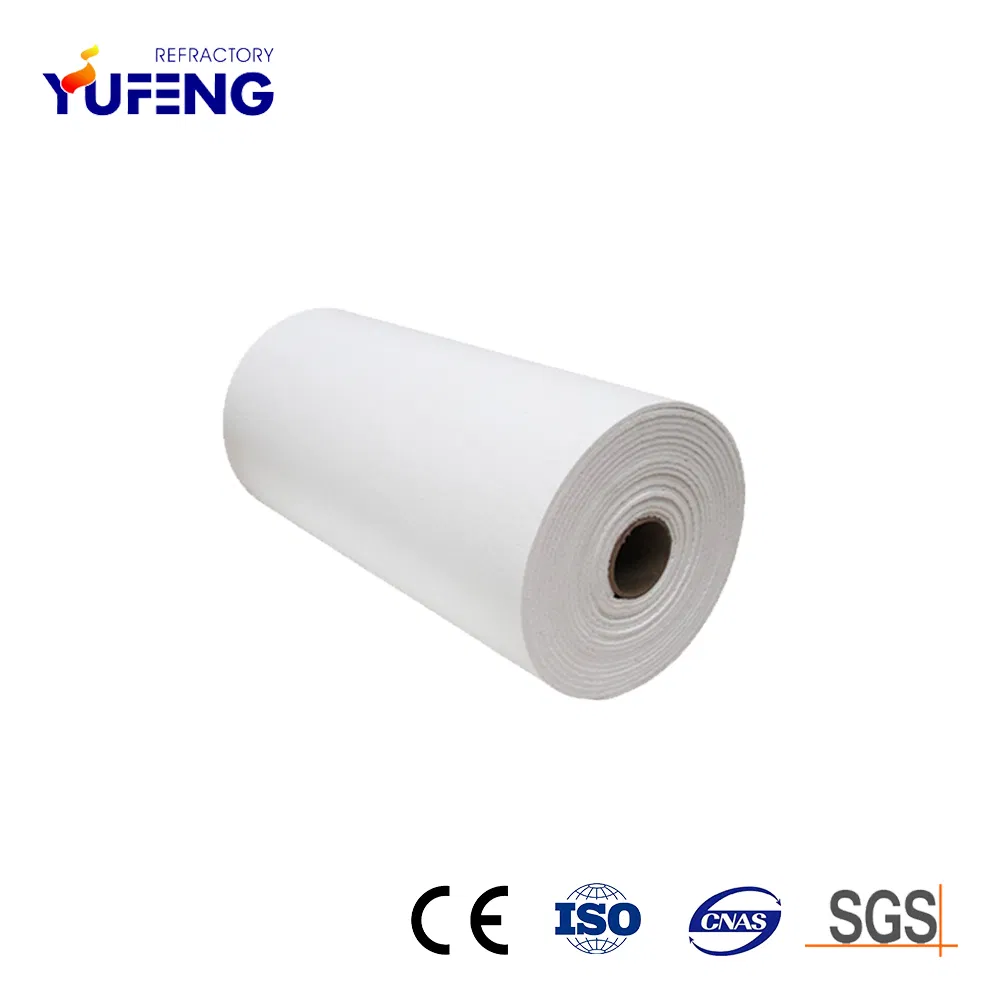

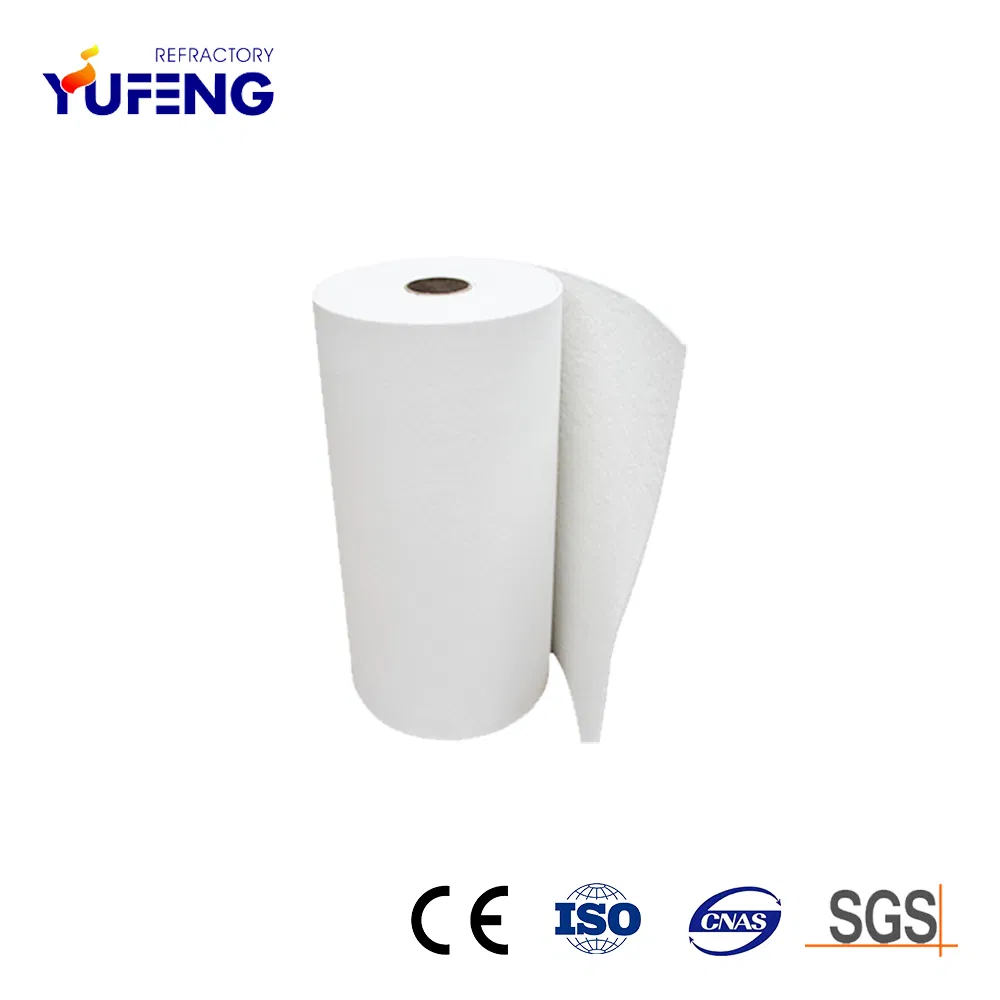

Roll Packing White High Purity Alumina-Silicate Ceramic Fiber Insulation Paper for Hot Top Linings

Still deciding? Get samples of $ !
Request Sample

Product Description

📄

Basic Information

Model NO.:Ceramic Fiber Paper
Shape:Paper
Manufacturing Technique:Spray Silk Rug
Kind:High Purity Ceramic Fiber
Standard Widths:610 mm and 1220 mm
Standard Thicknesses:1-6 mm
Classification:1260 ℃, 1360℃, 1430℃
Production Capacity:30,000 Tons /Year
🛠️

Product Description

Ceramic Fiber Paper consists primarily of high purity alumina-silicate fiber and is made through a fiber washing process. This process controls the content of un-fiberized shots to a very minimal level within the paper. Featuring light weight, structure uniformity and low thermal conductivity, it serves as a perfect solution for high temperature insulation and chemical corrosion resistance.

Grade Max Service Temp
Standard Grade1260ºC (2300° F)
High-Alumina Grade1360ºC (2480° F)
Zirconia Grade1430ºC (2600° F)
Ceramic Fiber Paper Roll
Ceramic Fiber Insulation

Key Features

  • Easy to cut, wrap or form
  • Low thermal conductivity
  • Temperature stability
  • Light weight & Resilient
  • Good dielectric strength
  • Excellent flame resistance
🚀

Applications

  • Gaskets and seals
  • Combustion chamber liners
  • Refractory backup insulation
  • Asbestos paper replacement
  • Investment casting mould wrap
  • Thermal and electrical insulation

Our Advantages

The accuracy of Ceramic Fiber specification and size is mainly controlled by refractory raw materials, processing equipment and process system. We provide technical support to help clients achieve high efficiency and cost savings.

Product Catalog

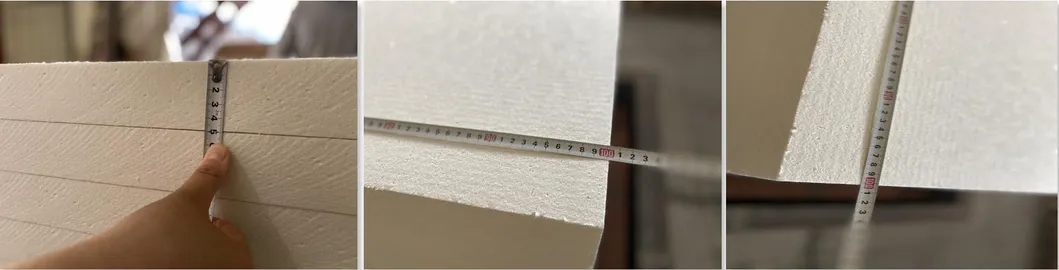

QC Inspection
Delivery Assurance

Frequently Asked Questions

Q1: What are the main components of ceramic fiber paper? It consists primarily of high purity alumina-silicate fiber processed through a fiber washing process.
Q2: Can the size and shape of the paper be customized? Yes, we support customization for various sizes and shapes to meet specific industrial requirements.
Q3: What temperature grades are available? We offer three main grades: Standard (1260°C), High-Alumina (1360°C), and Zirconia (1430°C).
Q4: Are samples available for testing? Yes, we can provide samples according to your requirements to ensure the material fits your application.
Q5: Is this material a good replacement for asbestos? Yes, ceramic fiber paper is an excellent, safer alternative for asbestos paper in high-temperature applications.
Q6: What is the typical density of the paper? The standard density is approximately 200+/- 15 Kg/M3.
