FibroCeram Materials
FibroCeram Materials

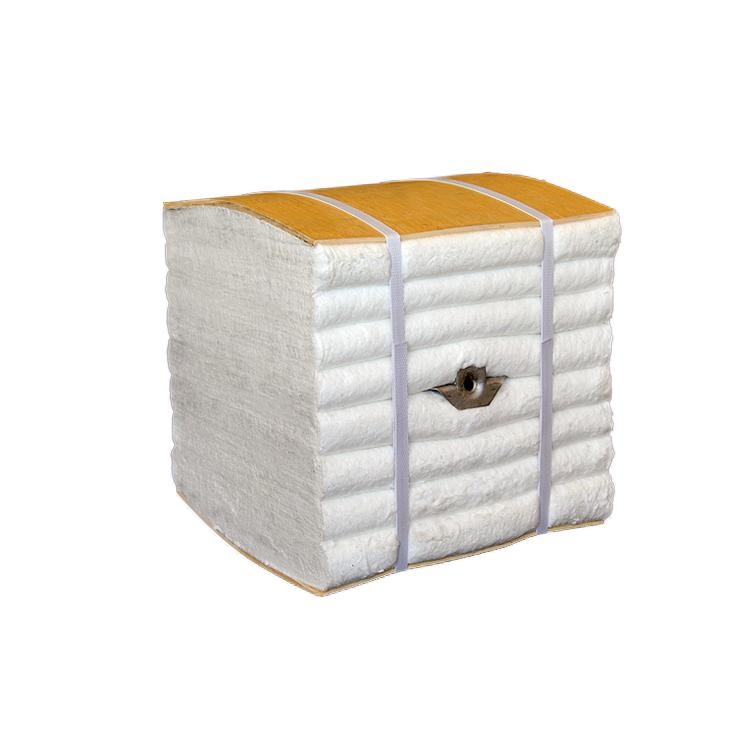

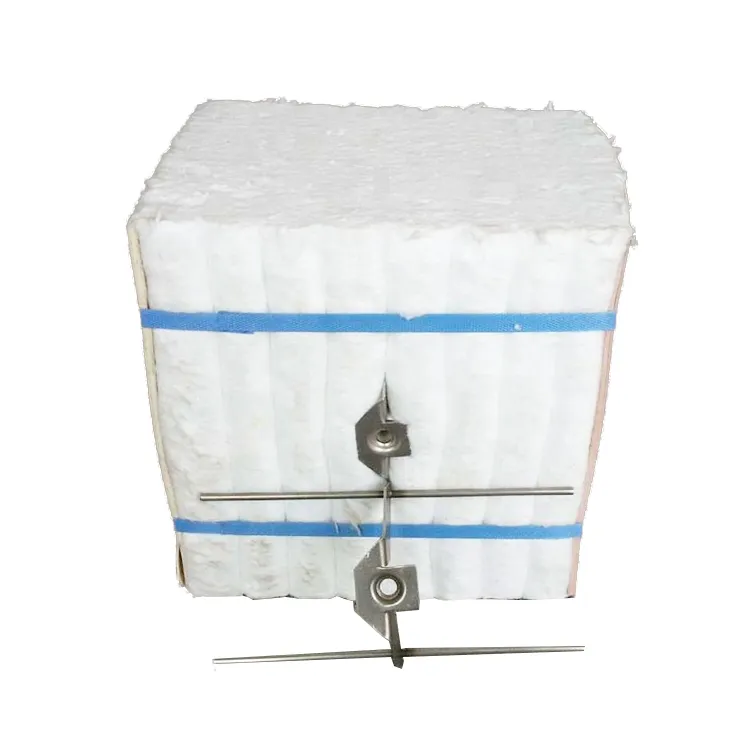

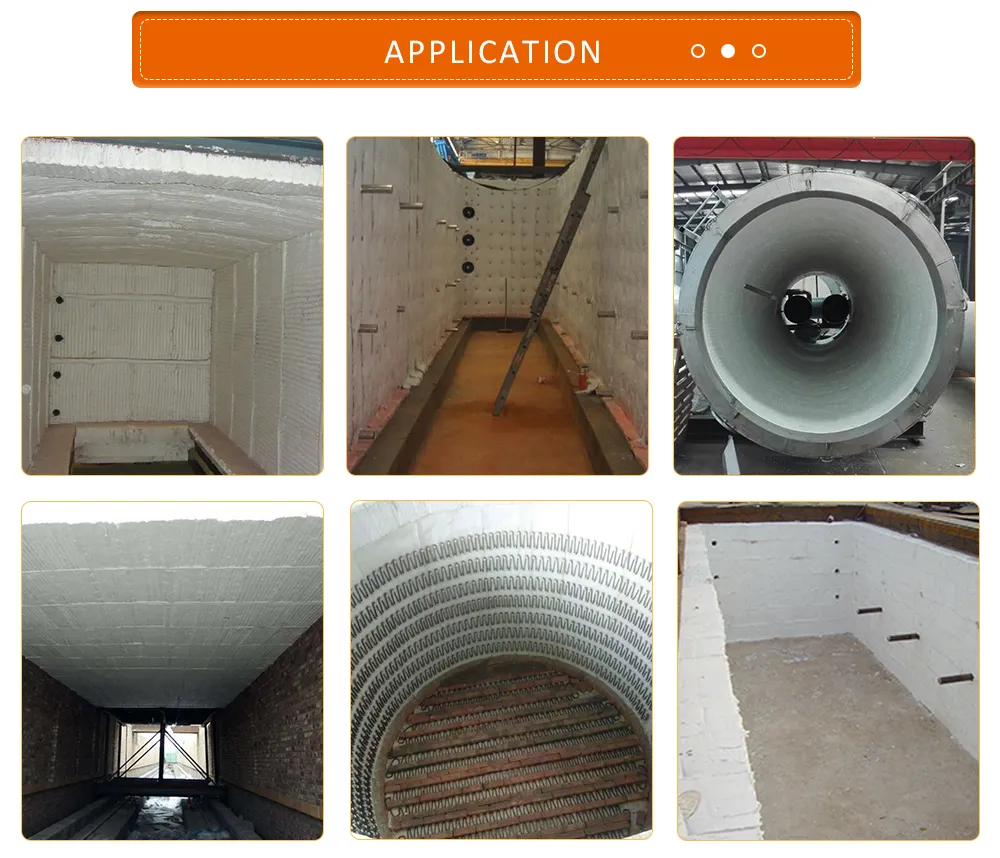

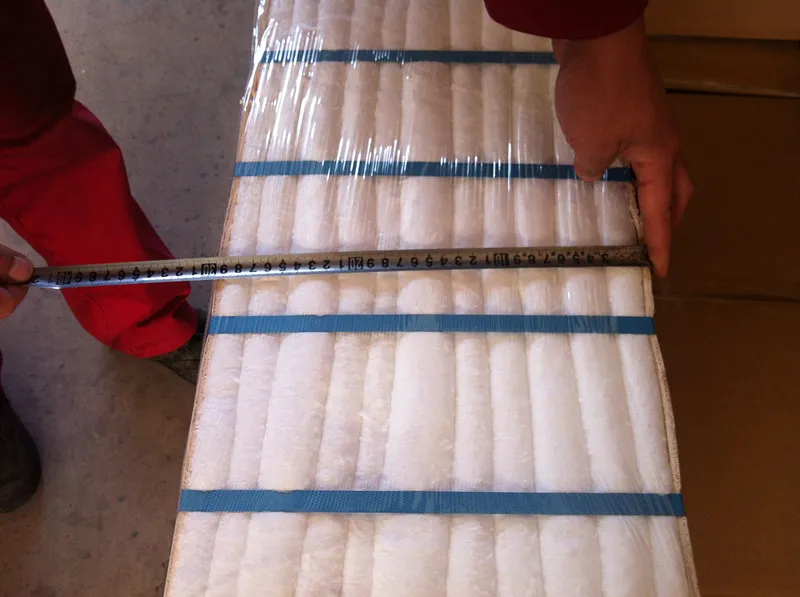

Ceramic fiber modules are high-temperature insulation products made from ceramic fiber blankets. They are designed to be installed in high-temperature furnaces, kilns, and other industrial equipment to improve energy efficiency while reducing maintenance costs. These modules feature excellent thermal stability, low thermal conductivity, and resistance to harsh chemicals.
| Item | STD MODULE | HP MODULE | HA MODULE | HZ MODULE |
|---|---|---|---|---|
| AL2O3(%) | ≥43 | ≥44 | ≥52 | ≥35 |
| SiO2(%) | ≥54 | ≥55 | ≥47 | ≥49 |
| ZrO2(%) | - | - | - | ≥15 |
| Classification Temp (ºC) | 1260 | 1260 | 1350 | 1430 |
| Working Temp (ºC) | 1000 | 1100 | 1200 | 1350 |

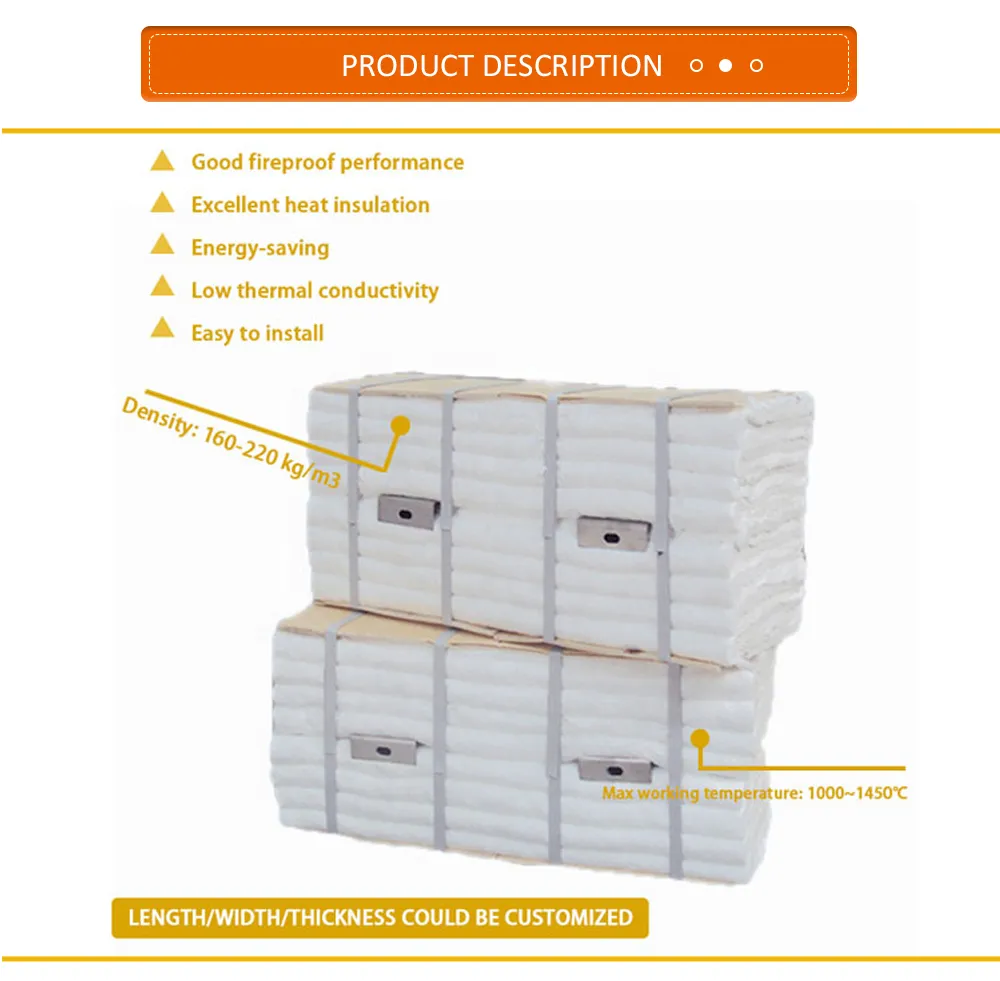

| Density (kg/m3) | 160-220 | 160-220 | 160-220 | 160-220 |

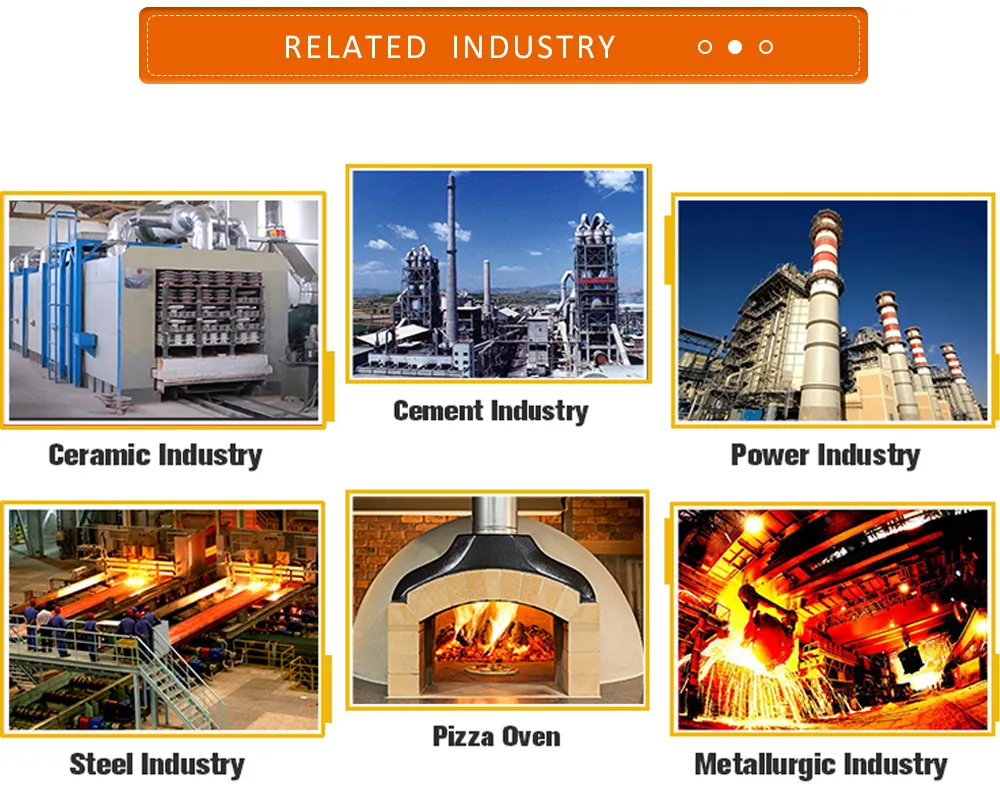

With over 20 years of experience, our research and development focus on high-performance refractory and insulation materials. Products include alumina series bricks, ceramic fiber products, and rock wool insulation serving metallurgy, glass, petrochemical, and construction industries globally.
