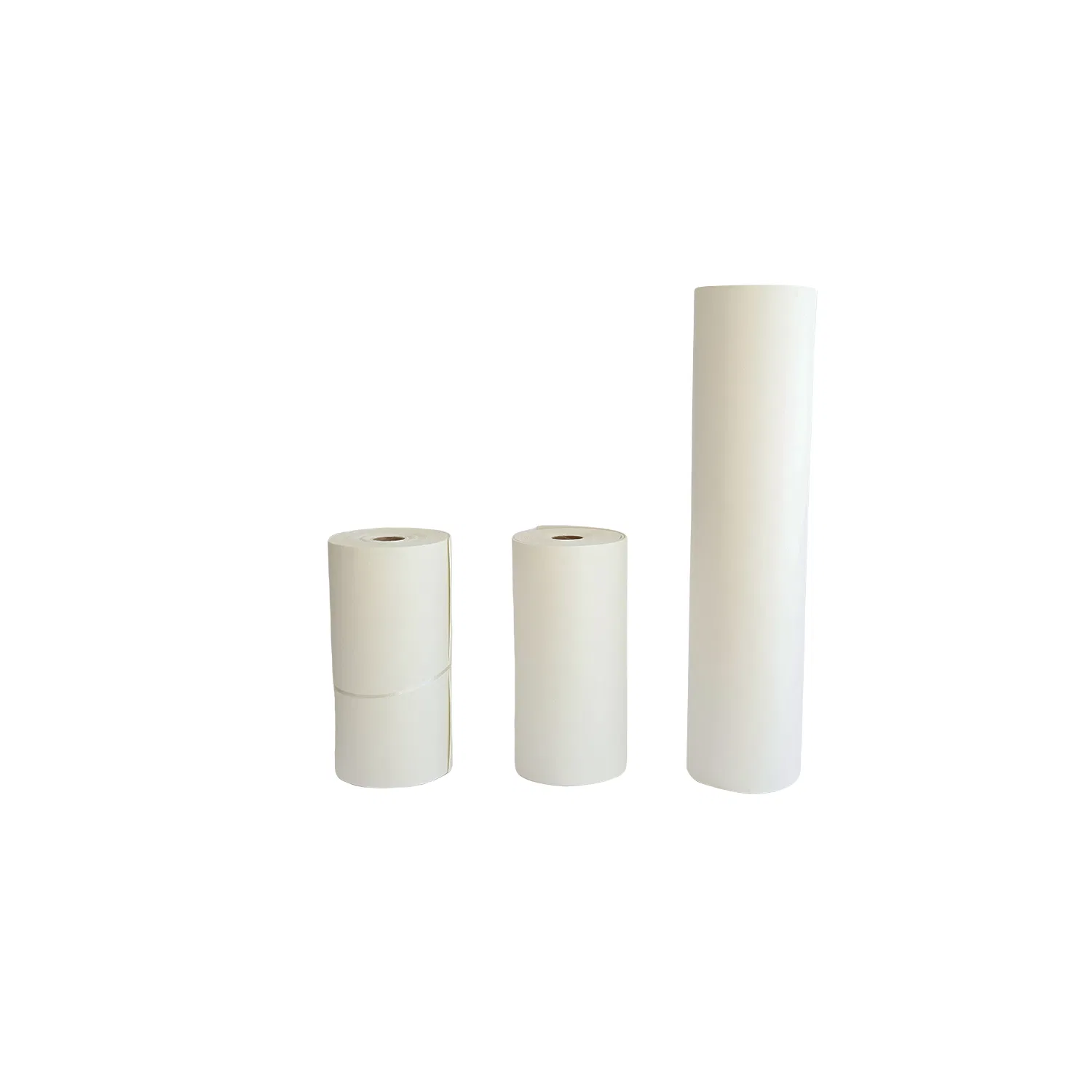

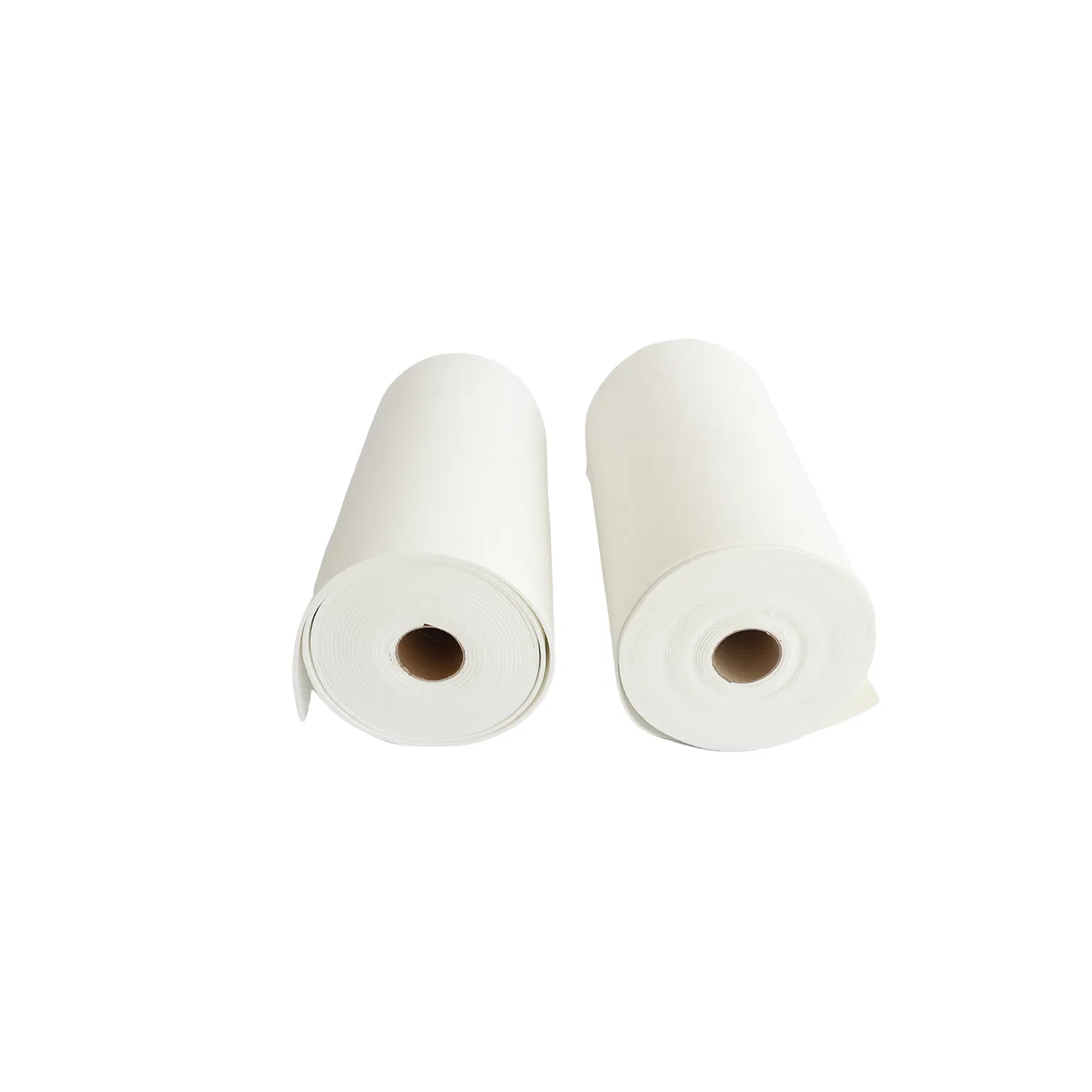

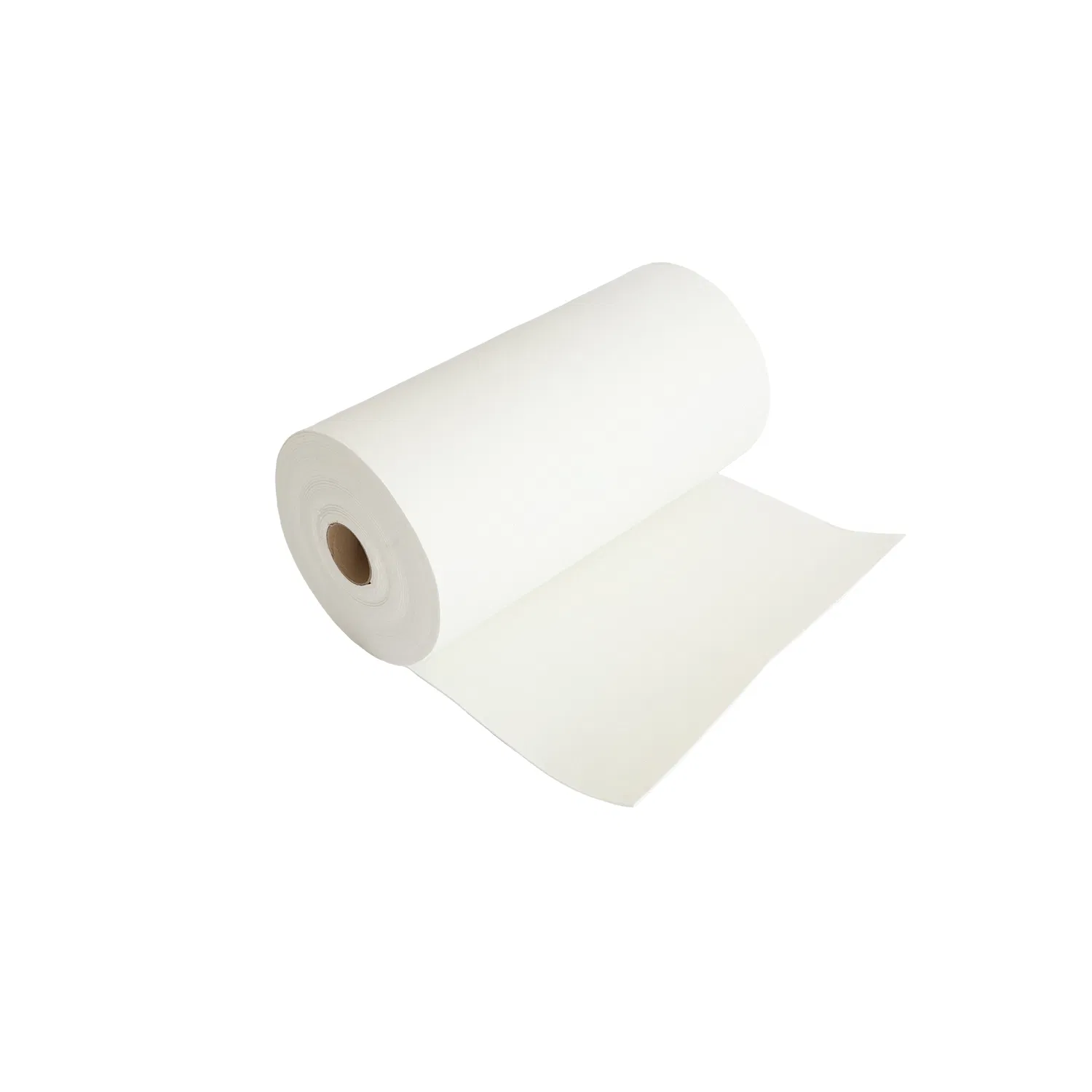

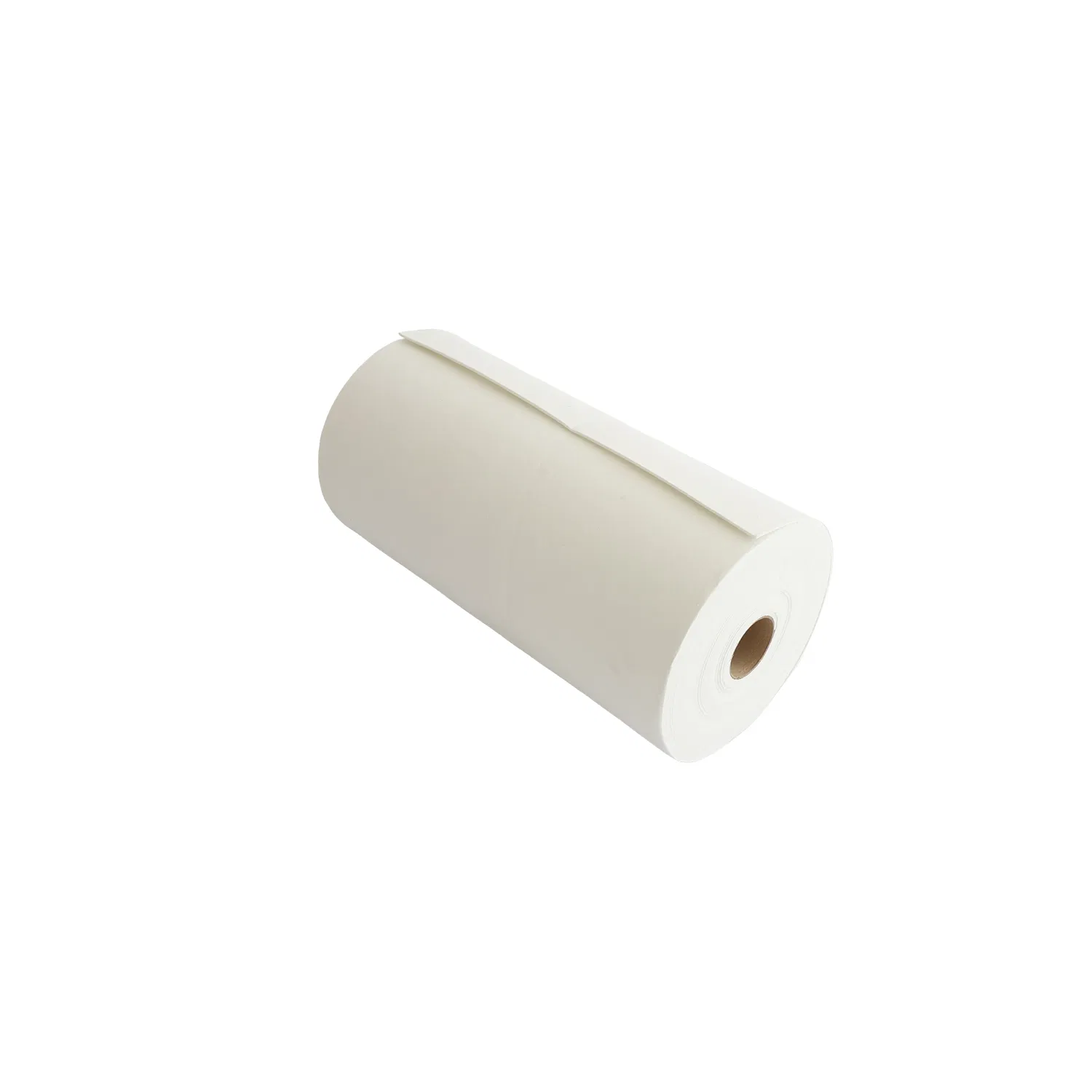

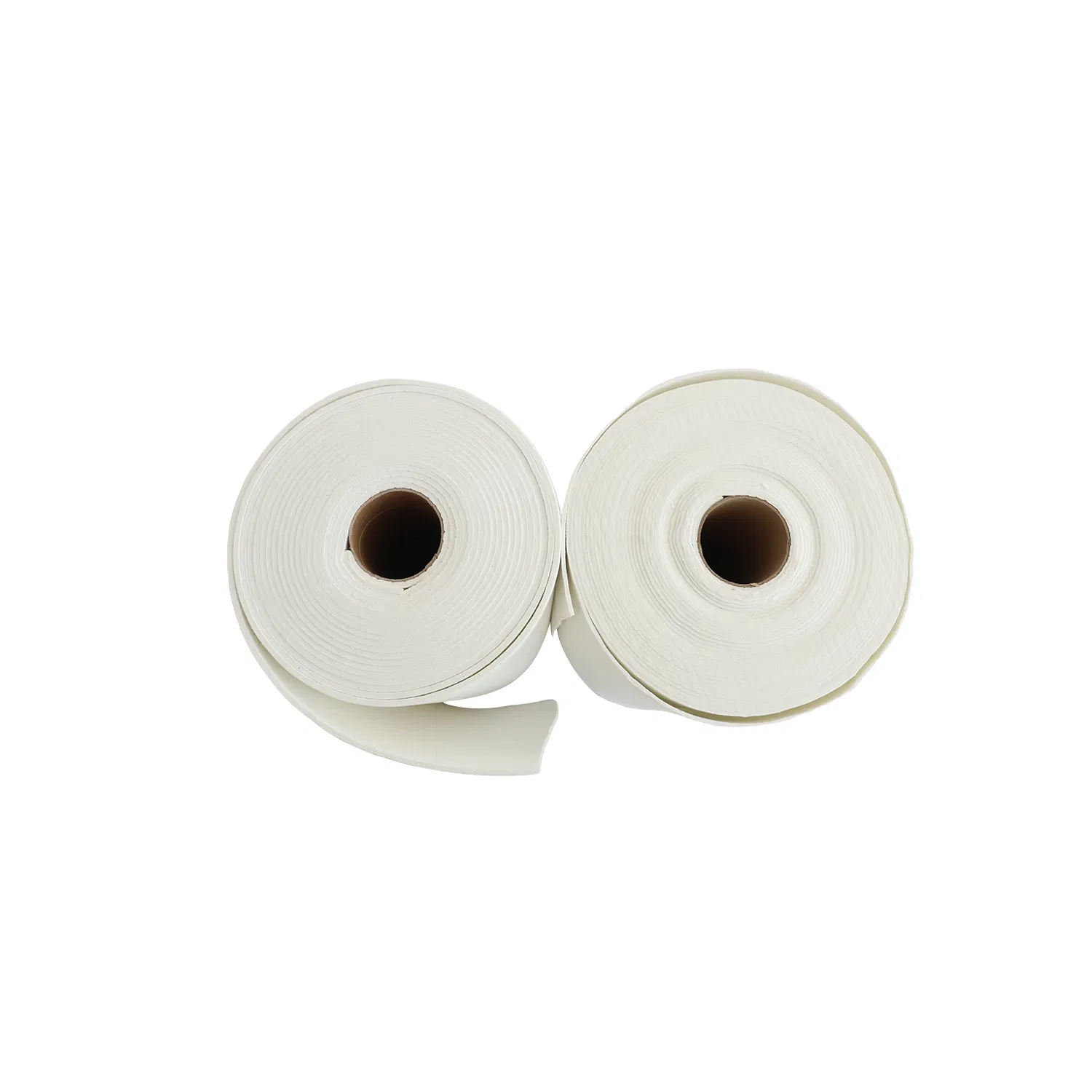

Low Thermal Conductivity 1260c Heat Resistant Seal Ceramic Fiber Paper

Still deciding? Get samples of $ !
Order Sample

Product Description

💡 Overview & Basic Info
Model NO.
JZ-BP-1260
Shape

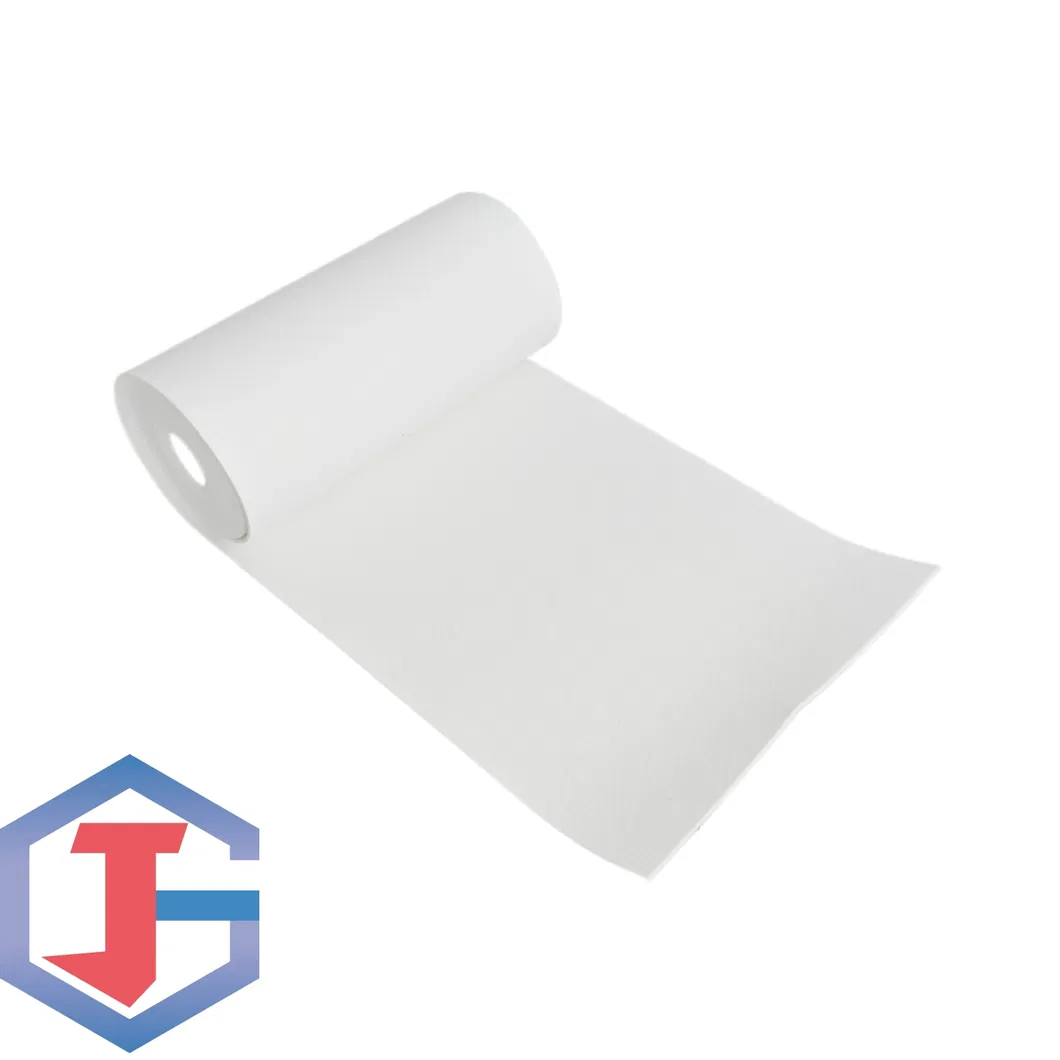

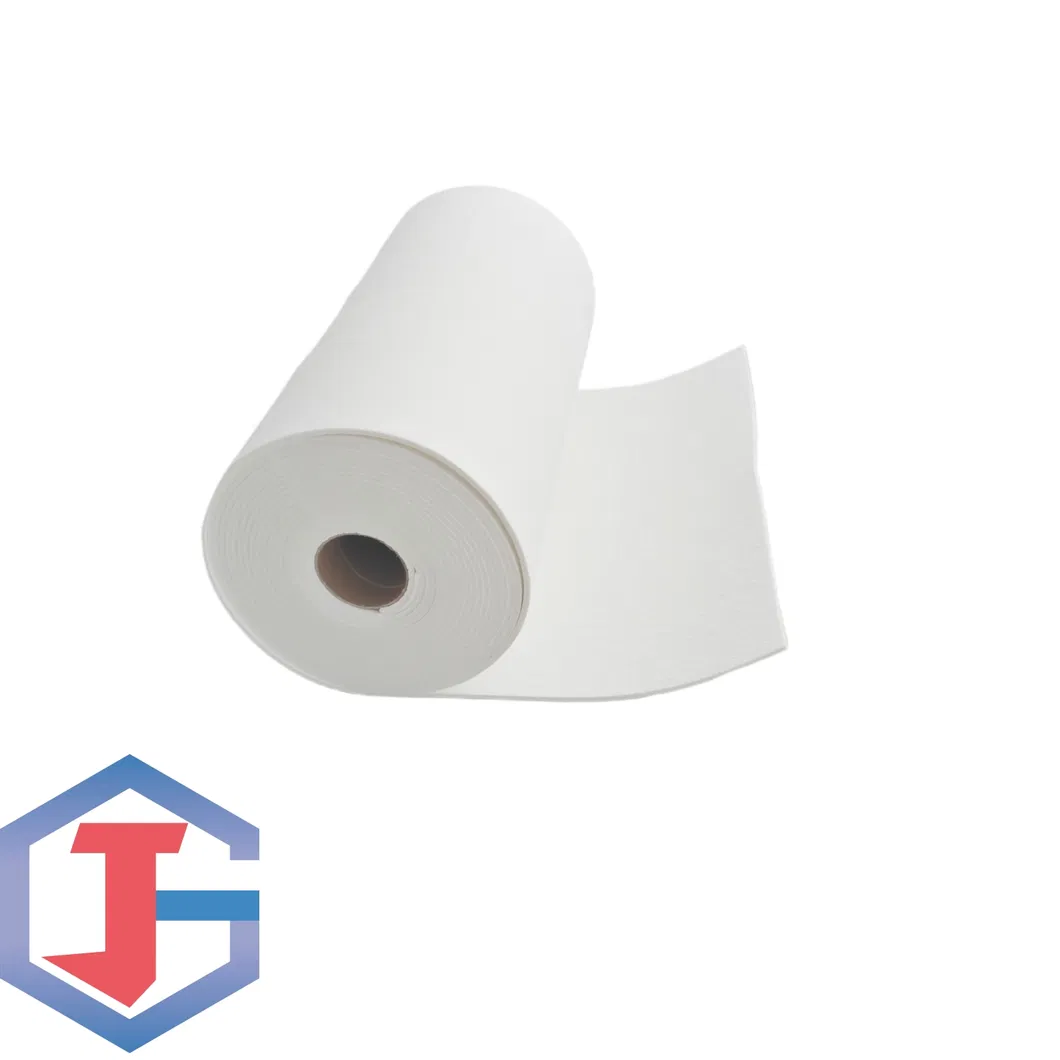

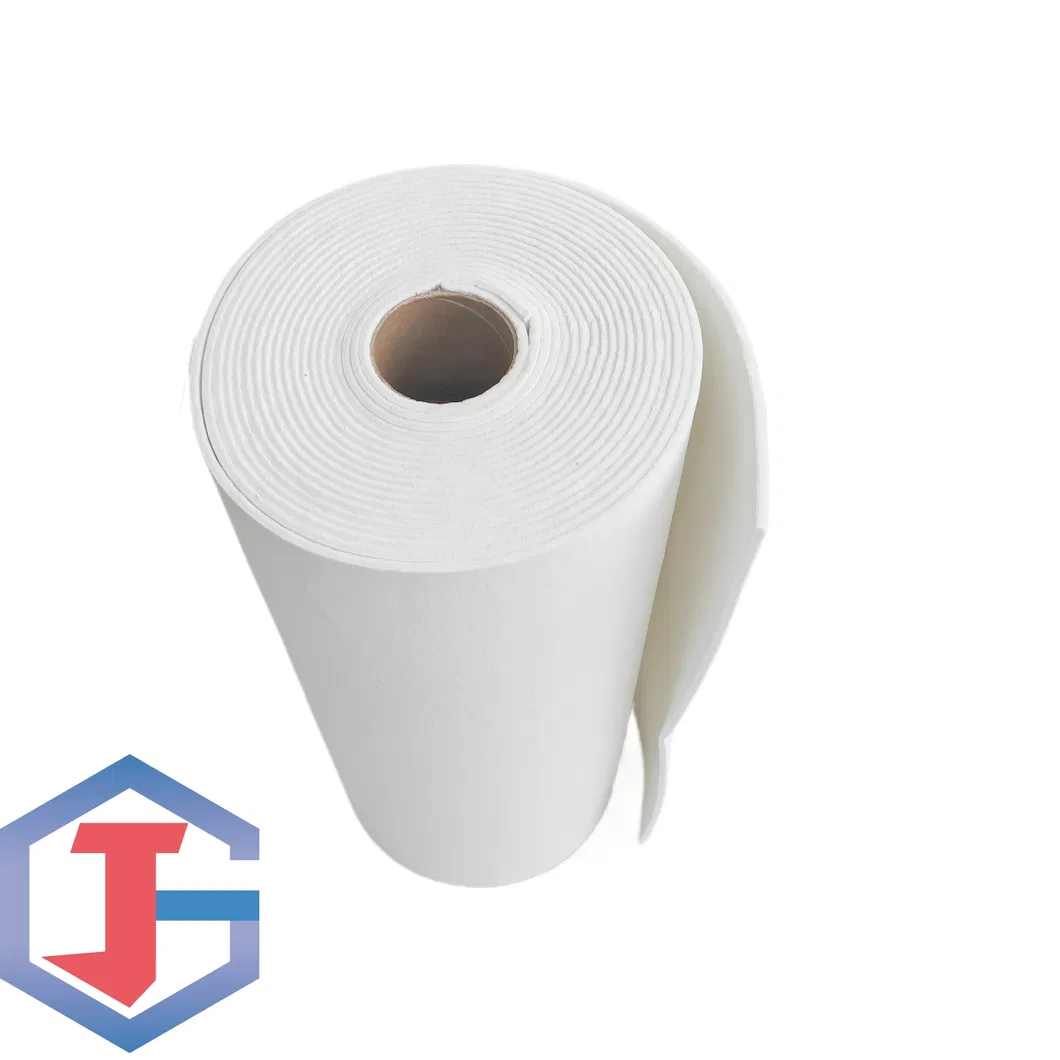

Ceramic Fiber Paper
Manufacturing
Spray Silk Rug
Working Temp
950-1250 ℃
Density
190-210 Kg/M³
Color
Pure White
Fiber Diameter
3-5um
Composition
SiO2, Al2O3
📦 Product Description

Ceramic Fiber Paper is high strength, needled insulating blanket that is made from bulk. The combination of spinning and needling operation produce tough, resilient and strong blankets, which have superior thermal and mechanical properties. It can meet European regulatory requirements (Directive 97/69/EC).

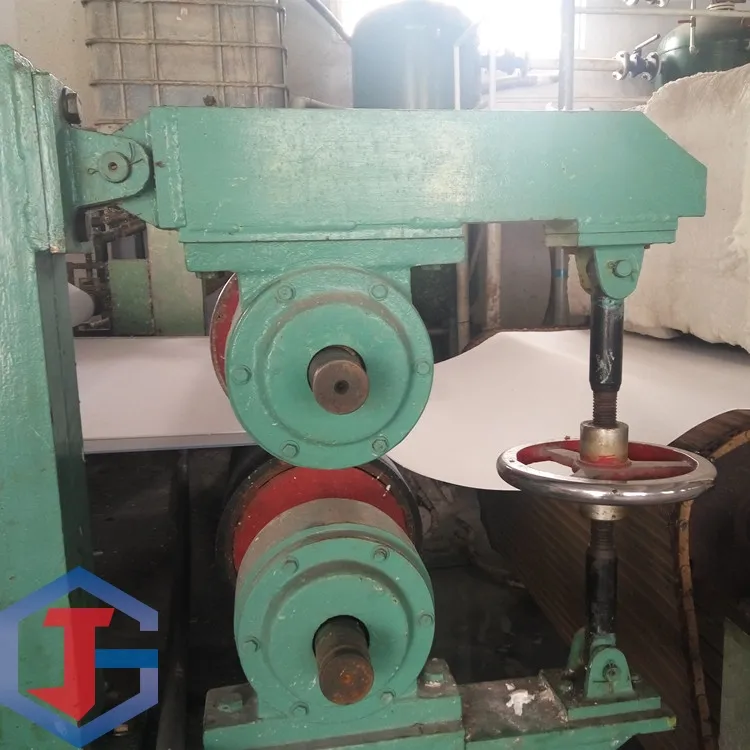

This paper is made by special ceramic fiber and other binders through wet forming process, with characteristics of stable chemical performance and resistance to erosion of most chemicals. The physical property like refractory and insulation keep same when meet with oil, water or steam. It has a smooth surface and good flexibility, suitable for deep-processed products.

📏 Standard Sizes
Nominal Density 200kg/m3
Length(mm) 6000mm, 7500mm, 8570mm, 12000mm, 15000mm
Width(mm) 610mm, 1220mm
Thickness(mm) 1-10mm
🛠️ Typical Applications
  • 🔹 Pipe wrap & Expansion joint seals
  • 🔹 Furnace and kiln back-up insulation
  • 🔹 Annealing furnace linings
  • 🔹 High-temperature tube heat insulation
  • 🔹 Fire prevention & Sound-absorbing filtration
  • 🔹 Module/folding block processing material
🏢 Industry Capability

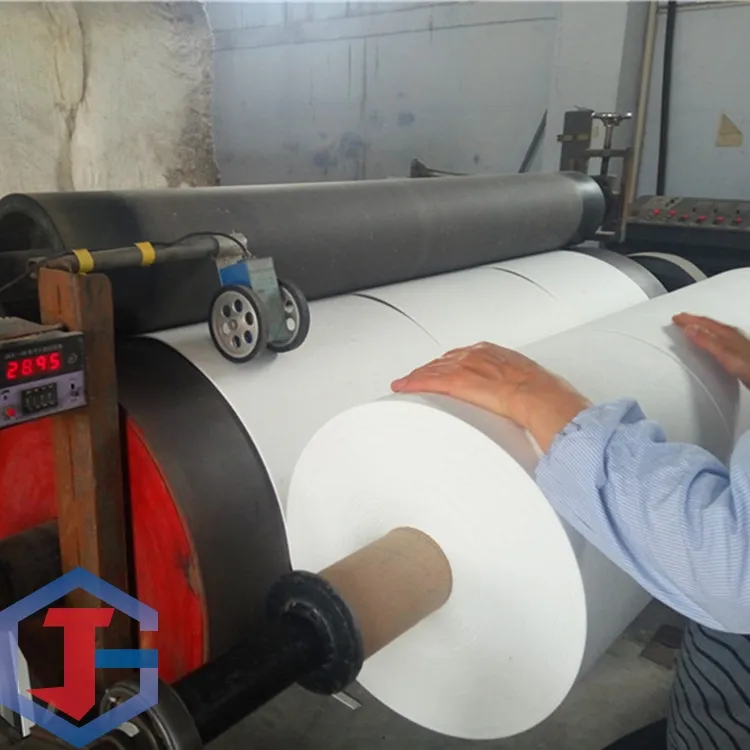

As a professional inorganic fiber materials manufacturer and drafting unit of international standards, the facility maintains an annual output of 100,000 tons of ceramic fiber products. These materials are widely applied in petrochemical refractory insulation, long-distance pipe networks, building fire insulation, and high-temperature household appliances.

❓ Frequently Asked Questions
How is the quality guaranteed?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure consistency.
What products can be sourced from you?
We specialize in Fiberglass wool insulation, Mineral wool Insulation, Aluminum jacketing systems, and Agricultural stone wool.
What are the primary applications for this fiber paper?
It is ideal for furnace wall linings, fire prevention, high-temperature tube insulation, and sealing in extreme heat environments.
Is the binder permanent in the ceramic fiber paper?
No, the organic binder used during the wet forming process will be burned out when the material is first fired at high temperatures.
What payment and delivery terms are accepted?
Accepted delivery includes FOB, CFR, CIF, EXW, DDP, and Express. Payments can be made via T/T, L/C, PayPal, and Western Union in multiple currencies.
Does the paper maintain its properties when exposed to oil?
Yes, the physical properties such as refractory and insulation remain stable even when in contact with oil, water, or steam.
