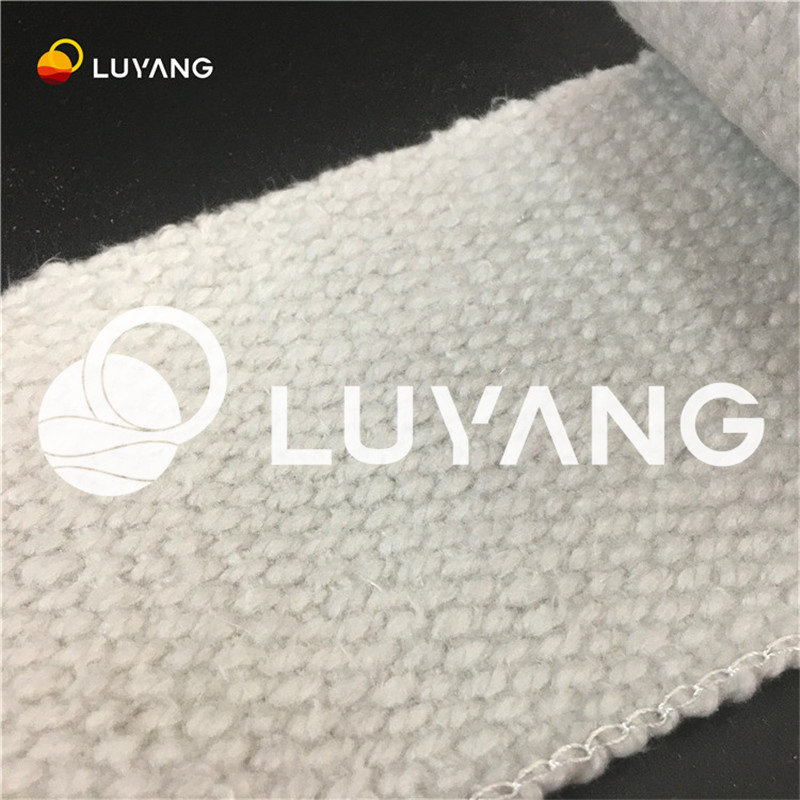

Heat Insulation Ceramic Fiber Cloth

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

💡 Basic Information

Model NO.

Luyangwool

Chemical Composition

SiO2, Al2O3.SiO2, Al2O3

Shape

Textile

Kind

Ordinary Ceramic Fiber

Product

Aluminum Silicate Textiles

Raw Material

Aluminum Silicate Fiber

Material

Ceramic Fiber

Transport Package

Carton/Bag/Pallet

Specification

100~300mm

HS Code

68061010

Production Capacity

500,000 Tons

📦 Product Description

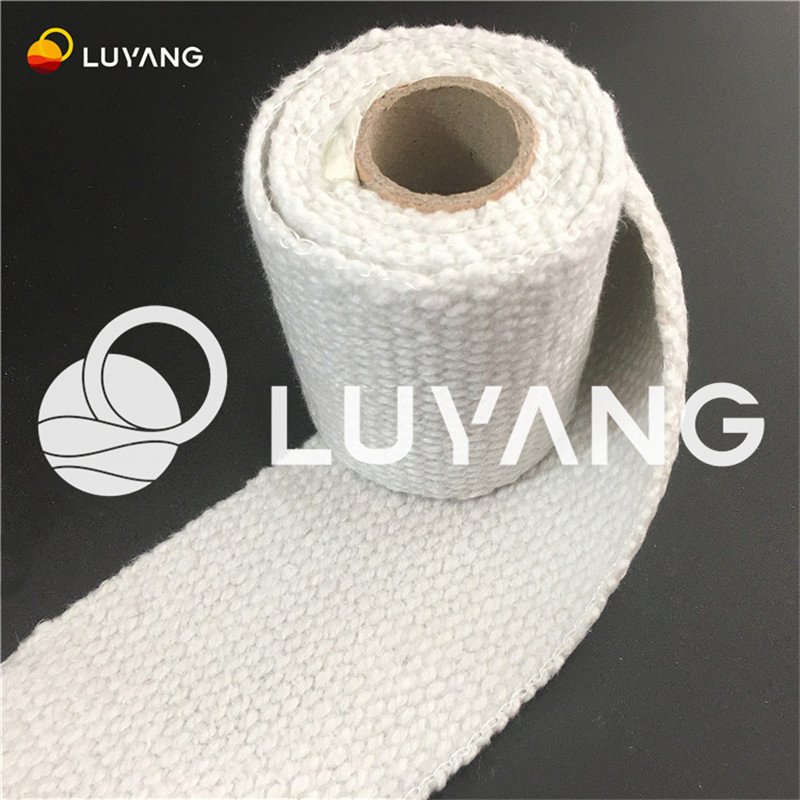

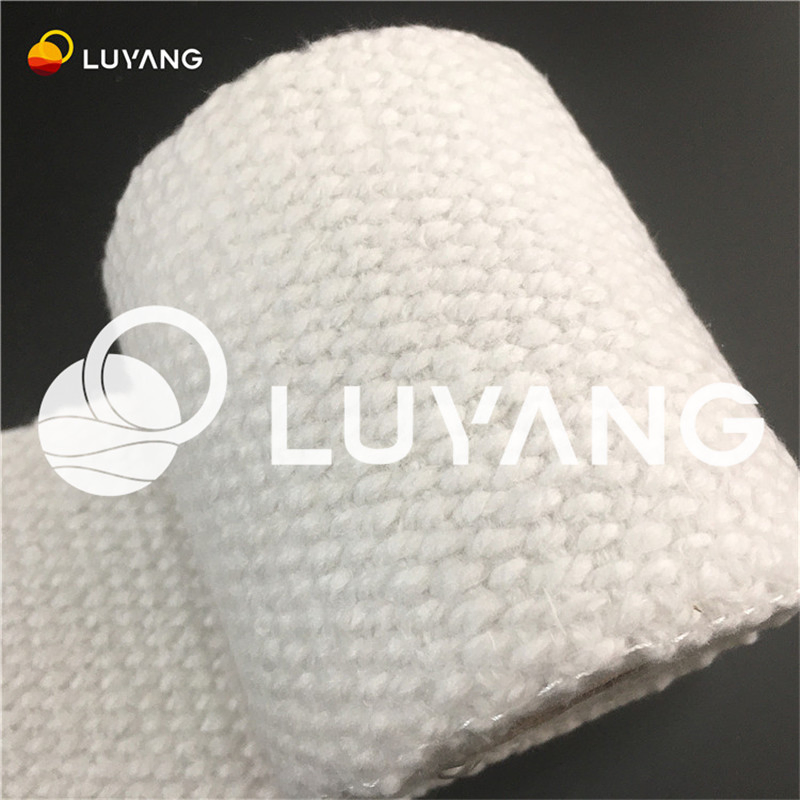

LUYANGWOOL® 1260 1400 1430 Ceramic Fiber Textile Tape Rope Cloth / RCF Textile

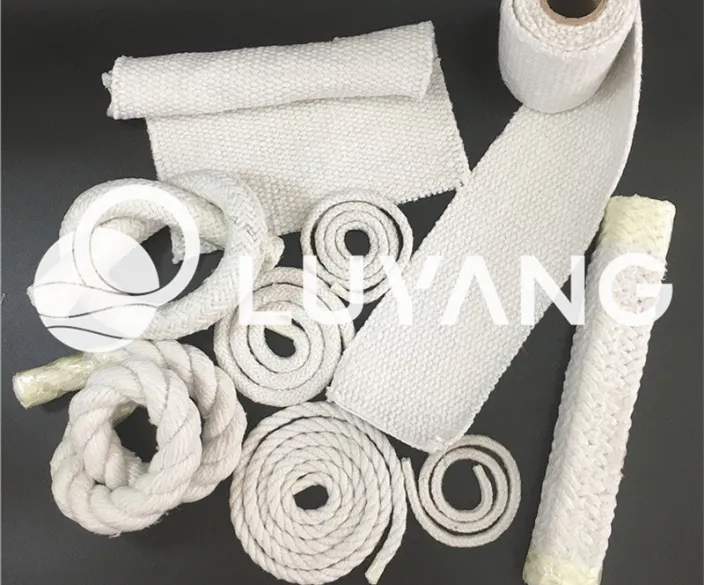

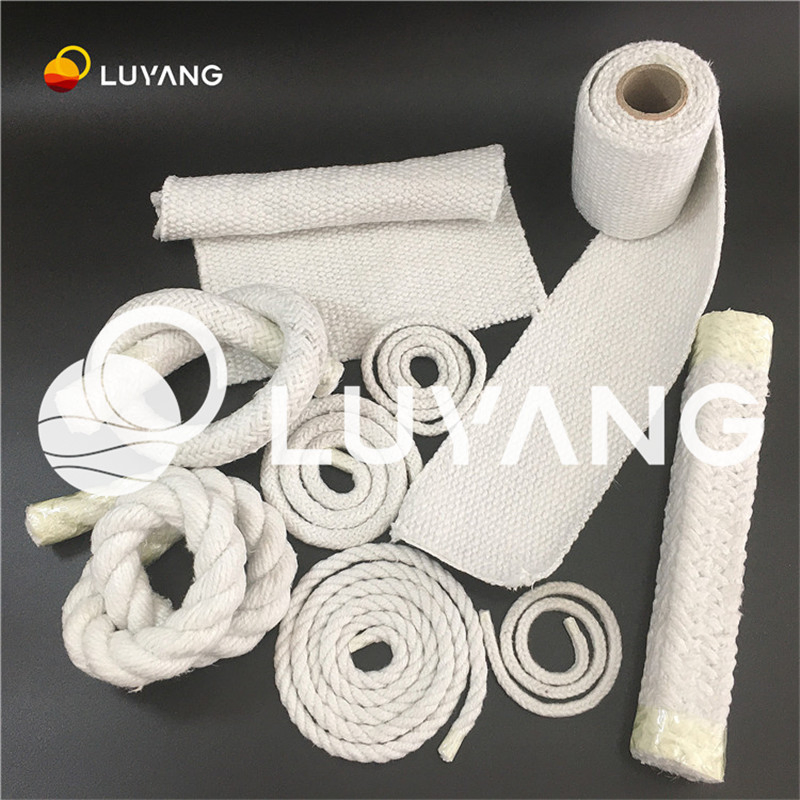

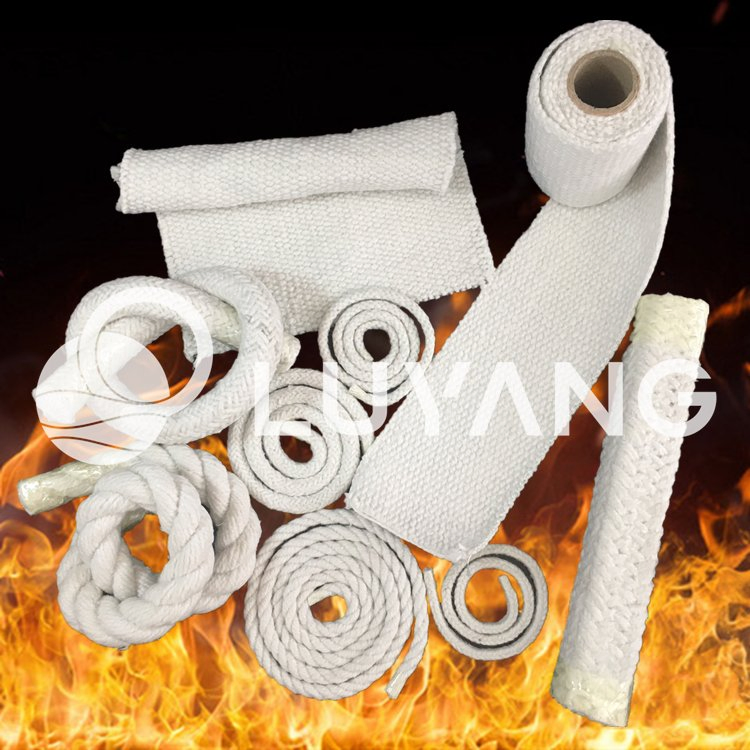

Luyangwool® ceramic fiber textile is made from ceramic fiber and viscose fiber, reinforced with glass filament or stainless steel. It includes ceramic fiber yarn, rope, tape, and cloth. These textiles are essential for insulating linings in metallurgical ovens, furnaces, petrochemical heaters, and ceramic kilns.

🚀 Key Features

Excellent thermal shock resistance
Excellent thermal stability
High-temperature stability
Low thermal conductivity
Flexible and easy to use

🛠️ Typical Applications

Gaskets in furnaces and domestic appliances
Door seals in furnaces
Kiln car seals
Welding curtains
Expansion joints

📊 Typical Parameters

Description	Cloth		Tape		Yarn
Reinforcement	Glass Fiber	Stainless Steel	Glass Fiber	Stainless Steel	Glass Fiber	Stainless Steel
Continuous Temp Limit (ºC)	650	1000	650	1000	650	1000
Density (kg/m³)	500		500-550		-

Description	Round Braided Rope		Square Braided Rope		Twisted Rope		Woolen Rope
Reinforcement	Glass	SS	Glass	SS	Glass	SS	Glass
Temp Limit (ºC)	650	1000	650	1000	650	1000	650
Density (kg/m³)	500		500		500		380

❓ Frequently Asked Questions

1. What are the reinforcement materials used in ceramic fiber textiles? Luyangwool® textiles are reinforced with either glass filament or stainless steel wire to enhance tensile strength at high temperatures.

2. What is the maximum continuous use temperature? The limit depends on the reinforcement: glass fiber reinforced products go up to 650ºC, while stainless steel reinforced products can withstand up to 1000ºC.

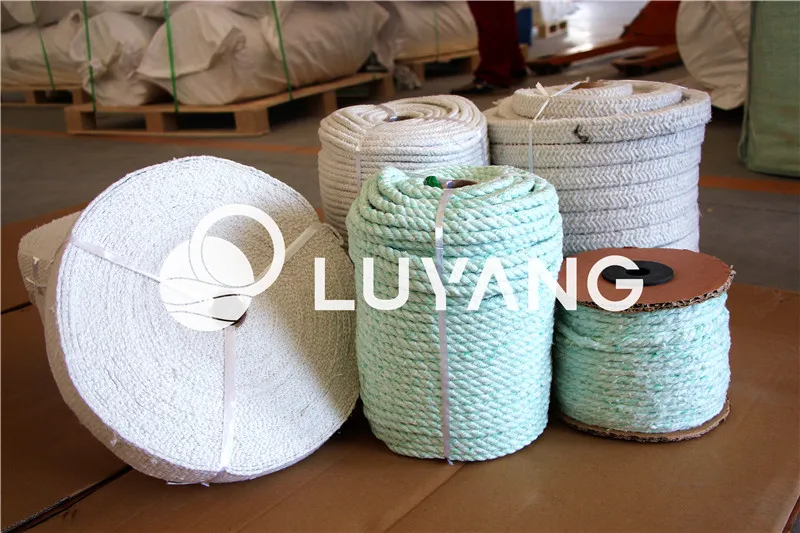

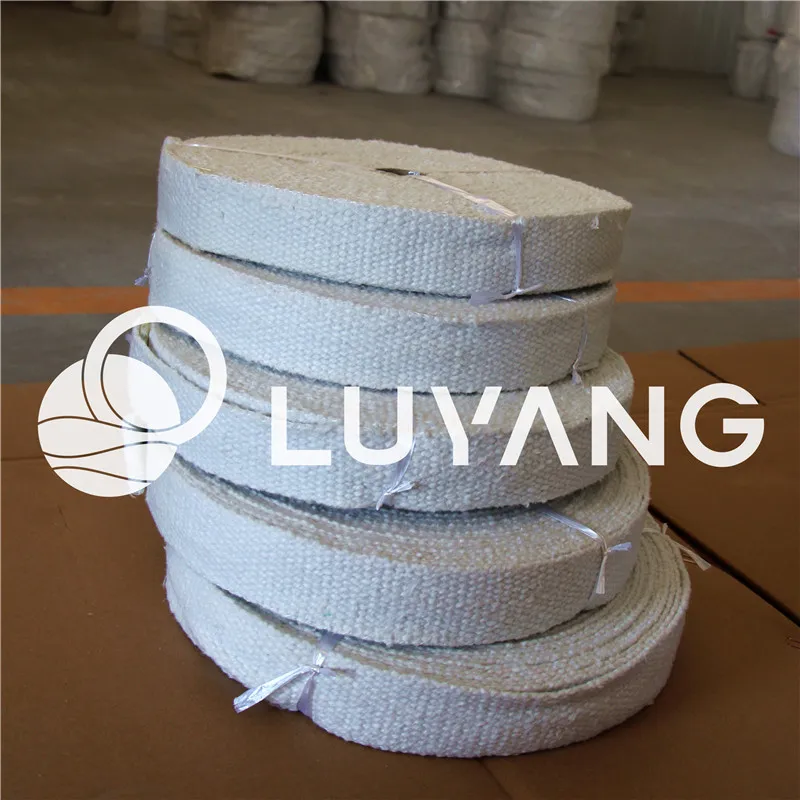

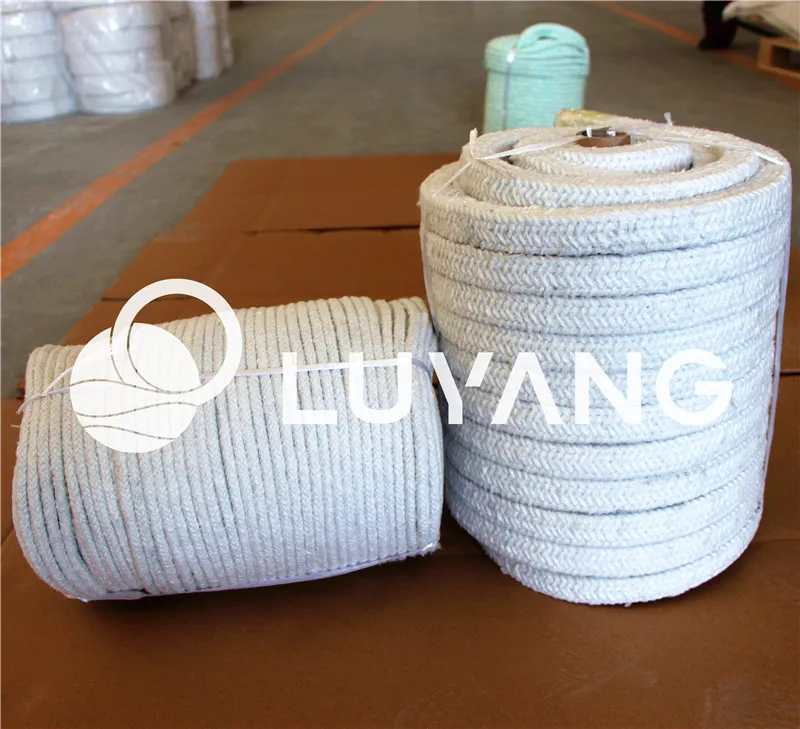

3. What types of textile products are available? The product range includes ceramic fiber yarn, cloth, tape, round braided rope, square braided rope, twisted rope, and woolen rope.

4. Why do ceramic fiber textiles contain organic content? A small amount of organic carrier fiber (viscose) is used during the spinning process to facilitate weaving; this typically burns off during the first high-temperature use.

5. Are these textiles resistant to thermal shock? Yes, one of the primary features of Luyangwool® ceramic fiber textiles is their excellent thermal shock resistance and thermal stability.

6. What are the common industrial uses for these textiles? They are widely used for furnace door seals, expansion joints, welding curtains, and as insulation in metallurgical and petrochemical equipment.
