Greenergy Factory Customized Noise Absorbing Acoustic Ceramic Fiber Wool Insulation Felt

1 / 5

Greenergy Factory Customized Noise Absorbing Acoustic Ceramic Fiber Wool Insulation Felt

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:Ceramic Fiber Felt

Chemical Comp.:Al2O3.SiO2, Al2O3

Shape:Ceramic Fiber Plate

Technique:Spray Silk Rug

Thickness:3~125mm

HS Code:6806101000

Supply Specifications

Items	LNTX-1050F	LNTX-1260F	LNTX-1260HPF	LNTX-1360F	LNTX-1400F	LNTX-1430F
Heating Linear Change (%)	950ºC×24h≤-4	1000ºC×24h≤-4	1100ºC×24h≤-4	1200ºC×24h≤-4	1250ºC×24h≤-4	1350ºC×24h≤-4
Thermal Conductivity	≤0.153 W/(m.k) (Average 500ºC)
Density(Kg/M3)	180~250
Al2O3 (%)	≥40	≥43	44-47	51-53	43-45	-

Product Description

Ceramic Fiber Low Density Board is formed by adding a quantitative binder to the aluminum silicate refractory ceramic fiber and vacuum forming. The product has a flat shape, small dimensional deviation, and convenient installation. It serves as an ideal heat preservation and insulation material for various industrial furnaces.

Key Features

High temperature resistance and thermal shock resistance.
Low thermal conductivity and low heat capacity.
Flat appearance, easy to install and process.
Excellent tensile strength and mechanical stability.
Lightweight and flexible refractory fiber insulation.

Professional Solutions

As a leading provider of refractory products, we accumulate extensive experience in refractory materials for Steel plants, Boilers, Cement, Ceramics, Aluminum, Petrochemical, and Metallurgy industries. We are committed to providing one-stop customized solution services from selection to final construction with varieties of refractory and insulation materials ranging from 500 ºC to 2000 ºC.

Frequently Asked Questions

Q: What is the maximum temperature the Ceramic Fiber Low Density Board can withstand? A: Depending on the specific model (LNTX series), it can handle classification temperatures ranging from 1050ºC up to 1430ºC.

Q: Can the sizes of the boards be customized? A: Yes, while standard lengths are 900/1200mm and widths are 600/900mm, all sizes can be customized to meet specific industrial requirements.

Q: What are the primary applications for this material? A: It is widely used as wall lining and back lining for various industrial furnaces, boilers, and thermal treatment equipment.

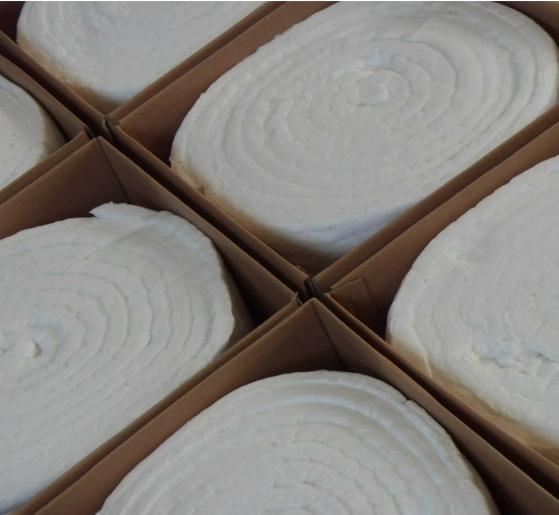

Q: How is the product packaged for shipping? A: The boards are typically packed in carton boxes, placed on pallets, and then secured with plastic wrap to ensure safety during transport.

Q: Does the material have good thermal shock resistance? A: Yes, one of the key features of our vacuum-formed ceramic fiber board is its excellent resistance to thermal shock and low thermal conductivity.

Q: What certifications do your products hold? A: Our manufacturing processes are certified under ISO9001-2008 and ISO14001-2004 quality and environmental management systems.
