FibroCeram Materials
FibroCeram Materials

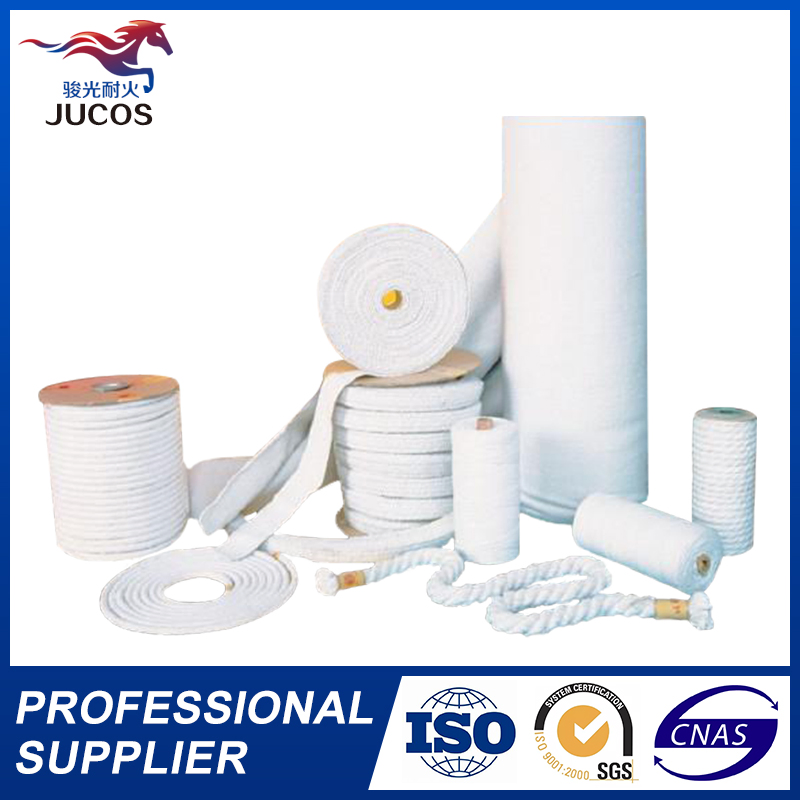

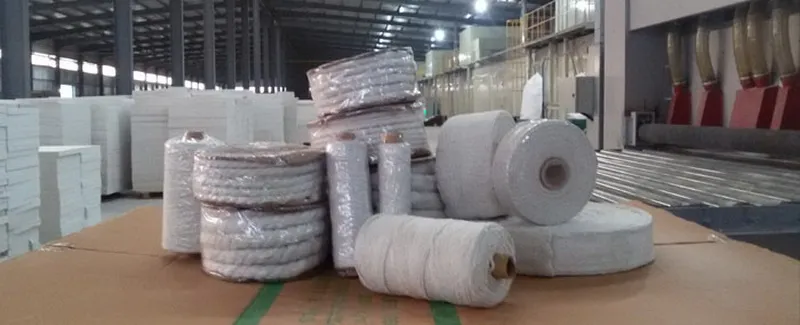

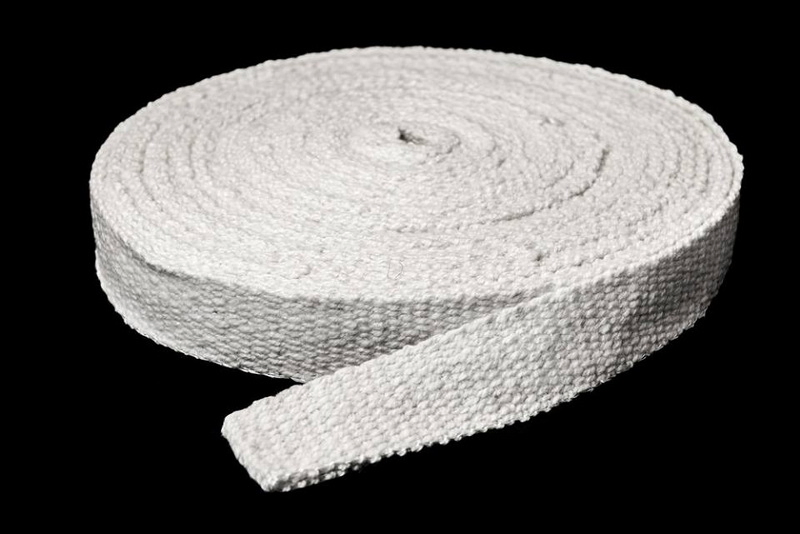

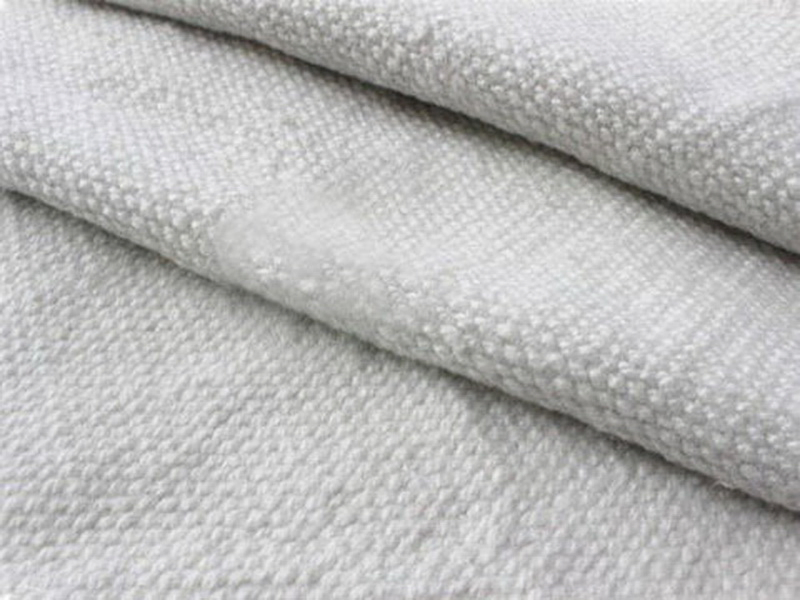

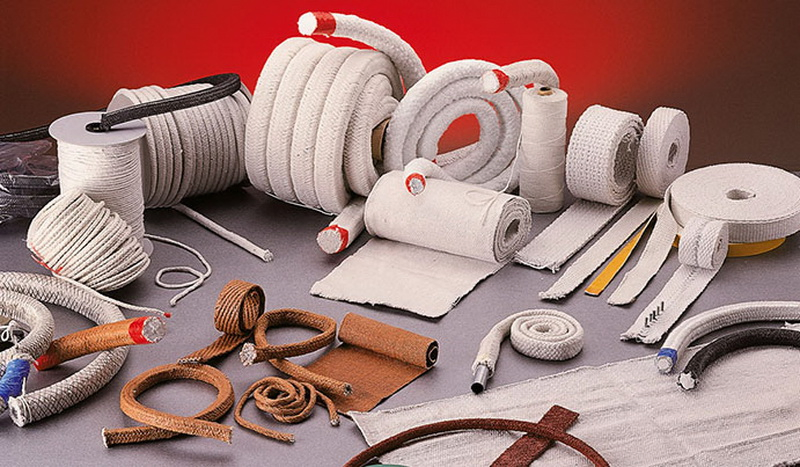

Ceramic fiber & Bio-Soluble fiber textiles contain the rope, tape, yarn and cloth. These textiles are woven or braided from yarn consisting of fiber with approximately 20% organic fiber. Inserted materials like stainless steel or glass filament are reinforced into the yarn and rope to increase tensile strength at high temperatures. These fiber textiles are highly effective as insulation materials for thermal gaskets and wrapping.
| Properties | Bio-Soluble Fiber Rope/Cloth | Ceramic Fiber Rope/Cloth | ||
|---|---|---|---|---|
| Reinforcement | GF-Rope | SS-Rope | GF-Rope | SS-Rope |
| Spec. Temp (ºC) | 1260 | |||
| Working Temp (ºC) | 500-600 | 1100 | 500-600 | 1100 |
| Bulk Density (kg/m³) | 500 | |||
| Organic Matter (%) | 15 | |||
1. External insulation layer for industrial furnaces and pipelines.
2. Welding spark cloth for building, ships, and heavy equipment.
3. Fireproof and heat insulation for Rail vehicles.
4. Fire-proof curtains, garments, gloves, and shoes.

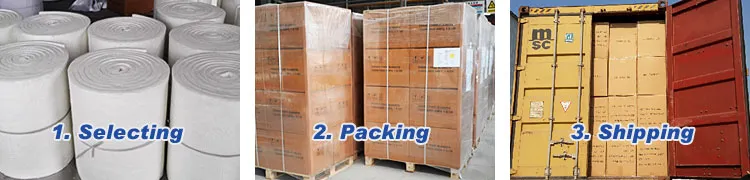

Packed by sea-worthy wooden pallet + shrink wrapped + carton. Standard sizes include 7200x610x25 mm or 3600x610x50mm. Shipping capacity: ~252 rolls in a 20ft container; ~520 rolls in a 40ft container.
