FibroCeram Materials
FibroCeram Materials

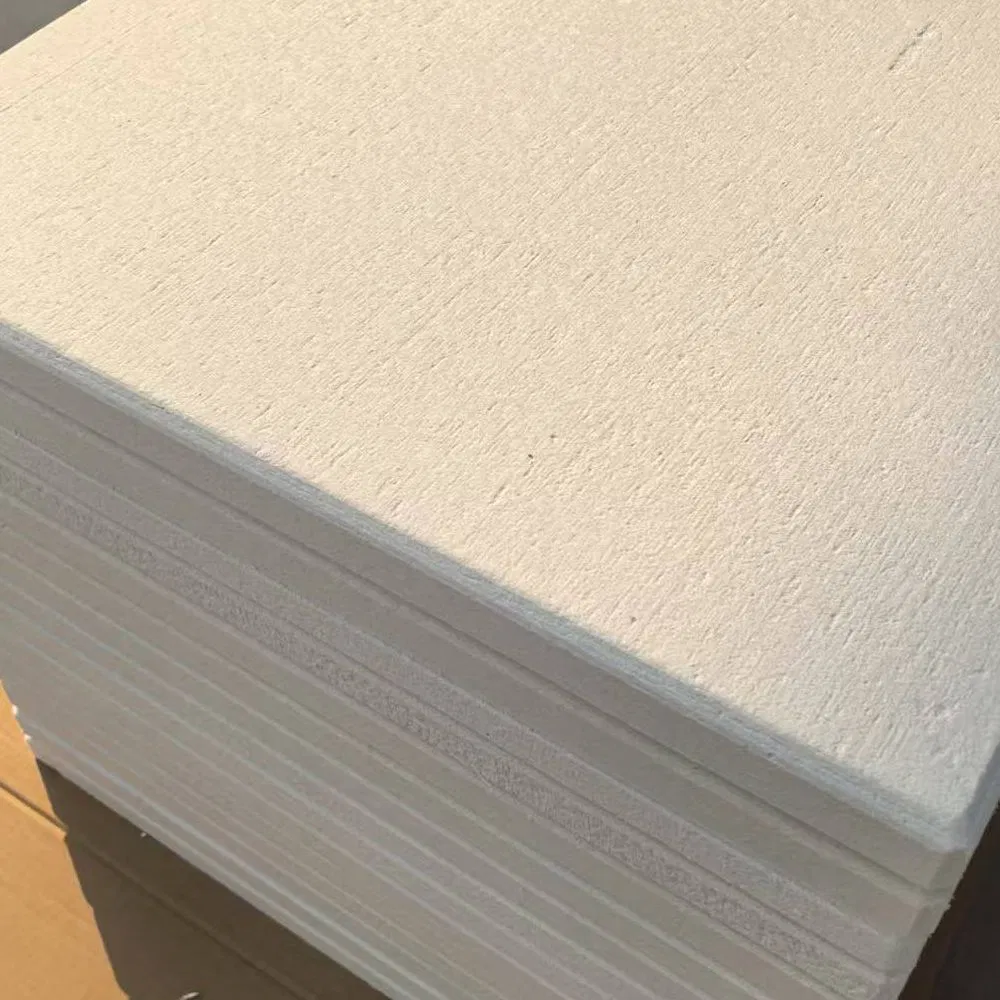

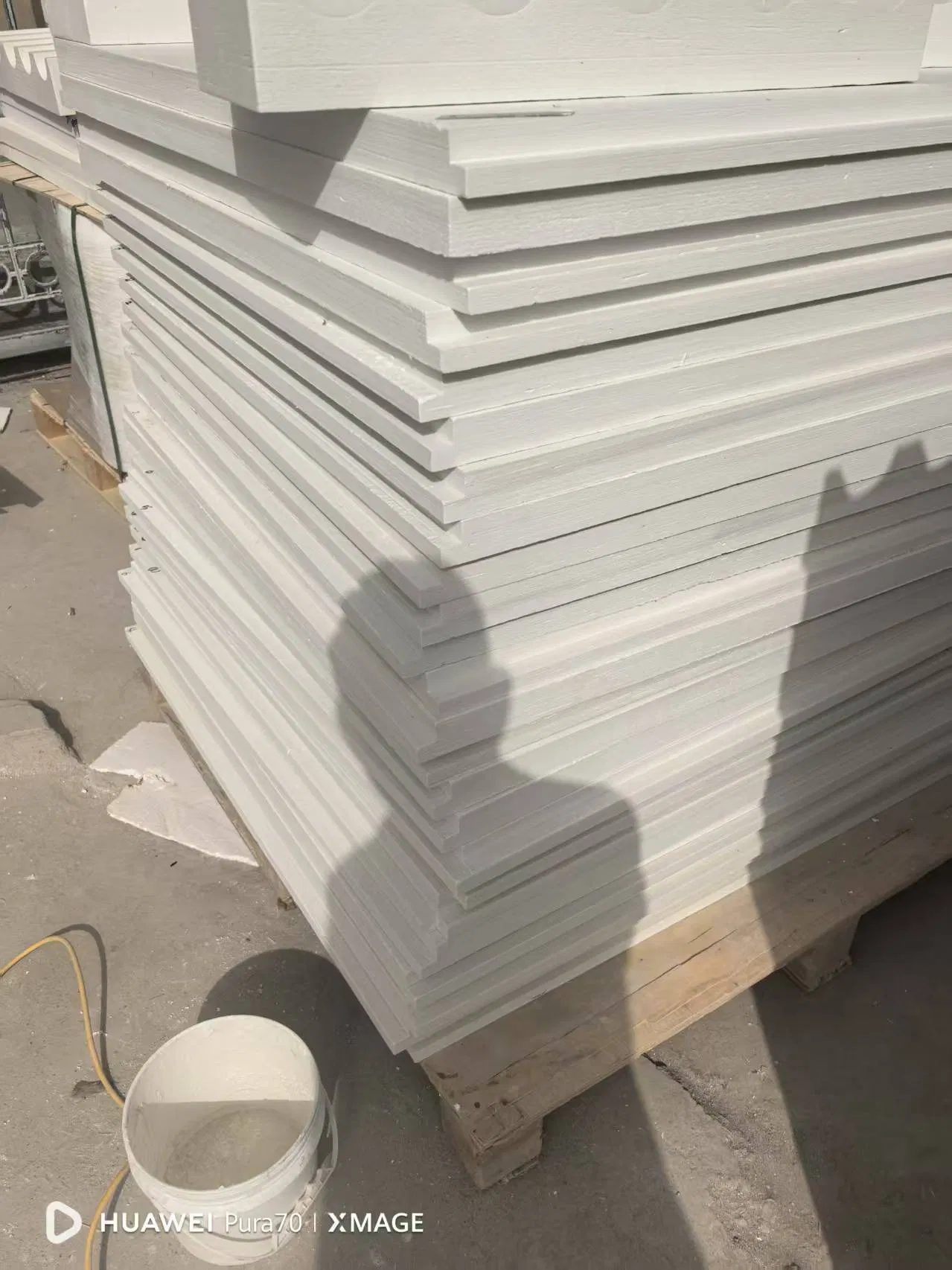

Ceramic Fiber Boards are manufactured in a wet forming process using alumina-silica fibers and binders. Lower thermal conductivity, superior mechanical properties and high-temperature stability offer unmatched performance reliability. They can help reduce energy costs and cycling times once being installed in furnace, boiler lining. If wet by water, steam or oil, thermal and physical properties are restored upon drying. In order to provide handling strength during the manufacturing process, small quantities of organic and inorganic binders are typically added to the board formulation. Following burnout of the organic binder, the boards are white in color.
| Item | STD-BOARD | HA-BOARD | HZ-BOARD | IN-BOARD | BIO-BOARD |
|---|---|---|---|---|---|
| Classification Temp (°C) | 1260 | 1350 | 1430 | 1260 | 1260 |
| Continuous Use Temp (°C) | 1100 | 1250 | 1350 | 1100 | 1100 |
| Density (kg/m3) | 220-360 | ||||
| Color | white | ||||
| Loss of Ignition (%) | ≤8 | ≤8 | ≤8 | ≤1.5 | ≤8 |
| Linear Shrinkage (24h) | ≤3(1000ºC) | ≤3(1200ºC) | ≤3(1350ºC) | ≤3(1000ºC) | ≤3(1000ºC) |
| Compressive Strength (MPa) | ≥0.2 | ||||
