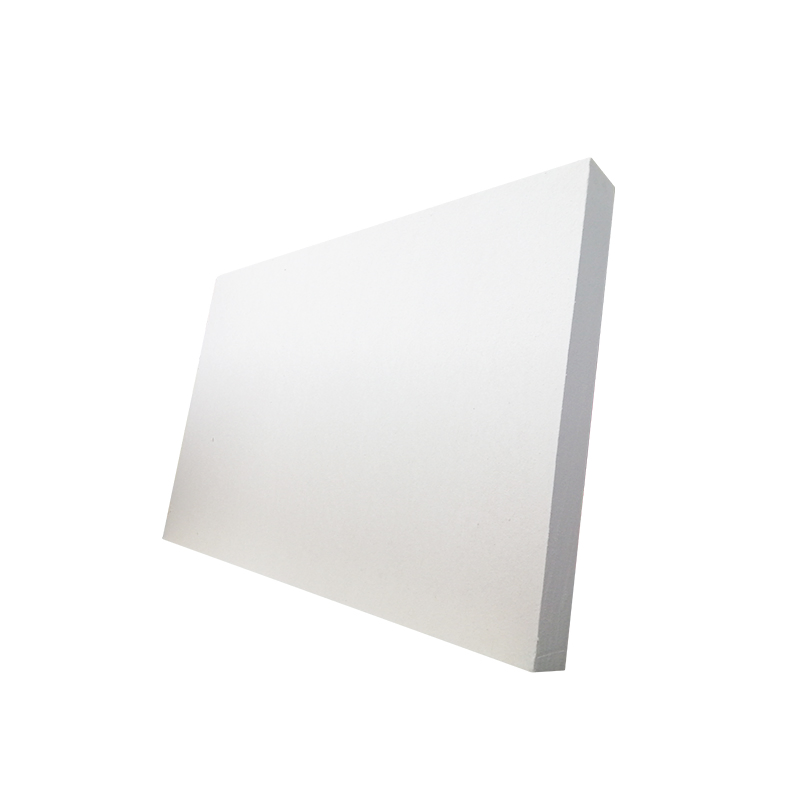

Fire Rated Ceramic Fiber Board for Construction Safety

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.:
Ceramic Fiber Board
Chemical Composition:
Al2O3.SiO2
Shape:
Ceramic Fiber Plate
Manufacturing Technique:
Spray Silk Rug
Kind:
Ordinary Ceramic Fiber
Spefication Temp:
1260c, 1050c, 1350c
Size:
Customizable
Specification:
5-100mm x500x1000mm
Ceramic Fiber Board Overview

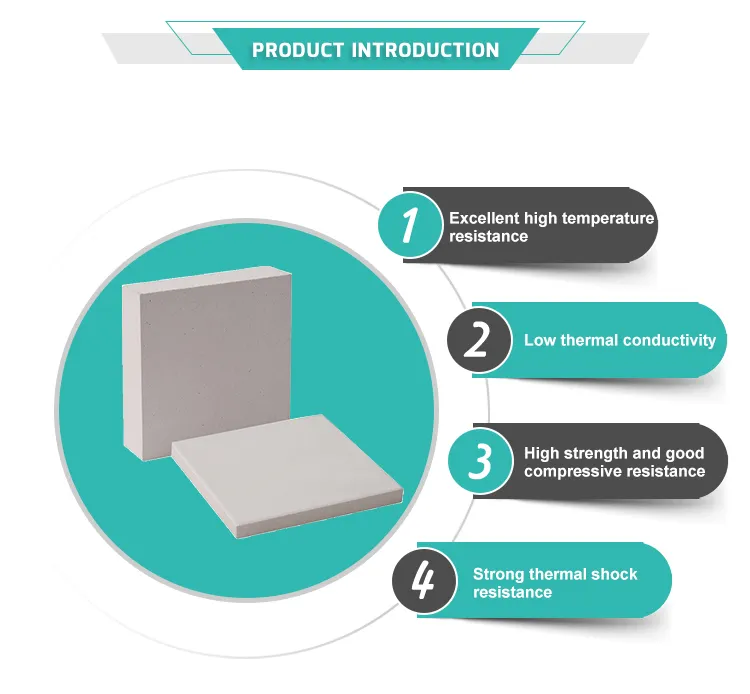

Construction Safety Board
Product Description

Ceramic fiber board is made of ceramic fiber cotton as raw material, adding a small amount of organic and inorganic binders and other additives, and using a streamlined production line with fully automatic control, continuous production and advanced technology.

It features a smooth surface, precise dimensions, good toughness, can be cut at will, is uniform inside and outside, and has good thermal insulation properties. It is an ideal heat preservation and insulation material for various industrial kilns.

💡 Key Applications:

  • Industrial kiln wall lining and masonry insulation layers.
  • High-temperature and high-heat equipment insulation.
  • Kiln cars, door baffles, and temperature partition boards.
  • Aerospace and shipbuilding industry insulation.
  • Steel, Ceramic, and Glass industry thermal management.

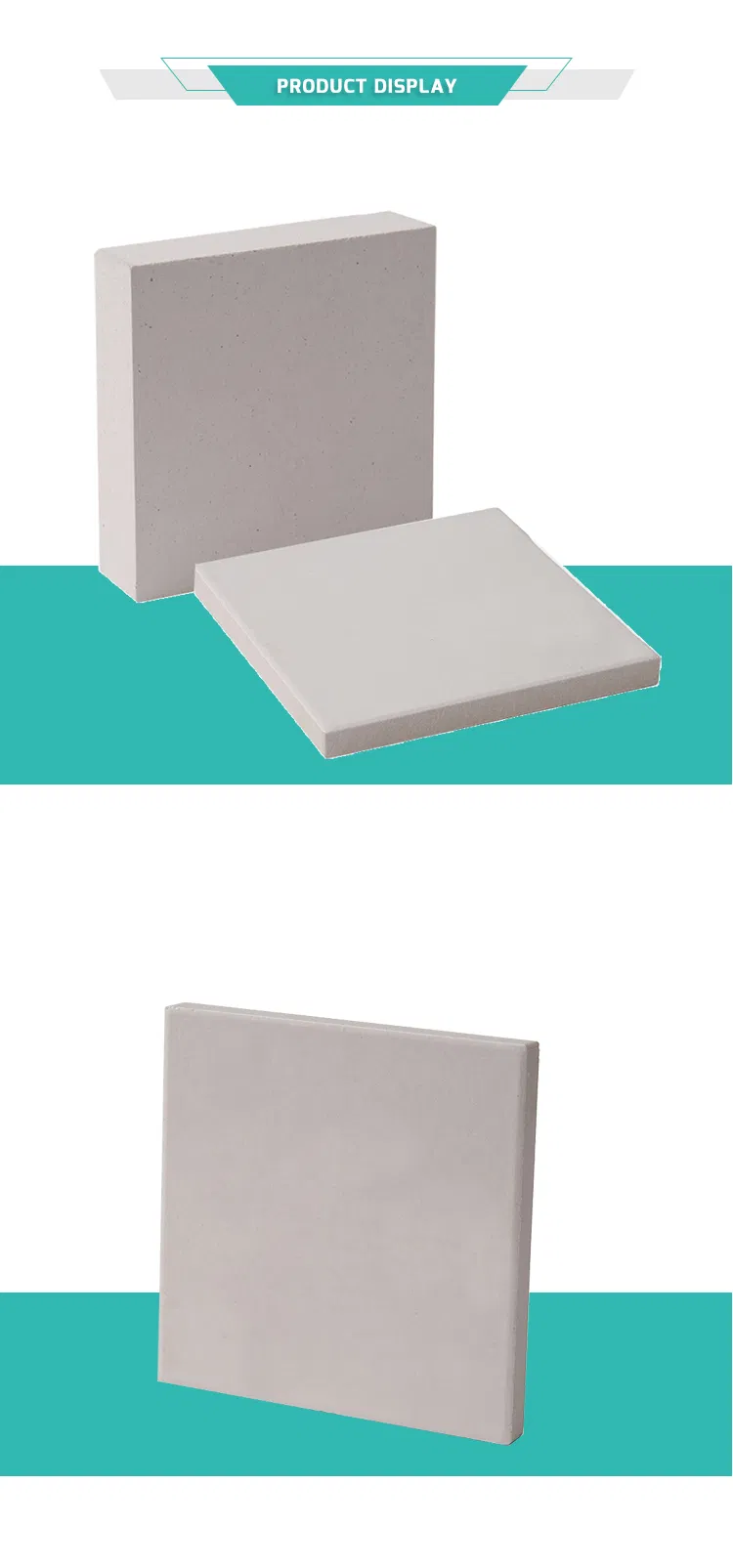

Specifications Diagram
Production Detail
Properties ST BOD GC BOD HZ BOD TP64 BOD TP74 BOD
Specification Temp. (ºC) 1260 1260 1430 1600 1700
Working Temp (ºC) 1000 1100 1350 1450 1550
Bulk Density (kg/m³) 280-400 280-400 280-400 400-500 450-500
Tensile Strength (MPa) 0.2 0.2 0.2 0.3 0.3
Al2O3 (%) 38 42 34 64 75
Application 1
Application 2
Application 3

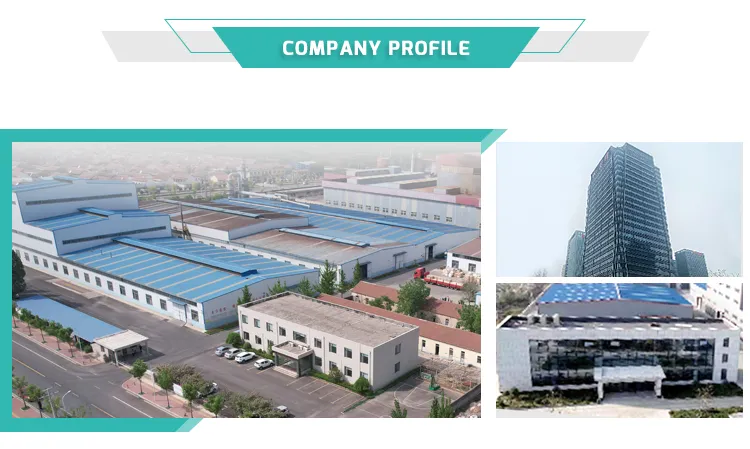

Detail 1
Detail 2

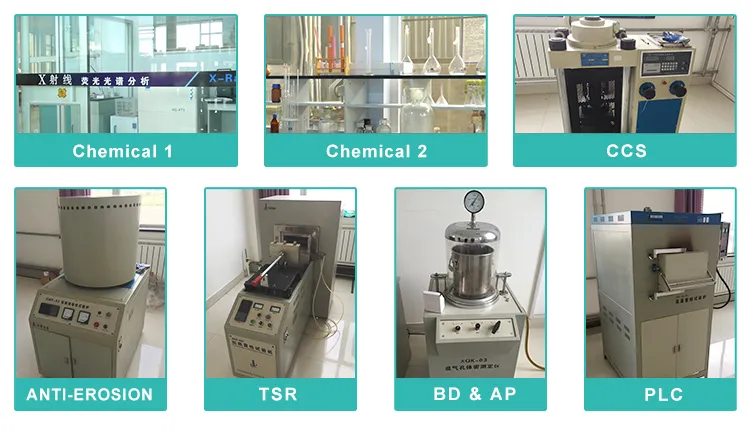

Detail 3
Frequently Asked Questions
Q1: How can you control your quality? For each production processing, we have a complete QC system for chemical composition and physical properties. All goods are tested post-production, and quality certificates are provided.
Q2: What is the typical lead time? It usually requires about 15-20 days after receiving the Purchase Order (PO).
Q3: Do you provide free samples? Yes, free samples are available. Generally, the buyer is responsible for the delivery costs.
Q4: What are your payment terms? We accept a 30% deposit with a 70% balance against the BL copy, LC, or other negotiable terms.
Q5: What international standards do your products meet? Our products meet global standards including ASTM, ASME, AMS, DIN, and JIS. Third-party testing is also available.
