FibroCeram Materials
FibroCeram Materials

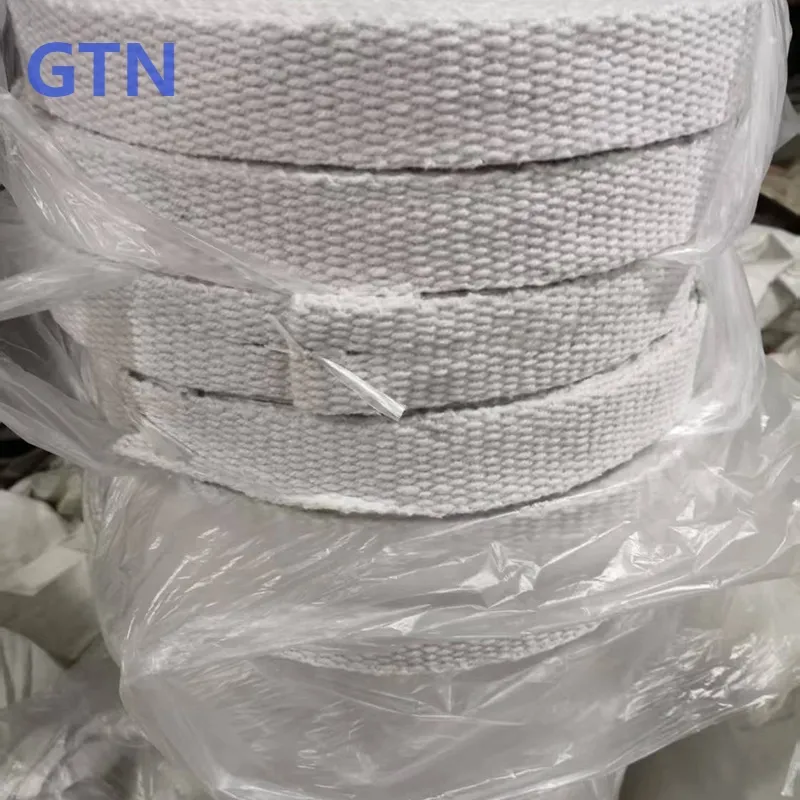

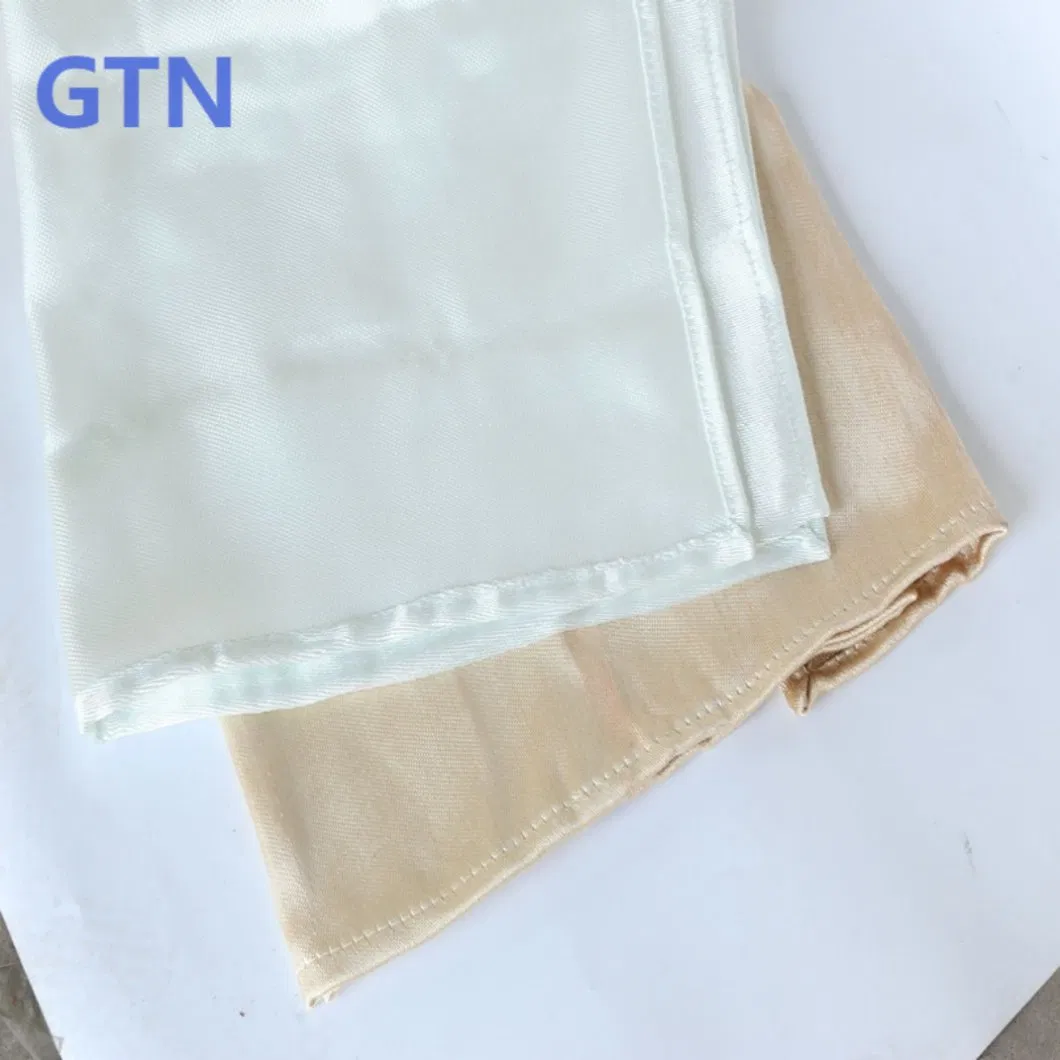

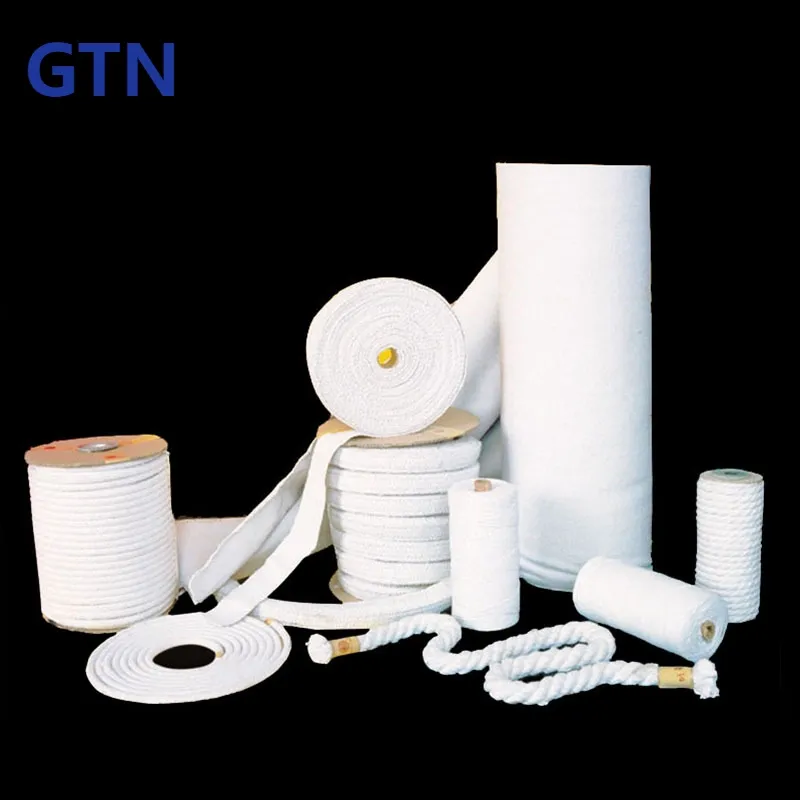

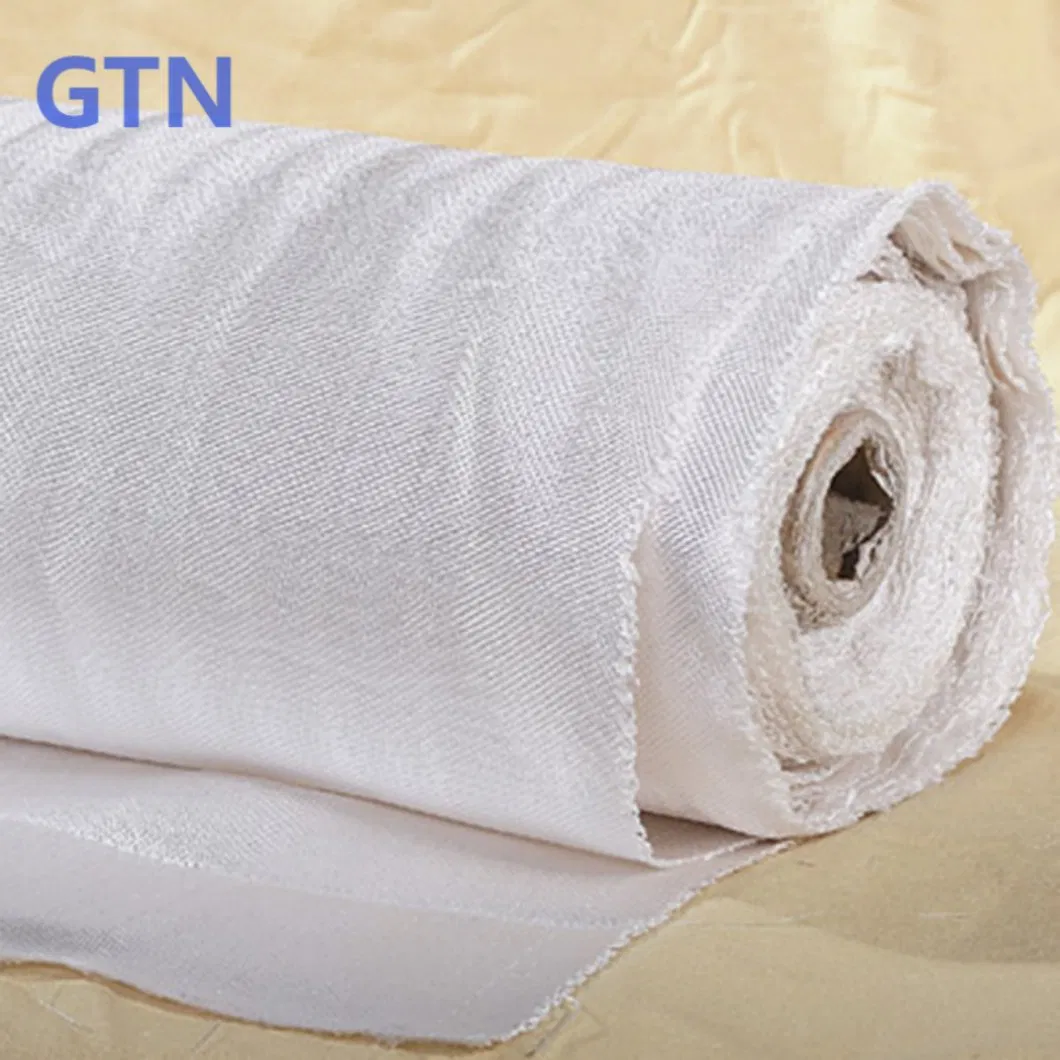

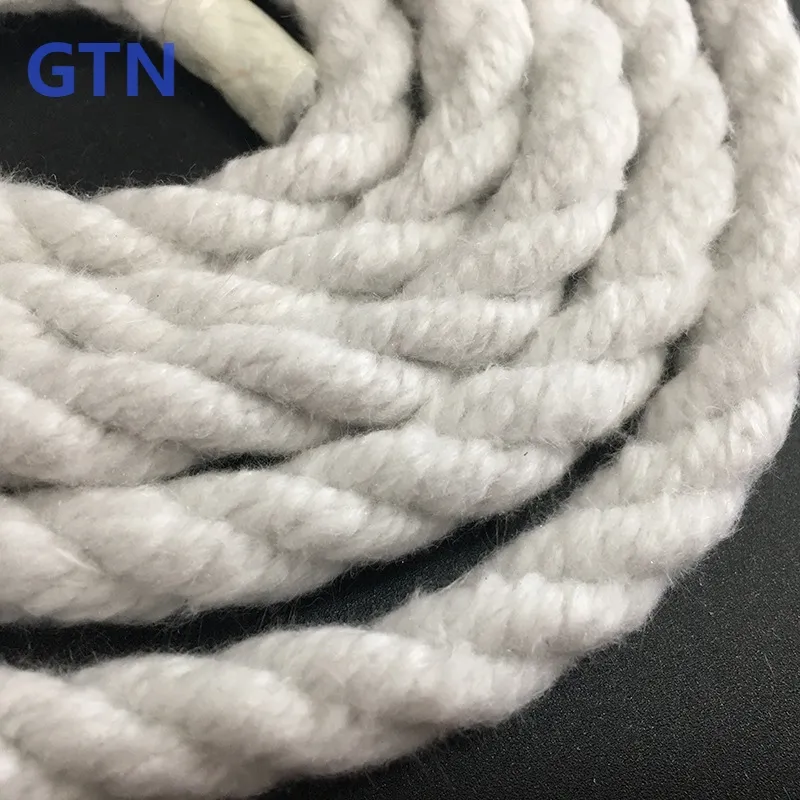

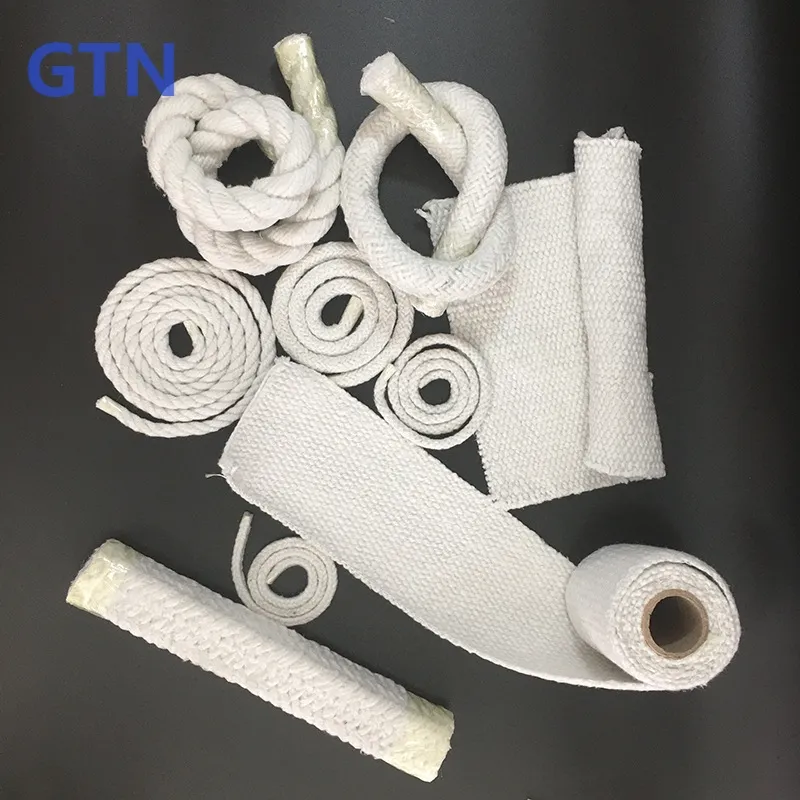

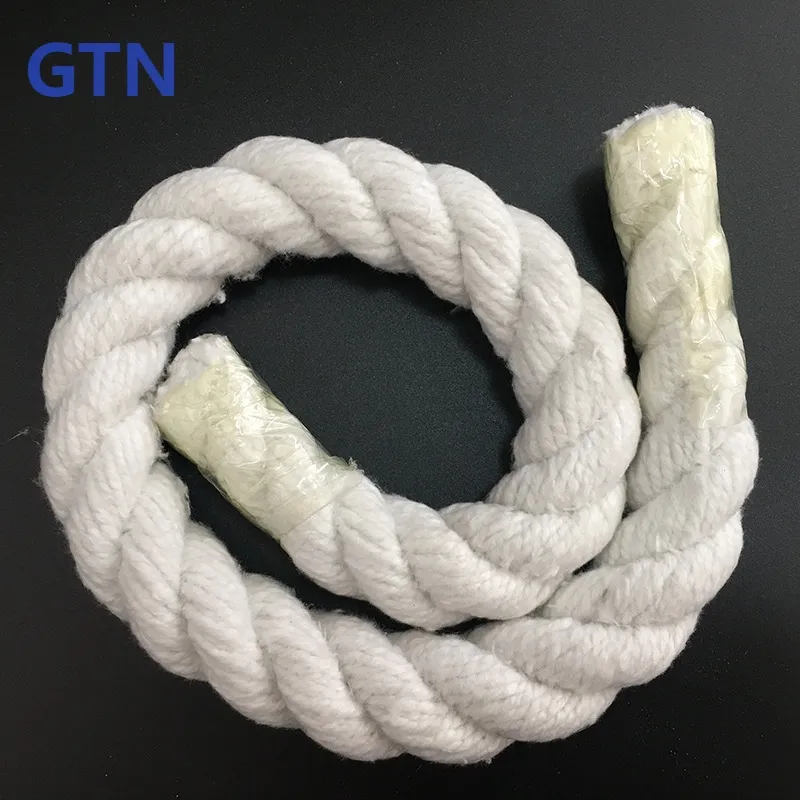

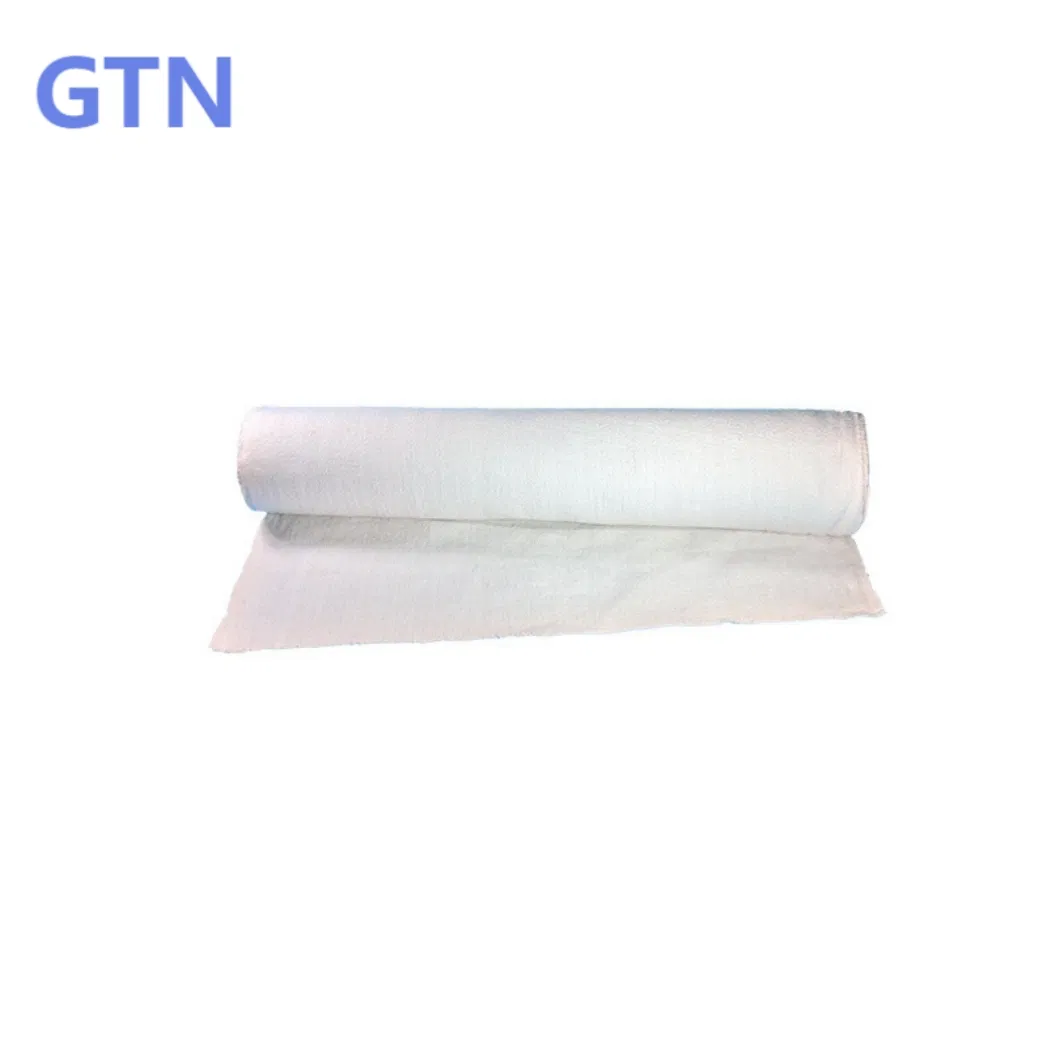

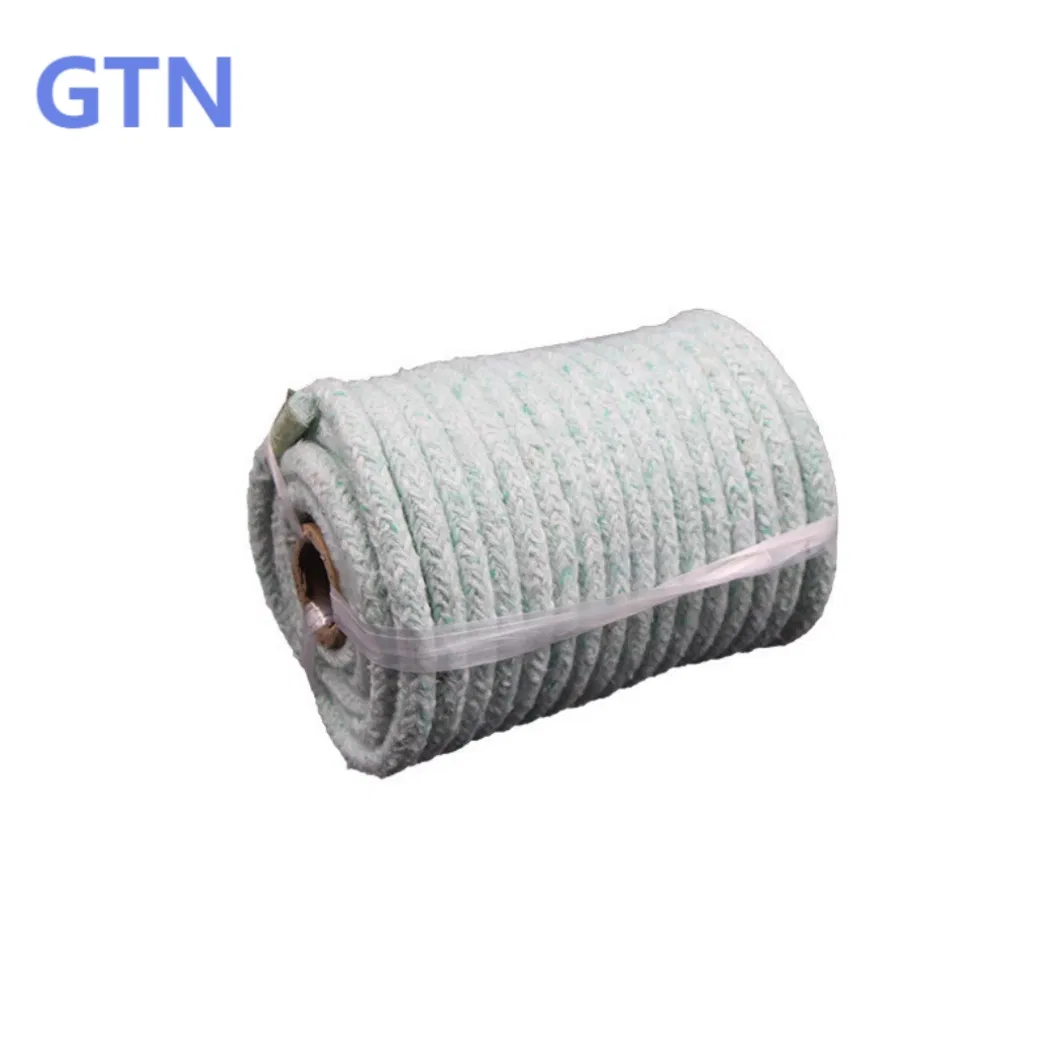

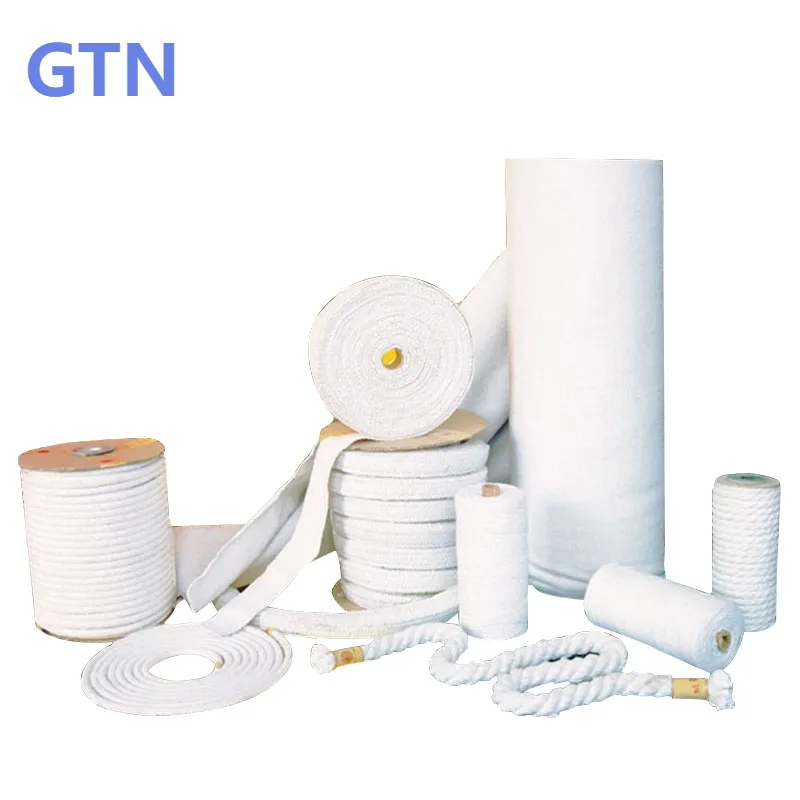

Ceramic fiber & Bio-Soluble fiber textiles contain the rope, tape, yarn and cloth. Textiles are woven or braided from yarn consisting of fiber with approximately 20% organic fiber. Inserted materials are reinforced into yarn and rope to increase the tensile strength of fiber. Stainless steel inserts are available for obtaining maximum strength at high temperature, while glass filament inserts are used in applications where electrical resistance is required. These fiber textiles have been workable insulation materials for thermal gaskets and wrapping.
| Properties | Bio-Soluble fiber rope/cloth/tap/yarn | Ceramic fiber rope/cloth/tap/yarn | |||
|---|---|---|---|---|---|
| Working Temp. (ºC) | 500-600 | 1100 | 500-600 | 1100 | |
| Bulk Density (kg/m³) | 500 | ||||
| SiO2 (%) | 55-65 | 51 | |||
| Al2O3 (%) | -- | 45 | |||
| Reinforced material | Glass Filament | Stainless steel 304 | Glass Filament | Stainless steel 304 | |
