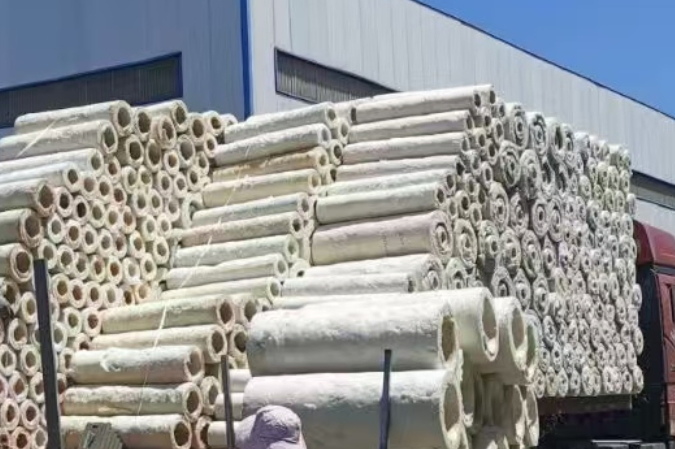

Cost-Effective Thermal Insulation Fireproof Ceramic Fiber Tube for Construction Made in China

Customization: Available
After-sales Service: Online Technical Support
Application Scenarios: Industry

Product Description

📋 Basic Information
Model NO.:DTG01
Material:Aluminum Silicate Fiber
Working Temp:1000-1260 ℃
Color:White
Inner Diameter:φ18-529mm
Wall Thickness:30mm-150mm
Feature:High Temperature Resistance
HS Code:6806101000
📦 Product Description

Ceramic fiber pipe is designed according to user requirements, the use of loose cotton through the wet vacuum suction molding made unit weight after drying, make different calcine, specifications, models, performance of various kinds of fiber products. Because of its excellent production equipment and the guarantee of stable raw material, products satisfy the requirement of the user various complex thermal environments.

Features

  • Smooth surface
  • Low impurity, and average bulk density and thickness
  • Excellent mechanical strength and structural strength
  • Low thermal conductivity
  • Low shrinkage
  • Resistant airspeed eroding

Applications

  • Heat insulation materials for electro-thermal equipments, steel and metallurgy.
  • Thermal insulation materials for construction.
  • Back-up lining of high-temperature industry furnaces.

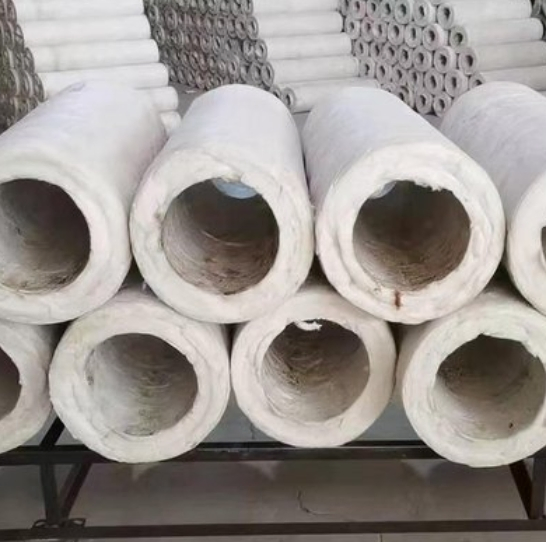

📷 Detailed Photos

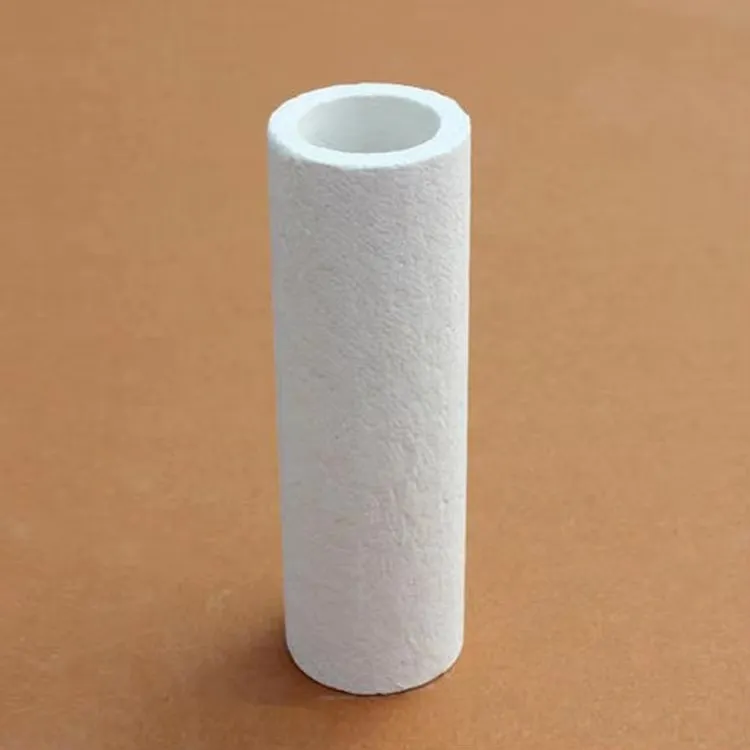

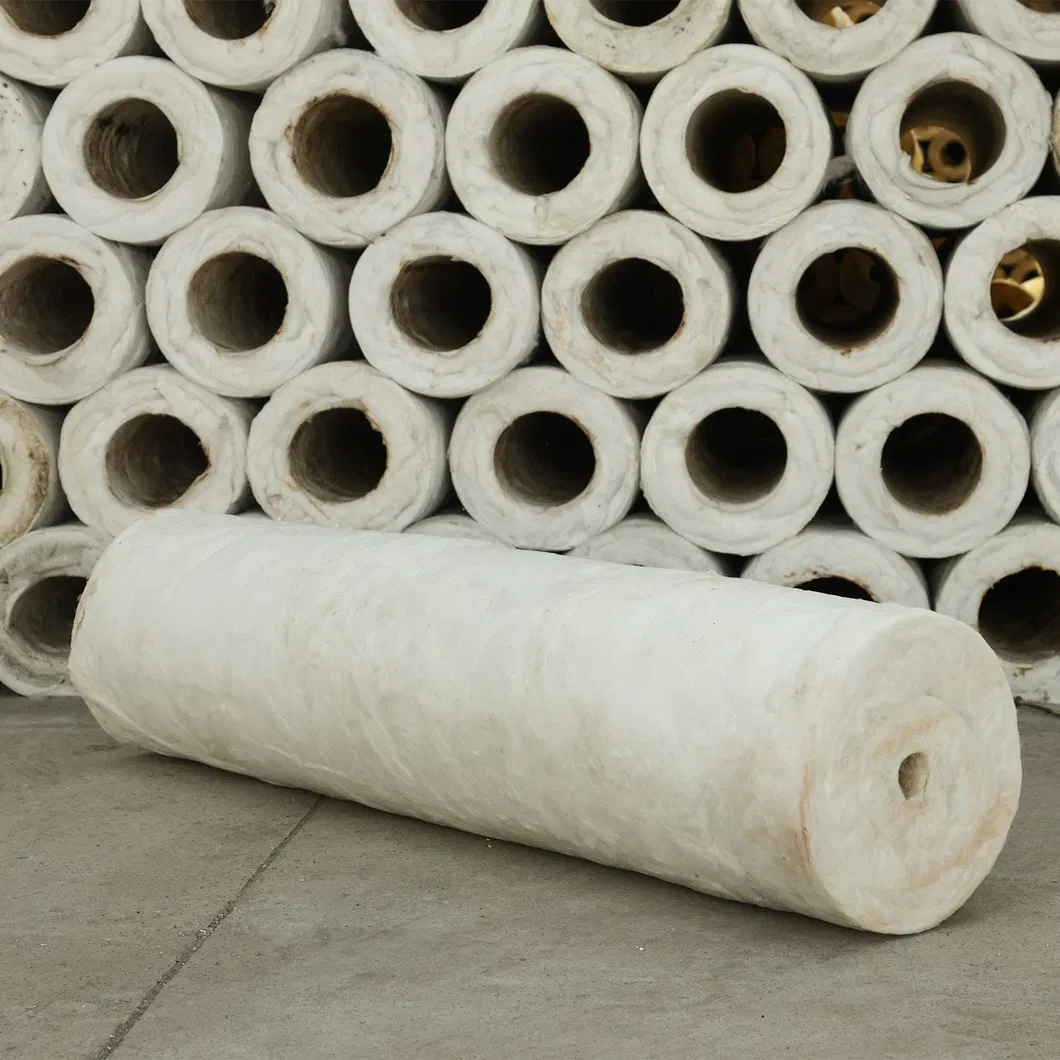

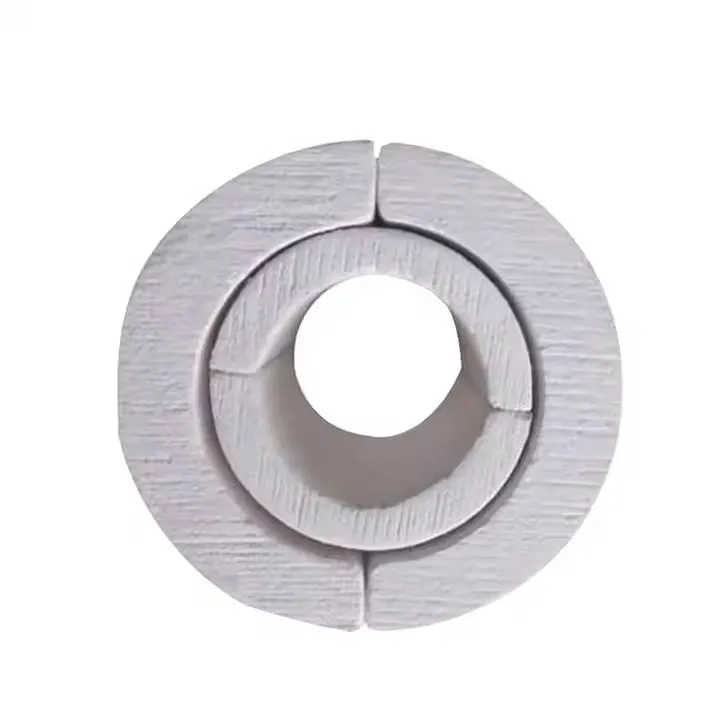

Ceramic Fiber Tube 1 Ceramic Fiber Tube 2 Ceramic Fiber Tube 3
📊 Product Parameters
Descriptions COM STD HP HA
Classification temp (°C) 1260 1260 1300 1400
Operating temp (°C) 1000 1000 1150 1260
Density(kg/m³) 260-320 260-320 260-320 260-320
Thermal Conductivity (400°C) 0.085 0.085 0.085 0.085
Al2O3 (%) 44-45 45 47-49 52-55
🏢 Industry Overview

The enterprise focuses on thermal insulation technology with extensive investment in research and production. Operating multiple domestic advanced automatic production lines, including 12 ceramic fiber lines, 2 glass wool lines, and 2 rock wool lines. Products are widely used in electric power, metallurgy, chemical industry, steel, construction, and shipbuilding industries. Our products are exported globally to regions including North America, Australia, and Southeast Asia.

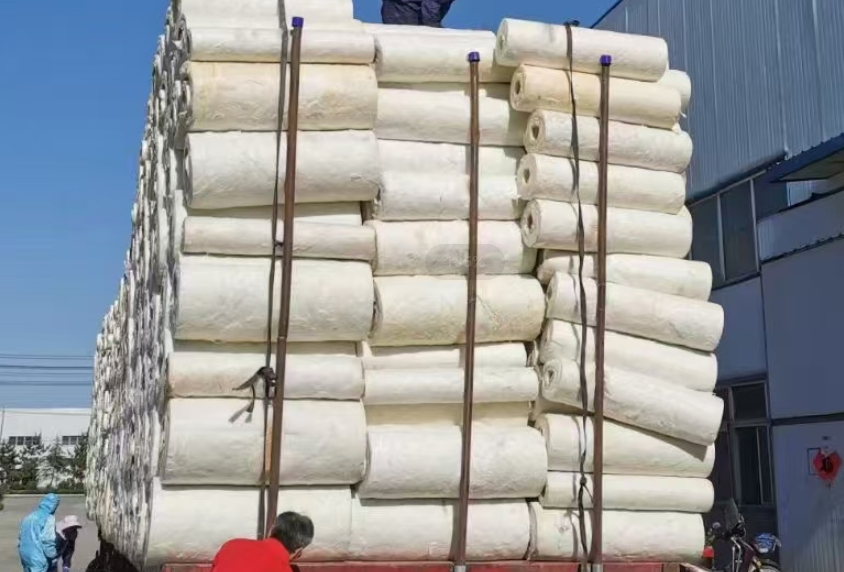

🚢 Packaging & Shipping
Packaging
📜 Certifications
Certifications
Frequently Asked Questions
Q1: Why choose ceramic fiber pipe for thermal insulation?
A: It offers high temperature resistance, low thermal conductivity, and excellent structural strength, making it ideal for industrial furnaces and construction.
Q2: Are you a direct manufacturer?
A: Yes, we are a manufacturer with multiple production lines, allowing us to provide high-quality products at competitive prices with full after-sales support.
Q3: How do you ensure product quality?
A: We maintain a complete QC system for chemical composition and physical properties. Every batch is tested after production, and quality certificates are provided.
Q4: What is the typical working temperature of these pipes?
A: Depending on the specific grade (COM, STD, HP, or HA), the operating temperature ranges from 1000°C to 1260°C.
Q5: Is customization available for size and dimensions?
A: Yes, we offer customizable sizes with inner diameters ranging from 18mm up to 529mm to meet specific engineering requirements.
Q6: How can I place an order?
A: You can send a confirmation via email or trade manager. We will provide a proforma invoice with bank details for your confirmation and payment.
