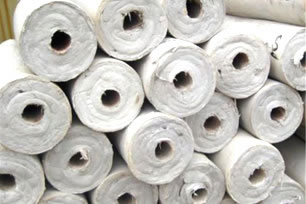

China Ceramic Fiber Manufacturing Vacuum Formed Shapes Insulation Sleeve Tube

1 / 5

China Ceramic Fiber Manufacturing Vacuum Formed Shapes Insulation Sleeve Tube

Customization:	Available
After-sales Service:	Online Technical Support
Application Scenarios:	Industry

Send Inquiry

Product Description

📊 Basic Information

Material	Aluminum Silicate Fiber	Application	Refractory
Working Temperature	1000-1260 ℃	Color	White
Size	Customizable	Inner Diameter	φ18-529mm
Wall Thickness	30mm-150mm	Length	1000mm

📦 Product Description

Ceramic fiber pipe is designed according to user requirements, utilizing loose cotton through wet vacuum suction molding. These products are manufactured to specific unit weights, calcination levels, and models to meet various fiber product performance needs. With advanced production equipment and stable raw materials, each product serves as both a high-performance thermal solution and an elegant piece of industrial handicraft.

Key Features:

Smooth surface finish
Low impurity levels
Average bulk density & thickness
Excellent mechanical strength
Low thermal conductivity
Low shrinkage & erosion resistance

Main Applications:

Electro-thermal equipment insulation
Steel and metallurgy processes
Construction thermal insulation
High-temperature furnace back-up lining

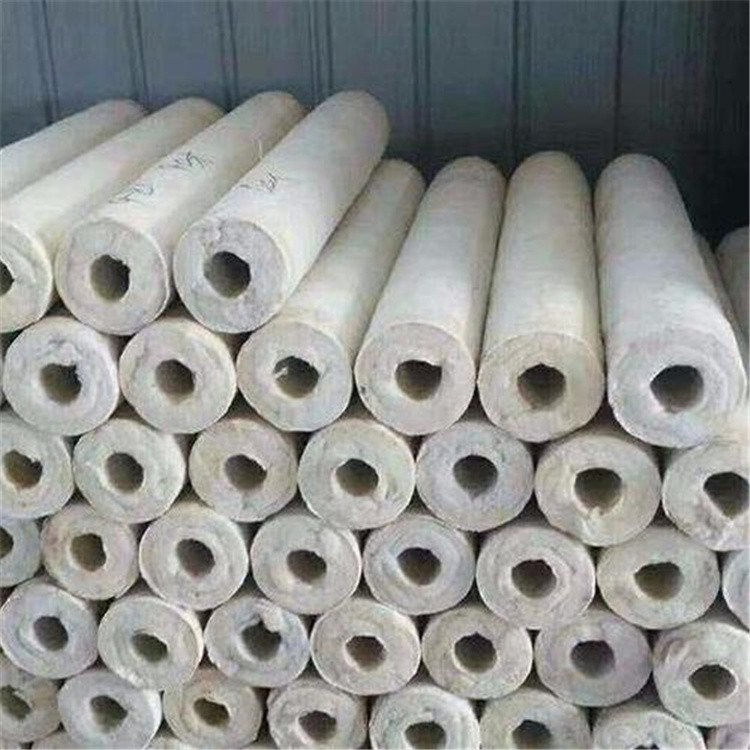

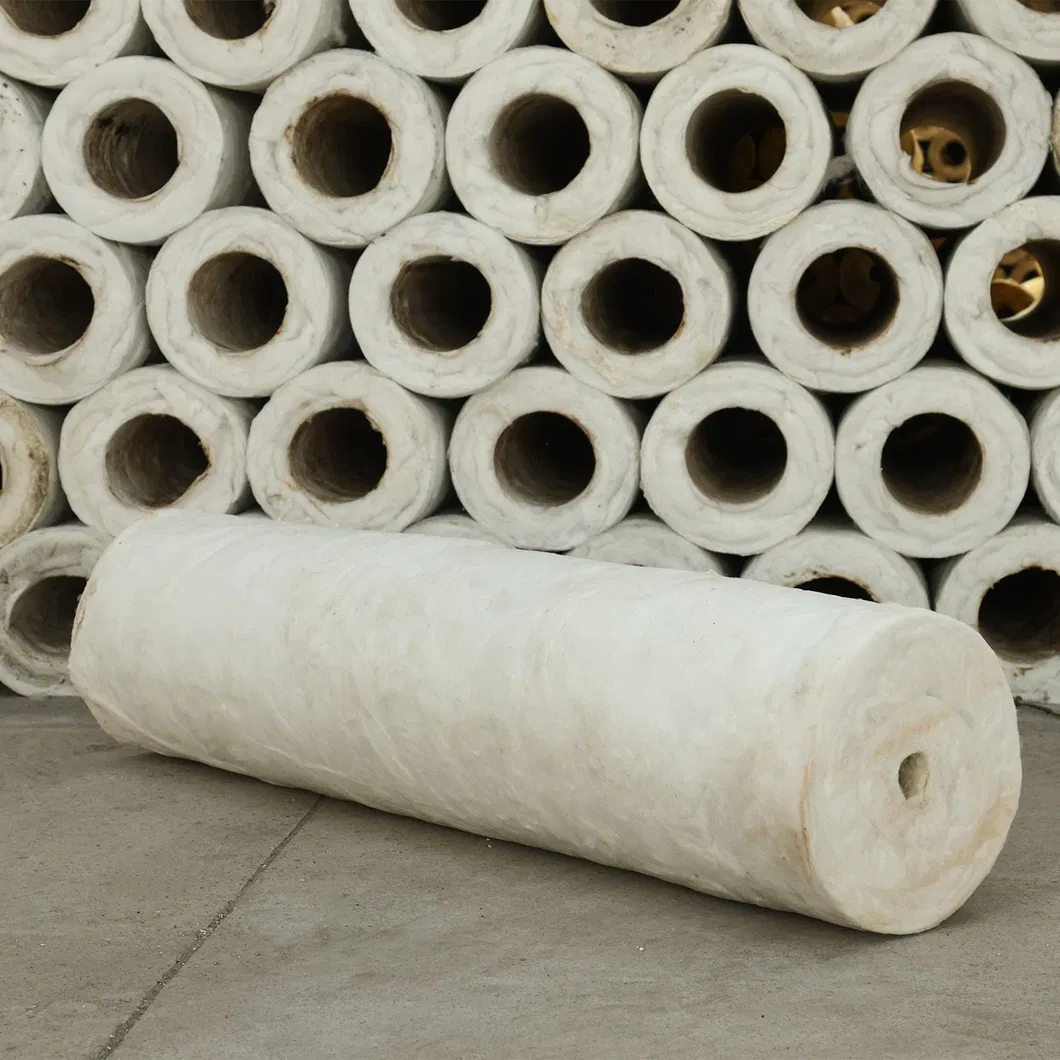

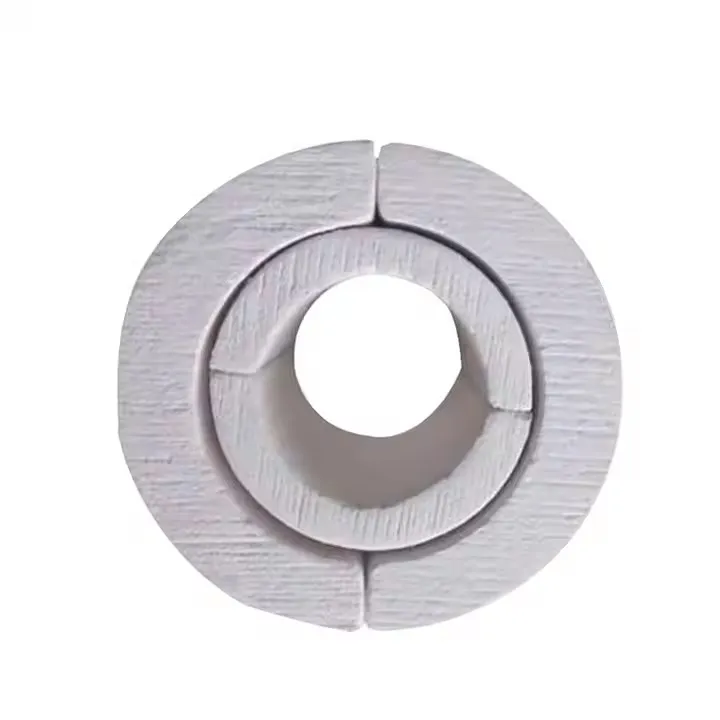

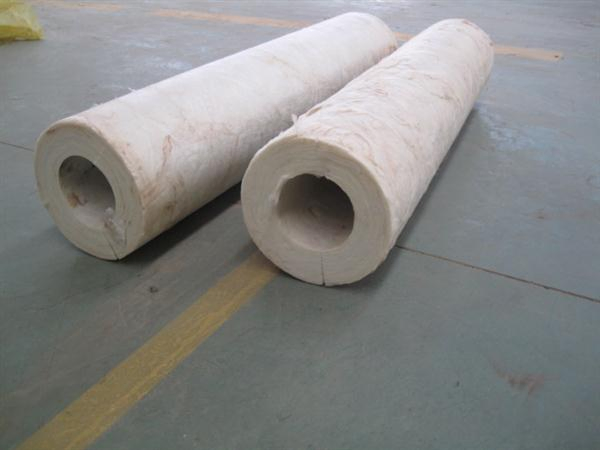

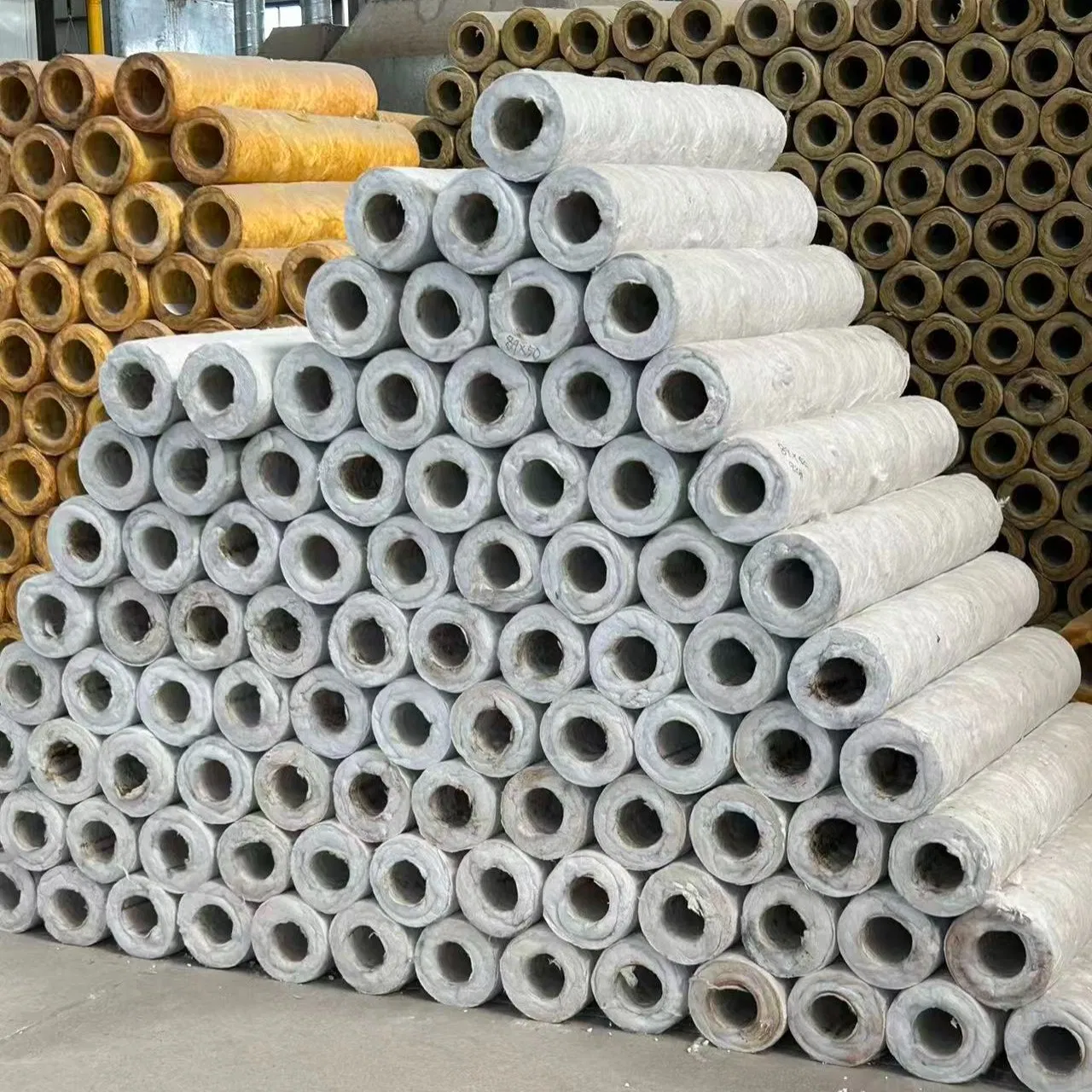

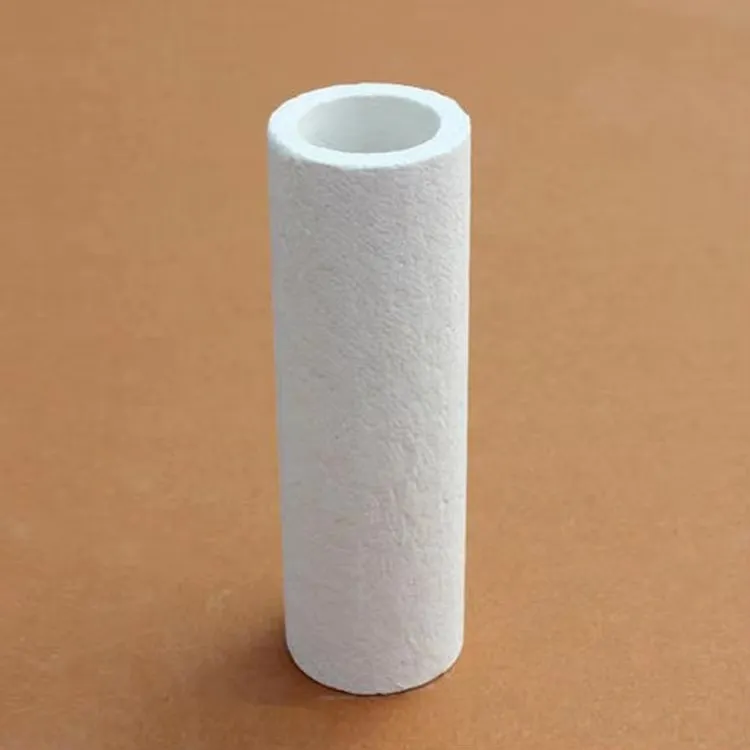

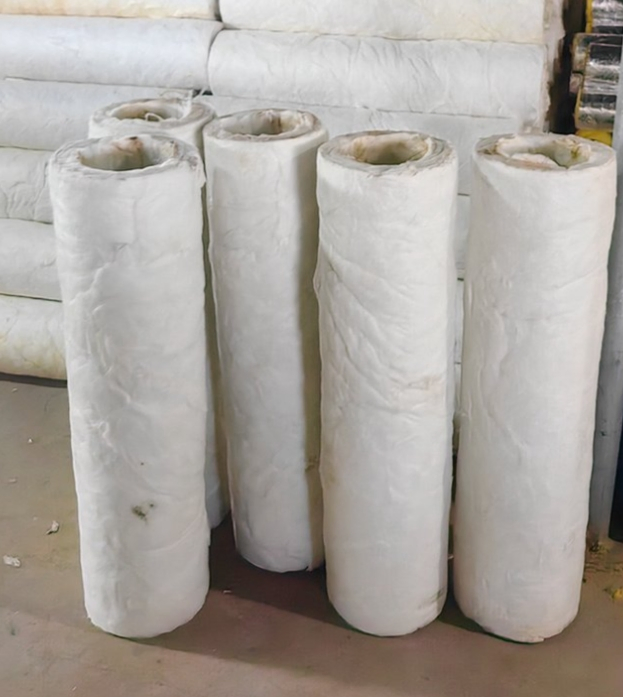

📷 Detailed Photos

📐 Product Parameters

Descriptions	COM	STD	HP	HA
Classification Temp (°C)	1260	1260	1300	1400
Operating Temp (°C)	1000	1000	1150	1260
Density (kg/m³)	260-320	260-320	260-320	260-320
Thermal Conductivity (400°C)	0.085	0.085	0.085	0.085
Al2O3 (%)	44-45	45	47-49	52-55

🏢 Profile & Capacity

Our group manages specialized factories for aluminum silicate products, rock wool, glass wool, and polyurethane materials, covering an area of 199,800 square meters. We operate 12 aluminum silicate production lines and multiple lines for glass and rock wool. With an annual output exceeding 240,000 tons of insulation materials, our products are widely utilized in power, metallurgy, chemical, and shipbuilding industries globally, including markets in the USA, Australia, Japan, and Southeast Asia.

🚢 Packaging & Certifications

❓ Frequently Asked Questions

Q1: What are the primary advantages of ceramic fiber pipes? A: They offer excellent mechanical strength, low thermal conductivity, and high resistance to temperature and airspeed erosion, making them ideal for industrial insulation.

Q2: Can the sizes be customized? A: Yes, we provide customizable sizes for inner diameters ranging from 18mm to 529mm and wall thicknesses from 30mm to 150mm.

Q3: How is product quality controlled? A: We maintain a complete QC system for chemical composition and physical properties for every production batch. All goods are tested post-production.

Q4: What is the maximum classification temperature? A: Depending on the grade (COM, STD, HP, or HA), the classification temperature reaches up to 1400°C.

Q5: What industries commonly use these materials? A: They are widely used in metallurgy, steel, chemical industries, power plants, and high-temperature furnace linings.

Q6: How can I confirm the technical specifications for an order? A: You can send us your requirements via email, and we will provide a detailed proforma invoice and technical data sheet for your confirmation.
