Ceratec Industrial Insulation Ceramic Fiber Blanket

Customization: Available
Usage: High Temperature Insulating Material
Temprature Classification: 1260℃

Product Description

📋 Basic Information
Model NO.
CT 1260
Chemical Composition
SiO2, Al2O3.SiO2, Al2O3
Shape
Ceramic Fiber Blanket
Manufacturing Technique
Jilt Silk Rug
Kind
Ordinary Ceramic Fiber
Color
White
Density
96,128,160kg/M3
HS Code
6806101000
💎 Product Description

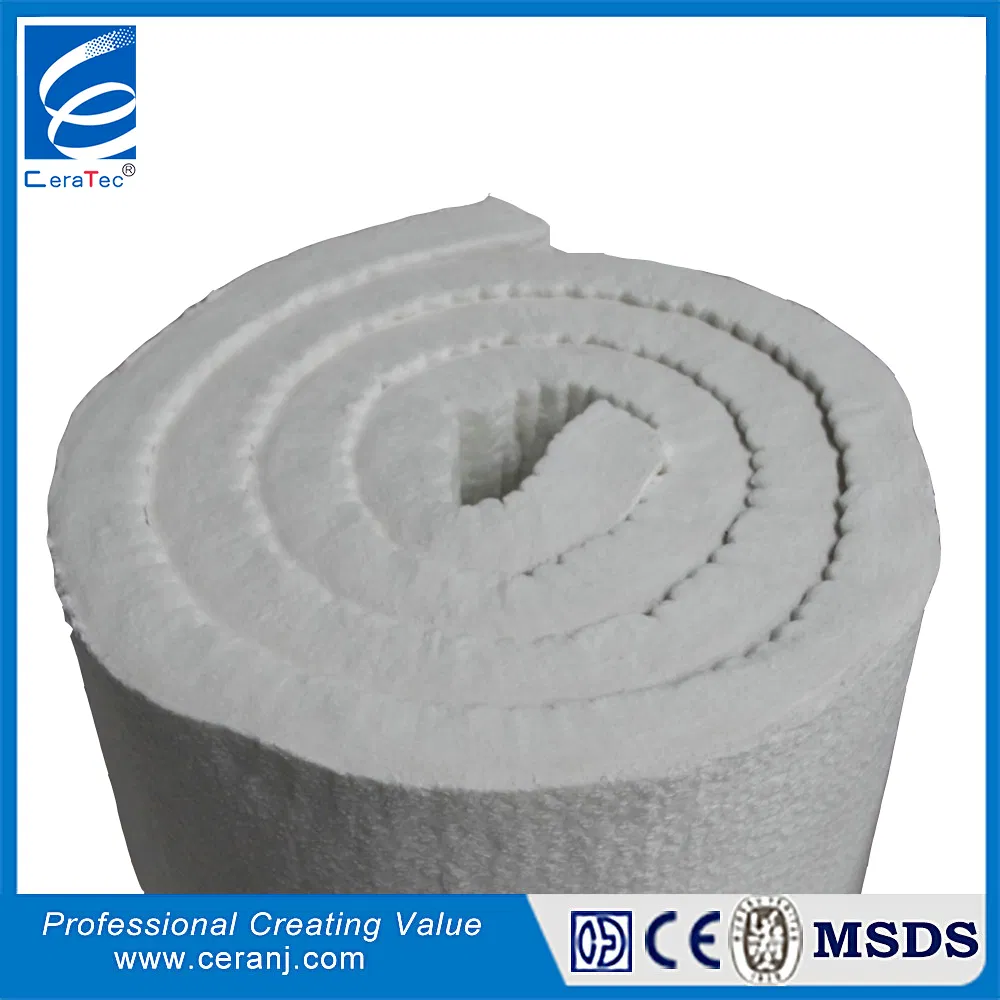

CeraTec Industrial Insulation Ceramic Fiber Blanket

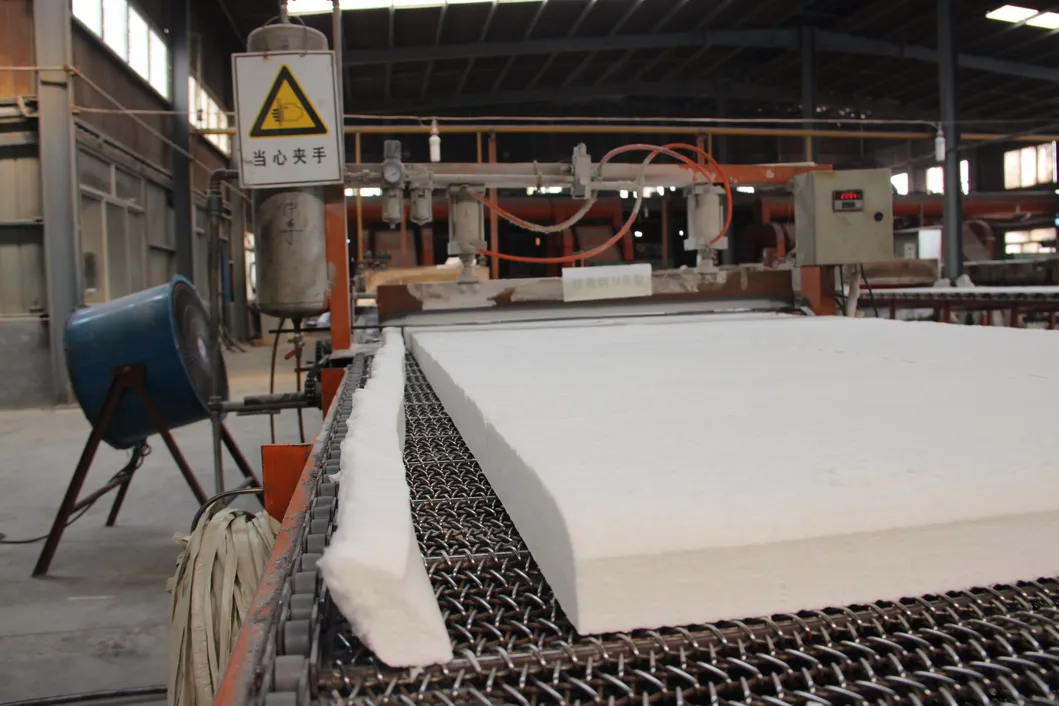

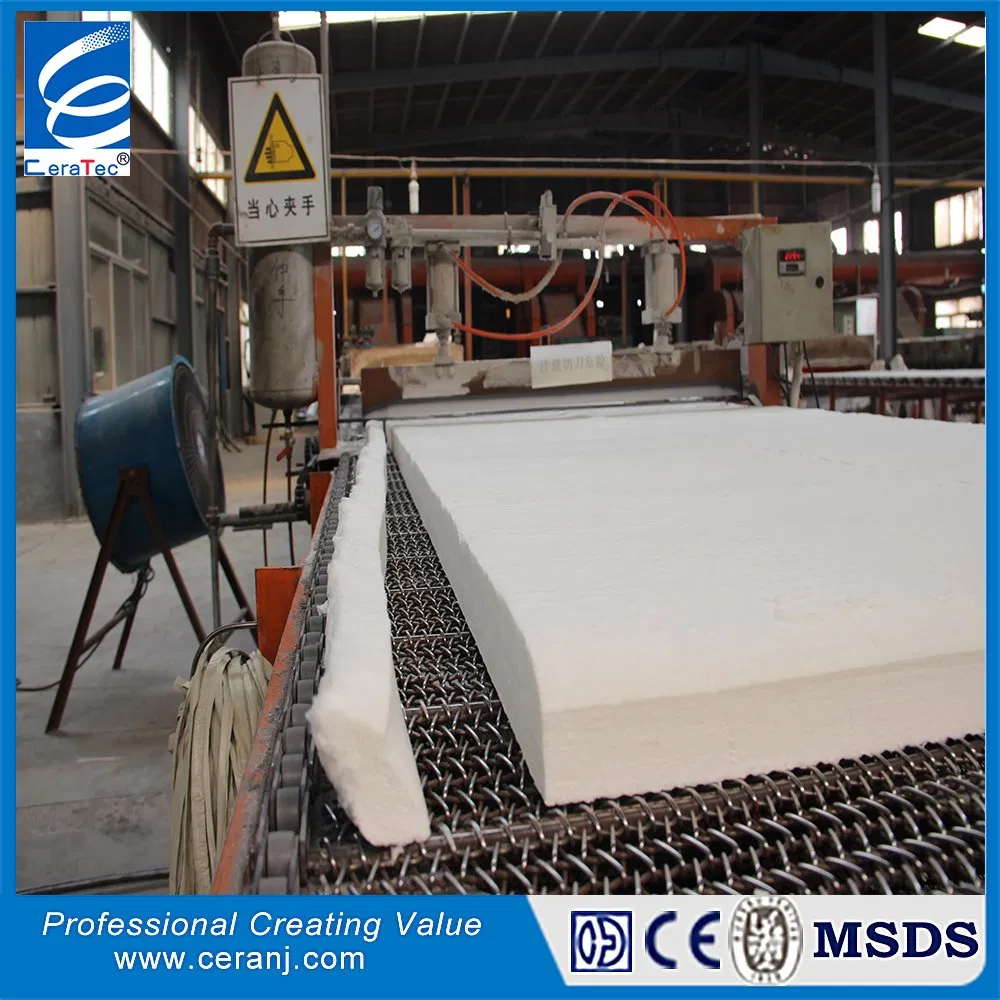

🔹 Manufacture Technology

  • Made from high pure aluminium silicate fibre through double-sided needling using spun technology.
  • Low shrink, even texture, integrity surface and high tearing strength.
  • No binding agents used, ensuring reliability and stability in any environment.
  • Functions are not affected by water or oil; recovers properties after drying.

🔹 Key Features

  • Low heat strong capacity and low thermal conductivity.
  • Excellent thermal stability and shock resistance.
  • Resists devitrification at high temperatures.
  • Excellent fire prevention, sound absorption, and insulating performance.
  • Easy cutting and installation.

🔹 Typical Applications

  • Industrial kiln linings (hot surface and back lining).
  • Furnace body expansion joints, door, and top cap seals.
  • High-building fireproofing and heat insulation.
  • Thermal resistance components for the auto industry.
  • High-temperature filter media and stress relieving of welds.
📊 Technical Data
Type CT 1000 CT 1260 CT 1360 CT 1430 CT 1500 Maftec
Classification Temp (°C) 1100 1260 1360 1430 1500 1600
Density (kg/m³) 96 / 128 / 160
Al2O3 (%) 42-44 45-46 52-55 39-40 43 72
SiO2 (%) - - - - - 28

Size (mm): 14640/7300/3600 * 610/1220 * 13/20/25/38/50

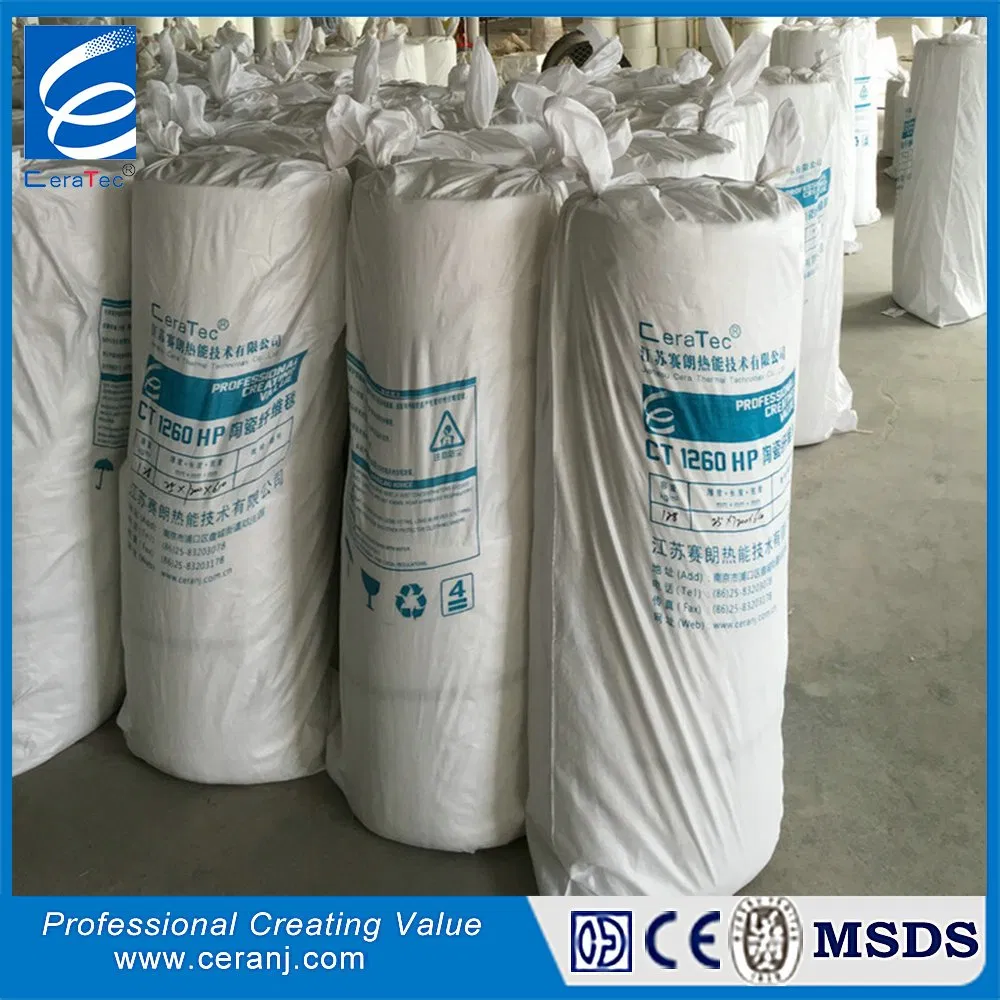

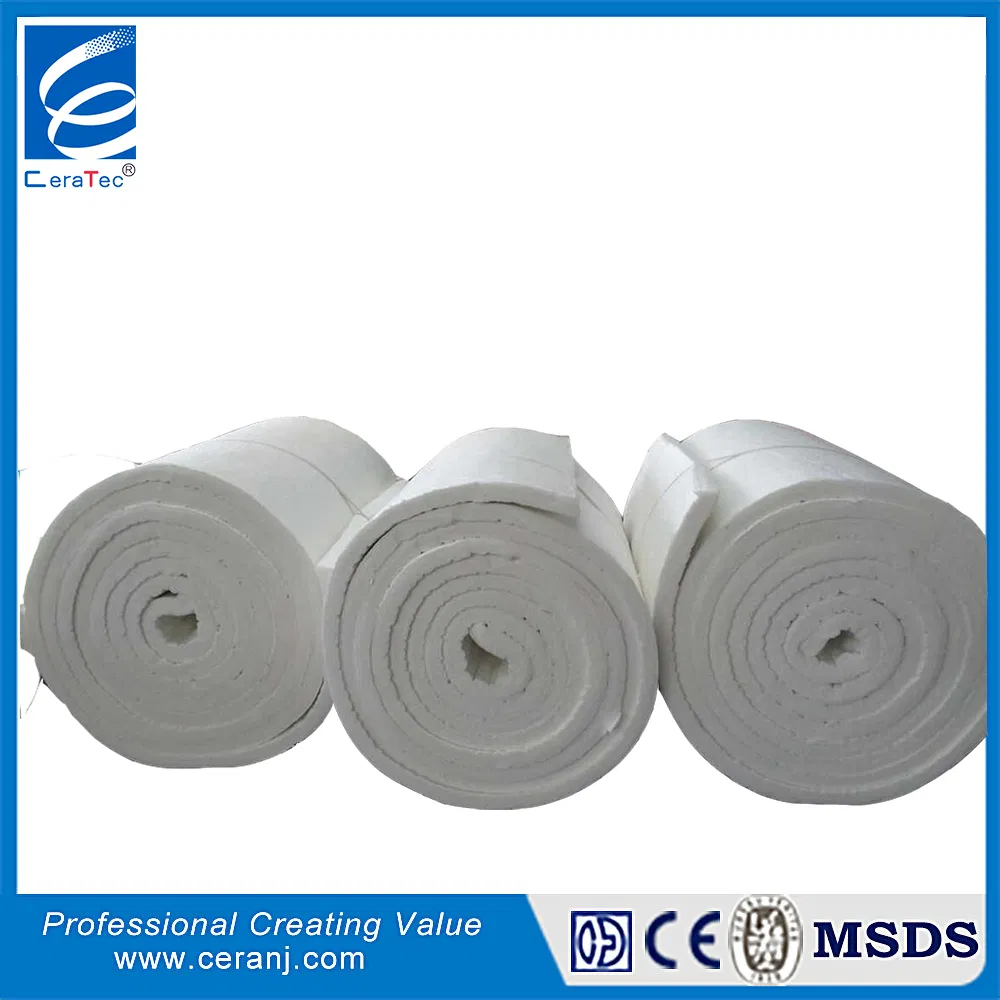

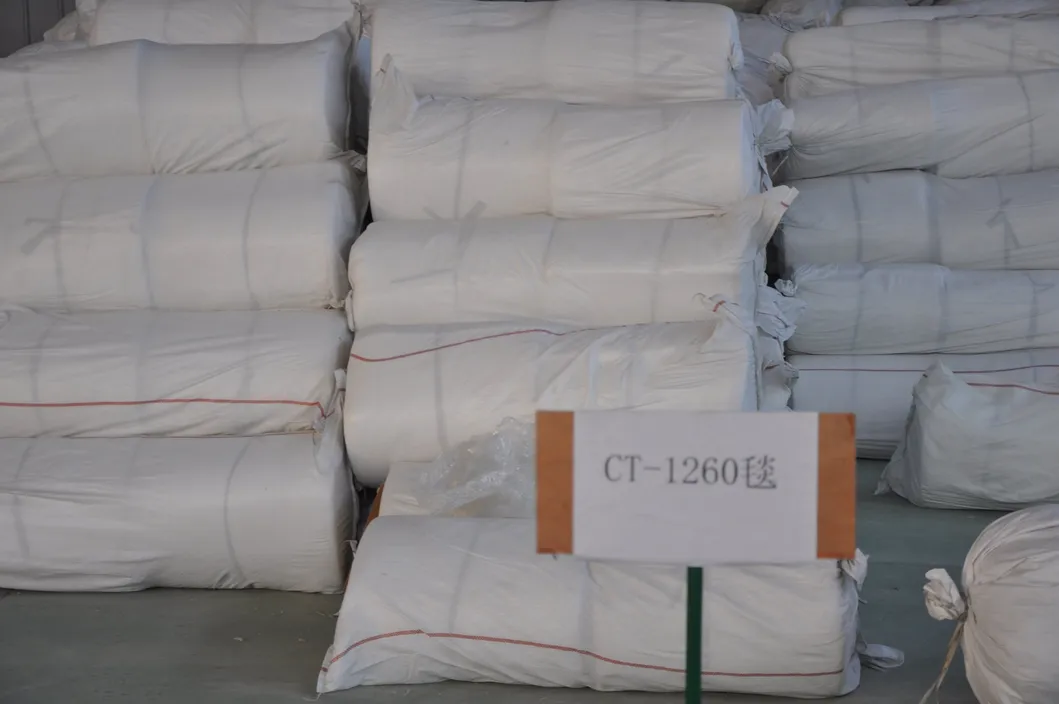

📸 Product Gallery

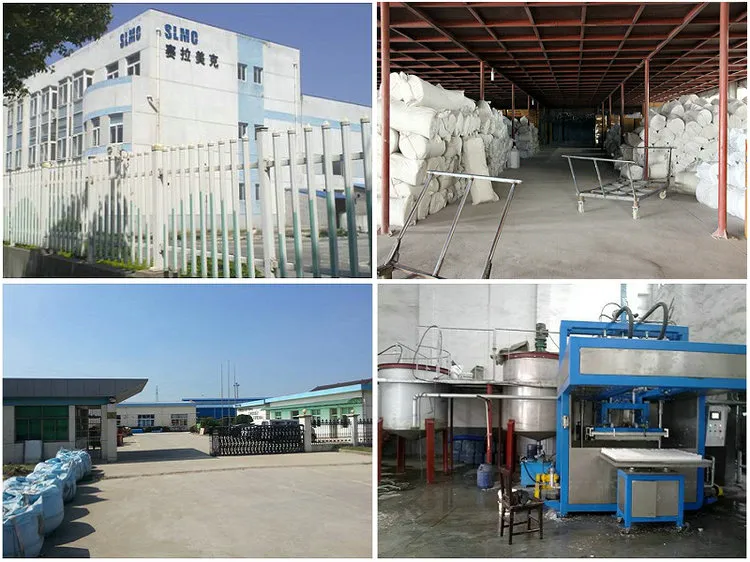

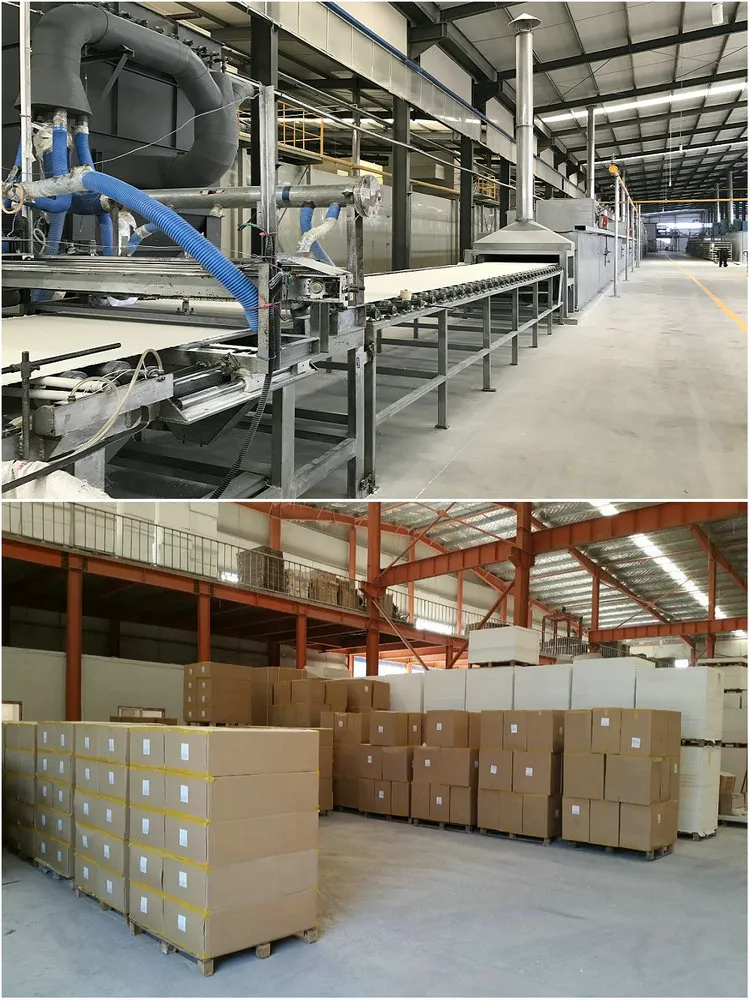

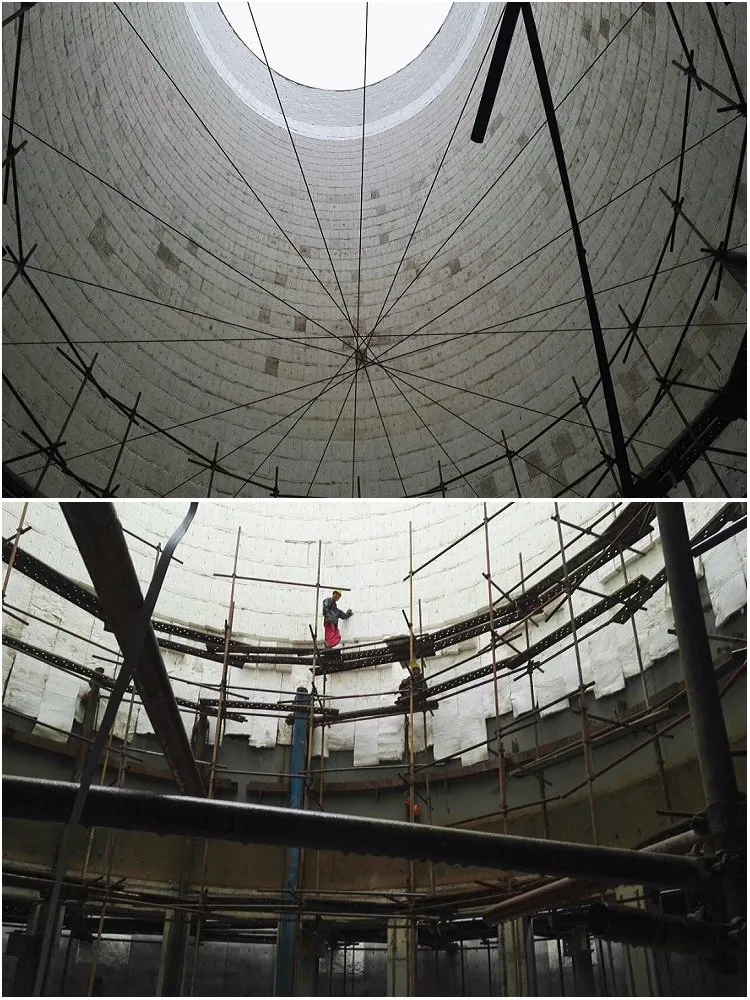

🏭 Production & Application
Frequently Asked Questions
Q1: What is the maximum temperature the CT 1260 blanket can withstand? A1: The CT 1260 model has a classification temperature of 1260°C, making it suitable for high-temperature industrial kiln and furnace linings.
Q2: Does the ceramic fiber blanket contain any binding agents? A2: No, our spun fiber blankets are made from high-purity raw materials without any binding agents, ensuring stability in various environments.
Q3: How does moisture affect the performance of the blanket? A3: The thermal and physical properties of the blanket are not permanently affected by water or oil. It will recover its full performance once dried.
Q4: What are the available densities for this product? A4: The ceramic fiber blanket is available in densities of 96kg/m³, 128kg/m³, and 160kg/m³ to meet different insulation requirements.
Q5: Can the blanket be used for fireproofing in buildings? A5: Yes, it is an excellent material for high-building fireproofing, heat insulation, and sound absorption due to its refractory properties.
Q6: Is the blanket easy to install for complex shapes? A6: Yes, the double-side needling produces a tough and resilient blanket that is easy to cut and flexible enough for various installation structures.
