Ceramic Fibre Module with Anchors for Industrial Kilns

Customization:	Available
Refractoriness (℃):	1050-1800c
Shape:	Module

Basic Information

Feature:

Long Time Materials

Type:

Heat-Resistant Material

Transport Package:

Carton/Woven Bag with/Without Pallet

Specification:

300*300*250/300/600 mm

Origin:

China

HS Code:

680610

Capacity:

2000 Tons/Year

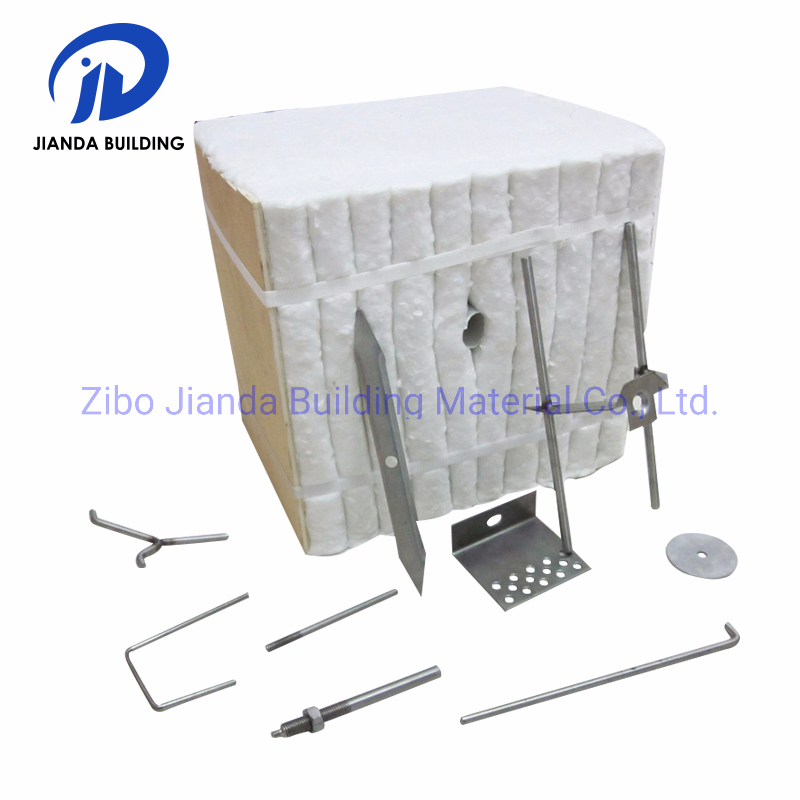

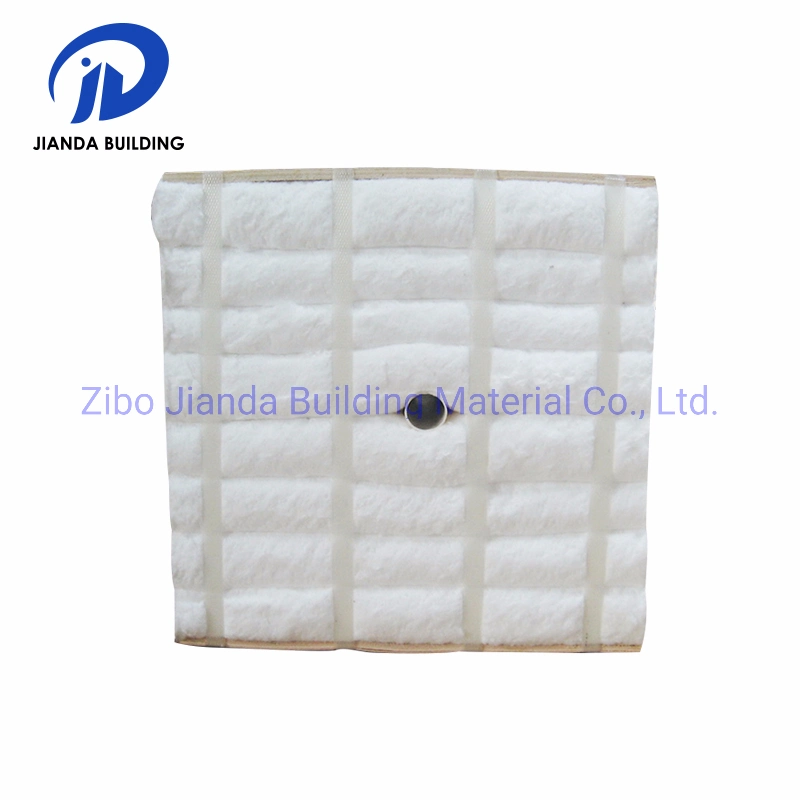

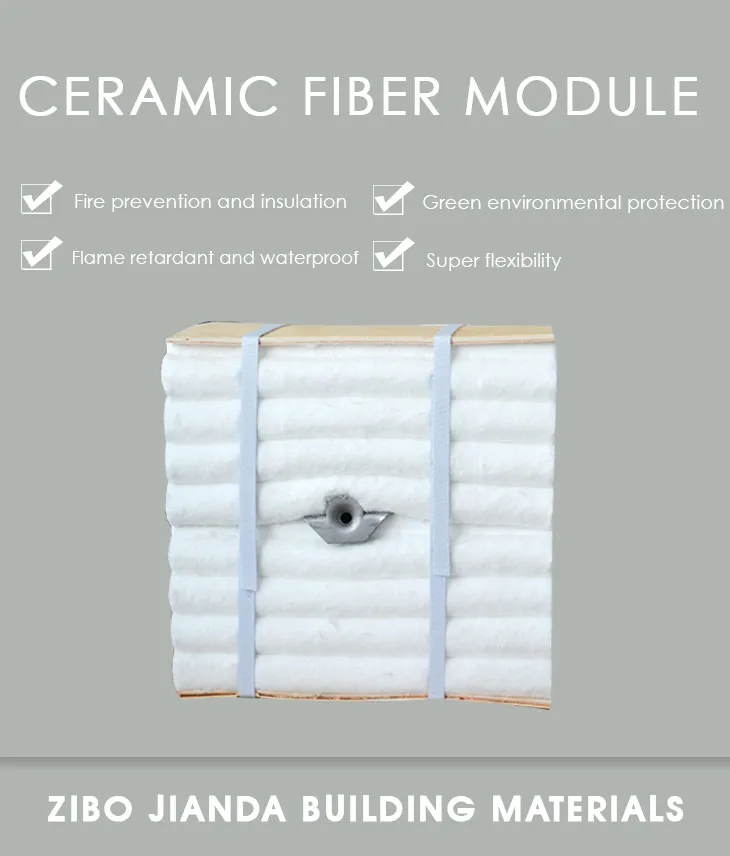

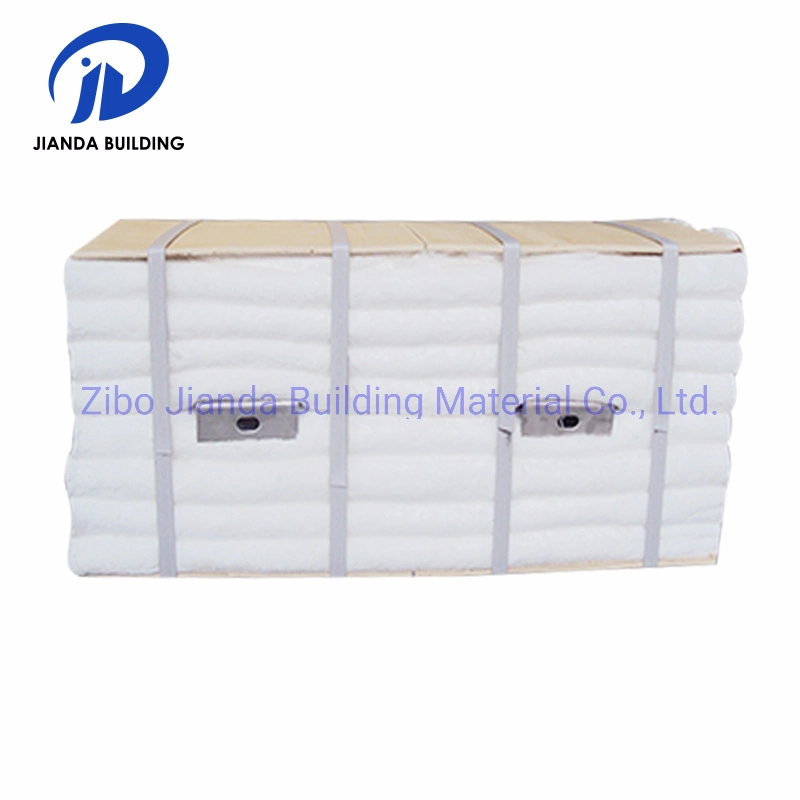

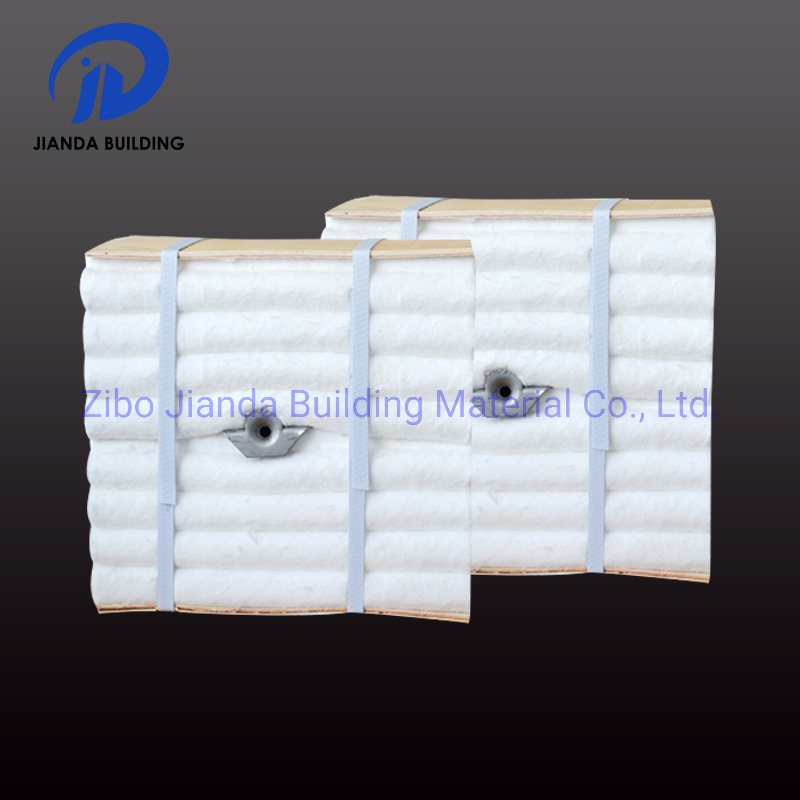

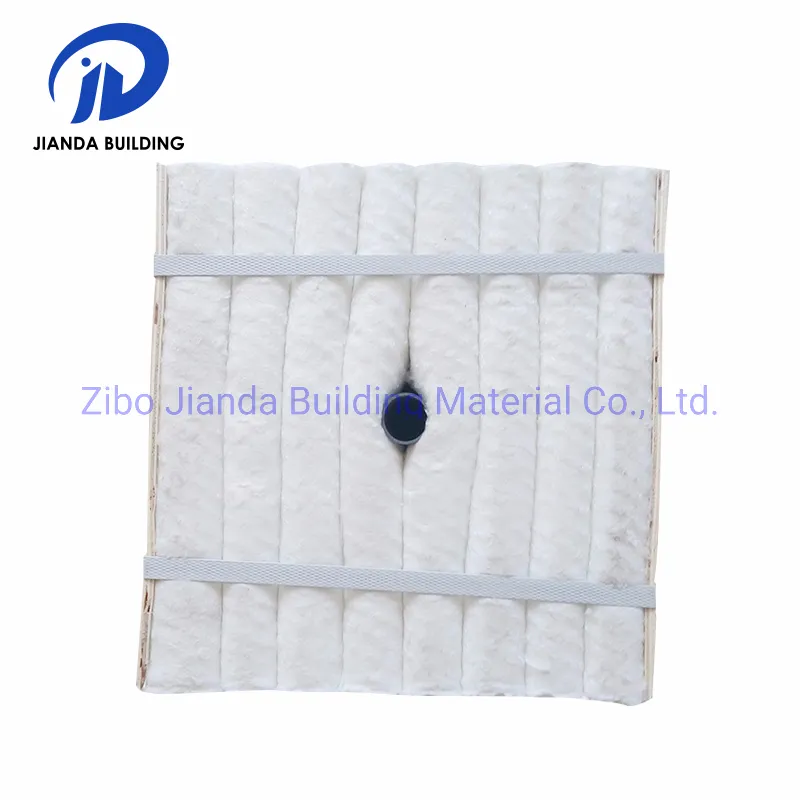

Ceramic Fibre Module with Anchors

High quality ceramic fibre blanket compression module after folding and packing.
Simple installation method that quickens furnace lining construction speed.
Forms an integrated insulating lining after bandaging are cut.
Anchor system is remote from the hot face, protecting metal components.

Technical Specifications

Product Types	ST1260C	HP1260C	HA1360C	HZ1430C
Spec Temp	1260°C	1260°C	1360°C	1430°C
Operation Temp	1050°C (1922°F)	1100°C (2012°F)	1200°C (2192°F)	1350°C (2462°F)
Linear Change (%)	≤-3	≤-3	≤-3	≤-3
Density (kg/m3)	190-220
Al2O3 (%)	46	47-49	52-55	39-40

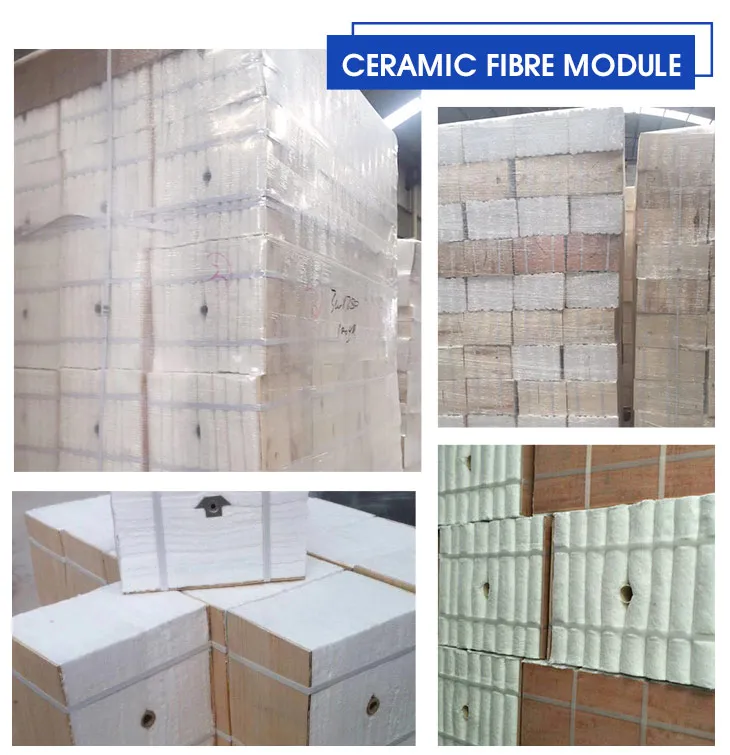

Product Details & Advantages

Anchorage on the back allows for both in-line and parquet installation.
Tightly sealed intermodular joints due to blanket decompression.
Low thermal conductivity for high thermal efficiency.
Total resistance to thermal shock; no drying or curing required.

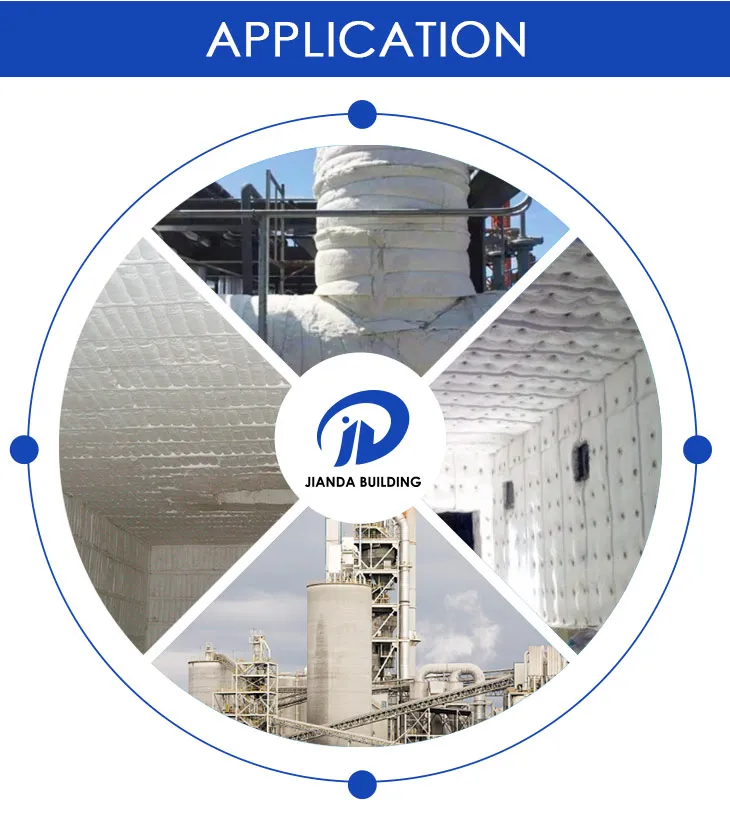

Typical Applications

🛠 Heat Treatment: Annealing furnace, tempering furnace, soaking pit.
🛠 Petrochemical: Ethylene pyrolysis furnace, reformers, ductwork heaters.
🛠 Iron and Steel: Transfer ladle lids, reheating furnace, lift-off furnaces.

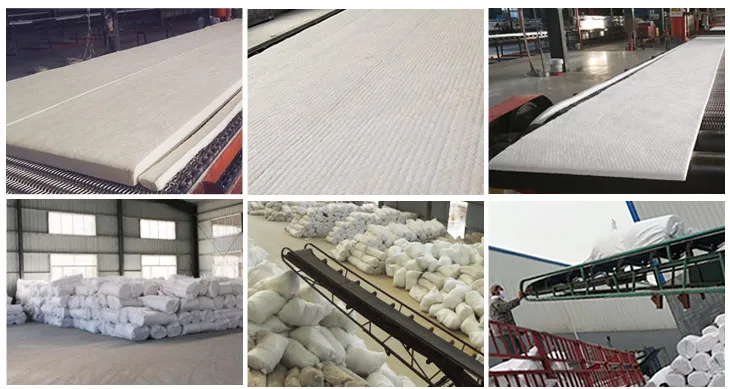

Shipping & Packaging

Payment Terms: T/T, Western Union, L/C; Usually 30% deposit.
Warranty: 1 Year Quality Warranty.
Delivery: 15-30 days for batch goods.

Frequently Asked Questions (FAQ)

1. When can I get the quotation?

We usually quote within 24 hours after getting your detailed requirements like size and quantity.

2. Do you provide free samples?

Yes, free samples are available, though the buyer generally bears the delivery cost.

3. What are your payment terms?

We accept 30% deposit and 70% balance against BL copy, LC, or other negotiable terms.

4. What quality standards do you follow?

Our products meet international standards such as ASTM, ASME, AMS, DIN, and JIS. Third-party testing is available.

5. What is the typical lead time for orders?

Common shape samples take about 3 days; batch goods are typically delivered within 30 days.

6. How are the products packaged for transport?

Products are usually packed in carton boxes or woven bags with plastic inner lining, or according to specific requirements.
