📦 Basic Information
Model NO.:
Ceramic Fiber Blanket
Chemical Comp.:
Al2O3.SiO2
Shape:
Ceramic Fiber Blanket
Kind:
Ordinary Ceramic Fiber

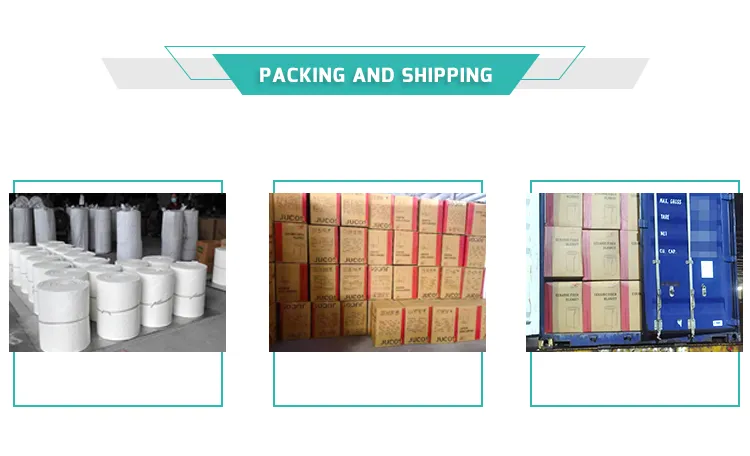

🚚 Packaging & Delivery
Package Size:
46.00cm * 46.00cm * 62.00cm
📝 Product Description

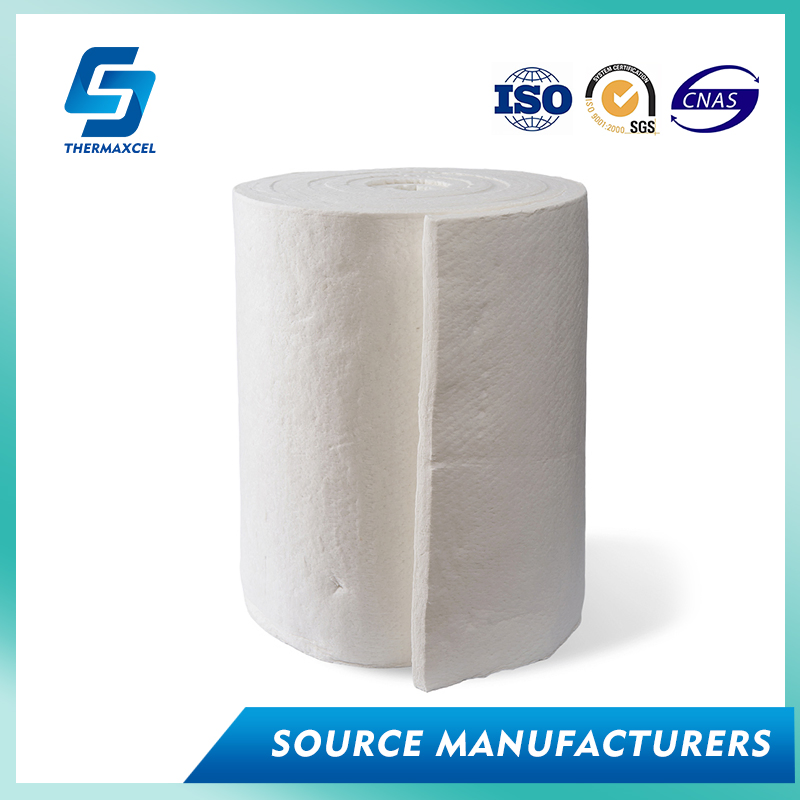

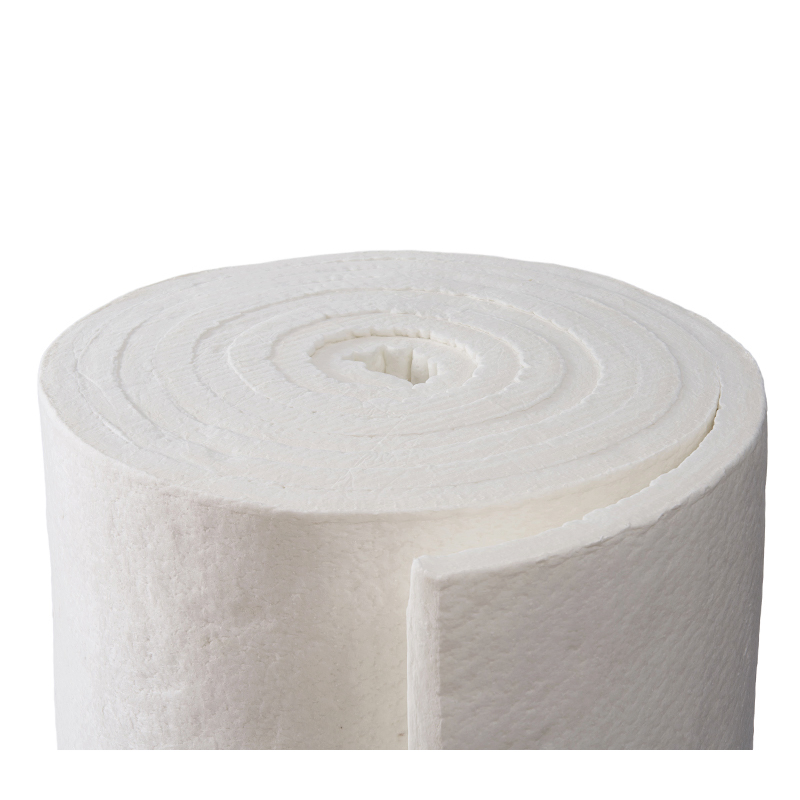

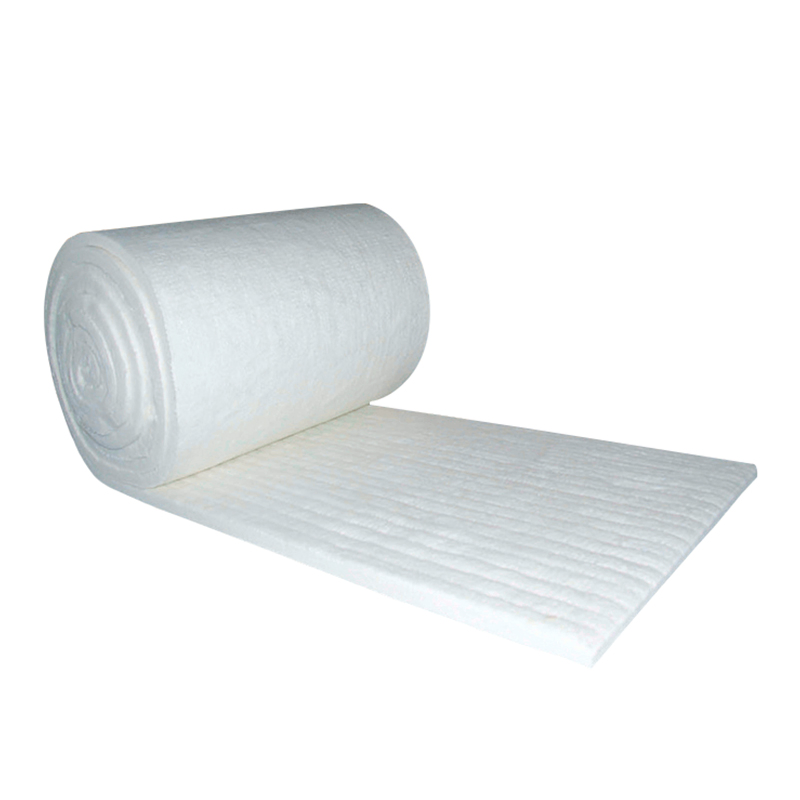

The 25mm Ceramic Fiber Blanket is a high-temperature alumina-silicate insulation material widely used in industrial furnaces, heating equipment, boilers, kiln linings, chimney insulation, and thermal processing systems.

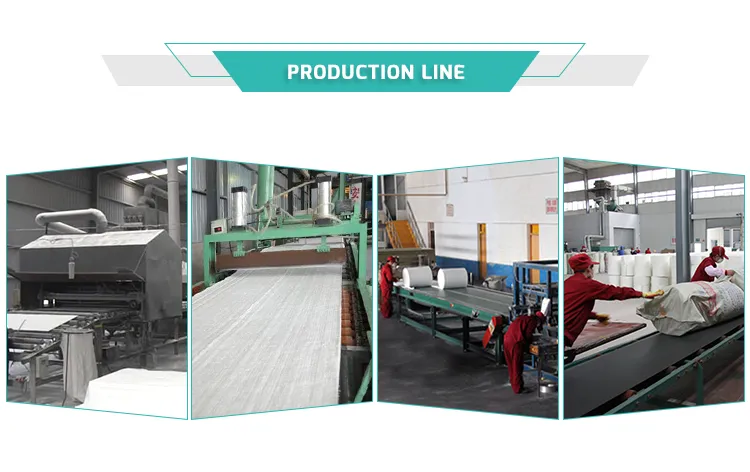

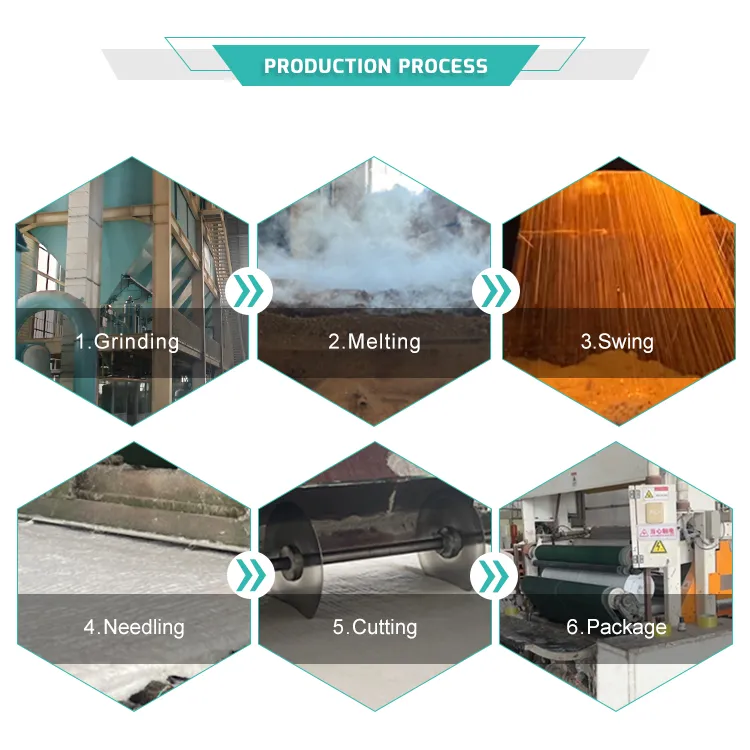

It is manufactured through a continuous needled process, ensuring excellent fiber strength, uniform texture, low thermal conductivity, and superior temperature resistance. Classification grades: 1260°C / 1350°C / 1430°C.
⭐ Key Features
High Temp Performance: Rated for 1260°C-1430°C, ideal for furnace walls.
Tensile Strength: Uniform needling structure minimizes shrinkage.
Energy Saving: Thermal conductivity as low as 0.035-0.045 W/m·K.
Lightweight: Low heat storage improves furnace heating efficiency.
Sound Absorption: Provides both thermal and acoustic insulation.
Eco-Friendly: Non-toxic, chemical-resistant, and recyclable.
🏭 Industrial Applications
- Furnaces & Kilns: Lining, back lining, and annealing furnaces.
- Boilers: Door insulation and burner protection.
- Refractory: Expansion joint filling and backup insulation.
- Construction: Fire protection and HVAC duct insulation.
📊 Technical Data Sheet
| Properties |
ST BLT |
GC BLT |
HA BLT |
HZ BLT |
PC BLT |
| Spec. Temp (ºC) |
1260 |
1260 |
1360 |
1430 |
1600 |
| Working Temp (ºC) |
1050 |
1100 |
1200 |
1350 |
1500 |
| Bulk Density (kg/m³) |
64-160 |
64-160 |
64-160 |
64-160 |
96/128 |
| Al2O3 (%) |
43 |
44 |
51 |
35 |
71 |
| Tensile Strength (MPa) |
0.05 |
0.05 |
0.06 |
0.06 |
0.08 |
❓ Frequently Asked Questions
Q1: Is 25mm thickness suitable for furnace lining?
Yes - It is commonly used as a high-temperature hot-face or back-up insulation layer for optimal thermal management.
Q2: Which density should I choose: 96 or 128 kg/m³?
96 kg/m³ is economical and lightweight; 128 kg/m³ offers higher tensile strength and improved thermal insulation performance.
Q3: Can you produce 50mm or other custom thicknesses?
Yes - Thickness, density, and roll length can all be customized according to your specific project requirements.
Q4: What is the maximum classification temperature?
We offer different grades ranging up to 1430°C for standard fiber and 1600°C for polycrystalline fiber.
Q5: Do you provide related refractory products?
Yes - A complete ceramic fiber system is available, including modules, boards, paper, and textiles.
Q6: Is this material chemical resistant?
Yes, ceramic fiber blankets offer excellent resistance to most chemicals, except hydrofluoric, phosphoric acids, and strong alkalis.
