Aluminium Silicate Fibre Shaped Products Ceramic Fiber Heteromorphism Special Shape Ceramic Fibre Board

📋

Basic Info

Model NO.	Ceramic Fiber Board	Chemical Composition	Al2O3.SiO2, Al2O3
Shape	Ceramic Fiber Plate	Manufacturing Technique	Spray Silk Rug
Kind	Low Temperature Ceramic Fiber	Refractoriness	1580 < Refractoriness < 1770
Color	White	Al2O3+Sio3	96%
Transport Package	Plastic Woven Bag	Production Capacity	100mt Per Month

🔍

Product Description

Ceramic fiber board is a lightweight refractory material processed with alumina-silica fibers for applications at temperatures up to 1430C. It is manufactured and designed for thermal applications requesting high demands on rigidity. The thermal insulation properties and abrasion resistance of ceramic fiber board have been further improved due to higher density. It is a vacuum-formed product that resists higher gas velocities than ceramic fiber blankets, making it ideal for furnace, boiler duct, and stack lining.

✨

Features & Applications

Main Features

Smooth surface finish
Average density and thickness
Excellent mechanical and structural strength
Low thermal conductivity and shrinkage
Excellent thermal capacity

Typical Applications

Lining of high temperature industrial kilns
Combustion chamber liner for boilers and heaters
Backup insulation for monolithic refractories
Barrier against flame and fireproof board

📊

Technical Specifications

Properties	ST BOD	GC BOD	HZ BOD	TP64 BOD	TP74 BOD
Specification Temp. (ºC)	1260	1260	1430	1600	1700
Working Temp (ºC)	1000	1100	1350	1450	1550
Bulk Density (kg/m³)	280-400	280-400	280-400	400-500	450-500
Al2O3 (%)	38	42	34	64	75
Tensile Strength (MPa)	0.2	0.2	0.2	0.3	0.3

🖼️

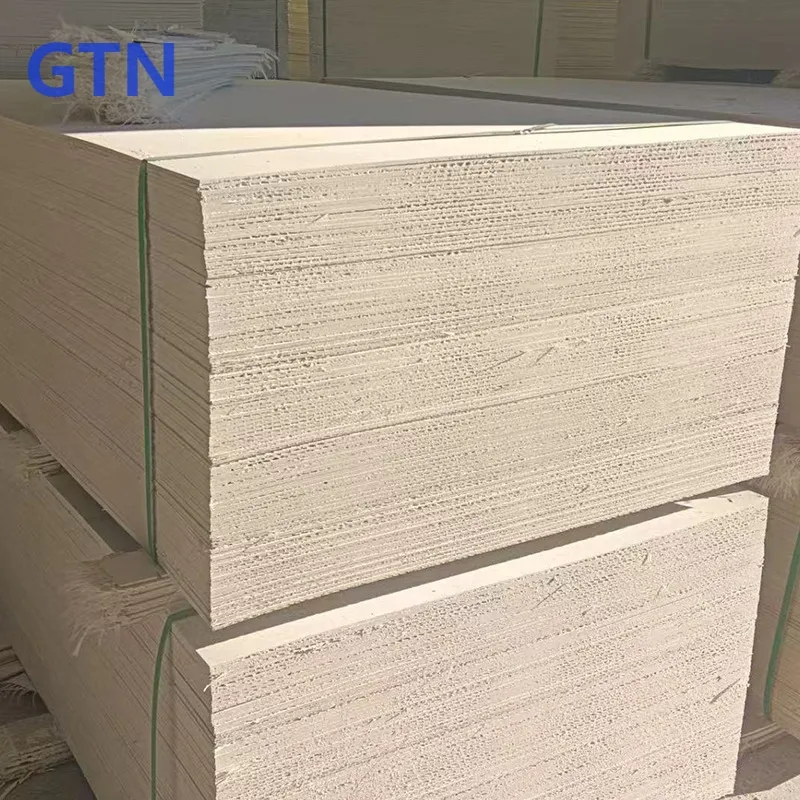

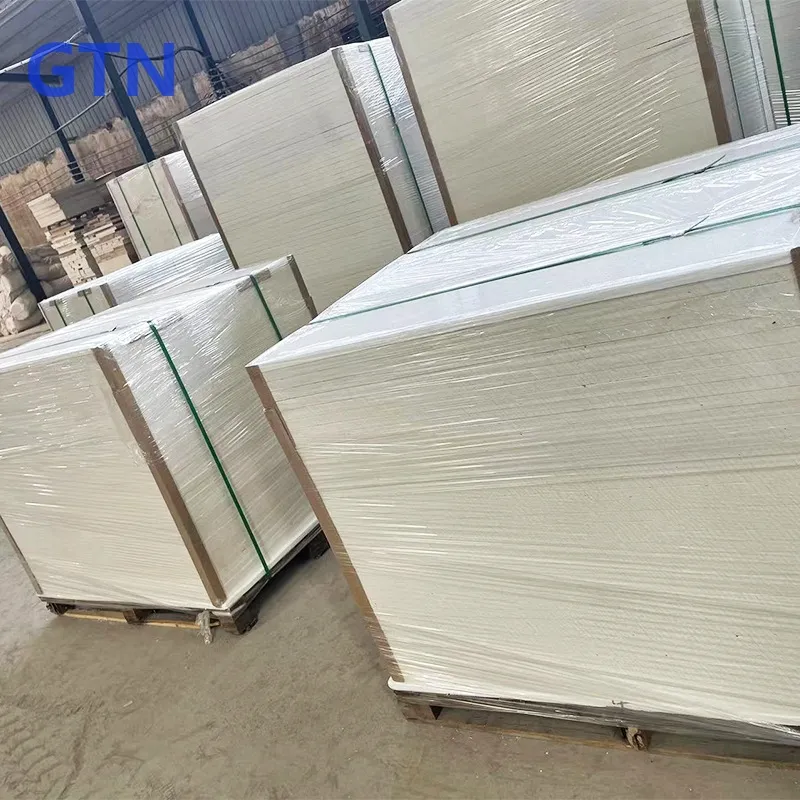

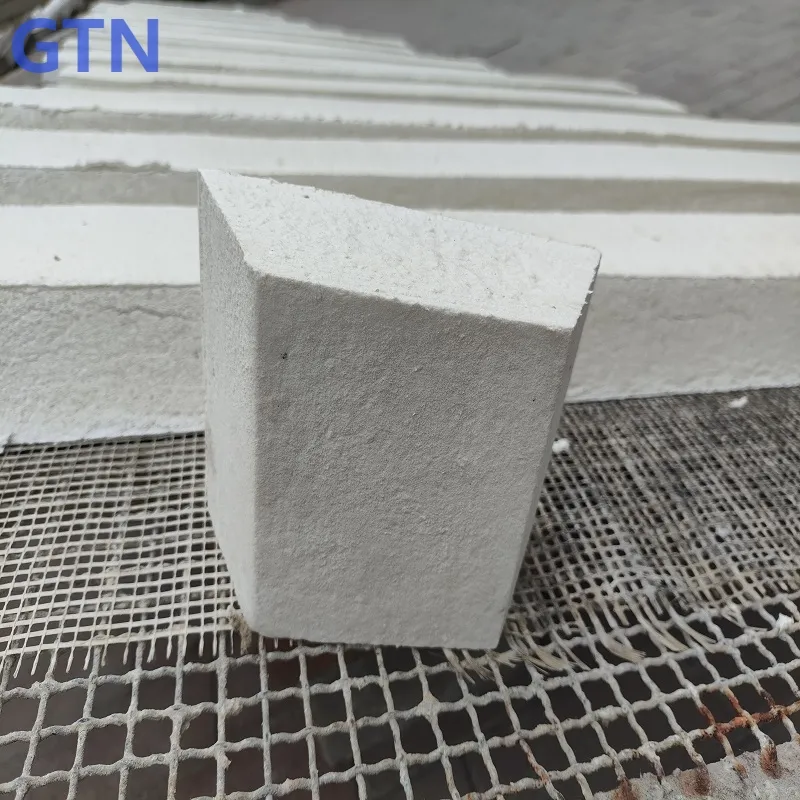

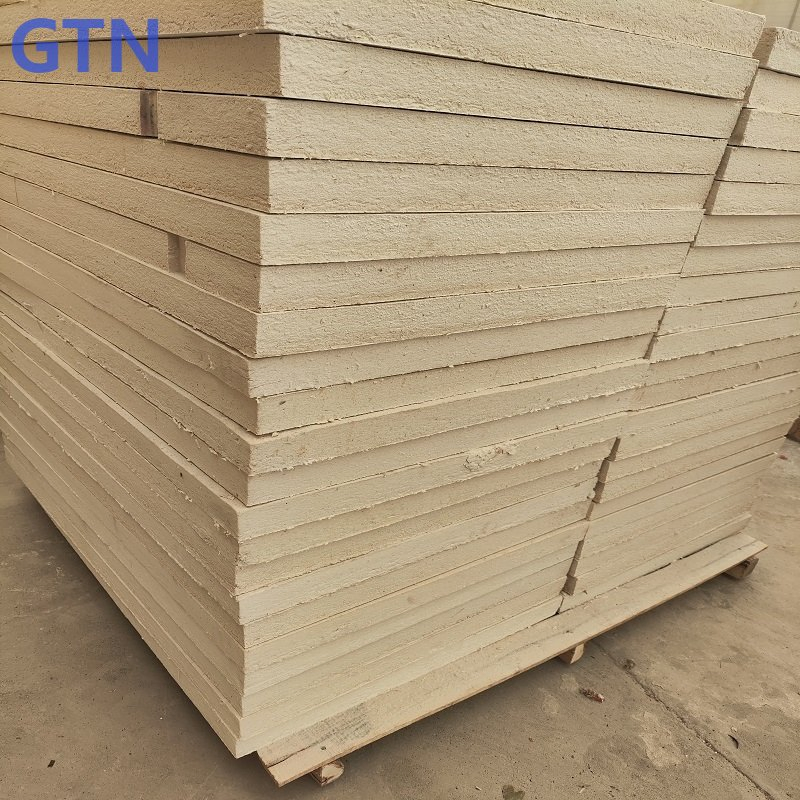

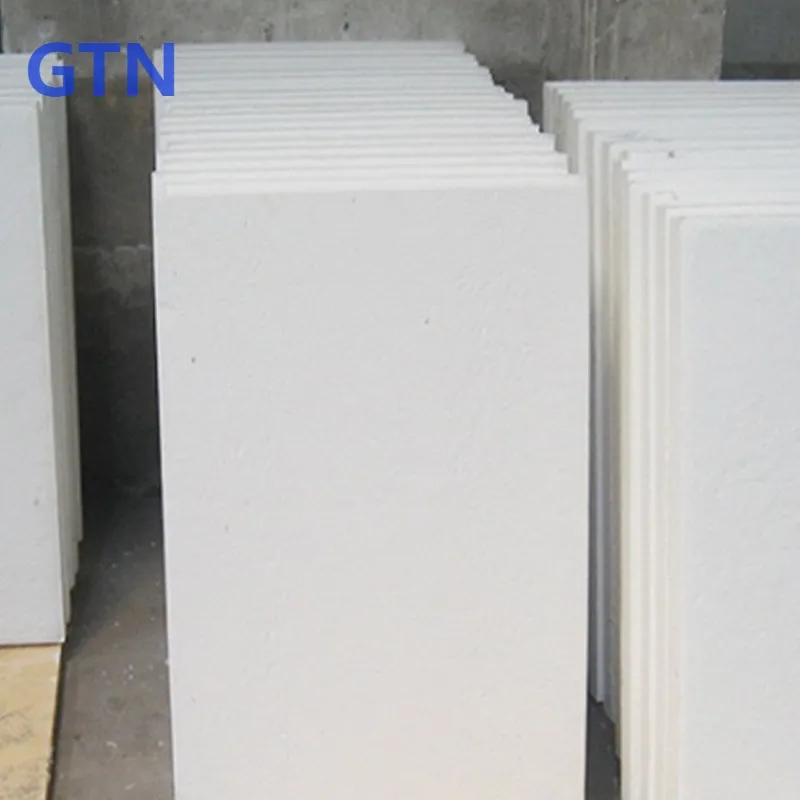

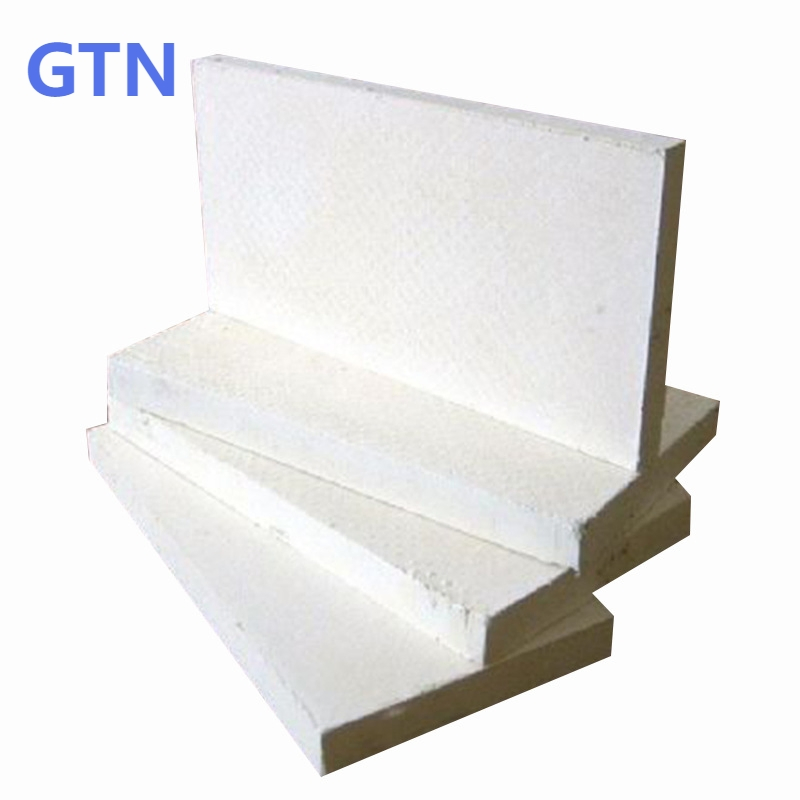

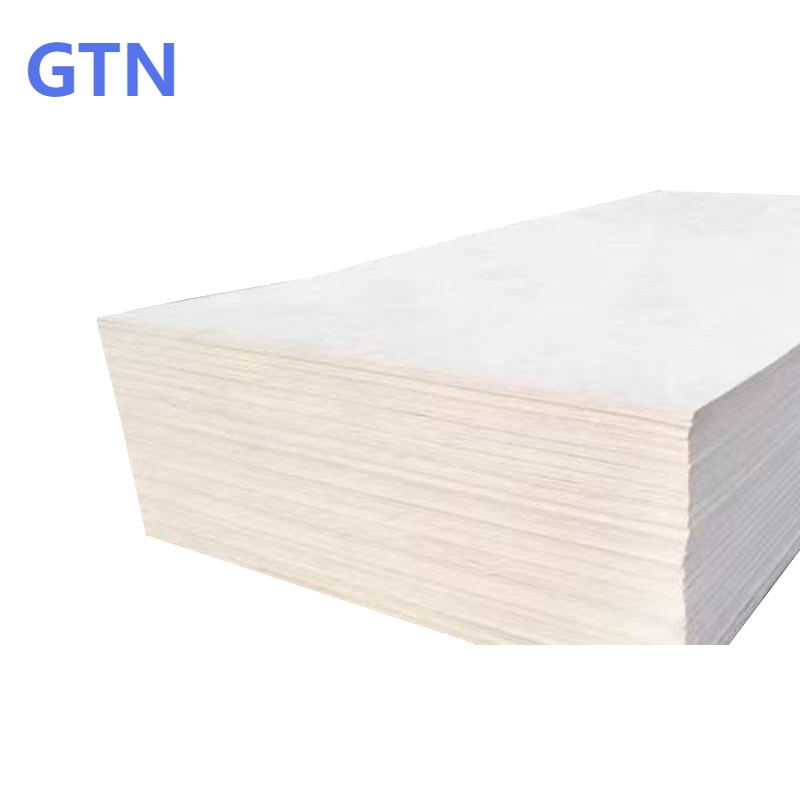

Product Gallery

📦

Packaging & Shipping

❓

Frequently Asked Questions

1. Are you a manufacturer or trader?

We are a manufacturer.

2. What is the MOQ?

For normal sizes, there is no MOQ. For custom demand sizes, the MOQ is 100 pieces.

3. Why should you buy from us instead of other suppliers?

We offer professional technology and production teams, 5 production lines, an annual output of nearly 20,000 tons, and the ability to customize products according to your requirements or drawings.

4. Do you provide free samples?

Yes, we can offer free samples for quality testing.

5. How do you guarantee quality?

Before mass production, we produce a batch of samples for inspection. Product quality is checked again thoroughly before delivery.

6. Can we visit your factory?

Yes, we sincerely welcome you to visit our factory facilities.
