1260 Ceramic Fiber Board Insulation Material Fire Resistance

1 / 5

1260 Ceramic Fiber Board Insulation Material Fire Resistance

Customization:	Available
Usage:	High Temperature Insulating Material
Temprature Classification:	1260℃

Send Inquiry

Product Description

📊 Basic Information

Model NO.CT 1260

Chemical CompositionSiO2, Al2O3

ShapeCeramic Fiber Plate

TechniqueSpray Silk Rug

ColorWhite

Density250-300 Kg/M3

Thermal Conductivity0.12 (at 500℃)

HS Code6806101000

📝 Product Description

Cement kiln ceramic fiber fireproof ceiling board

1. Our ceramic fiber boards are manufactured using high-quality ceramic fiber corresponding to specific temperature levels. These are shaped through large automatic vacuum filter molding machines and finalized through specialized baking processes.

2. The resulting product features excellent toughness, uniform material distribution, and superior thermal insulation performance.

3. Designed to be lightweight and non-inflated when heated, these boards allow for convenient construction, free shearing, and bending, making them ideal for furnaces and piping.

✨ Product Features

Low thermal conductivity and low heat storage
High temperature stability and thermal shock resistance
High crushing strength and excellent toughness
Easy machining, cutting, and application
Highly resistant to airflow erosion

🚀 Typical Applications

Industrial furnace hot face and back face insulation
Kiln liners, kiln cars, and door dampers
Molding moulds for craft glass and deep processing
Shipbuilding and aerospace heat/fire/sound proofing

📋 Technical Data Sheet

Type	CT-1260	CT-1430
Classification Temperature (ºC)	1260	1430
Density (kg/m³)	200 ± 15	200 ± 15
Permanent Linear Shrinkage %	≤ 3.5 (1000ºC)	≤ 3.5 (1200ºC)
Al2O3 Content %	43	32
Thermal Conductivity @ 400ºC	0.085 - 0.110	0.115 - 0.121
Width (mm)	610	610

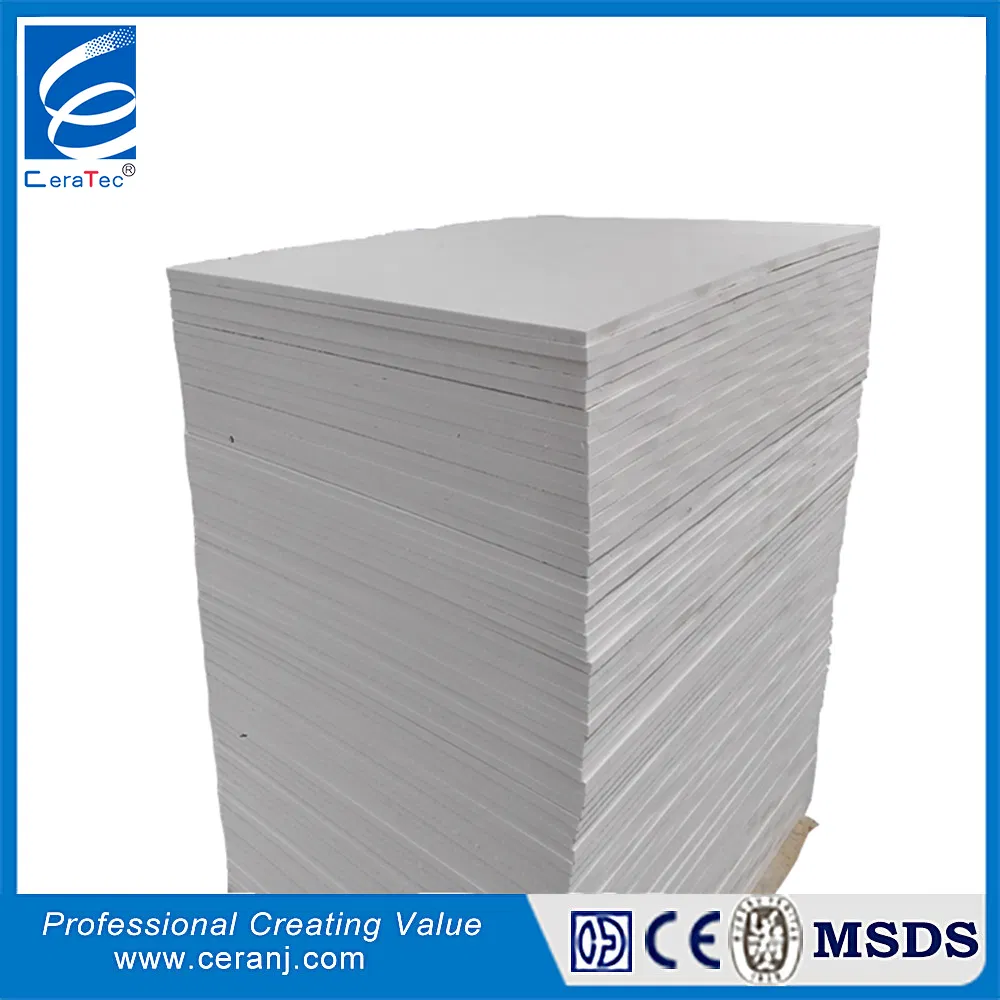

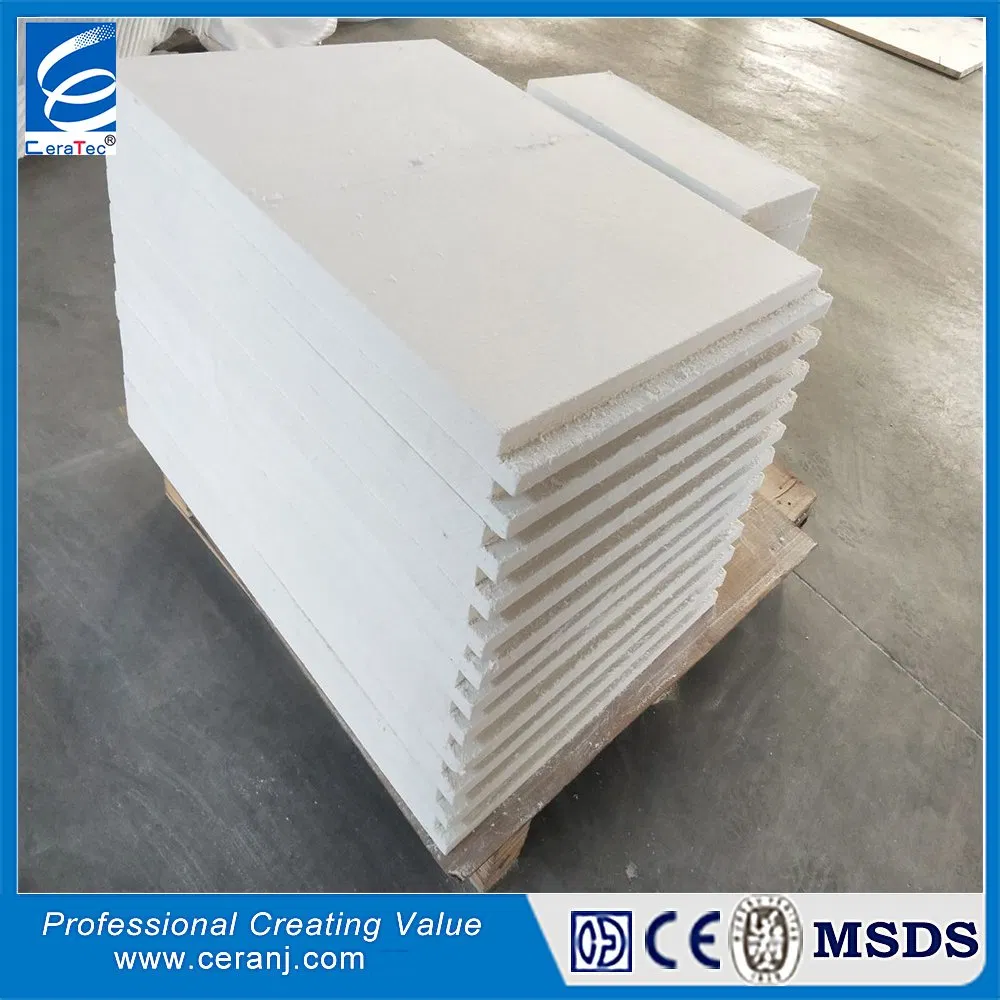

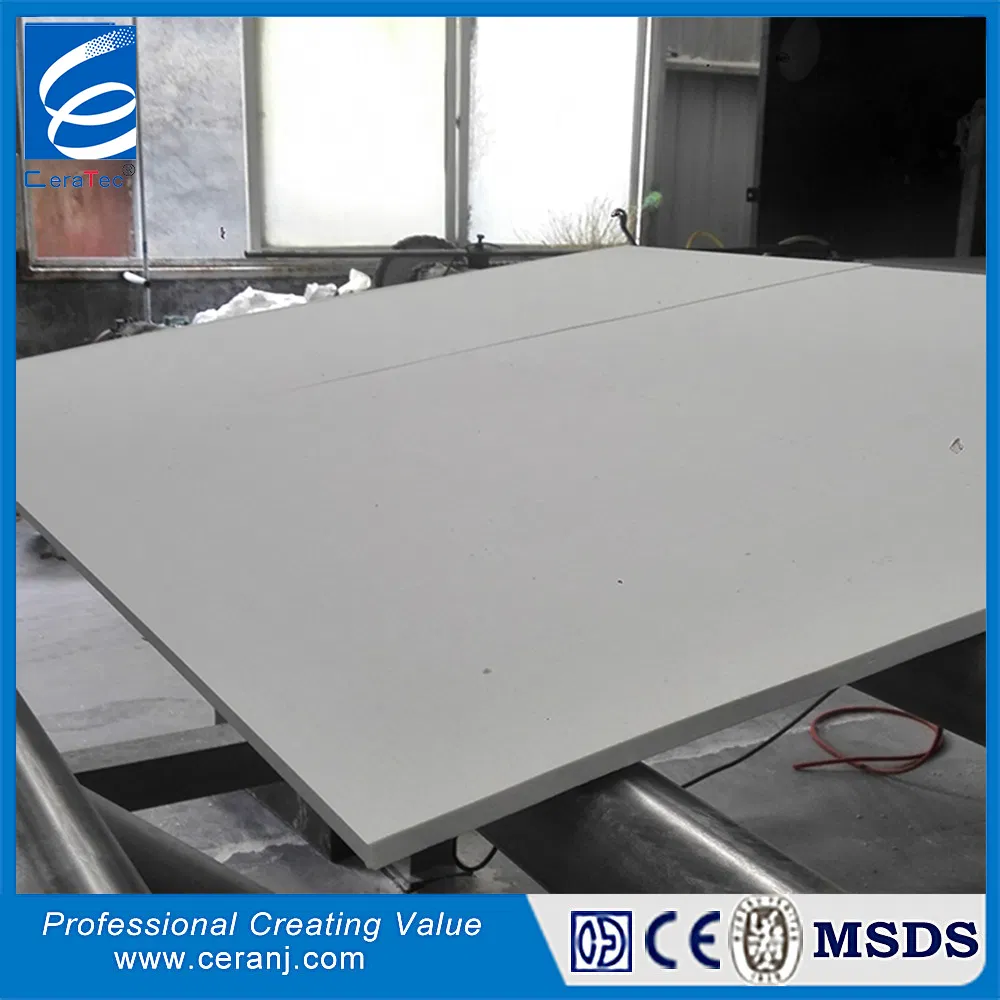

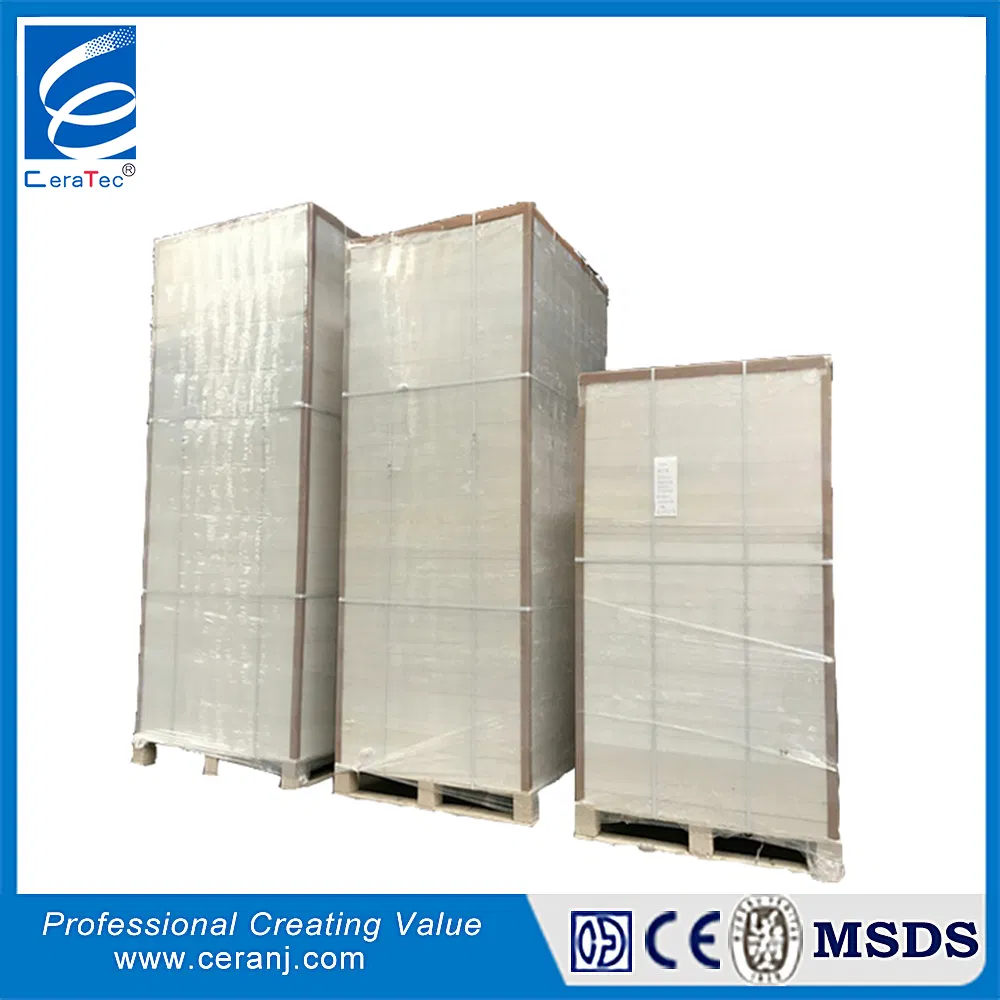

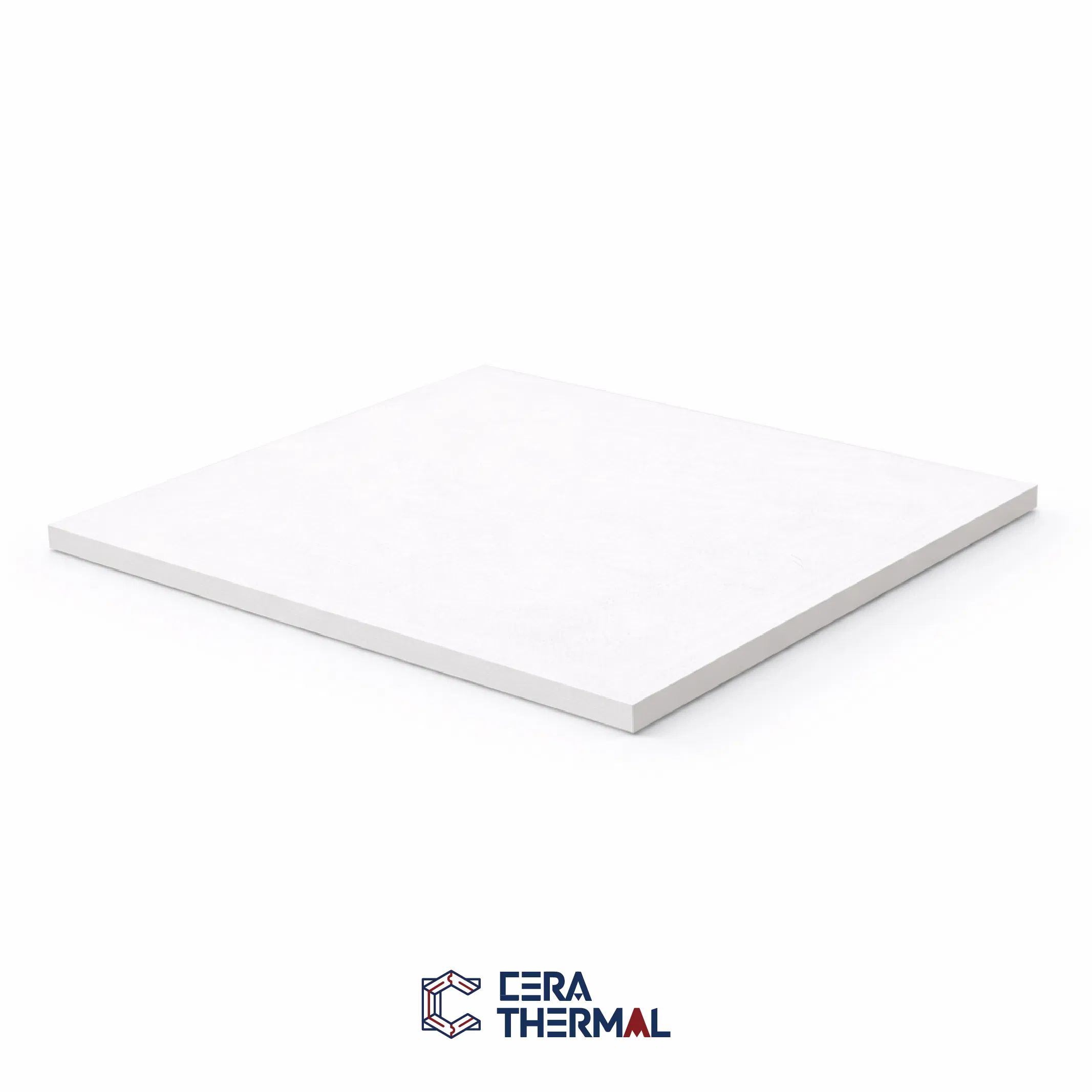

🖼️ Product Gallery

Frequently Asked Questions (FAQ)

What is the maximum temperature the CT-1260 board can handle?

The CT-1260 has a classification temperature of 1260ºC, making it suitable for various high-temperature industrial furnace applications.

Can the ceramic fiber board be easily cut to size?

Yes, the boards are designed to allow for easy machining and cutting, facilitating convenient construction and installation.

Is the material resistant to airflow erosion?

Absolutely. One of the key features of our ceramic fiber board is its high resistance to airflow erosion, ensuring durability in high-velocity environments.

What are the primary chemical components?

The board is primarily composed of SiO2 and Al2O3, with Al2O3 content reaching approximately 43% for the CT-1260 model.

Does the board expand significantly when heated?

No, the product is engineered so that it does not inflate significantly when heated, maintaining its shape and insulation properties.
